L3000 Compression Garbage Truck SHACMAN Garbage Truck 4x2 240hp Euro II White

Basic Information
Place of Origin: Shaanxi, Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: L3000
Minimum Order Quantity: 1UNIT
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 10000UNITS
Detail Information
Modle: SX5185ZYS8K361 Engine: WP6.240E32
Transmission: 8JS85TM+QD40J Axle: 4.8T (disc Brake) /10T Single Stage Axle 5.125
Wheel Base: 3600 Tire: 10.00R20
Fuel Tank: 200L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 870×250(7+4)
Suspension: Front /rear Multi-layer Plate Spring Cabin: L3000 Cab
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

L3000 White Garbage TruckCompression Garbage Truck

,

Euro V White Garbage Truck Shacman

,

Shacman Garbage Truck 4x2


Product Description

SHACMAN L3000 Garbage Truck 4x2 240Hp Euro II



Detailed Product Description
Model: SX5185ZYS8K361
Drive type: 4x2
Engine Brand: WEICHAI
Engine Model:
WP6.240E32
Engine Power/(kw/HP): 176kw / 240Hp
Gear box Brand: FAST
Gear box Model: 8JS85TM+QD40J



Compression Garbage Truck Parameters

Model SX5185ZYS8K361
Drive type 4x2
Weight Gross Vehicle Weight ≤25
Dimensions Wheelbase/(mm) 3600
Performance Maximum speed/(km/h) 45~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP6.240E32
Power/(kw/HP) 176w / 336Hp
Maximum torque / (N.M)/rpm 750 N·M
Displacement/(L) 6.75 L
Emission standard Euro/ II
Gear box Brand FAST
Model 8JS85TM+QD40J
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 870×250(7+4)
Suspension Front Multi-layered leaf springs
Rear Multi-layered leaf springs
Axles Brand HANDE
Front axle MAN 4.8T
Rear axle 10T single stage axle 5.125
Tires Type 10.00R20
Fuel tank Tank capacity/(L) 200L Aluminum
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN L3000 cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, with sunshade, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo.




Features

  1. Chassis: The 4x2 configuration indicates a two-axle setup with power directed to the rear axle.
  2. This configuration is suitable for the urban and suburban garbage collection, in such places, cross-country ability is not the main consideration.
  3. Trash compactor: the focus of the vehicle is its trash compactor, integrated into the chassis.
  4. The compacting machine is designed to efficiently compress and manage waste, maximize load capacity and minimize the frequency of treatment trips.



Detailed Image

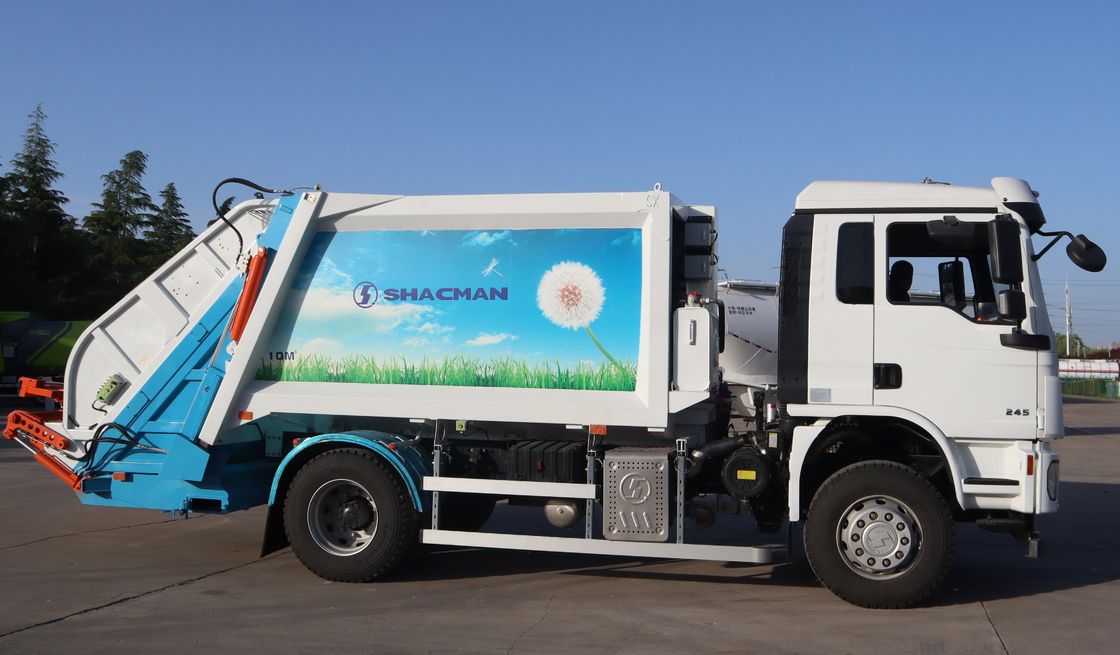

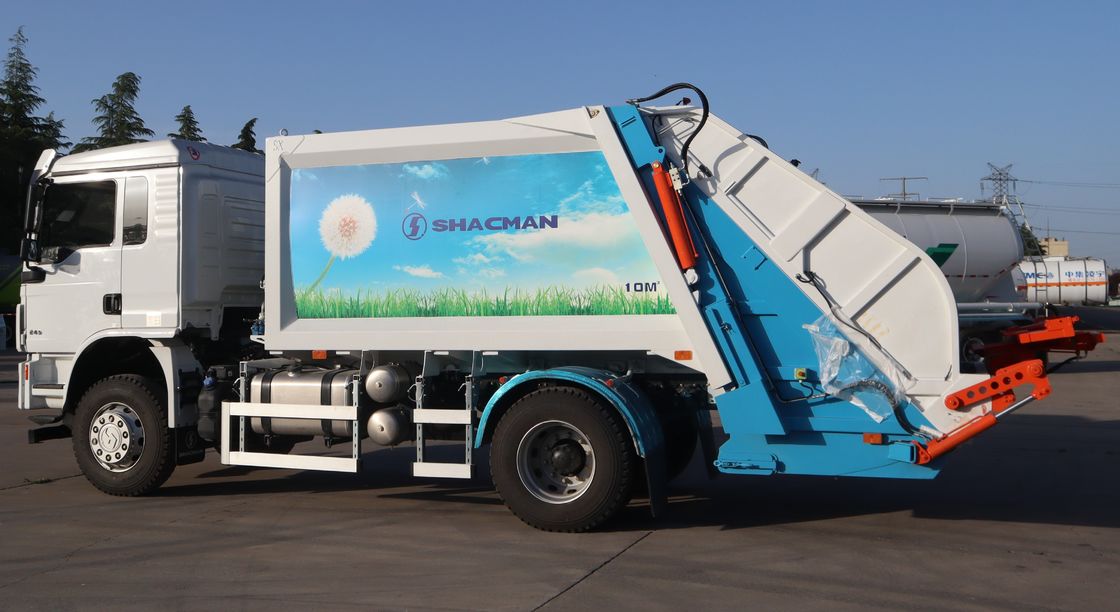

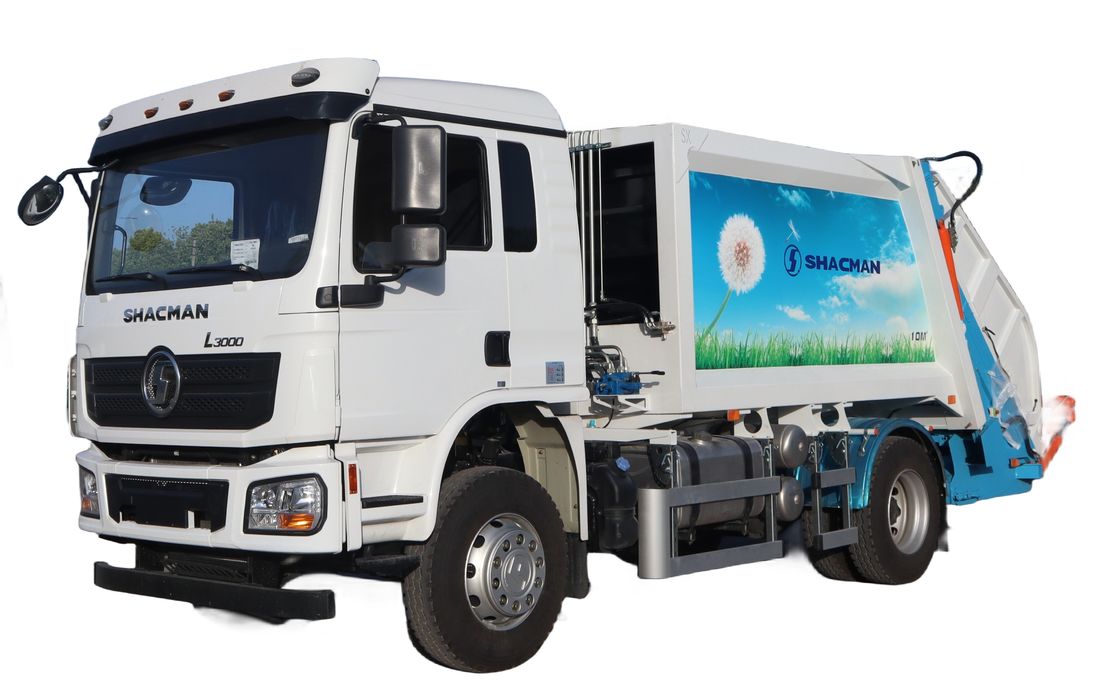

L3000 Compression Garbage Truck SHACMAN Garbage Truck 4x2 240hp Euro II White 0


FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
