SHACMAN L3000 Compression Garbage Truck Sanitation Truck 4x2 210hp Garbage Compactor Truck

SHACMAN L3000 Compression Garbage Truck Sanitation Truck 4x2 210hp Garbage Compactor Truck

Shacman L3000 Sanitation Truck

Compression Garbage Truck 4x2 210hp

EuroIi Garbage Compactor Truck

Place of Origin:

Shaanxi, Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

L3000

Contact Us
Request A Quote
Product Details
Modle:
SX5185ZYS8J361
Engine:
WP6.210E32 (No. 2 Flywheel Housing)
Transmission:
8JS85TM+QD40J
Axle:
4.8T (disc Brake)/2*10 Single Stage Axle, Axle Speed-5.125
Wheel Base:
3600
Tire:
10.00R20
Fuel Tank:
200L
Clutch:
φ430 Diaphragm Spring Clutch
Air Inlet:
Ordinary Air Filter
Chassis:
870×250(7+4)
Suspension:
Front /rear Multi-layer Plate Spring
Cabin:
L3000 Cab
Color:
Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

Shacman L3000 Sanitation Truck

,

Compression Garbage Truck 4x2 210hp

,

EuroIi Garbage Compactor Truck

Payment & Shipping Terms
Minimum Order Quantity
1UNIT
Price
Negotiation
Packaging Details
Nude pack, with wax before shipment.
Delivery Time
45 working days
Payment Terms
T/T, L/C
Supply Ability
5000UNITS
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

SHACMAN L3000 Garbage Truck 4x2 210Hp Euro II



Detailed Product Description
Model: SX5185ZYS8J361
Drive type: 4x2
Engine Brand: WEICHAI
Engine Model: WP6.210E32 (No. 2 flywheel housing)
Engine Power/(kw/HP): 155kw / 210Hp
Gear box Brand: FAST
Gear box Model: 8JS85TM+QD40J



Compression Garbage Truck Parameters

Model SX5185ZYS8J361
Drive type 4x2
Weight Gross Vehicle Weight ≤25
Dimensions Wheelbase/(mm) 3600
Performance Maximum speed/(km/h) 45~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP6.210E32 (No. 2 flywheel housing)
Power/(kw/HP) 155w / 210Hp
Maximum torque / (N.M)/rpm 750 N·M
Displacement/(L) 6.23 L
Emission standard Euro/ II
Gear box Brand FAST
Model 8JS85TM+QD40J
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 870×250(7+4)
Suspension Front Multi-layered leaf springs
Rear Multi-layered leaf springs
Axles Brand HANDE
Front axle 4.8T (disc brake)
Rear axle 10T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 10.00R20
Fuel tank Tank capacity/(L) 200L Aluminum
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN L3000 cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, with sunshade, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo.




Overview

  1. Engine: The truck is powered by a 210 horsepower (Hp) Euro II engine. Euro II refers to the European emission standard for vehicle engines, offering a balance between performance and emissions control.
  2. Chassis: The 4x2 configuration signifies a two-axle setup, with power being delivered to the rear axle. This configuration is suitable for urban and suburban waste collection, where off-road capability is not a primary consideration.
  3. Garbage Compactor: The primary feature of the vehicle is its garbage compactor, which is integrated onto the chassis. The compactor is designed to efficiently compress and manage waste, optimizing load capacity and reducing the frequency of disposal trips.



Detailed Image

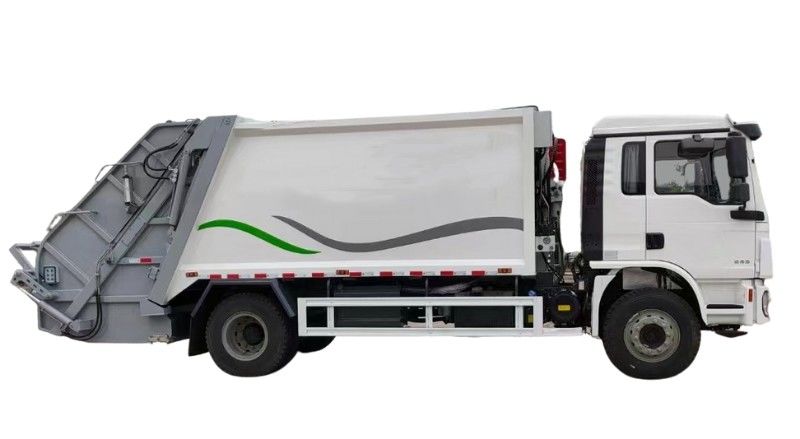

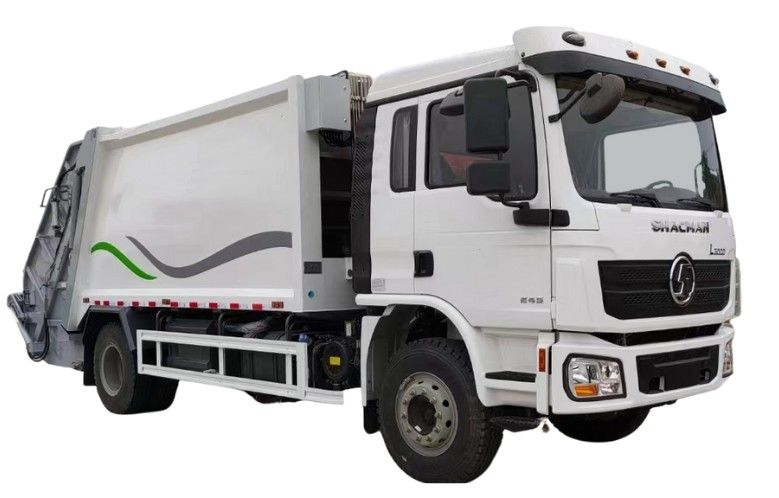

SHACMAN L3000 Compression Garbage Truck Sanitation Truck 4x2 210hp Garbage Compactor Truck 0
