Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO9001/CCC |
Model Number: | H3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 units/month |
Modle: | SX1255HT454 | Engine: | WP10.380E22 |
---|---|---|---|
Transmission: | 10JSD180 | Axle: | 7.5T/2*13 Single Stage Axle, Axle Speed-4.266 |
Wheel Base: | 4575+1400 Mm | Tire: | 12.00R20 |
Fuel Tank: | 400L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+5) |
Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts | Cabin: | Extended Flat Roof |
Color: | Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy | ||
Highlight: | Orange Large Cargo Truck SHACMAN,SHACMAN X3000 8 Wheel Lorry,8x4 Large Cargo Truck |
SHACMAN H3000 6x4 380Hp 10 Wheel Lorry White Large Cargo Truck
Detailed Product Description
Model:SX1255HT454
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST
Gear box Model:10JSD180
Van Cargo Truck Parameters
Model | SX1255HT454 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 4575+1400 mm |
Performance | Maximum speed/(km/h) | 50~65/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 280kw / 380Hp | |
Maximum torque / (N.M)/rpm | 1600 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 10JSD180 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5) | |
Suspension | Front | Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
Rear | Multi-layer plate spring 2 main plates + 2 U-shaped bolts | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN H3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
Overview

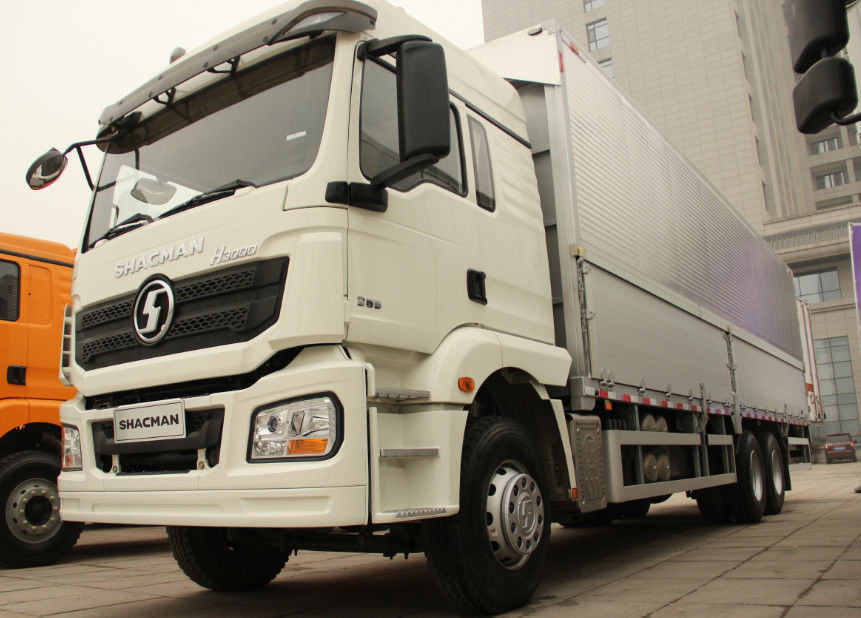

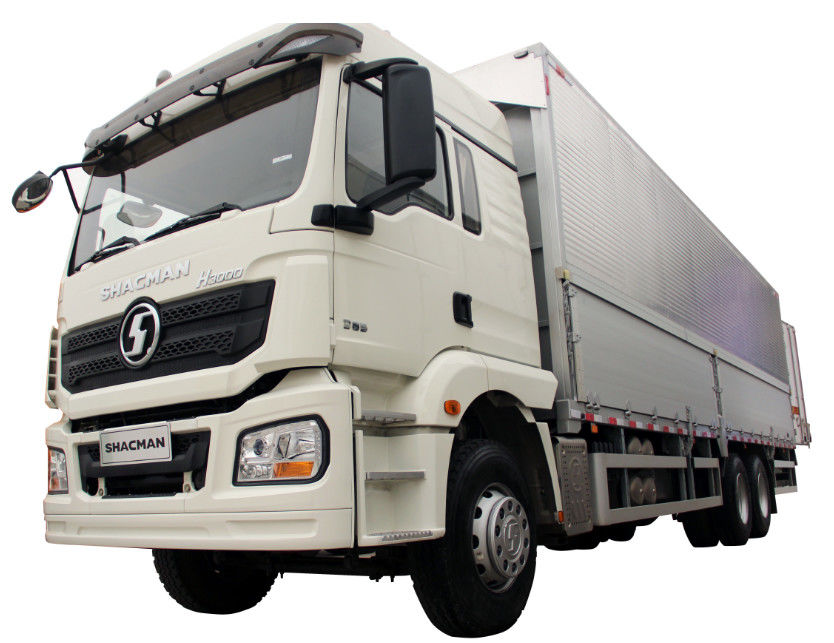

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
