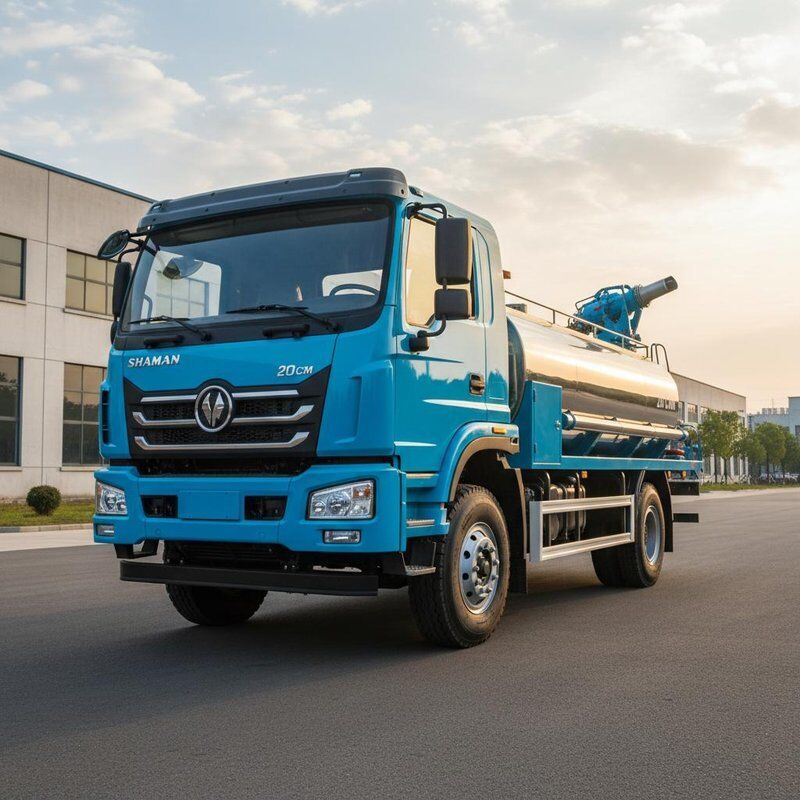

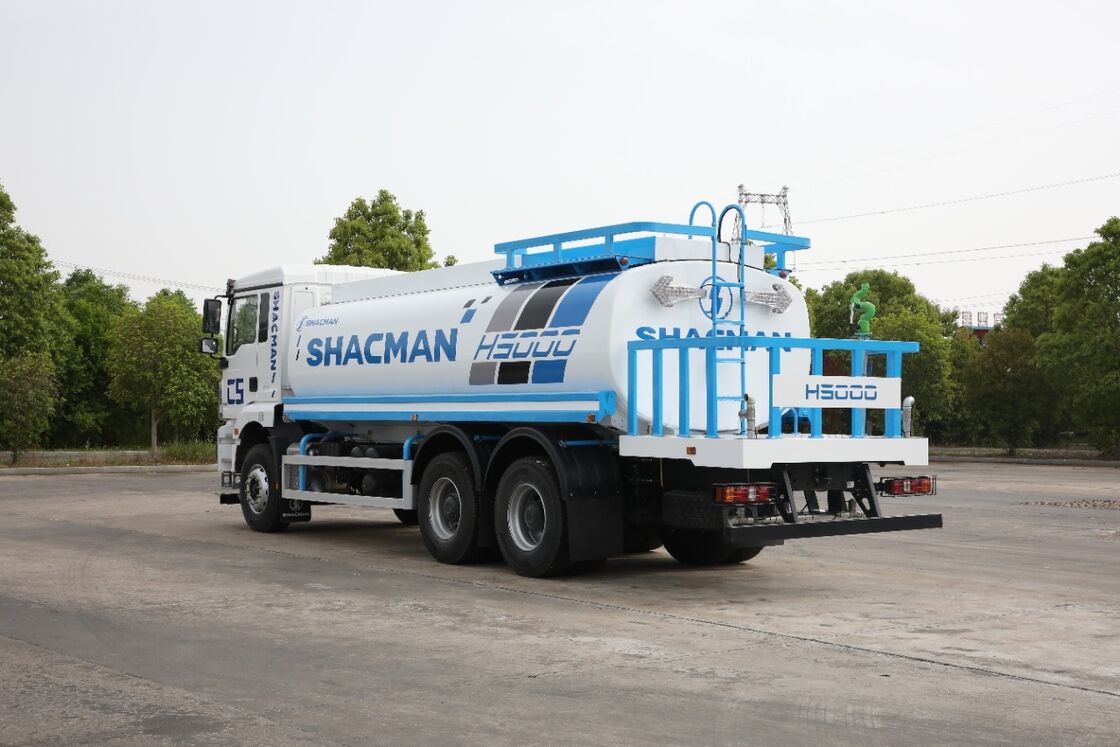

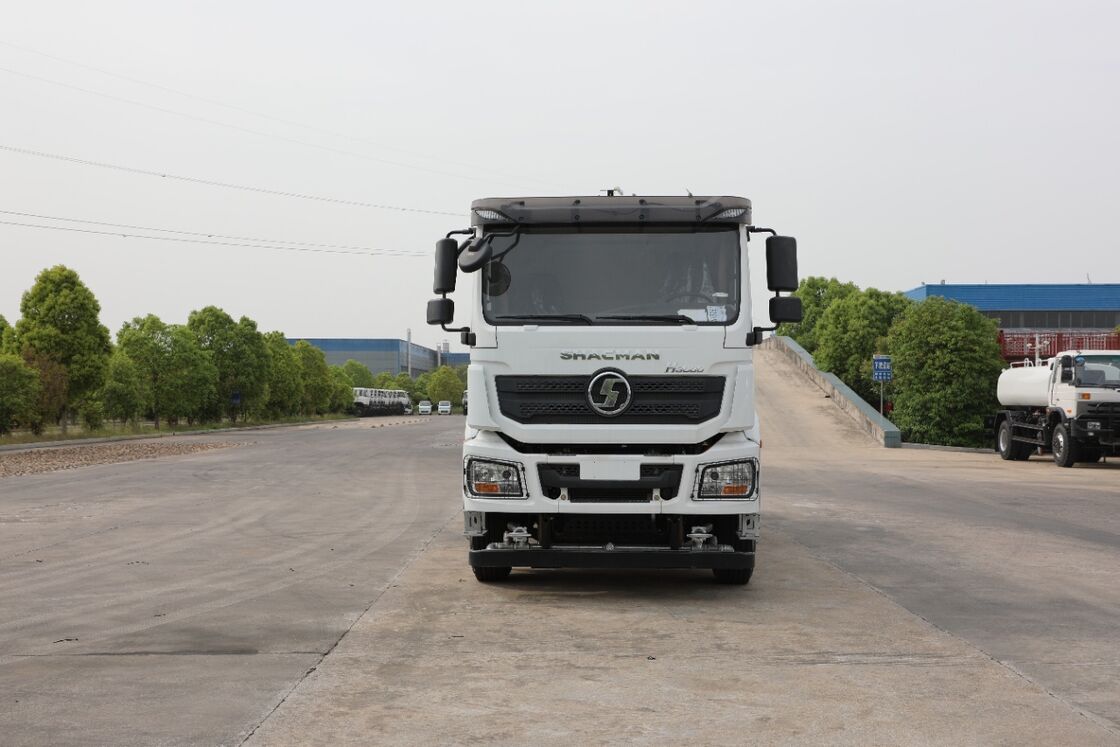

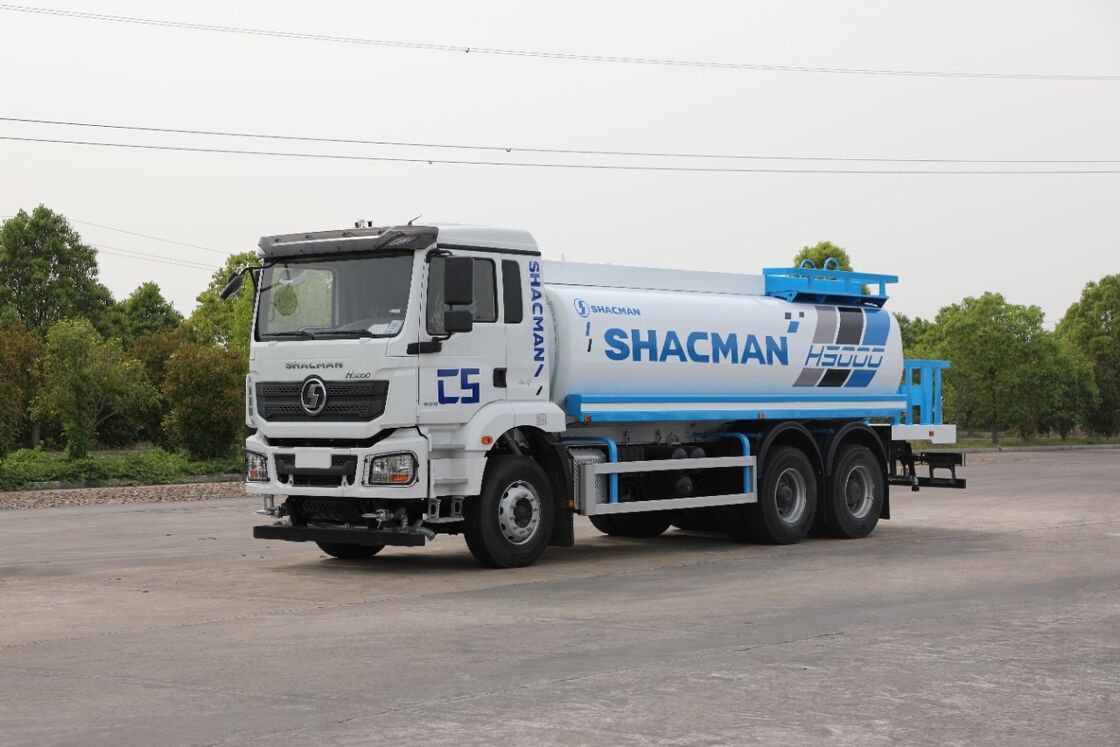

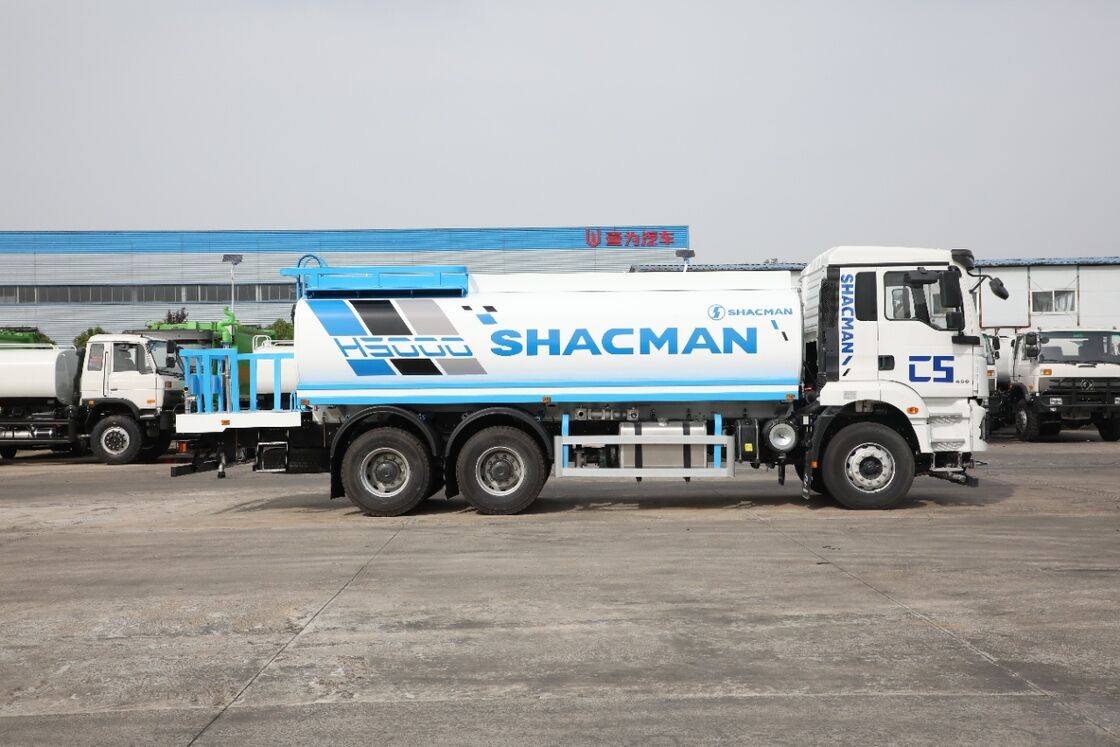

SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank

SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank

345HP Sprinkler Truck

6X4 Drive Heavy Dump Truck

20 Cubic Meters Tank SHACMAN H3000S

Place of Origin:

China

Brand Name:

SHACMAN

Model Number:

H3000S

Contact Us
Request A Quote
SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank SHACMAN H3000S 6X4 Sprinkler Truck with 345HP Engine and 20 Cubic Meters Tank
Product Details
Highlight:

345HP Sprinkler Truck

,

6X4 Drive Heavy Dump Truck

,

20 Cubic Meters Tank SHACMAN H3000S

Payment & Shipping Terms
Minimum Order Quantity
1
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

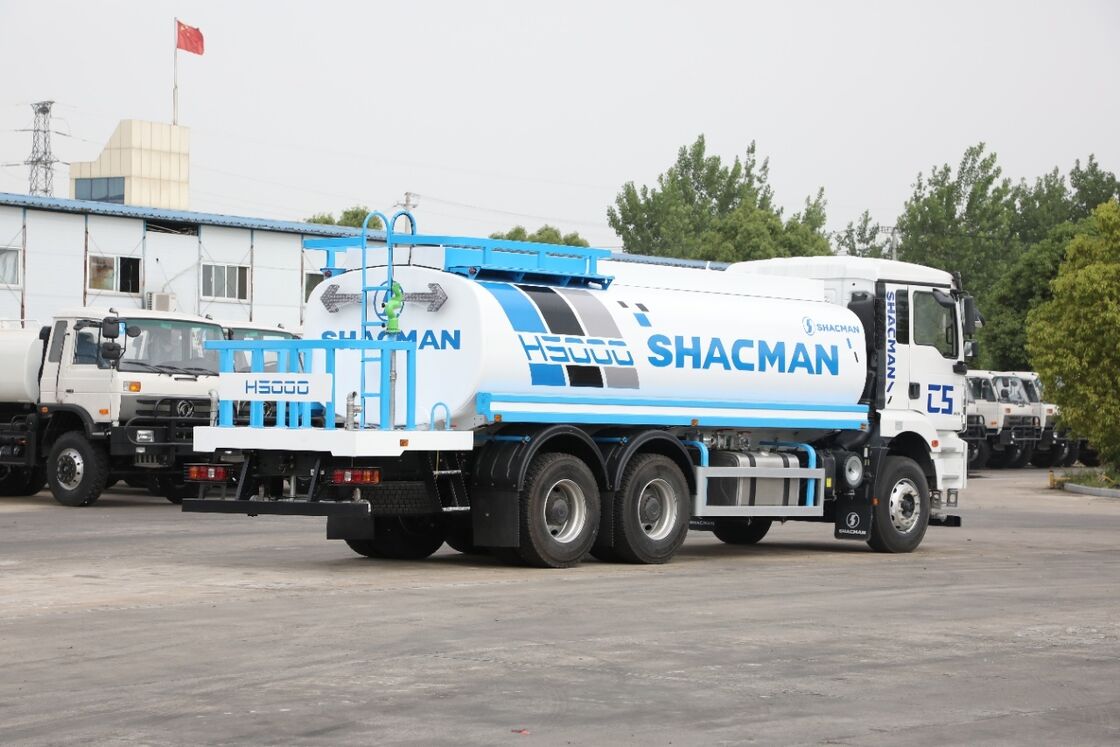

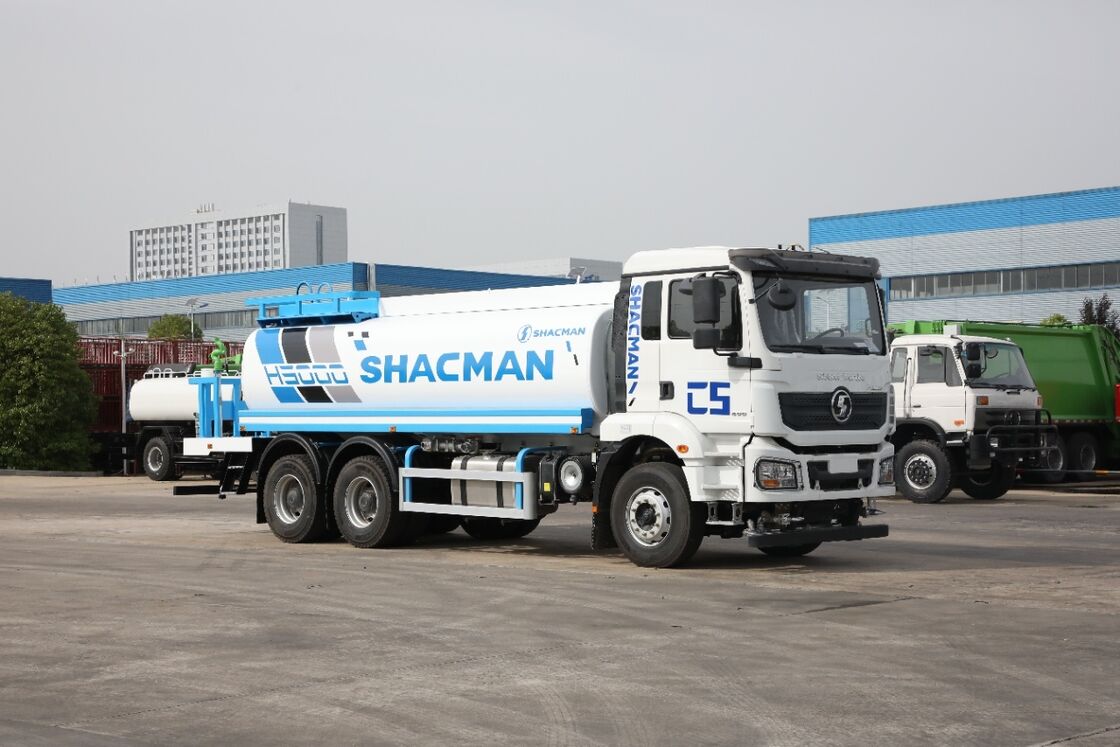

SHACMAN H3000S 6X4 Sprinkler Trucks 345HP
Vehicle Specifications
ModelSX5258GSSMR464C
Drive Type6X4
Wheelbase4575+1400 mm
Speed Range50-65 km/h (Economic) / 90 km/h (Maximum)
Gross Vehicle Weight≤35 Tons
Engine System
Engine ModelISME345 30 (JACOB)
Horsepower345 HP
Emission StandardsEuro Ⅲ
Transmission & Drivetrain
Gearbox BrandFAST
Gearbox Model10JSD180T-QH50++FHB400 retarder
Chassis Dimensions850×270(8+4) mm
Suspension & Axles
Suspension TypeFront and rear multi-leaf springs (two main pieces and two horses)
Axle BrandHANDE
Front Axle7.5T front axle HD technology
Rear Axle2×13T HD technology with differential lock between wheels
Speed Ratio4.111
Wheels & Fuel System
Tire Type13R22.5

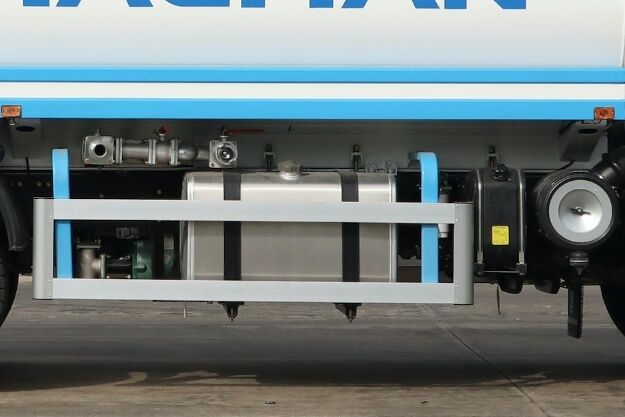

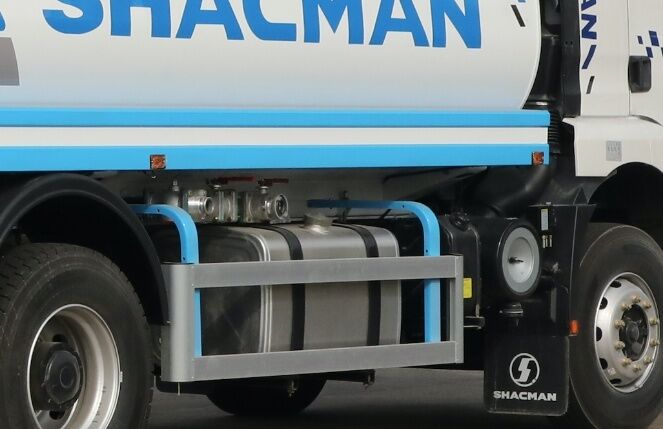

Fuel Tank Capacity300L aluminum alloy fuel tank
Cab Features
  • H3000S standard cab without deflector
  • Air main seat, fixed passenger seat
  • Ordinary rearview mirror
  • Electronically controlled automatic climate control air conditioning
  • Electric window shaker (Mabuqi motor)
  • Manual flip, road bumper
  • Three-stage boarding pedal
  • Multi-function steering wheel with cruise control
  • Four-point air suspension
  • 180Ah maintenance-free battery
  • LED daytime running lights
  • Luxury version on-board toolbox
Water Tank Specifications
Tank Volume20 cubic meters
Tank ShapeCircular
Tank MaterialQ235 carbon steel
Body Thickness5MM
Head Thickness6MM
Welding ProcessFully automatic robot welding

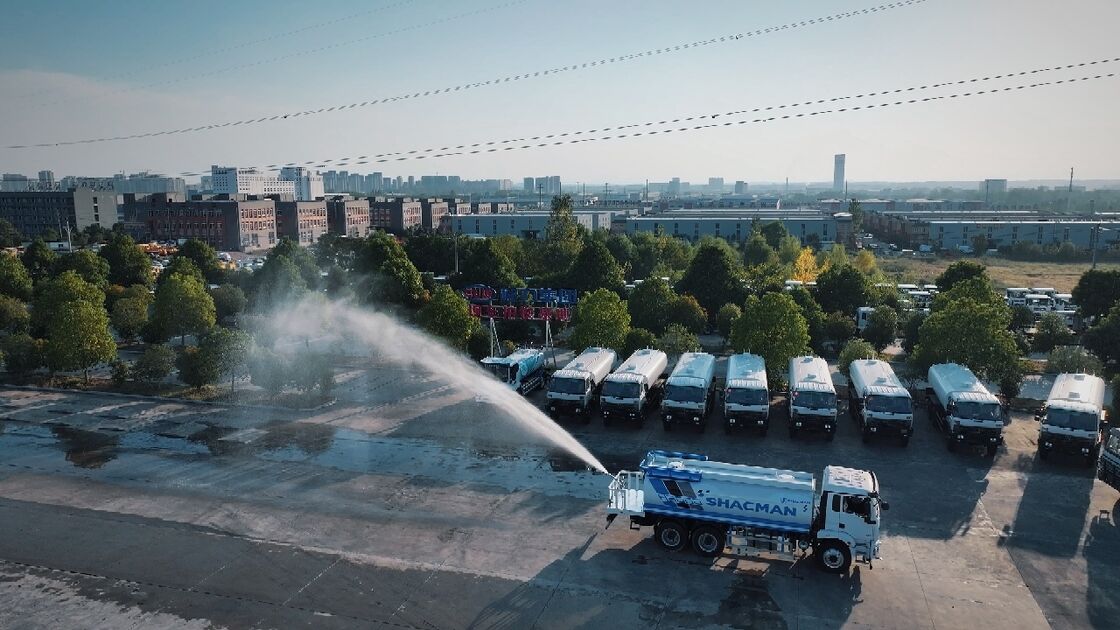

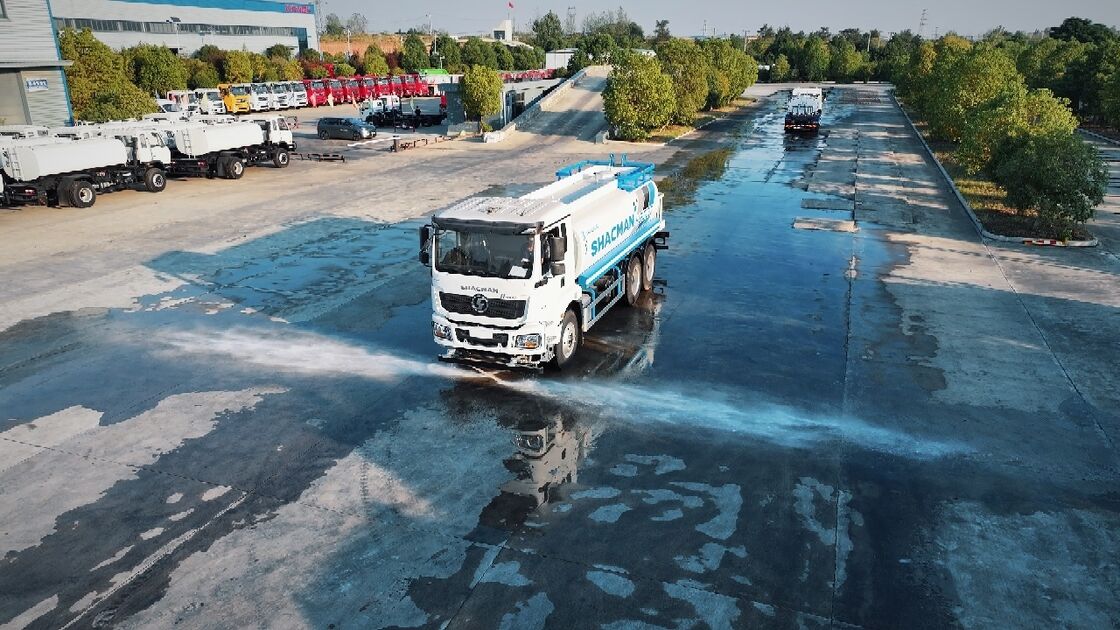

Water System & Spraying Functions
Water System: Core pump: Hangzhou Weilong 50/110 (export type)
Pipe Diameters: Main 80MM / Sub 50MM

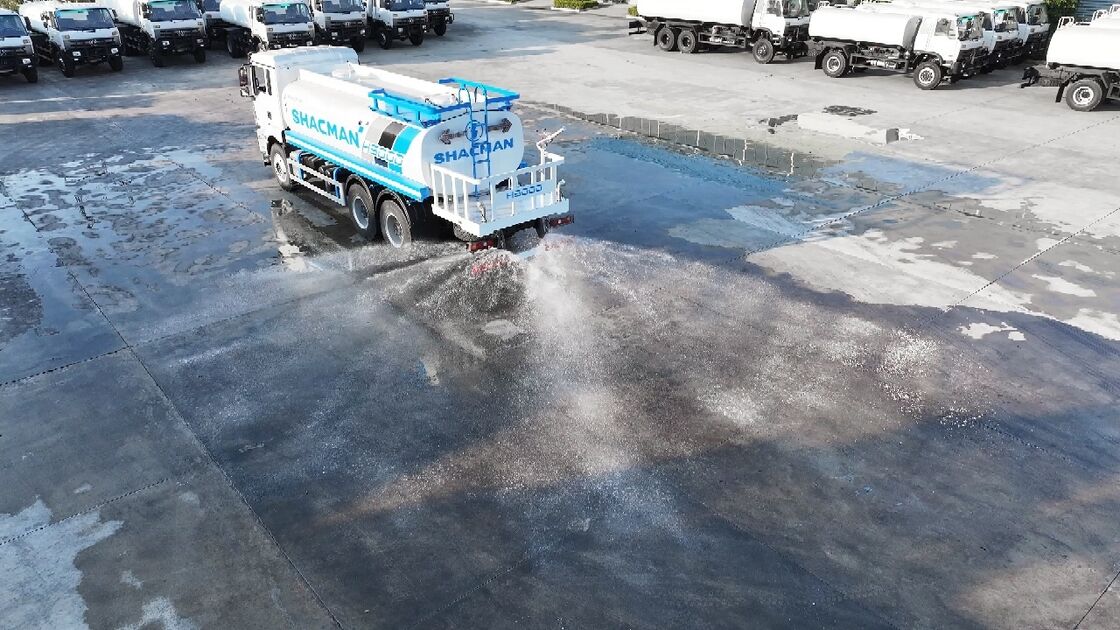

Spraying System Functions:

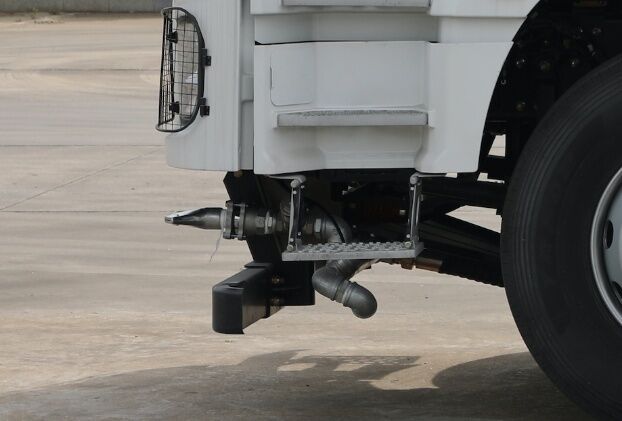

  • Front jet duck bill nozzle (1 set)
  • Opposite jet (1 set)

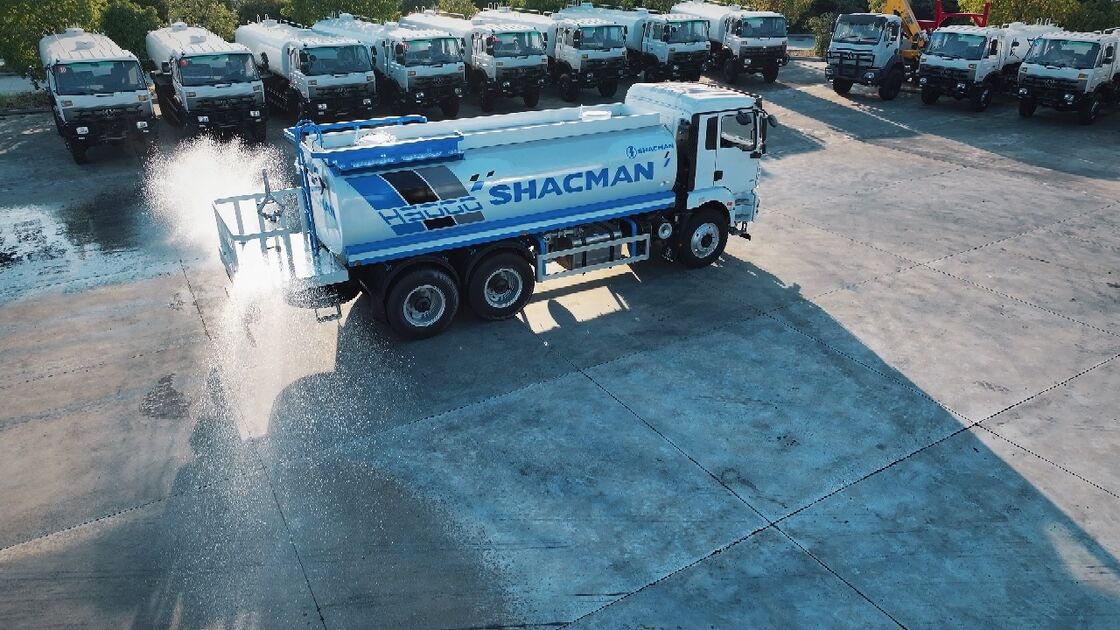

  • Rear spray (1 set)
  • Side spray (1 set)
  • Manual/Automatic control

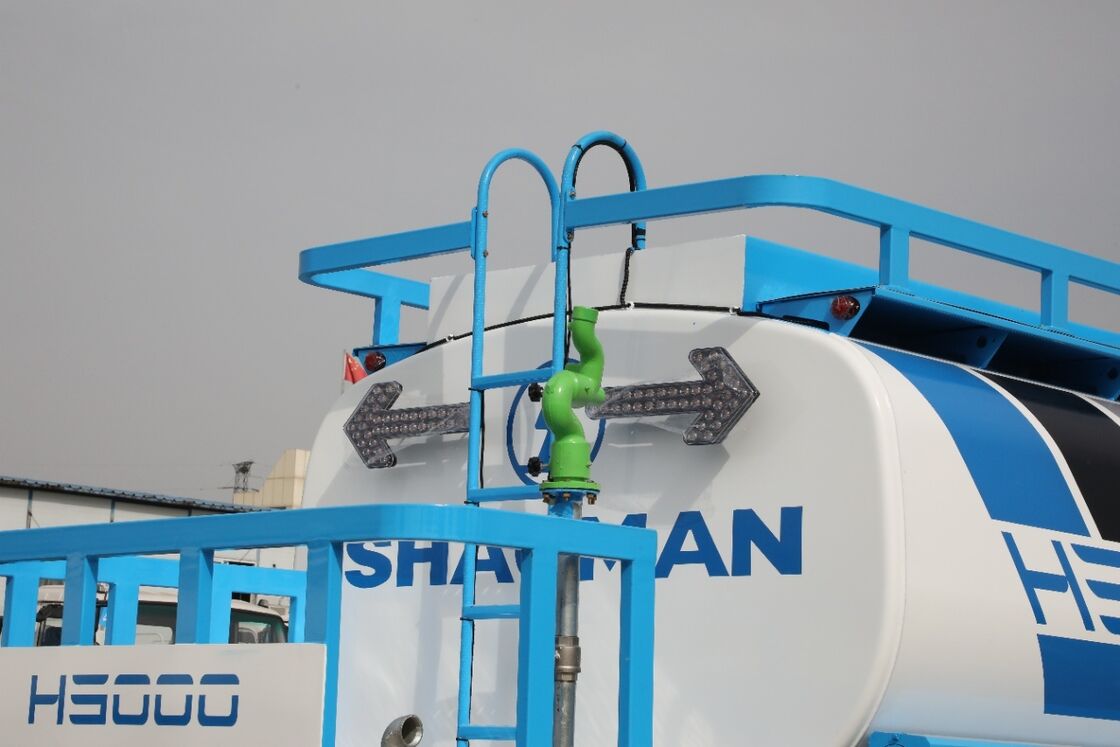

  • High-pressure water cannon
Safety & Protection Features
  • Advanced protection system

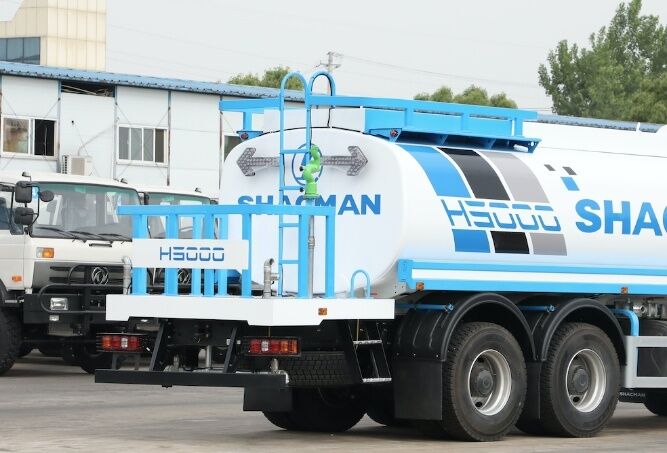

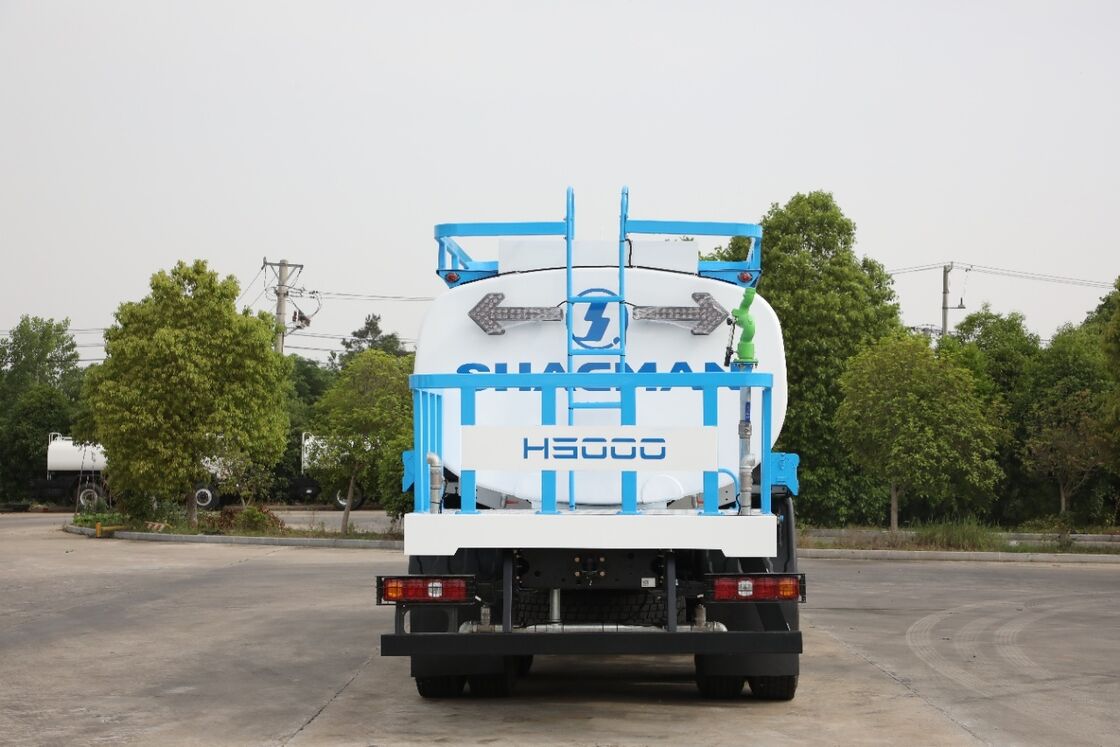

  • Extra-large rear operation platform
  • Side protection with high-strength aluminum alloy material
  • Rear mud guard with high-quality rubber material

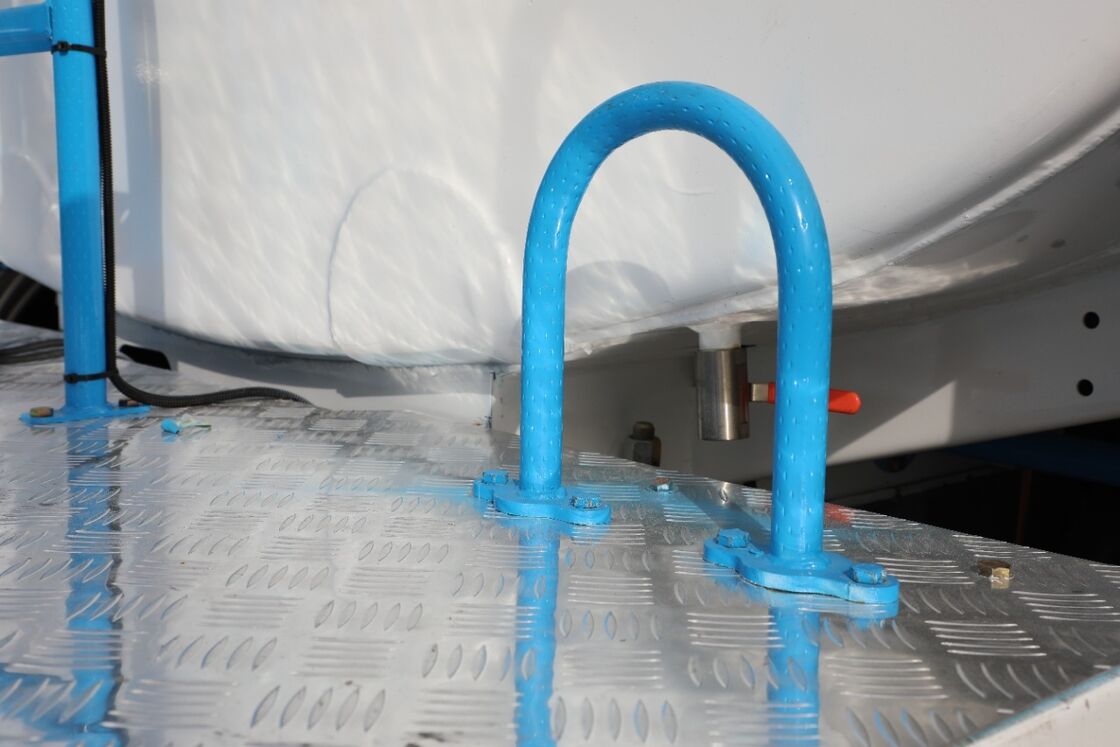

  • Platform guardrails raised and widened for enhanced safety
  • Stairway with aluminum alloy patterned plate installation
  • Rear bumper thickened and reinforced
  • Dual head safety work lights
  • Powder coating process (8-step process)
  • Tank interior electro-coating anti-corrosion
