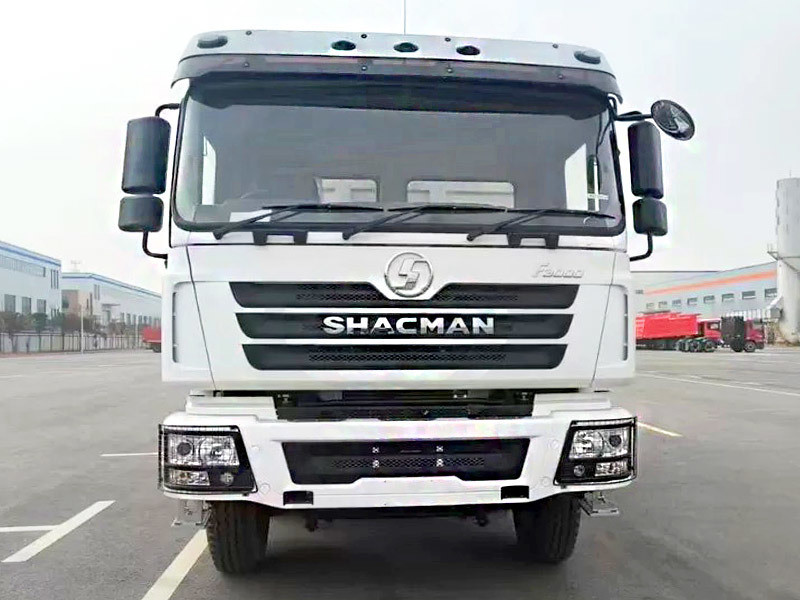

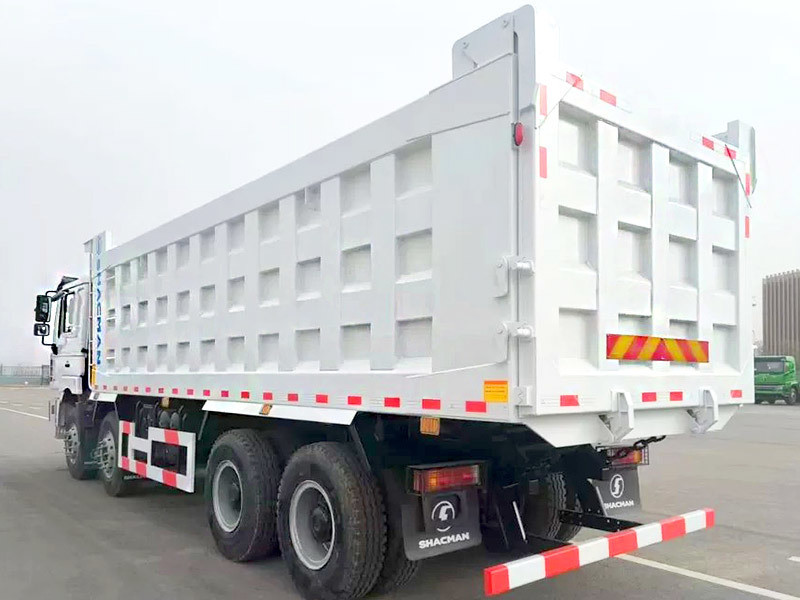

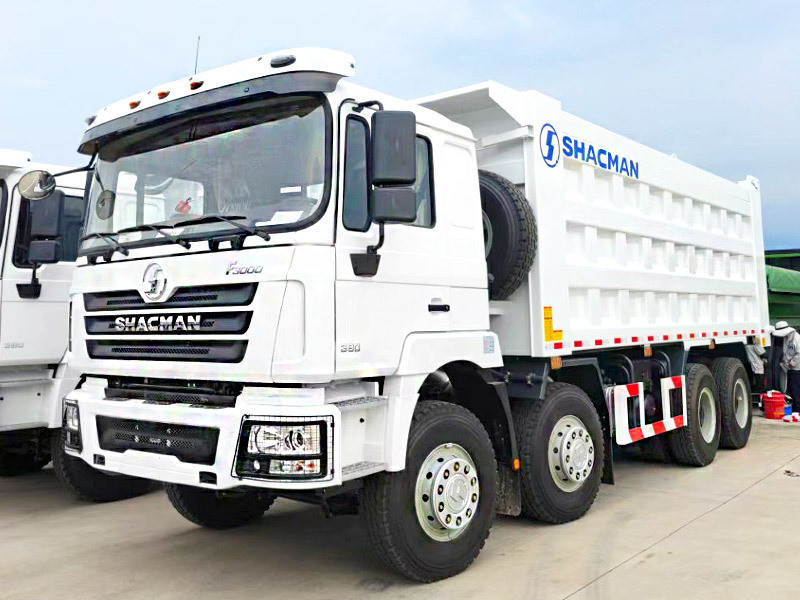

Name: SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

Home > Products > Heavy Dump Truck >

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

300L Fuel Tank Tipper Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SX3318DV366

Engine:

WP12.430E50-WEICHAI

Transmission:

12JSD200T-B+QH50-FAST

Axle:

9.5T /2*16 T Double-stage, Speed Ratio-4.769

Wheel Base:

1800+3575+1400 Mm

Tire:

12.00R20 (10+1)

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Highlight:

300L Fuel Tank Tipper Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T,L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper

Product Overview

The SHACMAN F3000 Dump Truck is a robust 8x4 tipper designed for heavy-duty material transportation. Featuring a 430HP EuroV compliant engine and domestic front lift mechanism, this truck combines power with environmental responsibility.

Key Specifications

Model: SX3318DV366

Drive Type: 8x4

Engine: WEICHAI WP12.430E50

Power: 316kw / 430Hp

Transmission: FAST 12JSD200T-B+QH50

Emission Standard: Euro V

Technical Specifications

Category	Specification
Weight	Gross Vehicle Weight ≤70
Dimensions	Wheelbase: 1800+3575+1400 mm
Performance	Maximum speed: 40～55/75 km/h Ground clearance: >314 mm
Engine	WEICHAI WP12.430E50 316kw / 430Hp 2050 N*M maximum torque 11.596 L displacement
Drivetrain	FAST 12JSD200T-B+QH50 gearbox φ430 Diaphragm spring clutch
Braking System	Drum brakes Double circuit air brake (Service) Rear wheel spring brake (Park) WEVB engine exhaust brake (Auxiliary)
Chassis & Suspension	Parallel trapezoidal frame (850×300(8+7) mm) Multi-layered leaf springs (Front: 4 Main+4 U Bolts, Rear: 4 Main+4 U Bolts)
Axles	HANDE 9.5T front axle (MAN technology) 16T MAN Double Reduction Drive rear axle (4.769 ratio)
Other Components	12.00R20 tires 300L Aluminum fuel tank 24V electrical system with 165Ah battery
Cab Features	F3000 Medium-length flat cab Hydraulic main seat Four-point hydraulic suspension Electronically controlled automatic AC Electric windows

Key Advantages

Robust Construction: Heavy-duty chassis and suspension system provide excellent load-bearing capacity and stability for safe transportation on rough terrain.
Eco-Friendly: Complies with strict Euro V emission standards, significantly reducing nitrogen oxides (NOx) and particulate matter (PM) emissions.
