F3000 Concrete Transport Truck 8x4 375hp Shacman Mixer EuroV White

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX5318GJBDT306 Engine: WP12.375E53+PTO
Axle: 9.5T/2*16 Double Stage Axle, Axle Speed-5.262 Wheel Base: 1800+2975+1400 Mm
Tire: 12.00R20 Fuel Tank: 300L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Chassis: 850×300(8+7) Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts
Cabin: Medium-length Flat Top Color: Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Shacman Mixer F3000 Concrete Transport Truck


EuroV F3000 Concrete Transport Truck


375hp F3000 Concrete Transport Truck

Product Description

SHACMAN F3000 Mixer Truck 8x4 375 EuroV white


Detailed Product Description
Model:Nude pack, with wax before shipment.
Drive type: 8x4
Weight: Gross Vehicle Weight≤60
Engine Brand: WEICHAI
Engine Model:WP12.375E53+PTO
Engine Power/(kw/HP): 276kw /375 Hp
Gear box Brand: FAST


Concrete Mixer  Truck Parameters

Model SX5318GJBDT306
Drive type 8x4
Weight Gross Vehicle Weight ≤60
Dimensions Wheelbase/(mm) 1800+2975+1400 mm
Performance Maximum speed/(km/h) 50~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E53+PTO
Power/(kw/HP) 276kw / 375Hp
Maximum torque / (N.M)/rpm 1800 N·M
Displacement/(L) 11.596 L
Emission standard Euro V
Gear box Brand FAST
Model RTD-11509C
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, F3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



  1. Engine and Emissions Standard: Equipped with a diesel engine that meets the Euro V emissions standard, indicating a certain level of environmental compliance in terms of emissions reduction.
  2. Horsepower: The truck is likely powered by a 375 horsepower engine, providing ample power and torque for heavy-load transportation and efficient concrete mixing.
  3. Chassis Configuration: The 8x4 configuration implies eight wheels with four of them being driven, offering enhanced traction and load-carrying capacity suitable for demanding construction and concrete mixing tasks.

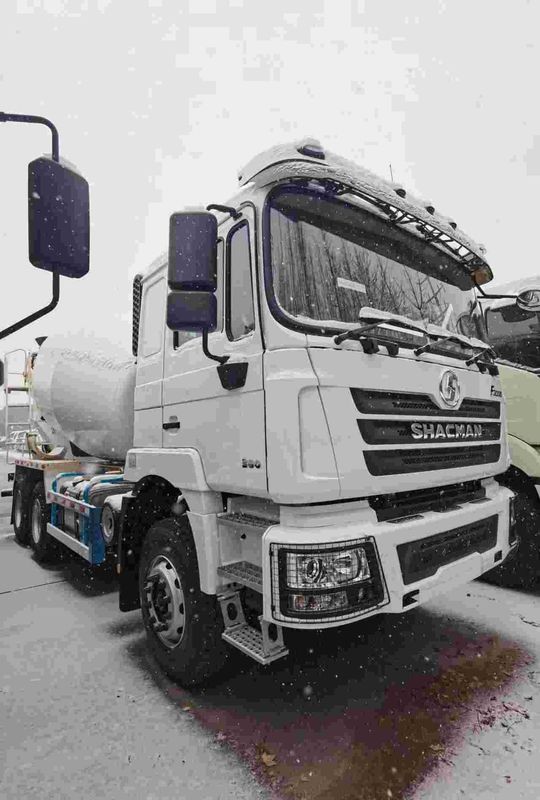

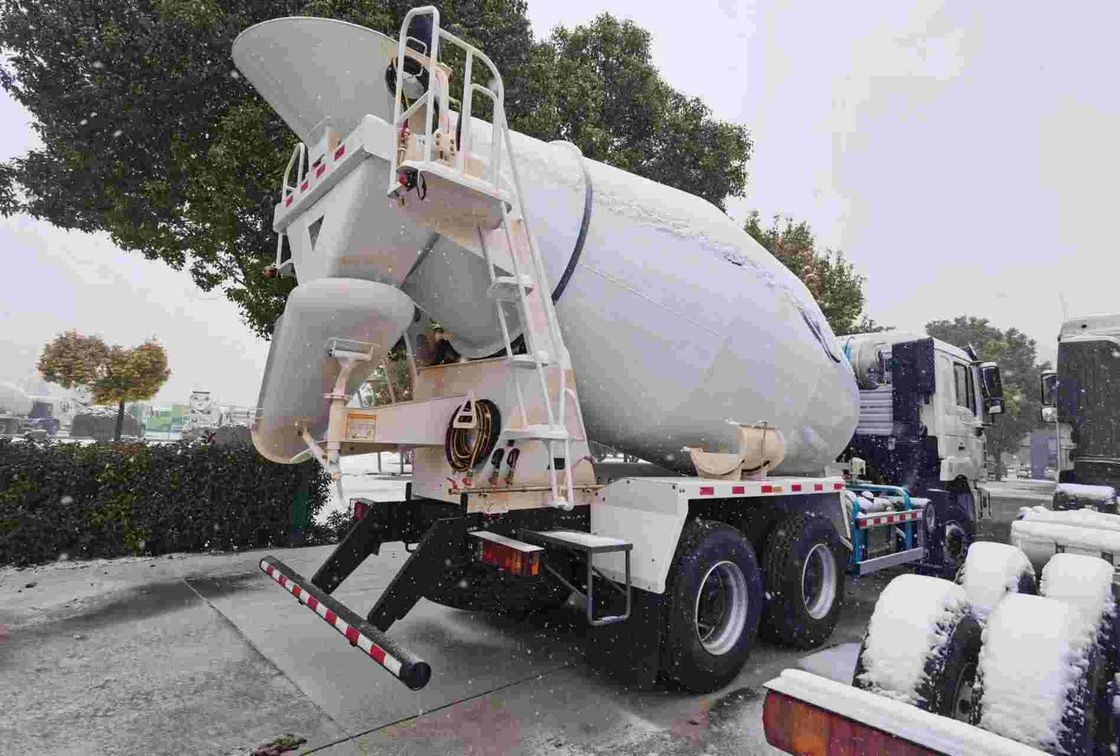

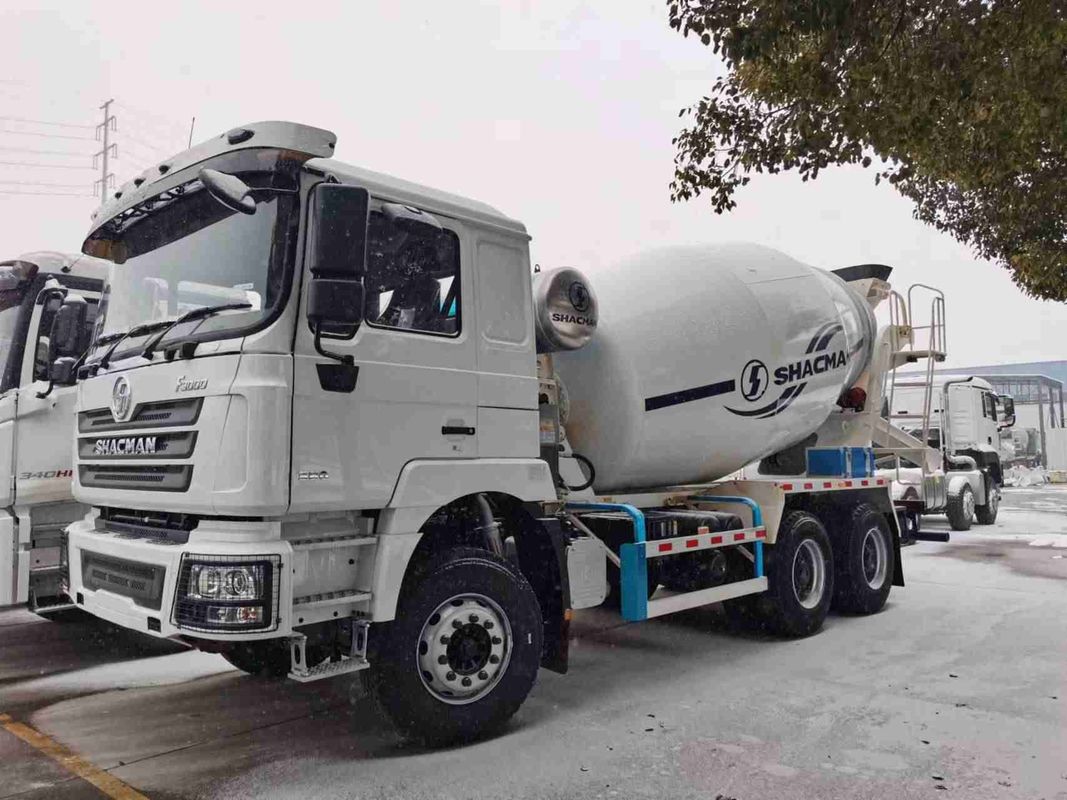

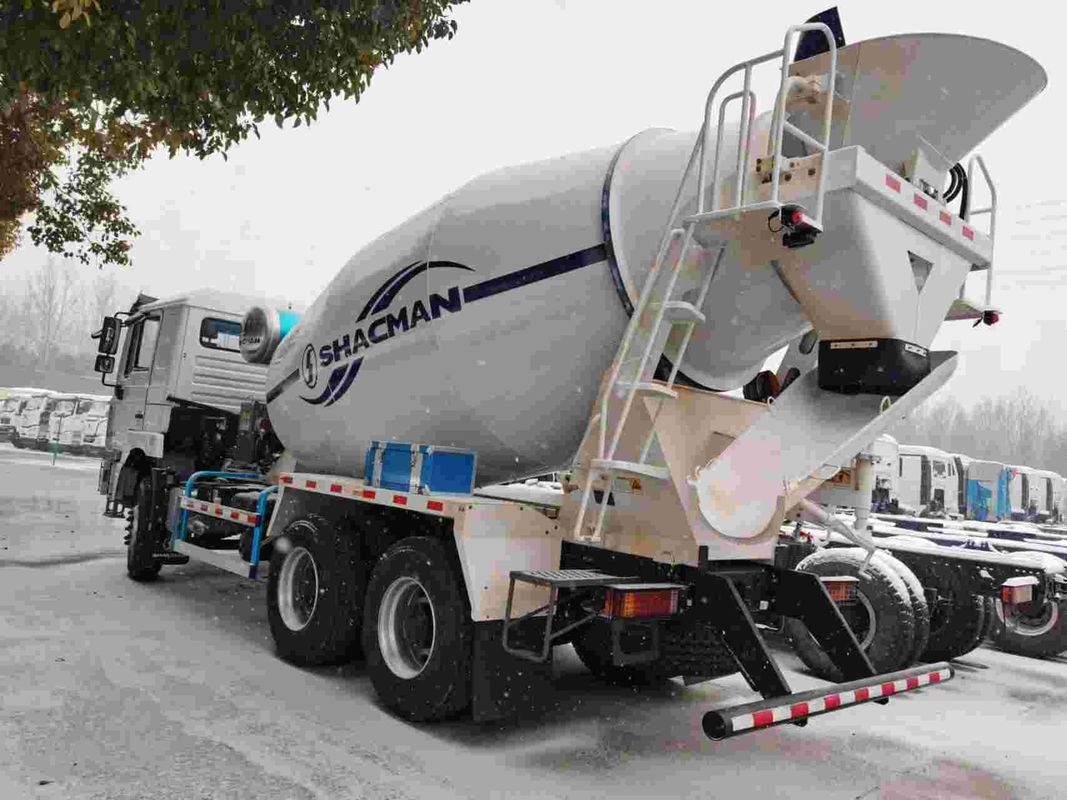

Detailed Image

F3000 Concrete Transport Truck 8x4 375hp Shacman Mixer EuroV White 0
