Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | X3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX33185V406 | Engine: | Diesel |
---|---|---|---|
Transmission: | Manual/Automatic | Axle: | MAN 2*9.5T /2*16 T Double-stage,s |
Wheel Base: | 1800+3975+1400 Mm | Tire: | 12.00R20/ 315/R80 |
Fuel Tank: | 400L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+7+8) |
Suspension: | Air/Leaf | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | Capacity: | 20-32 Tons |
Fuel Tank: | 700+300L | Height: | 10-12 Feet |
Horsepower: | 400-600 | Length: | 20-30 Feet |
Lift Axle: | Yes/No | Model: | Heavy Dump Truck |
Steering: | Power/Manual | Tires: | All-Terrain |
Highlight: | 450HP Shacman X3000 Tipper Truck,8*4 Shacman X3000 Tipper Truck,12 Wheeler Shacman X3000 Tipper Truck |
SHACMAN Truck Main Detail Description
Model: SX33185V406
Engine Model: WEICHAI WP12.375E50 EuroV EuroV
Transmission Model: FAST 12JSD200T-B+QH50
Axle:2*9.5T/2*16 Double-stage axle, Axle speed-5.262
SHACMAN Tipper dump truck parameters
Model | SX33188V406 | |
Drive type | 8x4 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+3975+1400 |
Performance | Maximum speed/(km/h) | 43~60/80 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.375E50 EuroV | |
Power/(kw/HP) | 275kw / 375Hp | |
Maximum torque / (N.M)/rpm | 1600 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro II | |
Gearbox | Brand | FAST |
Model | 12JSD200T-B+QH50 /spline | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 2*9.5T front axle MAN technology | |
Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Standard cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
SHACMAN Truck Specialty

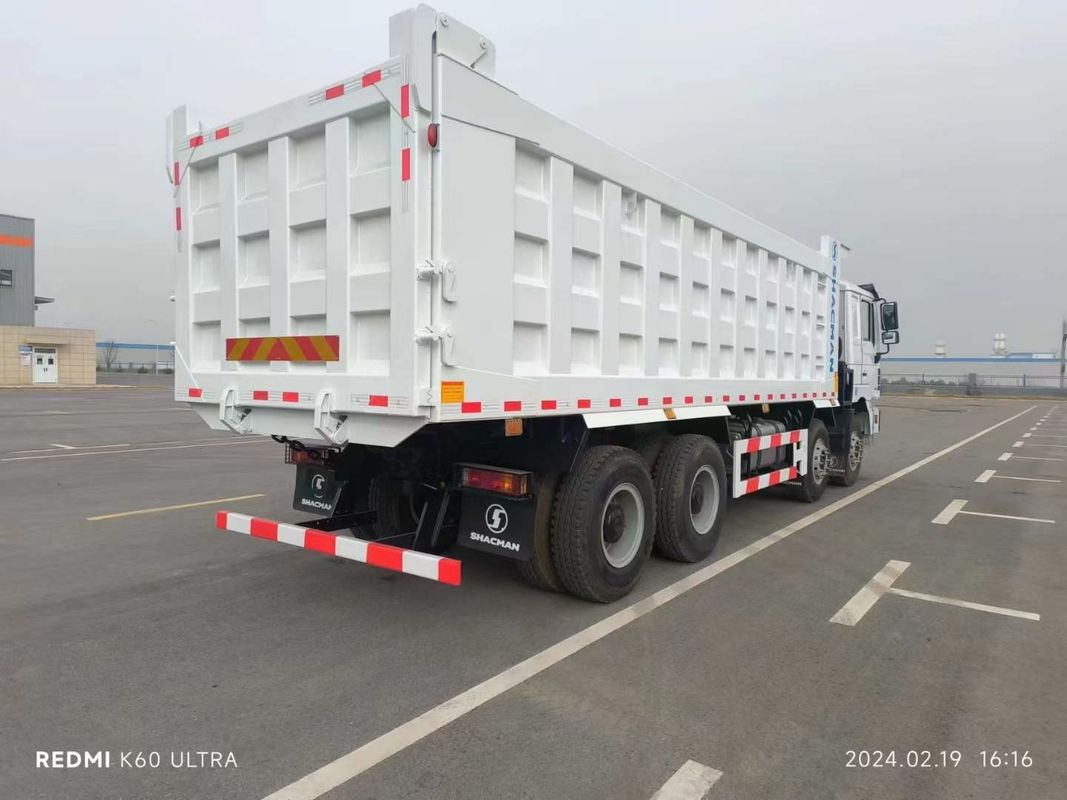

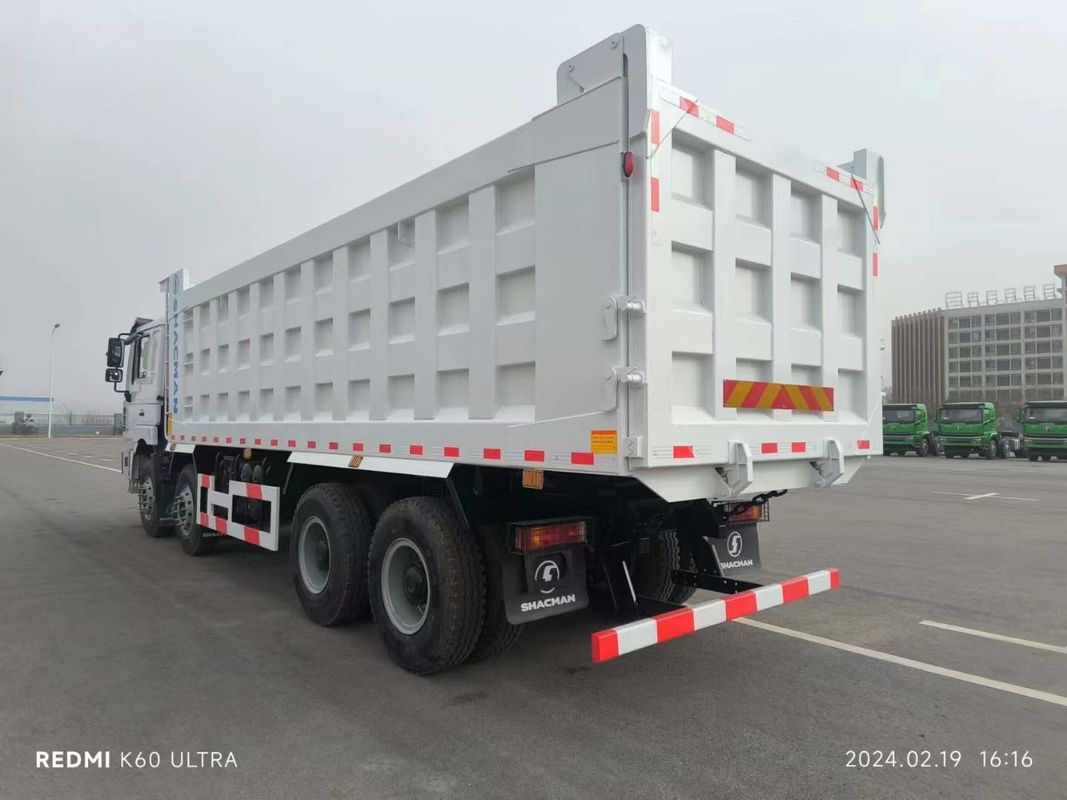

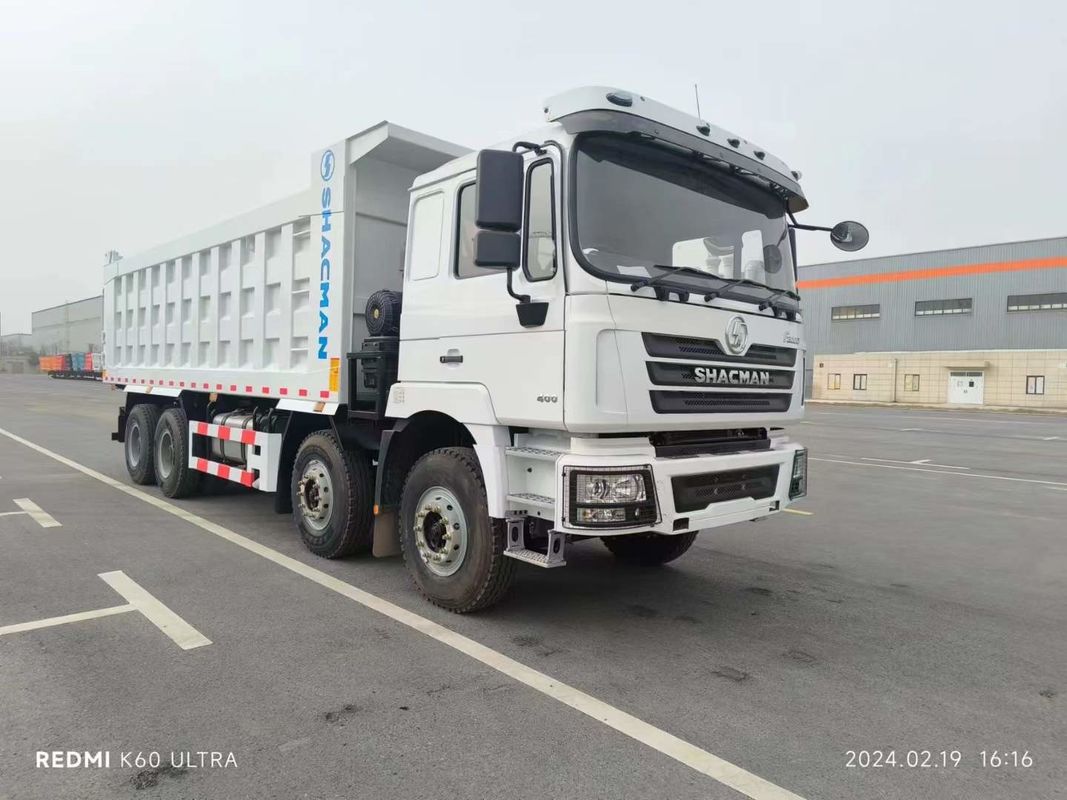

SHACMAN Truck Detailed Image
FAQ
What safety features do SHACMAN trucks have?
SHACMAN trucks prioritize driver and passenger safety by equipping their vehicles with essential safety features such as ABS (Anti-lock Braking System), which prevents wheel lock-up and enhances braking efficiency. Additionally, SHACMAN trucks are designed with reinforced cabins and structures to enhance crashworthiness and protect occupants in the event of a collision. Electronic brake-force distribution systems are also included to optimize brake-force distribution across all wheels, improving braking performance and stability.
How do SHACMAN trucks ensure reliability?
SHACMAN trucks undergo rigorous testing and quality control measures during the manufacturing process to ensure reliability and durability. Components and materials used in the trucks are carefully selected to meet high standards, and comprehensive inspections are conducted to identify any potential issues. Additionally, SHACMAN trucks are backed by a reliable after-sales service network to provide support and maintenance to customers, further ensuring their reliability.
What is the warranty offered for SHACMAN trucks?
SHACMAN offers a warranty for their trucks, which may vary depending on the specific model and region. The warranty typically covers manufacturing defects and certain components for a specified period of time or mileage, providing customers with added peace of mind regarding their purchase.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
