SHACMAN Shacman F3000 Crane Cargo Truck 8x4 380hp Cargo Box TruckEuroII

Basic Information
Place of Origin: Shaanxi, Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX5315JSQMT456 Engine: WP10.340E22
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage
Wheel Base: 5575+1400 Tire: 12.00R20
Fuel Tank: 400L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+5)
Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts Cabin: Medium-length Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

8x4 Crane cargo Truck

,

380hp Cargo Box

,

EuroII Crane cargo Truck


Product Description

SHACMAN F3000 6X4 340HP Van Cargo Truck



Detailed Product Description
Model:SX1255DR564
Drive type:6x4
Weight: Gross Vehicle Weight≤35
Engine Brand: WEICHAI
Engine Model:WP10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model:10JSD180



Van Cargo Truck Parameters

Model SX5315JSQMT456
Drive type 6x4
Weight Gross Vehicle Weight ≤35
Dimensions Wheelbase/(mm) 5575+1400
Performance Maximum speed/(km/h) 50~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22
Power/(kw/HP) 250 kw / 340Hp
Maximum torque / (N.M)/rpm 1600N.m
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gear box Brand FAST
Model 10JSD180
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Multi-layer plate spring 2 main plates + 2 U-shaped bolts
Rear Multi-layer plate spring 2 main plates + 2 U-shaped bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, F3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Overview

  • Engine: Powered by a robust 340 horsepower (Hp) Euro II engine, the truck delivers reliable performance for hauling goods across different terrains and road conditions.
  • Chassis: The 6x4 configuration indicates a three-axle setup, with power being delivered to all six wheels. This setup provides enhanced load-carrying capacity, stability, and traction, making it well-suited for medium to heavy-duty cargo transportation.
  • Van Body: The truck features a covered van body finished in white, offering weatherproof and secure transportation for various types of goods. The van body design and dimensions can be customized based on specific cargo requirements.



Detailed Image

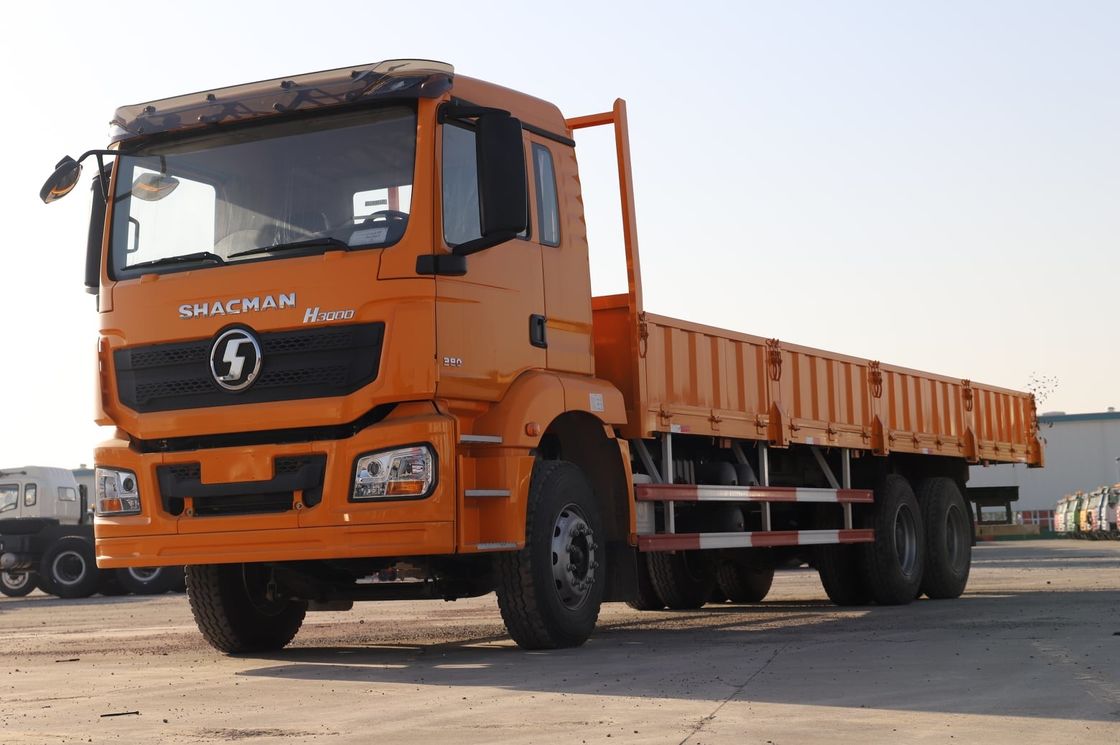

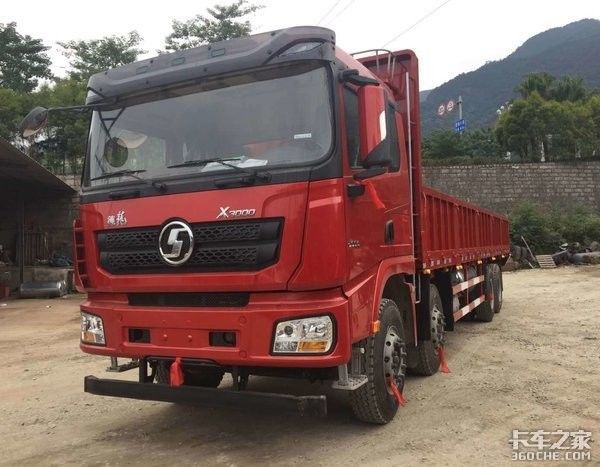

SHACMAN Shacman F3000 Crane Cargo Truck 8x4 380hp Cargo Box TruckEuroII 0
