Place of Origin: | Shaanxi, Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | X3000 |
Minimum Order Quantity: | 1UNIT |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units /month |
Driver Type: | 6x4 | Horsepower: | ISM450E 20 (JACOB) |
---|---|---|---|
Fuel Capacity: | 700+230L | Air Inlet: | Ordinary Air Filter |
Axle Type: | MAN 7.5T-13T MAN Single Stage-speed3.7 | Engine Type: | CUMMINS |
Wheelbase: | 3175+1400 | Transmission: | F16JZ24 |
Color: | Double Sleeper | Tire Size: | 385/65R22.5-315/80R22.5 |
Highlight: | 6*4 Tractor Truck,450hp Tractor Truck,10 Wheelers Tractor Truck |
SHACMAN 450HP 10 Wheels X3000 Tractor Truck
Detailed Product Description
Model: SX42555W324CR
Drive type: 6x4
Weight: Gross Vehicle Weight≤55
Engine Brand: CUMMINS+Jacob Brake
Engine Model: ISM450E 20
Engine Power/(kw/HP): 306kw / 450Hp
Gear box Brand: FAST
Gear box Model: F16JZ24
Tractor Truck Parameters
Model | SX42555W324CR | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤55 |
Dimensions | Wheelbase/(mm) | 3175+1400 |
Performance | Maximum speed/(km/h) | 60~70/100 |
Ground clearance | >314 | |
Engine | Brand | CUMMINS+Jacob Brake |
Model | ISM450E 20 | |
Power/(kw/HP) | 306kw / 450Hp | |
Maximum torque / (N.M)/rpm | 2010 N·M | |
Displacement/(L) | 10.8 L | |
Emission standard | Euro III | |
Gear box | Brand | FAST |
Model | F16JZ24 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type |
Ordinary air filter
|
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | (940-850)×300(single 8) | |
Suspension | Front | multi-leaf sprin+gs |
Rear | multi-leaf springs | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 3.7 | |
Tires | Type | 385/65R22.5-315/80R22.5 |
Fuel tank | Tank capacity/(L) | 700+230L Aluminum tank |
Electrics | Type | 24V |
Battery | 180Ah Maintenance-free battery | |
Cab | Type | SHACMAN X3000 single sleeper with A/C |
Equipment | X3000 extended flat roof cab without top side deflector, air main seat, four-point air suspension, electric electrically heated mirrors, electronically controlled automatic temperature-controlled air-conditioning, electric window crank, electric flip, metal bumper-with-light guards, three-stage boarding pedal, central locking (with remote control), multifunctional steering wheel, direct-current air filter, common exhaust, tank protection grille, right steering gear, casting L50 saddles, three-stage Integral fenders, taillight protection grille, 180Ah maintenance-free battery. |
Tractor Truck Advantages

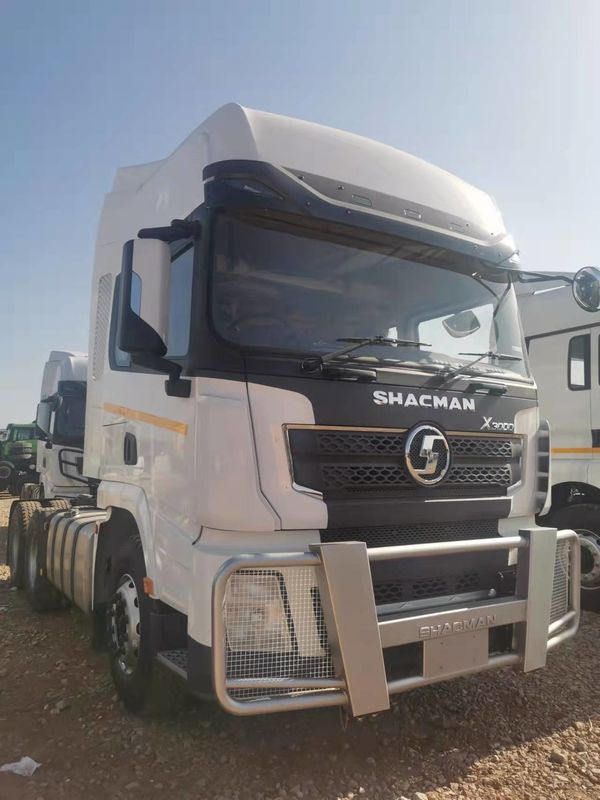

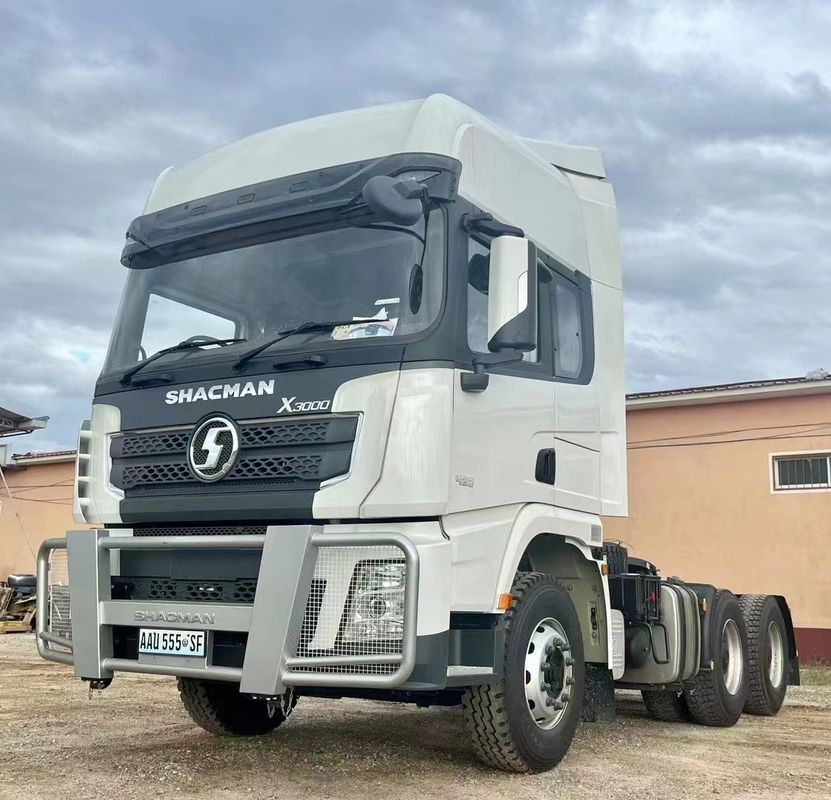

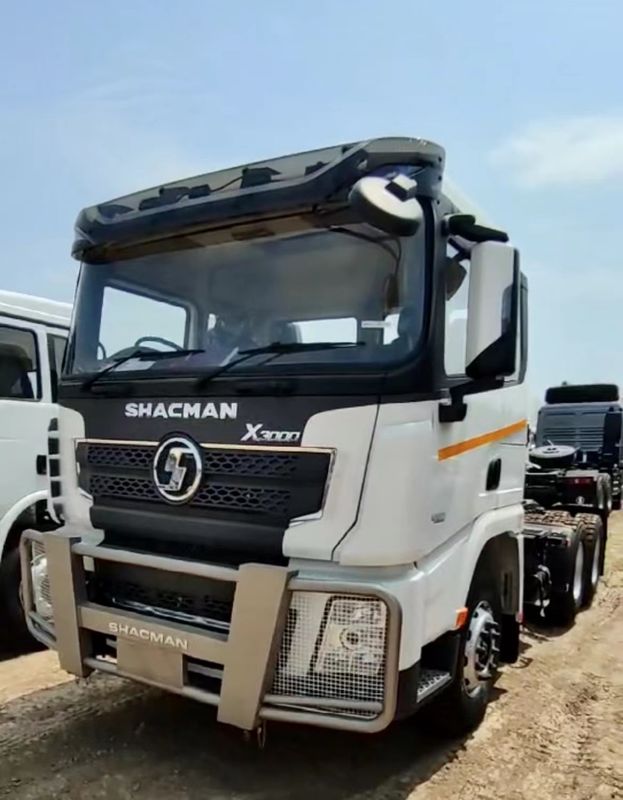

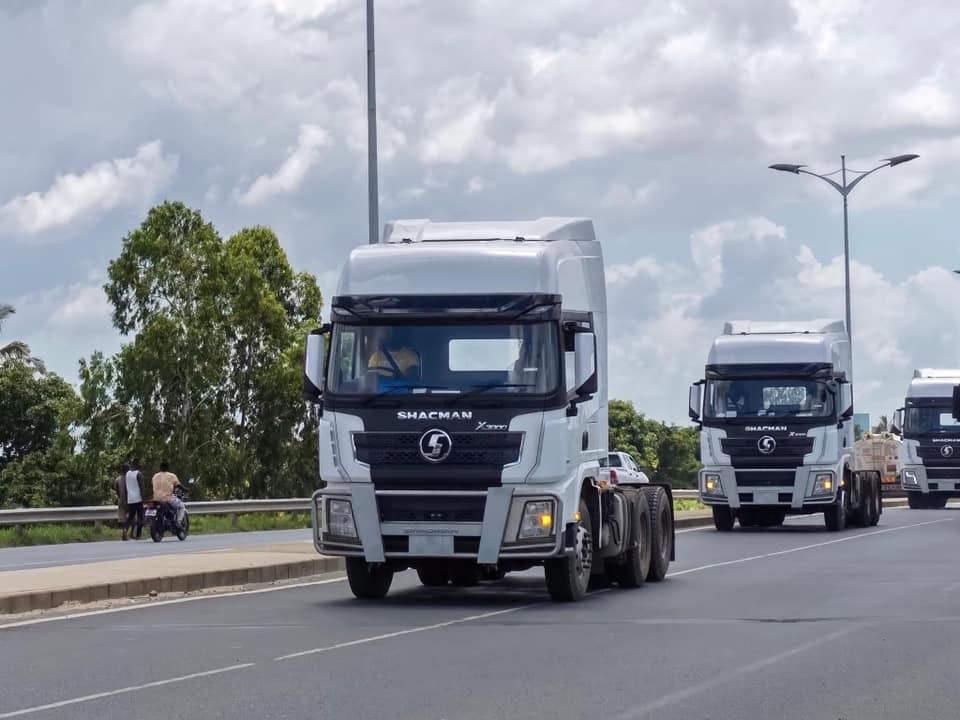

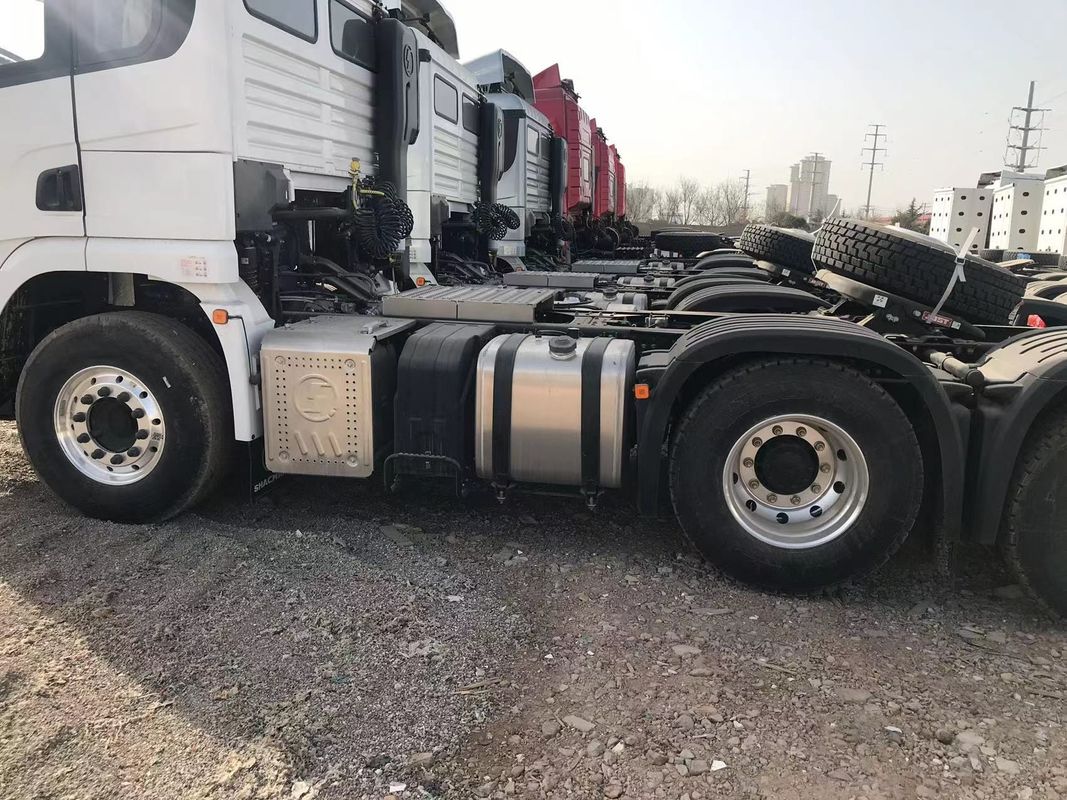

Truck Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
