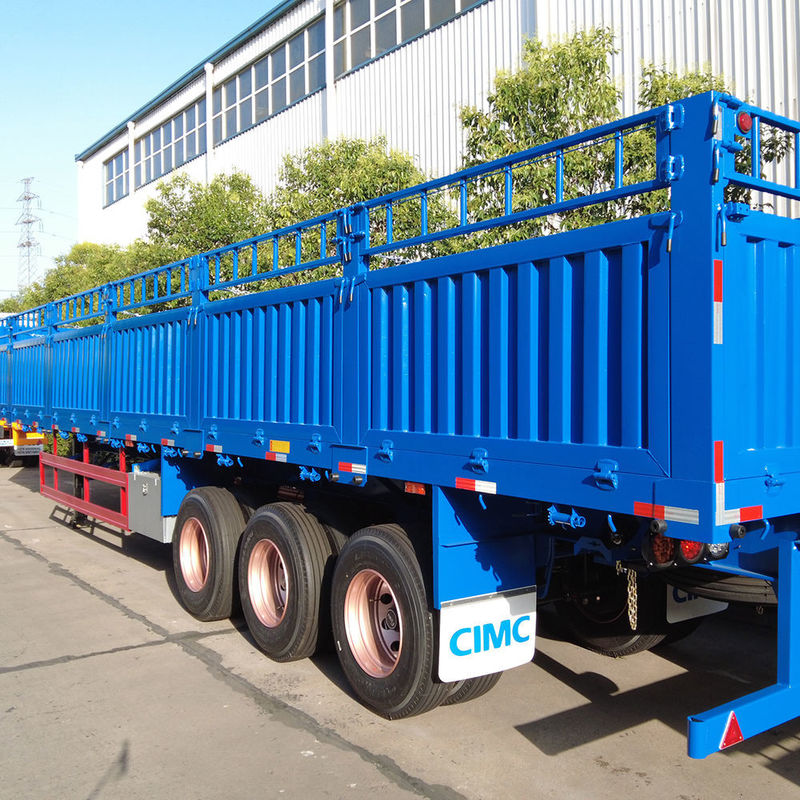

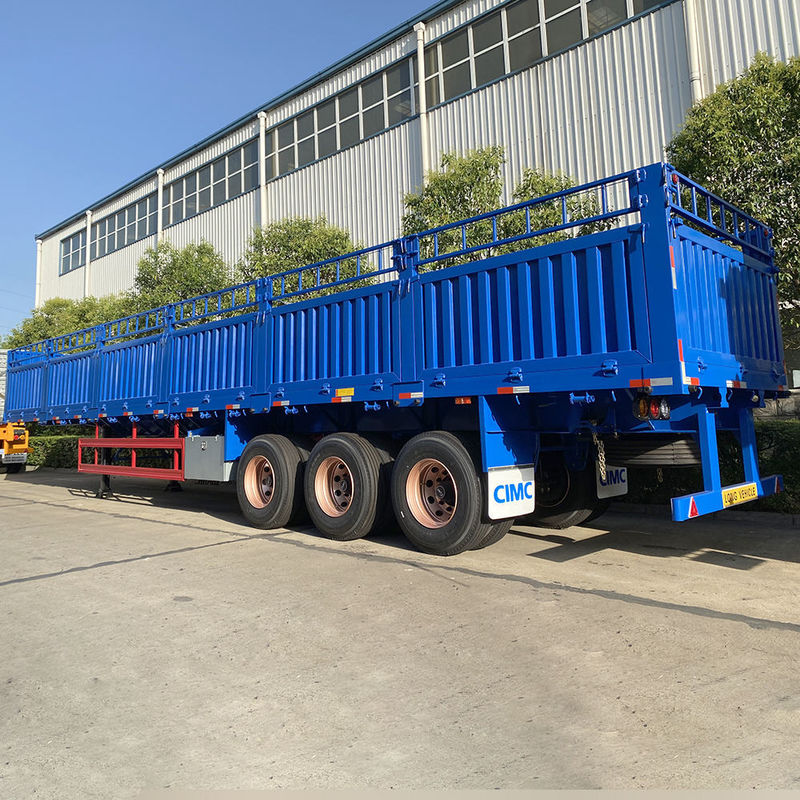

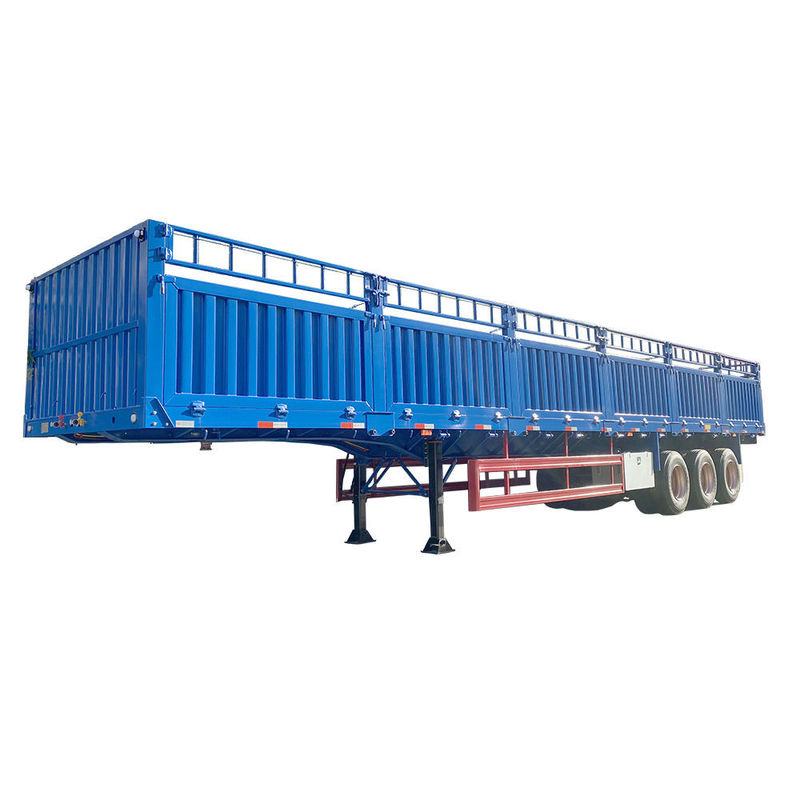

3 Axles Fence Cargo Semi Trailer 60 tons with Container Twist Lock
Product Description
| Item |
Specification |
| Size |
13000*2550*3850mm. |
| Body Sheet |
Floor thickness: 3mm, checkered plate;
Body material: Q355 steel.
|
| Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
| Axle |
13T FUWA brand axle |
| Tire |
11.00R20 |
| Rim |
9.0-22.5 |
| Suspension |
3 axles CIMC reinforced type. |
| Lead spring |
CIMC reinforced type, 12 pieces and 16mm thickness. |
| Braking system |
2-line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
| Electrical system |
24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors. |
| Shot blasting |
The chassis is completely shot blasted to SA 2.5 grade and painted with the first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed. |
| Landing gear |
28T, two-side operation. |
| Chamber |
Double type |
| King pin |
(2') 50# or (3.5') 90# |

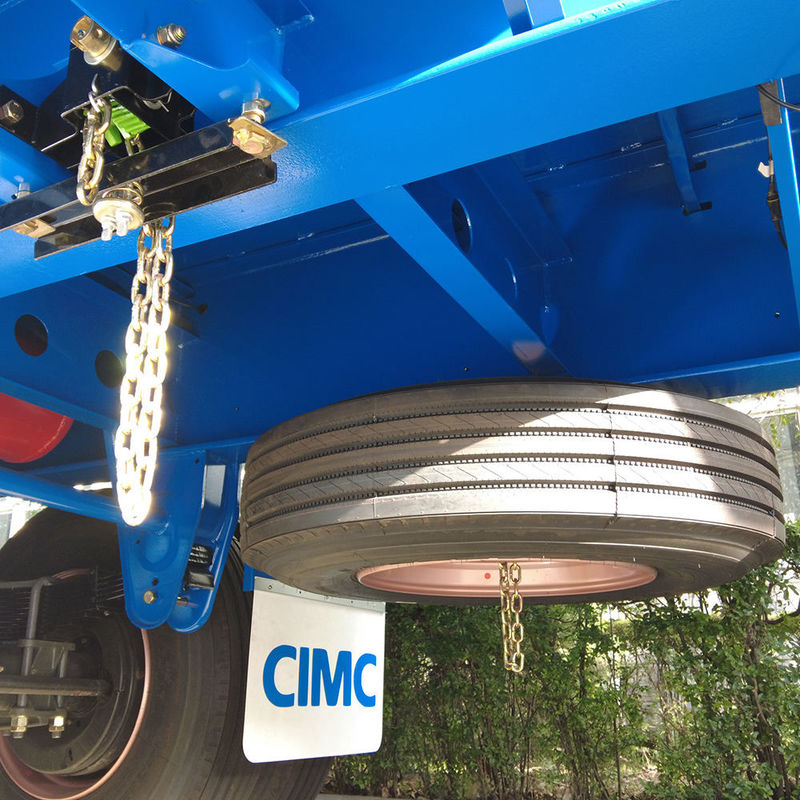

| Spare tire carrier |
CIMC standard |
| Tool box |
CIMC standard |
| Color |
According to customers' requirements and RAL color code. |
Our Customers
Our factory was established in 1952, and with more than 60 years of experience in the trailer manufacturing industry, we make “CIMC ” the leading brand in the world through years of unremitting efforts.
By now, our trailers were shipped to more than 60 countries and areas. Such as The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr. Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory for more than 15 years.
Pic
Packing&Shipping
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
