25 - 60 Tons 6x4 F3000 Shacman Tractor Truck Air / Hydraulic Braking System

Basic Information
Place of Origin: Shaanxi, Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1UNIT
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Axle Configuration: 4x2 Braking System: Air/Hydraulic
Cab Type: Day/Sleeper Color: White/Red/Blue/Black
Engine Type: Diesel Fuel Capacity: 300-600L
Horsepower: 300-600 Load Capacity: 25-60 Tons
Steering System: (940-850)×300 (single8) Suspension System: Front And Rear Multi-leaf Springs
Tire Size: 11.00R20/12.00R20/12R22.5/315/80R22.5 Transmission: Manual/12JSD200T-B
Wheelbase: 3600mm Air Inlet: Ordinary Air Filter

Tipper Dump Truck 60 Tons


F3000 Shacman Tractor Truck


Hydraulic Braking System 6x4 Tractor Truck

Product Description

SHACMAN F3000 Tractor Truck 4x2 375 HP EuroV Red


Detailed Product Description
Model: SX4188JT361

Drive type: 4x2
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B


Tractor Truck Parameters

Model SX4185JT361
Drive type 4x2
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3600
Performance Maximum speed/(km/h) 50~70/100
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50
Power/(kw/HP) 276kw / 375Hp
Maximum torque / (N.M)/rpm 1800 N·M
Displacement/(L) 11.596 L
Emission standard Euro V
Gear box Brand FAST
Model 12JSD200T-B
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) (940-850)×300 (single 8)
Suspension Front Multi-layer plate spring
Rear Multi-layer plate spring
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 3.866
Tires Type 12R22.5 (10+1)
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 extended flat roof cab with A/C
Equipment Air main seat, four-point air-suspended cab, electric window rollers, manual flip, telescopic axle maneuvering, common air filter, common 50 saddle, corrugated mounting plate, metal bumper, hinged on-board pedals, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo

Tractor Truck Advantages

  • The SHACMAN F3000 tractor truck is a versatile and reliable vehicle designed specifically for transportation purposes.
  • With its powerful engine and sturdy construction, the F3000 is capable of efficiently transporting heavy loads over long distances.
  • The F3000 tractor truck is well-suited for various industries, including logistics, construction, and manufacturing.
  • Designed by SHACMAN, a reputable manufacturer, the F3000 offers durability and reliability for demanding transportation operations.

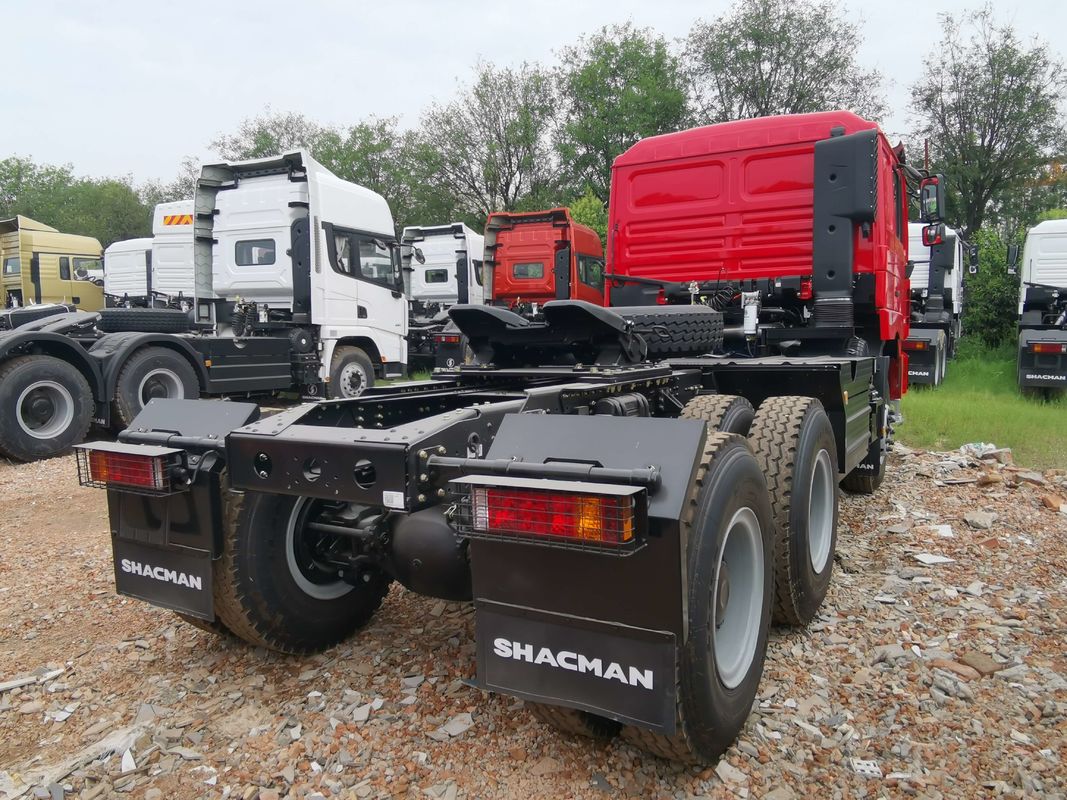

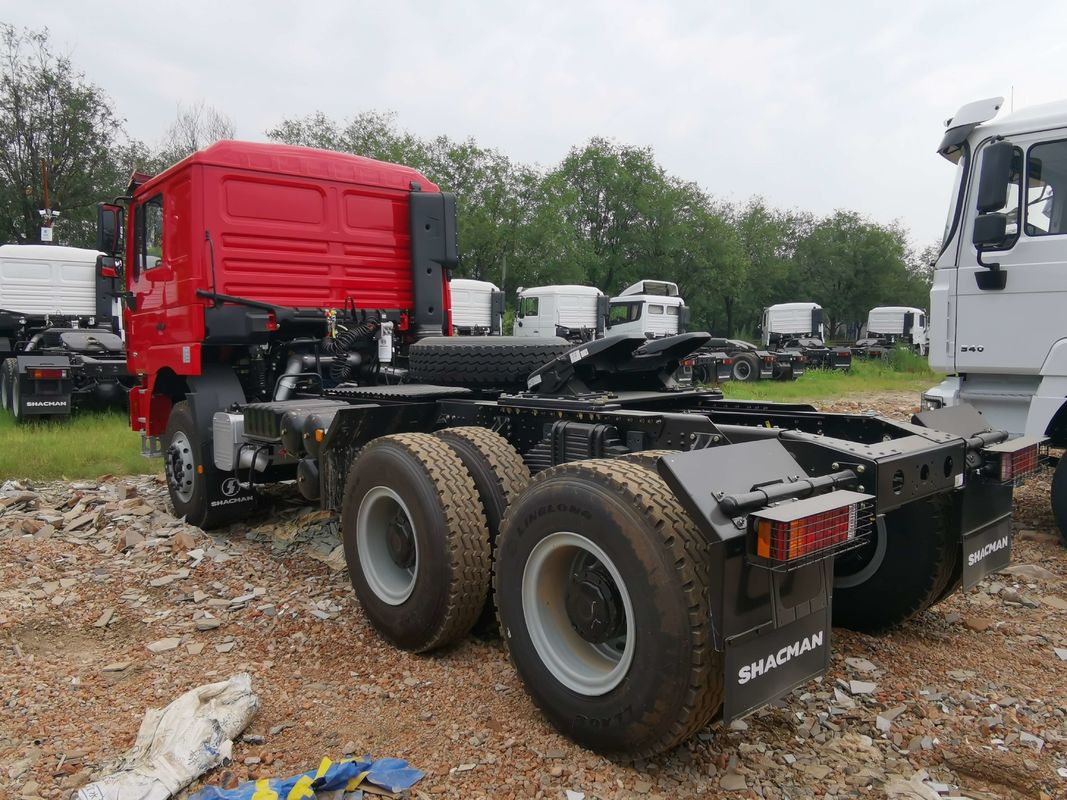

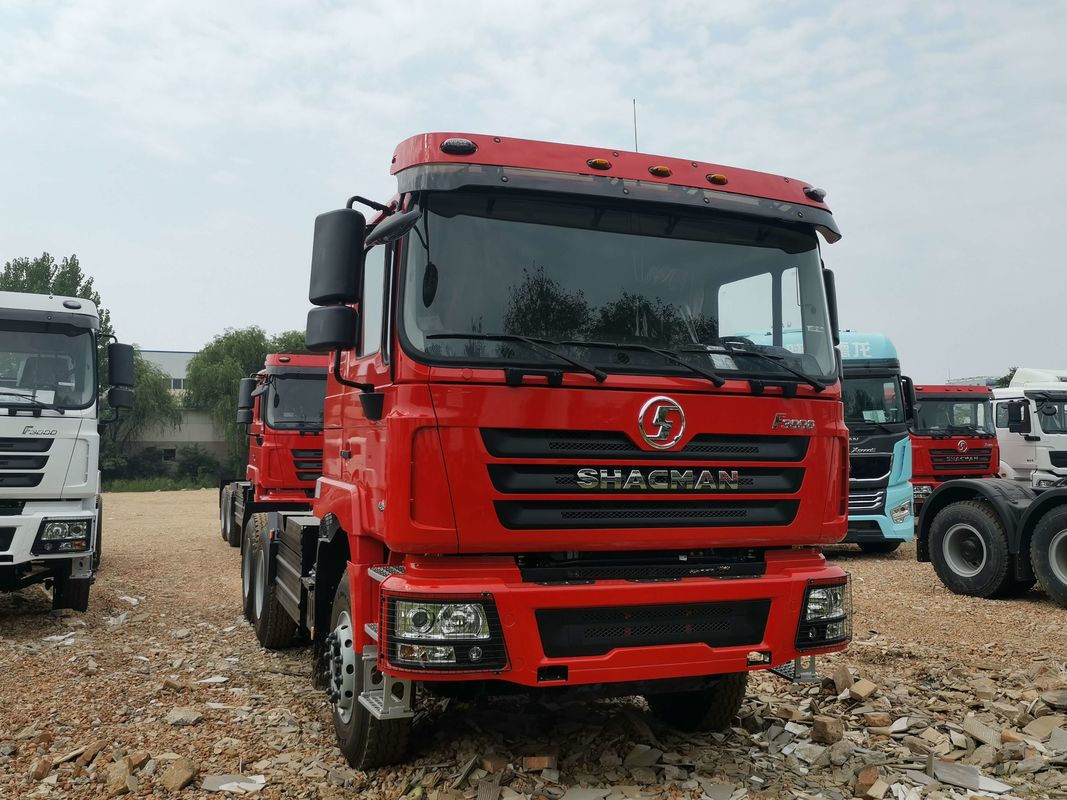

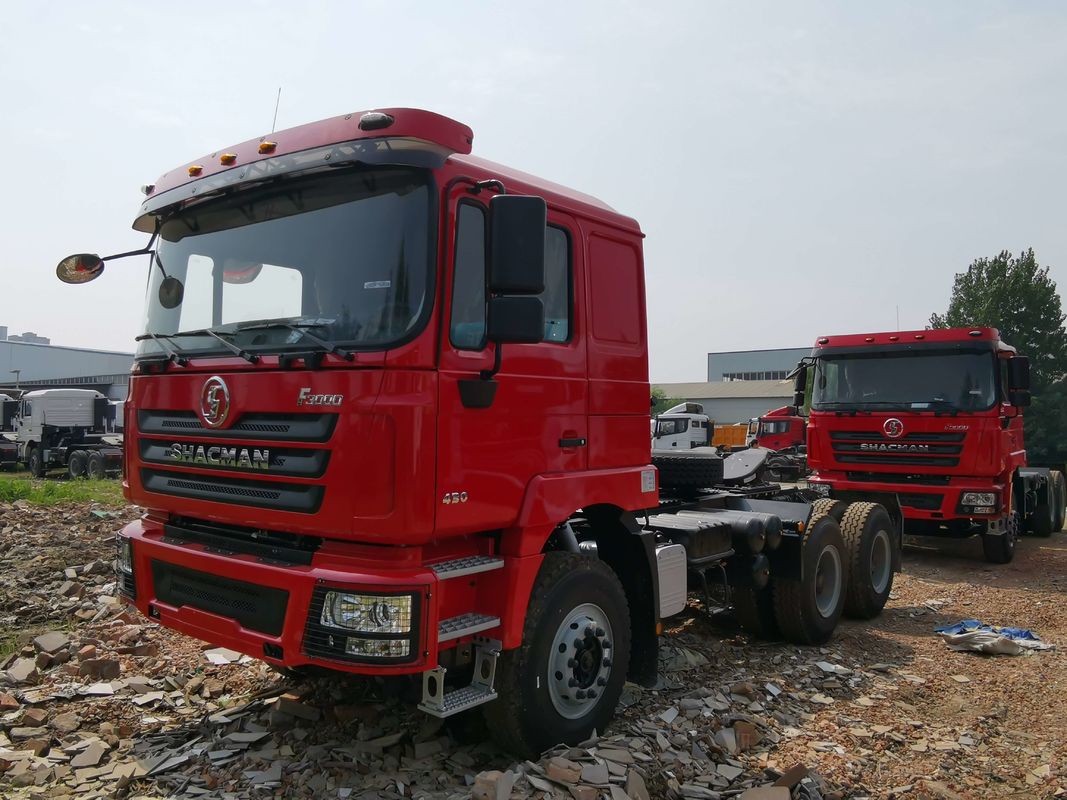

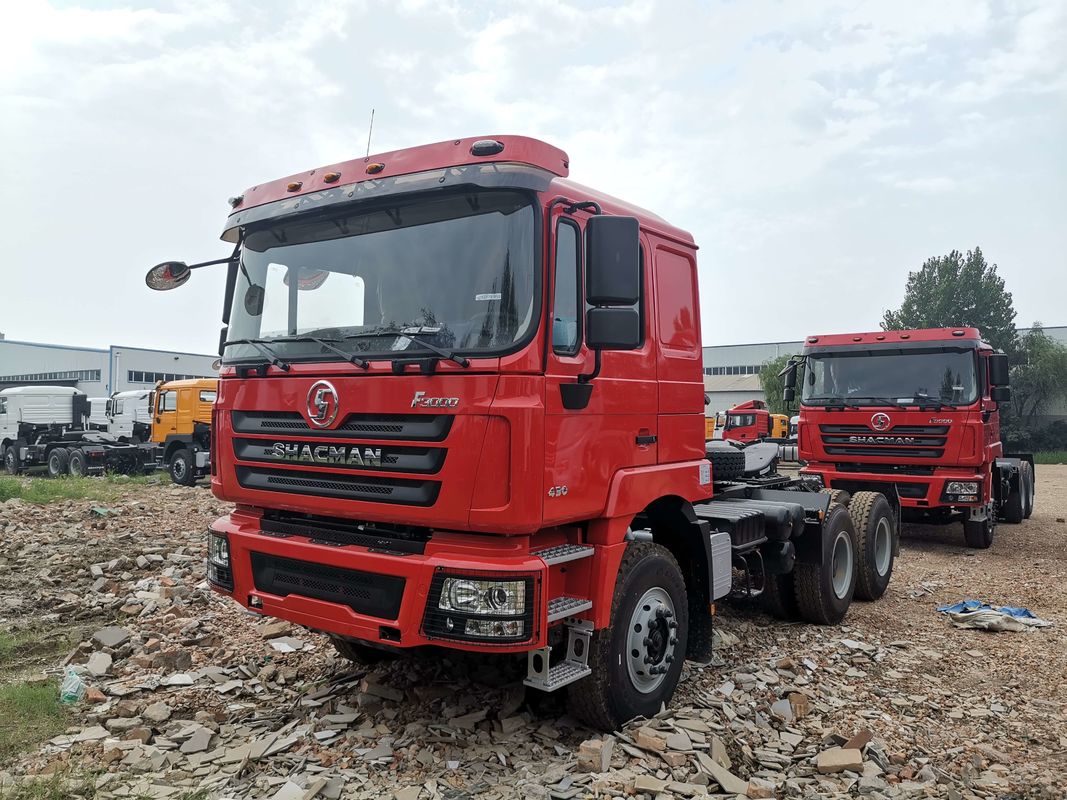

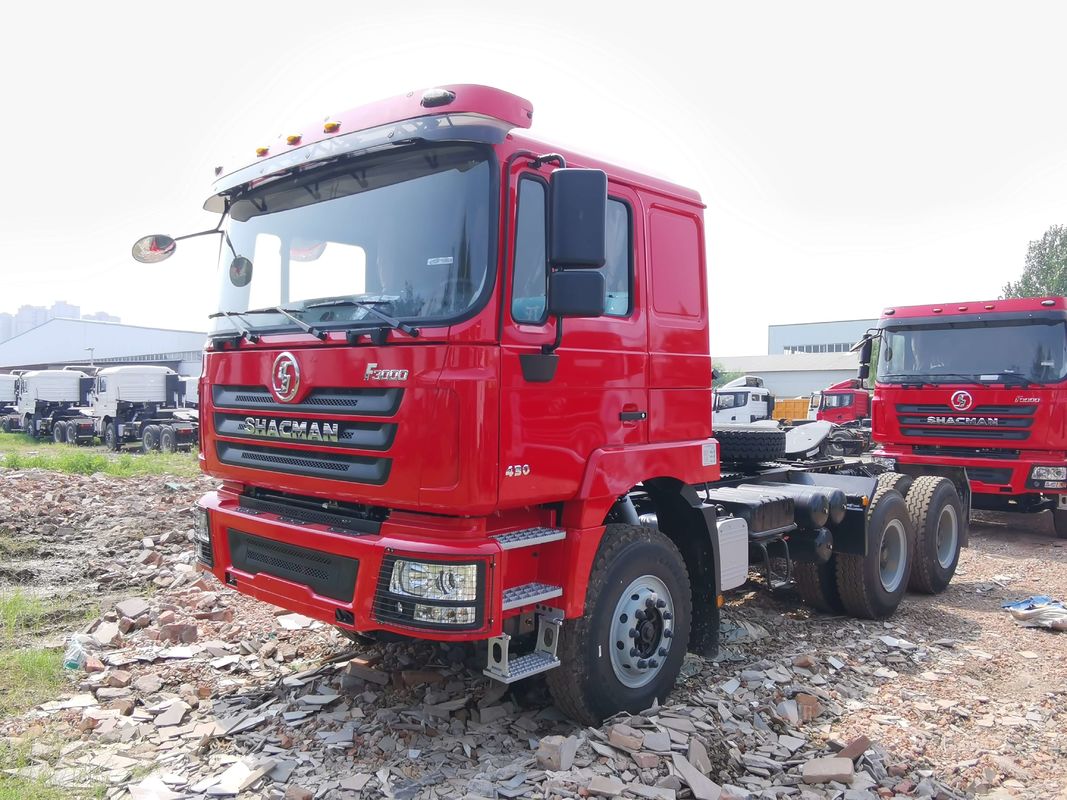

Truck Detailed Image

25 - 60 Tons 6x4 F3000 Shacman Tractor Truck Air / Hydraulic Braking System 0


1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
