Name: SHACMAN Van Type Semi Trailer 50T 3 Axle Foot Dry Semi Trailer Truck CIMC
Brand: CIMC
SKU: Van Type Semi Trailer
Rating: 4.7 (147 reviews)

Home > products > Semi Trailer >

SHACMAN Van Type Semi Trailer 50T 3 Axle Foot Dry Semi Trailer Truck CIMC

Foot Dry Semi Trailer Truck

Van Type Semi Trailer 50T

SHACMAN Van Type Semi Trailer

Place of Origin:

China

Brand Name:

CIMC

Certification:

ISO9001/CCC

Model Number:

Van Type Semi Trailer

Request A Quote

Product Details

Use:

Truck Trailer

Material:

Steel

Max Payload:

60T

Function:

Transport Sand

Axle:

Tri-axle

Suspension System:

Mechanical Suspension

Landing Gear:

JOST

King Pin:

2"(50mm)or3.5"(90mm)

Color:

Customers Optional

Tire:

10.00R20/11.00R20/12R22.5

Brake System:

Dual Line Braking System

Size:

13750mm*2550mm*4000mm

Highlight:

Foot Dry Semi Trailer Truck

Van Type Semi Trailer 50T

SHACMAN Van Type Semi Trailer

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

L/C, T/T

Supply Ability

500 units/month

RELATED PRODUCTS

Contact Now

Product Description

3 Axle Van Type Semi Trailer

Product Description

Item	Specification
Product name	Van type semi trailer
Size	13750mm2550mm4000mm
Body Sheet	Side wall thickness: 8mm Body material: wear-resistant steel.
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle	Tri-axle
Tire	11.00R20
Rim	8.5-20
Suspension	3 axles CIMC reinforced type
Lead spring	CIMC reinforced type, 12 pieces and 16mm thickness.
Braking system	2-line air braking system with air tank, WABCO emergency relay valve, braking chambers, and mechanical slack adjusters.
Electrical system	24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors.
Shot blasting	The chassis is completely shot-blasted to SA 2.5 grade, and painted with a first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS of INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed.
Landing gear	JOST
Chamber	Double type
King pin	2"(50mm)or3.5"(90mm)
Spare tire carrier	CIMC standard
Toolbox	CIMC standard

vantage

The van-type transport semi-trailer adopts closed side protection design, which effectively reduces the lateral risk when the vehicle is travelling at high speed and cuts down the energy consumption, and the rear protection is designed with reasonable trolley attachments, which is convenient for operation. The van-type transport semi-trailer has strong bearing capacity, high safety coefficient, reasonable design, strong and durable, advanced technology manufacturing.

Pics

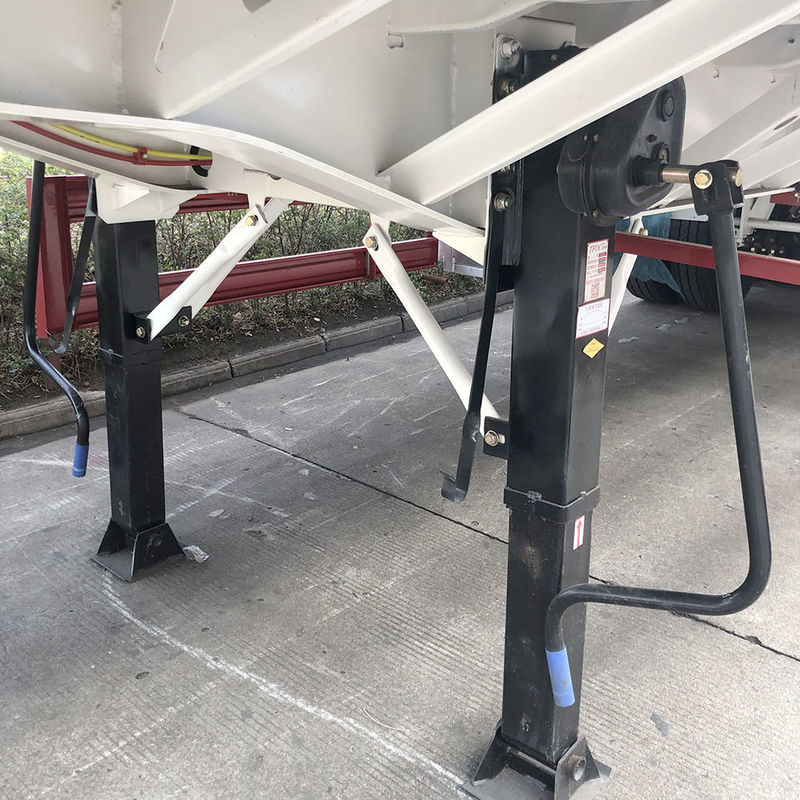

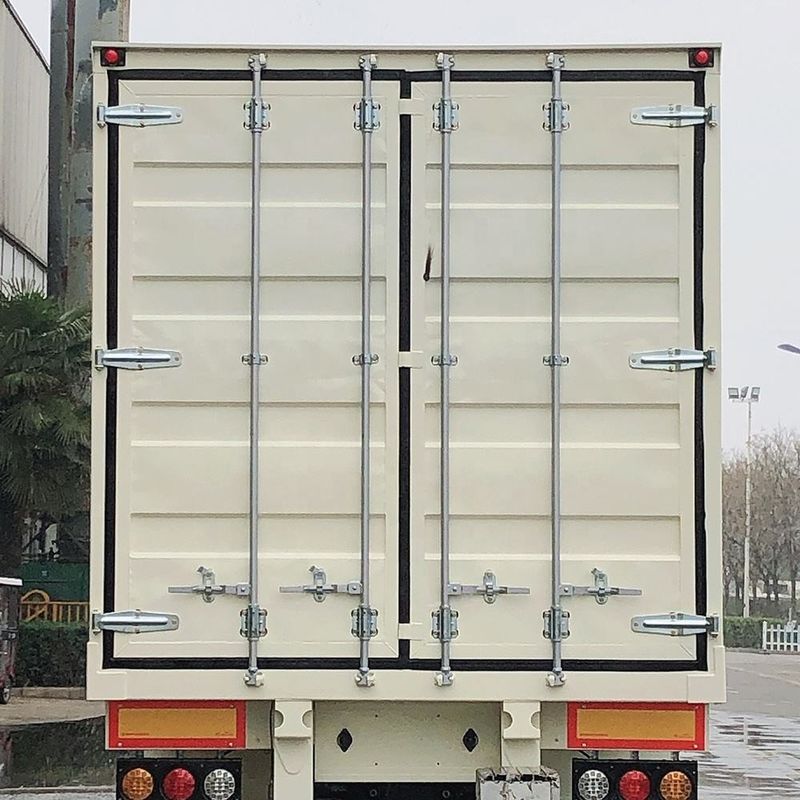

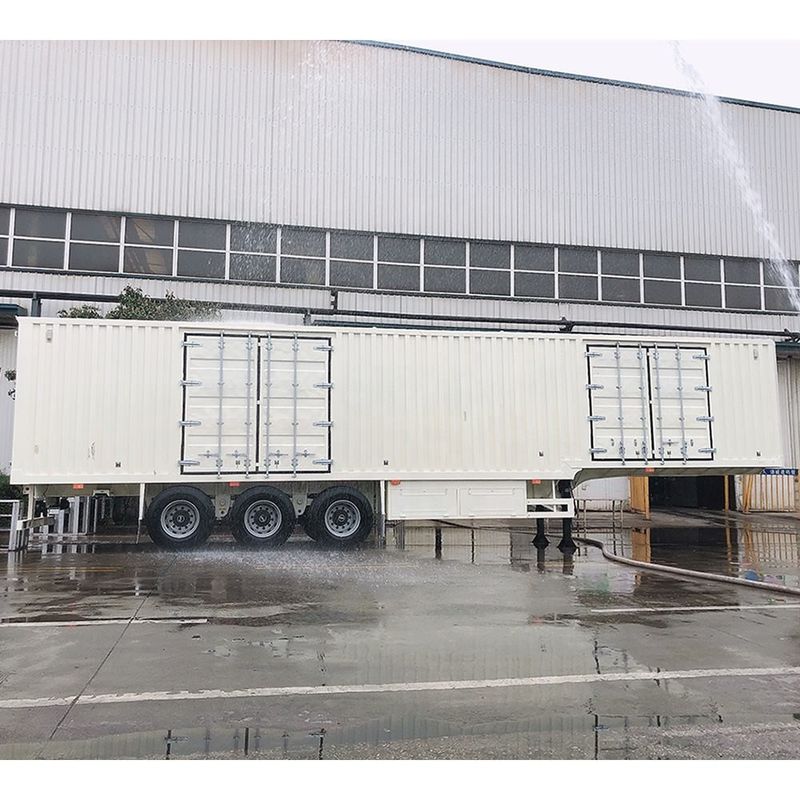

SHACMAN Van Type Semi Trailer 50T 3 Axle Foot Dry Semi Trailer Truck CIMC 0

Our service

So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions and set up offices in many countries to make after-sales service more timely and easy.

In addition, we built the KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in African areas and provides technical and operational guidance

Our main markets

With more than 60 years of unremitting efforts to make “SHACMAN” a well-known brand all over the world, products sold very well in China and also exported to more than 40 countries and regions, such as Southeast Asia, Africa, the Middle East, South America, etc.

With annual output of 50000 units of trailer, top 500 in the Chinese mechanical industry, and top 100 in the Chinese automobile industry, witness our great strength.
