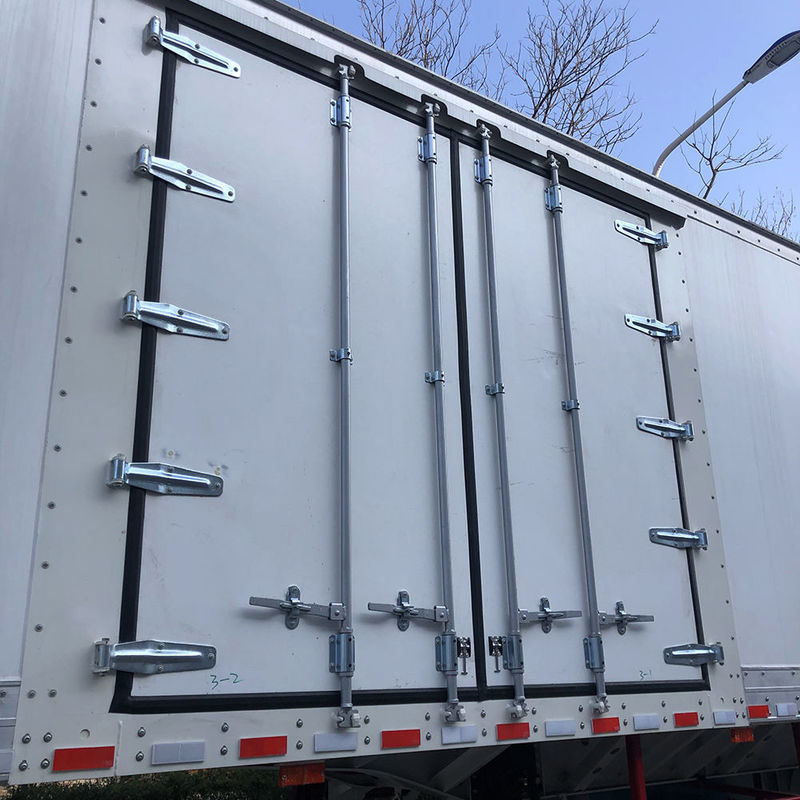

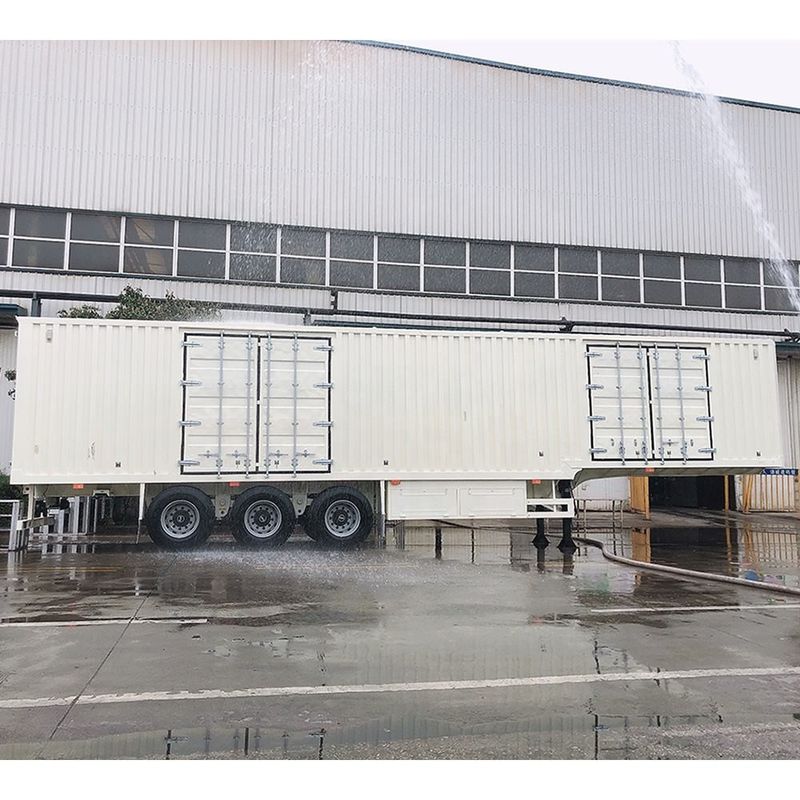

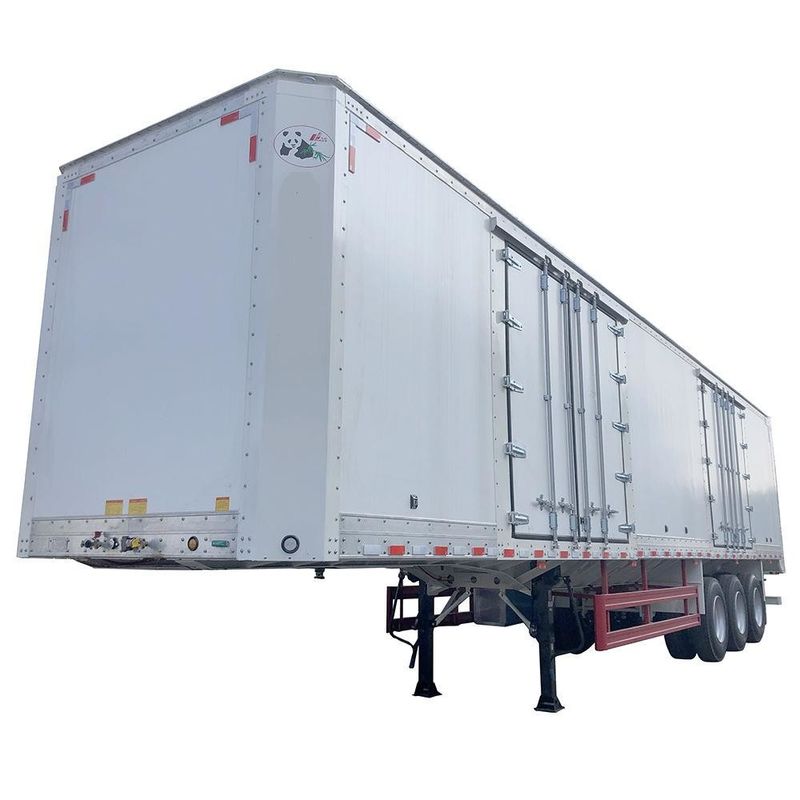

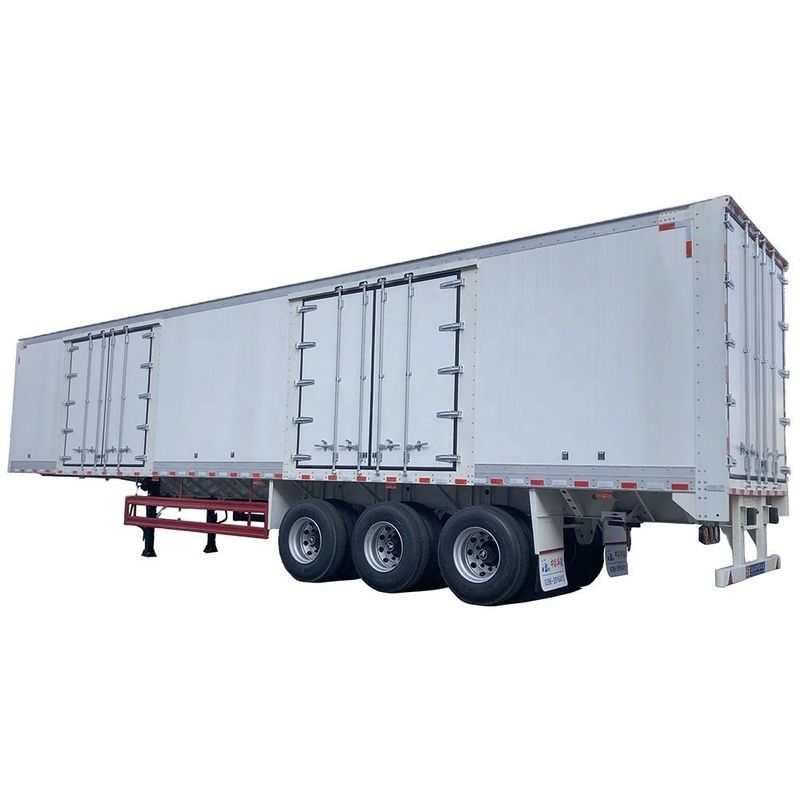

CIMC Van Type Semi Box Trailer 3 Axle Foot Dry Van Container Semi Trailer

Basic Information
Place of Origin: China
Brand Name: CIMC
Certification: ISO9001/CCC
Model Number: Van Type Semi Trailer
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Detail Information
Use: Truck Trailer Material: Steel
Max Payload: 60T Function: Transport Sand
Axle: Tri-axle Suspension System: Mechanical Suspension
Landing Gear: JOST King Pin: 2"(50mm)or3.5"(90mm)
Color: Customers Optional Tire: 10.00R20/11.00R20/12R22.5
Brake System: Dual Line Braking System Size: 13750mm*2550mm*4000mm

60T Van Type Semi Box Trailer


Steel Van Type Semi Box Trailer


3 Axle Foot Dry Semi Trailer

Product Description

3 Axle Van Type Semi Trailer



Product Description

Item Specification
Product name Van type semi trailer
Size 13750mm*2550mm*4000mm
Body Sheet

Side wall thickness: 8mm

Body material: wear-resistant steel.

Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle Tri-axle
Tire 11.00R20
Rim 8.5-20
Suspension 3 axles CIMC  reinforced type
Lead spring CIMC  reinforced type, 12 pieces and 16mm thickness.
Braking system 2-line air braking system with air tank, WABCO emergency relay valve, braking chambers, and mechanical slack adjusters.
Electrical system 24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors.
Shot blasting The chassis is completely shot-blasted to SA 2.5 grade, and painted with a first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS of INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed.

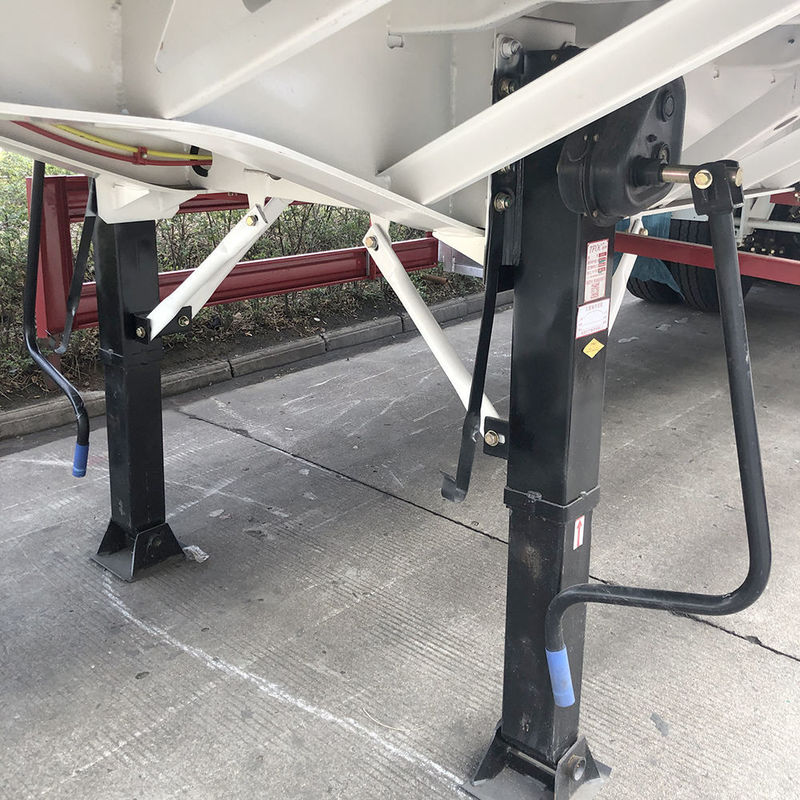

Landing gear JOST
Chamber Double type
King pin 2"(50mm)or3.5"(90mm)
Spare tire carrier CIMC  standard
Toolbox CIMC  standard

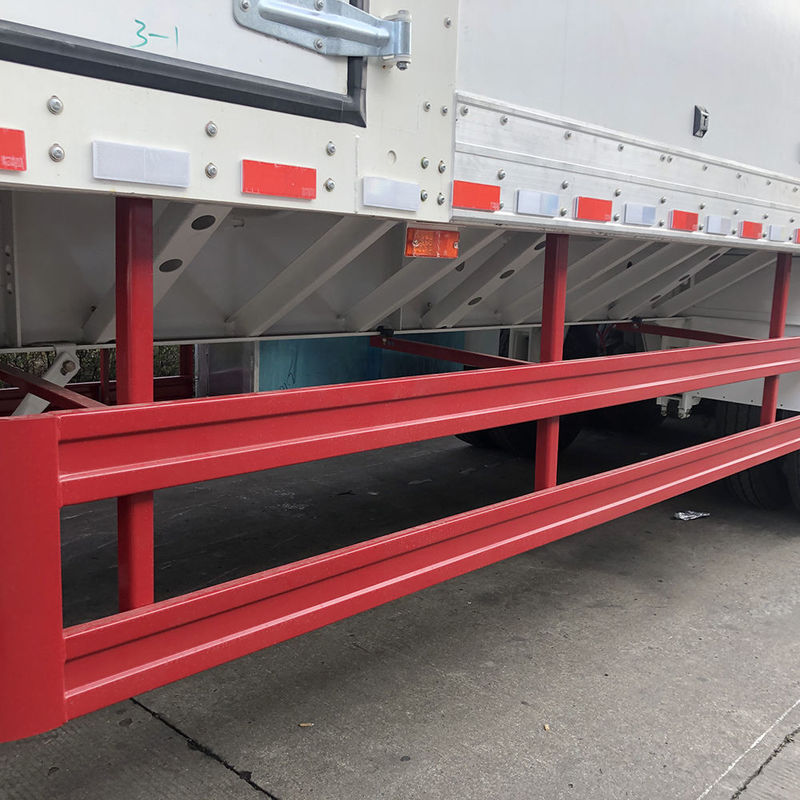

The van-type transport semi-trailer adopts closed side protection design, which effectively reduces the lateral risk when the vehicle is travelling at high speed and cuts down the energy consumption, and the rear protection is designed with reasonable trolley attachments, which is convenient for operation. The van-type transport semi-trailer has strong bearing capacity, high safety coefficient, reasonable design, strong and durable, advanced technology manufacturing.



CIMC Van Type Semi Box Trailer 3 Axle Foot Dry Van Container Semi Trailer 0

Our service

So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions and set up offices in many countries to make after-sales service more timely and easy.

In addition, we built the KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in African areas and provides technical and operational guidance


Our main markets

With more than 60 years of unremitting efforts to make “SHACMAN” a well-known brand all over the world, products sold very well in China and also exported to more than 40 countries and regions, such as Southeast Asia, Africa, the Middle East, South America, etc.

With annual output of 50000 units of trailer, top 500 in the Chinese mechanical industry, and top 100 in the Chinese automobile industry, witness our great strength.
