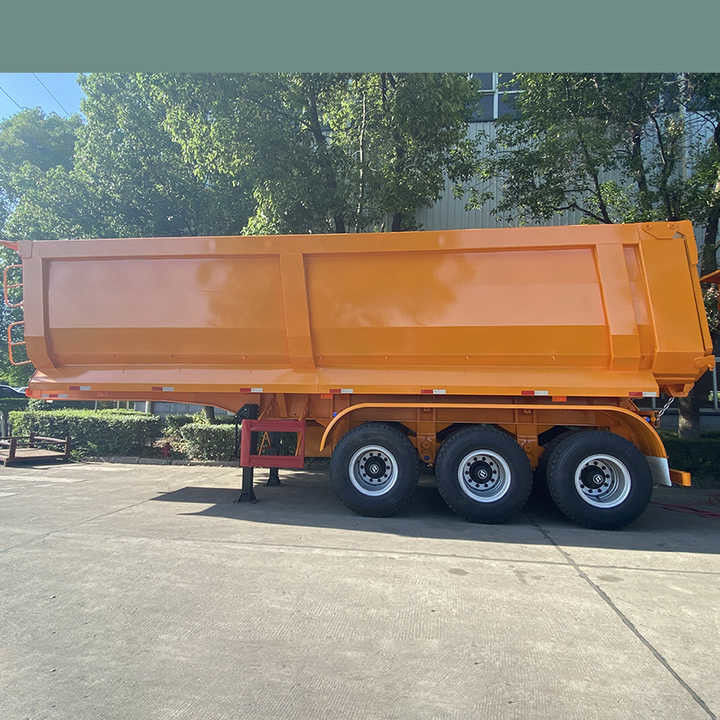

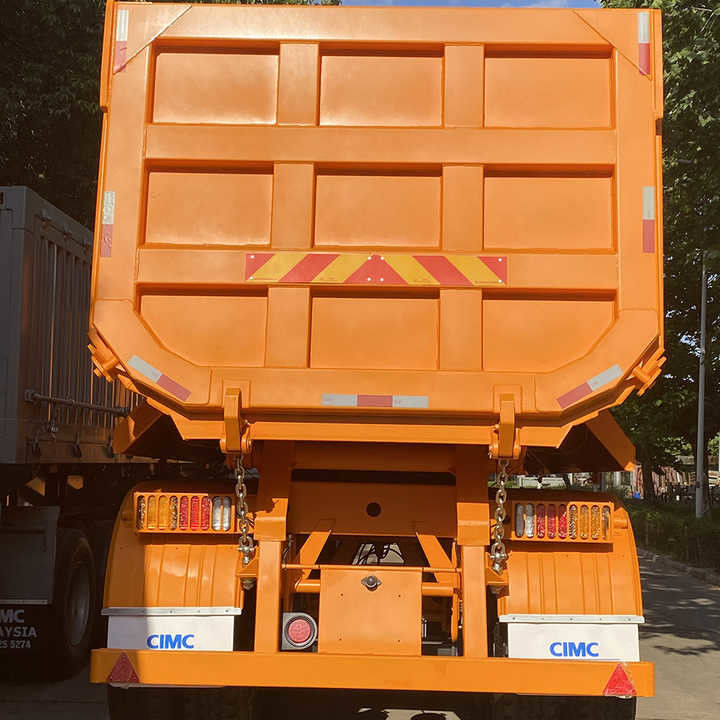

Name: SHACMAN CIMC 3 Axle Tipper Semi Trailer with 70T Max Payload 16T Axle and 28T Landing Gear
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: Tipper Semi Trailer
Price: 2,517.00 USD
Availability: InStock

Home > Products > Semi Trailer >

SHACMAN CIMC 3 Axle Tipper Semi Trailer with 70T Max Payload 16T Axle and 28T Landing Gear

Mining Semi Trailer

Semi Tipper Dump Truck

U Shaped Semi Trailer 3 Axle

Place of Origin:

China

Brand Name:

CIMC

Certification:

ISO9001/CCC

Model Number:

Tipper Semi Trailer

Request A Quote

Product Details

Use:

Truck Trailer

Material:

Steel

Max Payload:

70T

Function:

Stones And Sands

Axle:

13/16 Ton Fuwa/BPW/CIMC

Suspension:

Mechanical Supension

Capacity:

Capacity

Size:

9000*3050*3000mm

Keywords:

Dump Tipper Semi Trailer

Main Beam:

500mm Height Q345B

Tire:

12.00R20

Certification:

Landing Gear:

Standard 28Ton

Highlight:

Mining Semi Trailer

Semi Tipper Dump Truck

U Shaped Semi Trailer 3 Axle

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

L/C, T/T

Supply Ability

500 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN CIMC 3 Axle Mining U Shaped Semi Trailer Tipper Dump Truck

Detailed Product Description

Size: Overall size: 13500*2650*3700mm, Inner size: 13350*2470*1800mm

Axle: 16T Axle, without ABS

Landing gear: 28T, two sides operation

Tyre: 1200R20

Product Specifications

Specification	Details
Size	Overall size: 1350026503700mm Inner size: 1335024701800mm
Body sheet	Side wall thickness: 3mm, floor thickness: 4mm
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes.
Axle	16T Axle, without ABS
Tyre	1200R20
Rim	8.5-20
Leaf spring	90mm width12pieces16mm
Suspension	CIMC HUAJUN type
Side beam	18# channel steel
Braking system	2-line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system	24-volt electrical system. LED lights, 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights. Rear lights conform to European standards, rear front, and side reflectors.
Shotblasting and paint	The chassis is completely shot-blasted to SA 2.5 grade and painted with the first layer of international Zinc Epoxy primer (30 Microns DEF), second layer international high built polyurethane undercoat (40 microns DFT), third and fourth layers international alkyd FINISH TOP coat. Total 80-100 microns. High quality painting. The whole trailer waxed.
Landing gear	28T, two sides operation
Chamber	T30/30 on front and middle axle, T30/ on rear axle
Kingpin	90# Bolted type
Cylinder	Domestic Cylinder
Toolbox	HUAJUN standard

Tipper Semi Trailer Truck Advantages

Improvement of transportation efficiency: The self-discharging semi-trailer compartment adopts the way of back-turning and self-unloading, which can well improve the transportation efficiency of transporting bulk and fragmentary goods.
Excellent craftsmanship: The main parts of the self-discharging semi-trailer are processed by equipment, the longitudinal beam is welded by automatic submerged arc welding, and the assembly machine is utilized for the precise assembly of the steel plate spring and wheel axle.

Frequently Asked Questions

1. Who are we?

We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.

3. What can you buy from us?

Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
