Place of Origin: | Shaanxi, Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | F2000 |
Minimum Order Quantity: | 1UNIT |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Drive Type: | 6x4 | Braking System: | Air/Hydraulic |
---|---|---|---|
Cab Type: | Day/Sleeper | Color: | Client Requirement |
Engine Type: | Diesel | Fuel Capacity: | 380L |
Horsepower: | 290 | Load Capacity: | 50 Tons |
Steering System: | 850×300(8+7) | Suspension System: | Front And Rear Multi-leaf Springs |
Tire Size: | 12R22.5 | Transmission: | 9JS135+QH50 |
Wheelbase: | 3775+1400 | Air Inlet: | Ordinary Air Filter |
Highlight: | 30tons Tipper Dump Truck,12R22.5 Tire Heavy Dump Truck,Mining Tipper Dump Truck |
SHACMAN F2000 6x4 290HP 30tons Tipper Dump Truck
Detailed Product Description
Model: SX3255JM384
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP10.290E32
Engine Power/(kw/HP): 213kw / 290Hp
Gear box Brand: FAST
Gear box Model: 9JS135+QH50
Tractor Truck Parameters
Model | SX3255JM384 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3775+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.290E32 | |
Power/(kw/HP) | 213kw / 290Hp | |
Maximum torque / (N.M)/rpm | 1160 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 9JS135+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | multi-leaf springs+Four main plates + two riders |
Rear | multi-leaf springs+Four main plates + two riders | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 16T STR-bridge speed ratio: 5.73 | |
Tires | Type | 12R22.5 |
Fuel tank | Tank capacity/(L) | 380L iron tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F2000 extended flat roof cab with A/C |
Equipment | Hydraulic main seats, elastic headrests, four-point hydraulic suspension, 13 regular mirrors, hot zone version air conditioning, Jackscale technology compressor, manual window crank, manual sunroof, manual flip-up, telescopic axle maneuvering, domestic six-channel ABS, regular air filters, copper water tank, fiberglass bumpers, front lower protection, tachograph, cruise control system, speed limit of 90km/h, seatbelt unfastened reminder, reflective undershirts, SHACMAN logos, all-english logos |
Tractor Truck Advantages

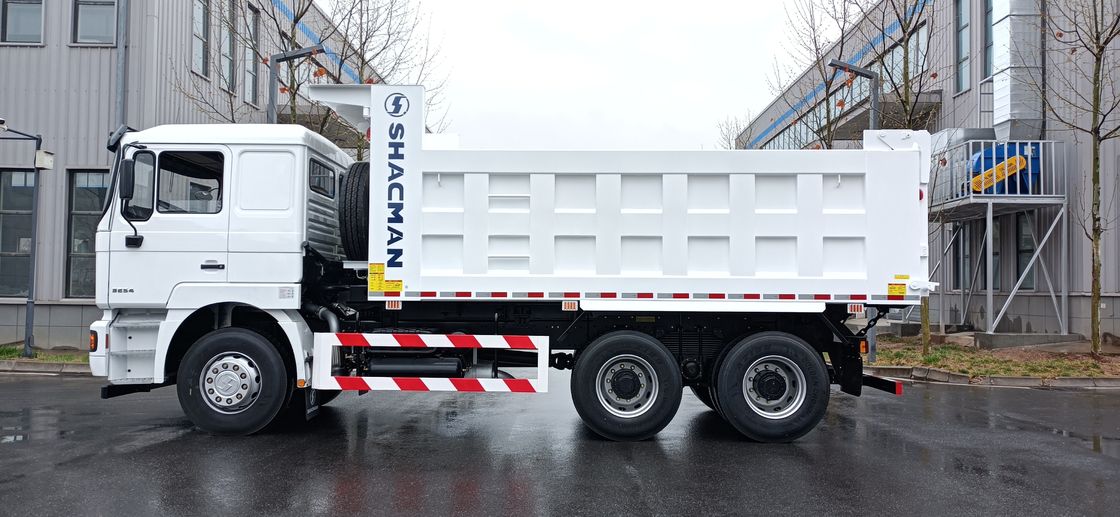

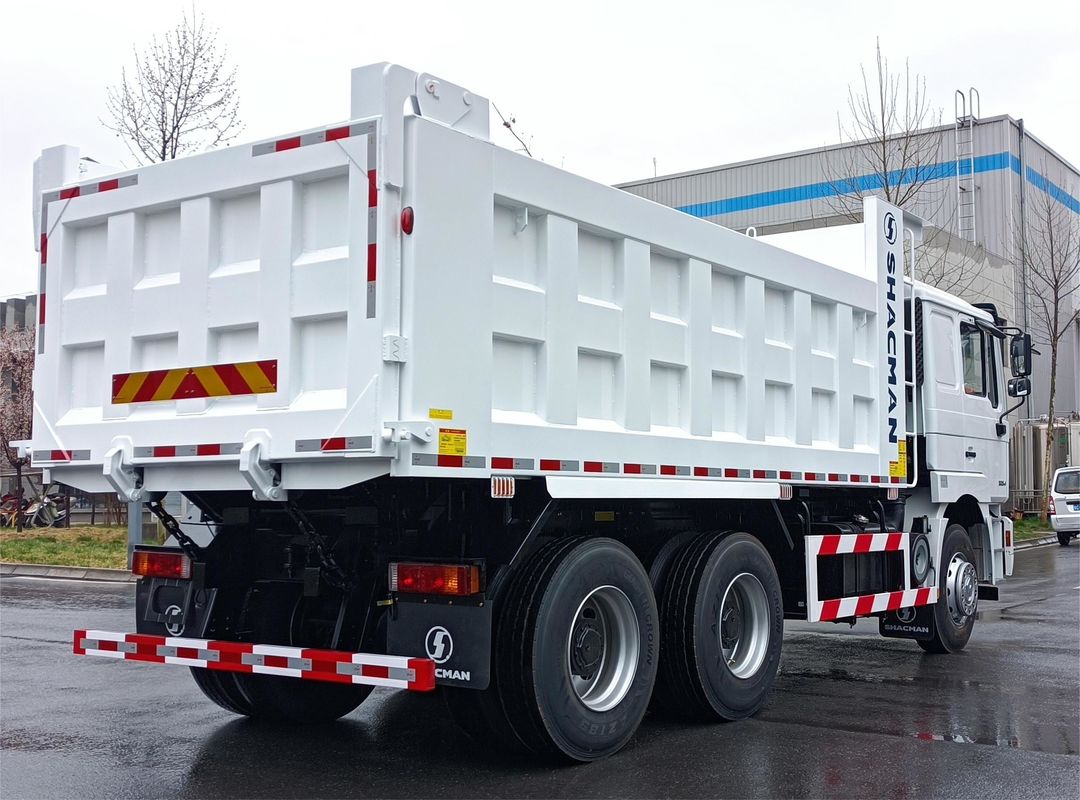

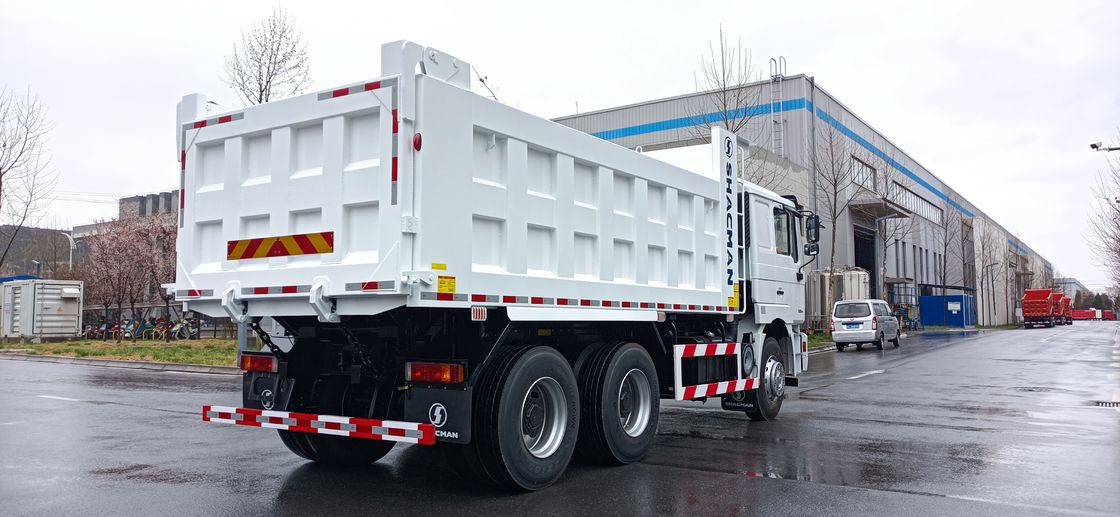

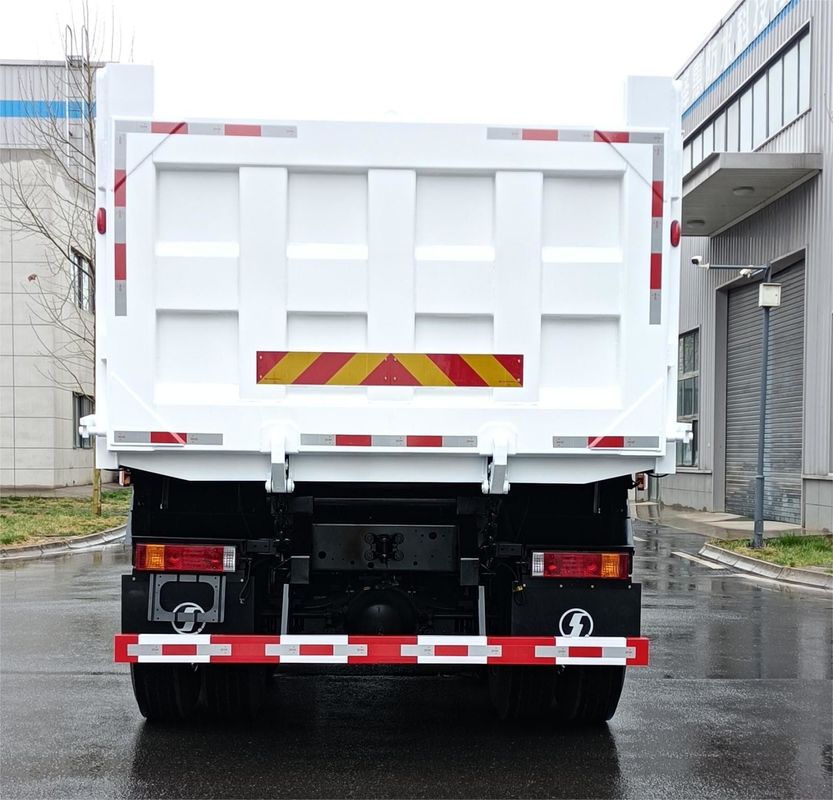

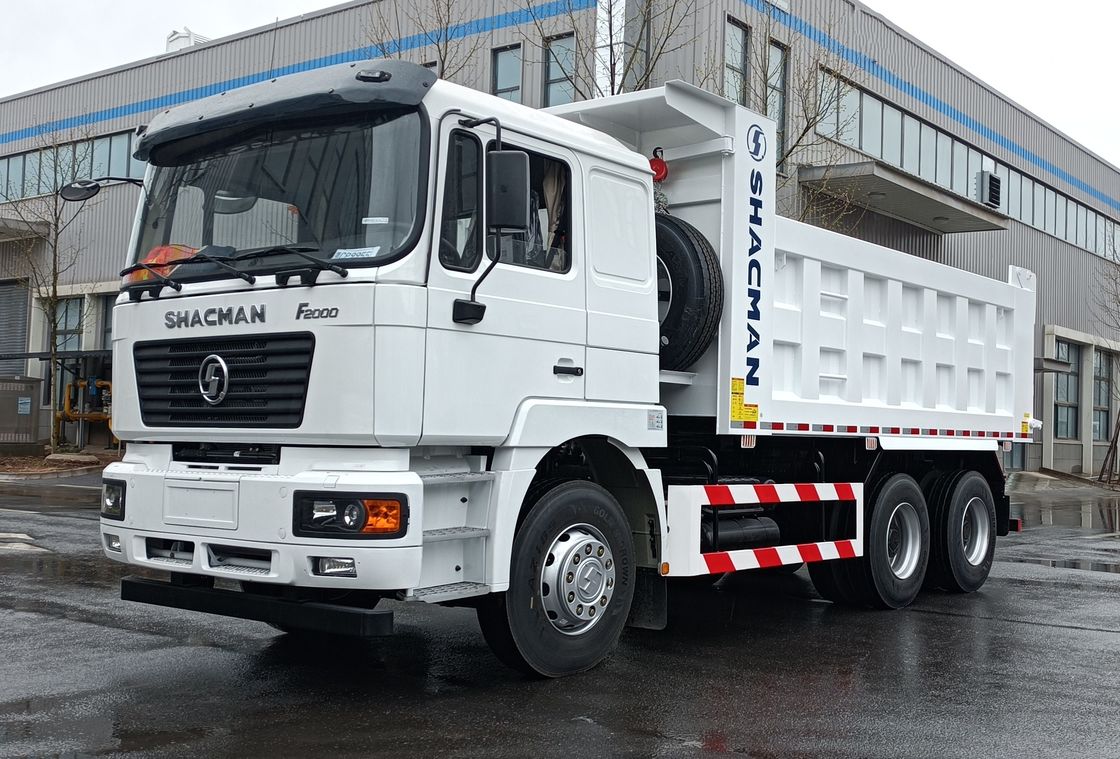

Truck Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
