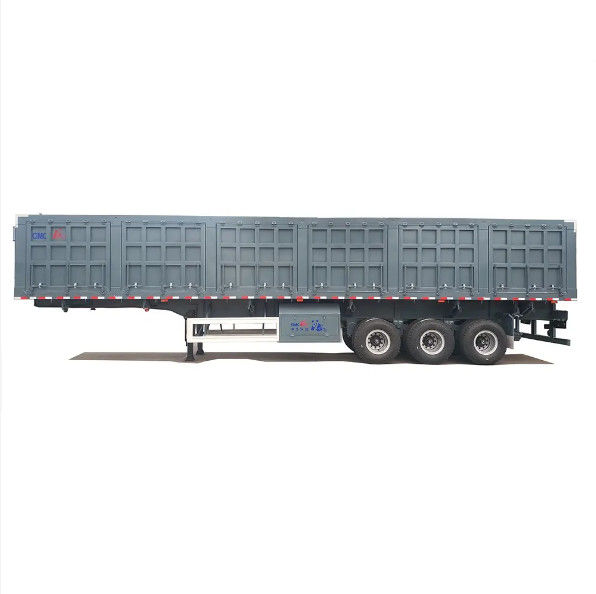

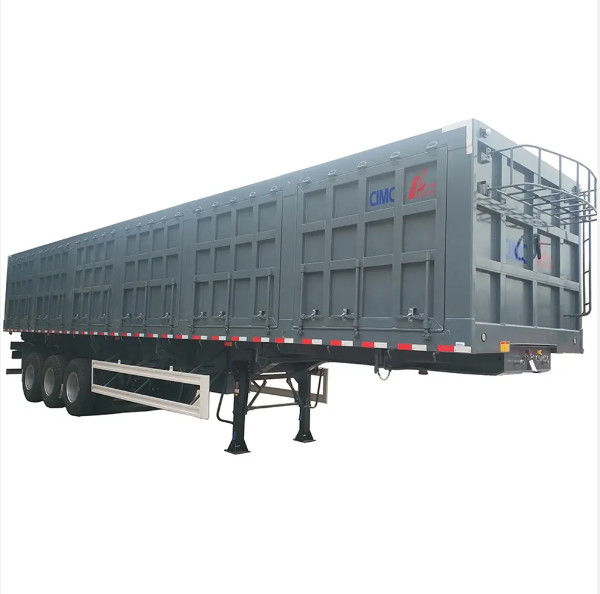

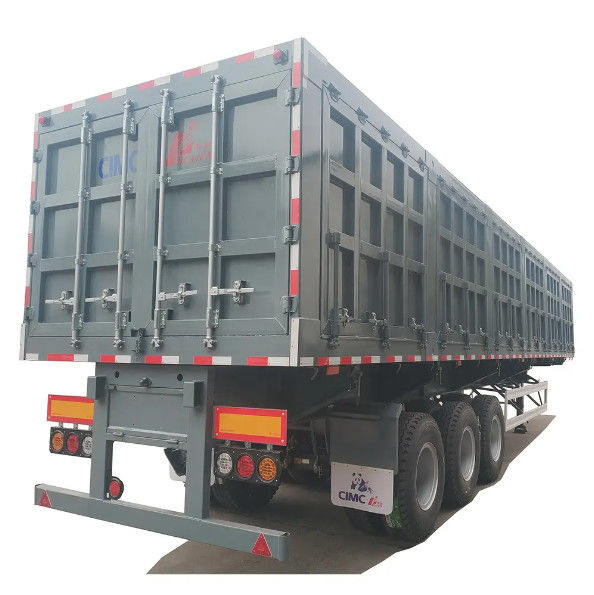

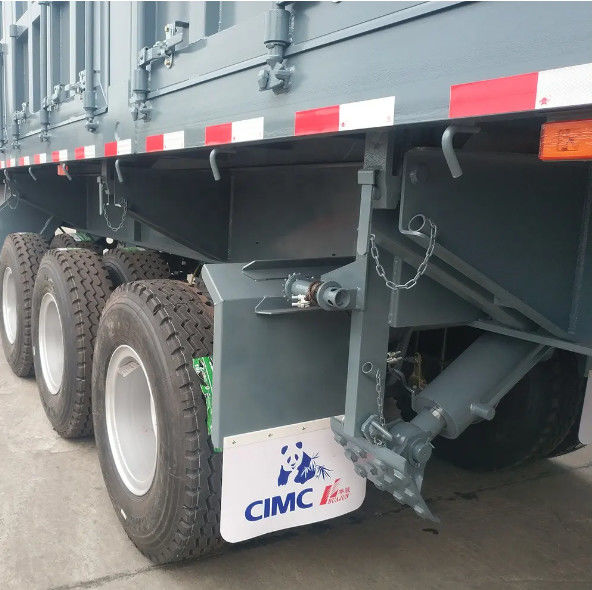

CIMC Cargo Tipper Semi Trailer 80 Tons Hydraulic Double Side Dump Tipping

Basic Information
Place of Origin: China
Brand Name: CMCC
Certification: ISO9001/CCC
Model Number: Fence Semi Trailer
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Detail Information
Use: Truck Trailer Material: Steel
Max Payload: 60T Function: Transport Sand, Coal Or Stone
Axle: Fuwa Brand With Air Suspension Suspension System: Mechanical Supension
Capacity: Capacity Side Board: 6 Mm
OE NO.: HJGMCK20025 Main Beam: T700/Q345 Steel
Color: Customers Optional Tire: 12.00R20
Floor Board: Floor Board Certification: Ce
Highlight:

Double Side Dump Tipping Semi Trailer

,

80 Tons Hydraulic Semi Truck Trailers

,

Cargo Tipper Semi Trailer


Product Description

Two side tipper two Side dump Semi Trailer for Heavy Duty

Company Introduction
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, owns 22 production bases over the world, producing capacity for all kinds of special vehicles and trailers is more than 0.2 million, which comes to the world leadership position.
CIMC HUAJUN covers an area of 0.8 million square meters, total assets of RMB 1.6 million, and about 2000 employees. The main products are semi-trailers, dump trucks, tank trailers, box trailers, refrigerator trucks or trailers, special purpose vehicles, etc. annual production capacity of more than 50,000.00 units.


Product Description




Specification
sizeoverall size:13500*2650*3700mm
inner size:13350*2470*1800mm
body sheetside wall thickness: 3mm, floor thickness:4mm
chassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by
automatic Submerged-Arc processes.
axle16T Axle, without ABS
tyre1200R20
rim8.5-20
leaf spring90mm width*12pieces*16mm
suspentionCIMC HUAJUN type
side beam18# channel steel

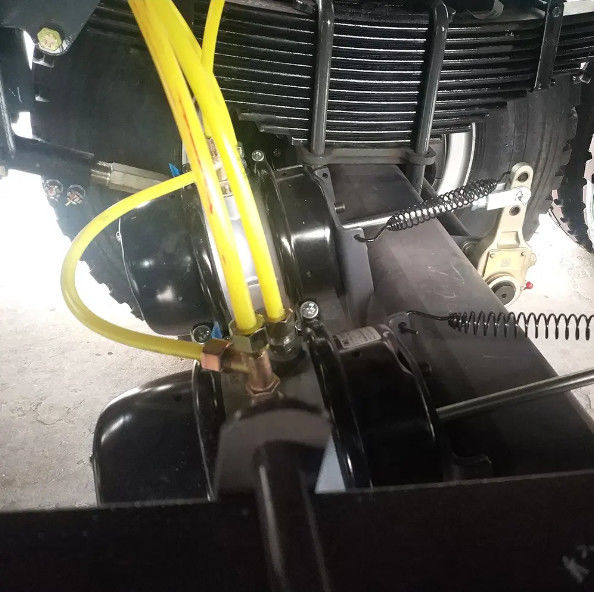

braking system2-line air braking system with air tank, WABCO emergency relay valve, braking chambers and
mechanical slack adjusters.
electrical system24-volt electrical system.LED lights, 7-pin electrical connector.parking .stop, reverse, number plate
and indicator lights. rear lights conform to European standards, rear front, and side reflectors
Shotblasting and
paint
The chassis is completely shot-blasted to SA 2.5 grade and painted with the first layer of international Zinc
Epoxy primer(30 Microns DEF),second layer international high built polyurethane undercoat(40
microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100
microns. high quality painting. The whole trailer waxed.
landing gear28T, two sides operation
ChamberT30/30 on front and middle axle, T30/ on rear axle
kingpin90# Bolted type
CylinderDomestic Cylinder
toolboxHUAJUN standard


Our Service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions and set up offices in many countries to make after-sales service more timely and easy.
In addition, we built the KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in African areas and provides technical and operational guidance

Our Main Markets
With more than 60 years of unremitting efforts to make “HUAJUN” a well-known brand all over the world, products sold very well in China and also exported to more than 40 countries and regions, such as Southeast Asia, Africa, the Middle East, South America, etc.
With annual output of 50000 units of trailer, top 500 in the Chinese mechanical industry, and top 100 in the Chinese automobile industry, witness our great strength.

Pic
CIMC Cargo Tipper Semi Trailer 80 Tons Hydraulic Double Side Dump Tipping 0

Our Supplier
Packing&Shipping
CIMC Group HUAJUN Vehicle 3 Axles Fence Cargo Semi Trailer 60 80 tons with Container Twist Lock
1. One unit was shipped separately or two/three units were packed together.
2. Naked or waxed both are acceptable.
the Carton Fair Exhibition
from 2007 to 2019 we went to the exhibition twice one year, maybe you are familiar with these faces.

Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. The main products are semi-trailers, dump trucks, tank trailers, box trailers, refrigerator trucks or trailers, special purpose vehicles, etc. annual production capacity of more than 65,000.00 units.
