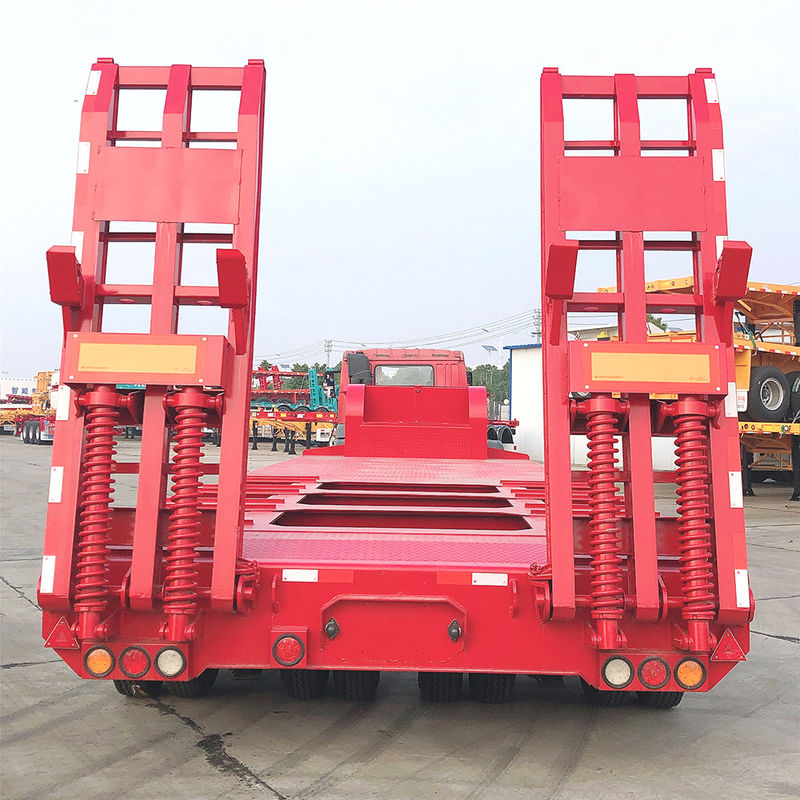

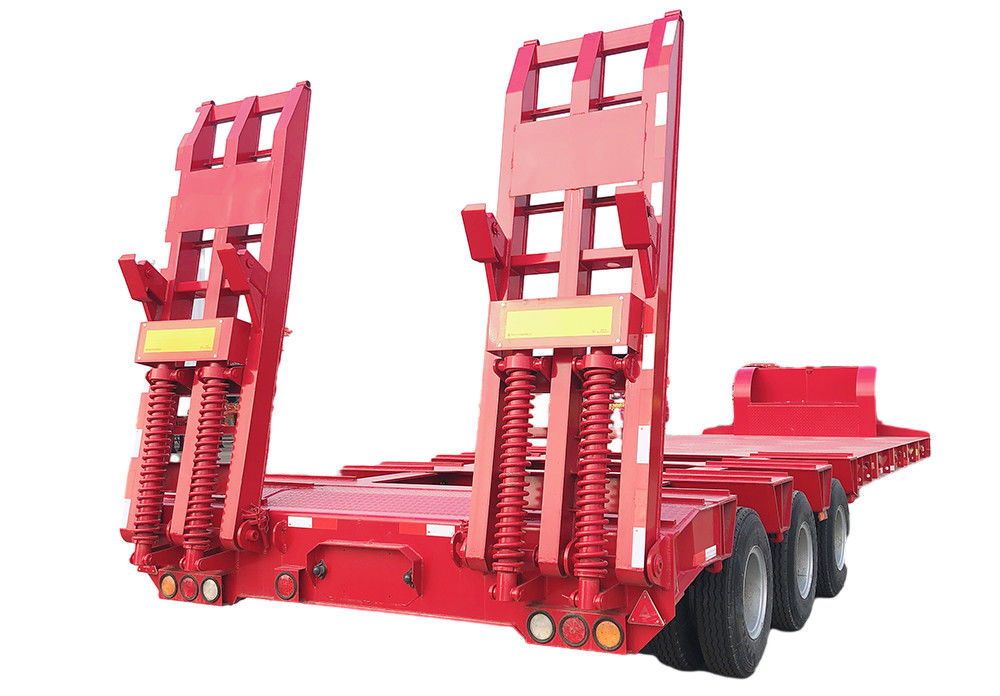

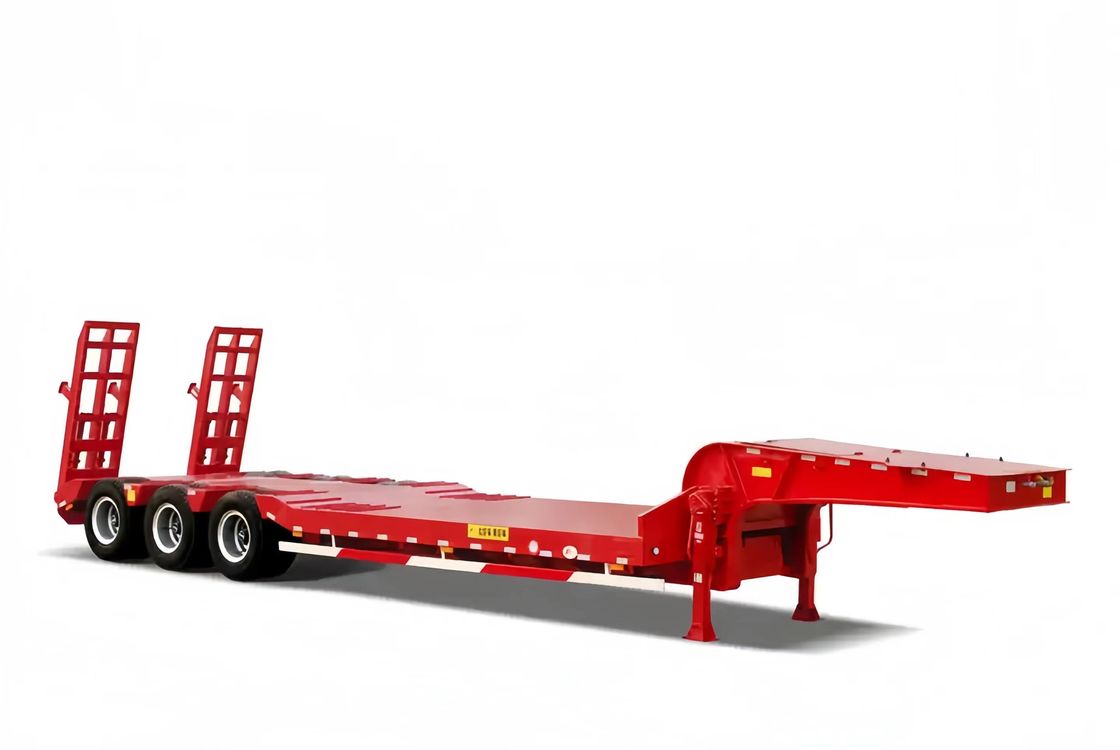

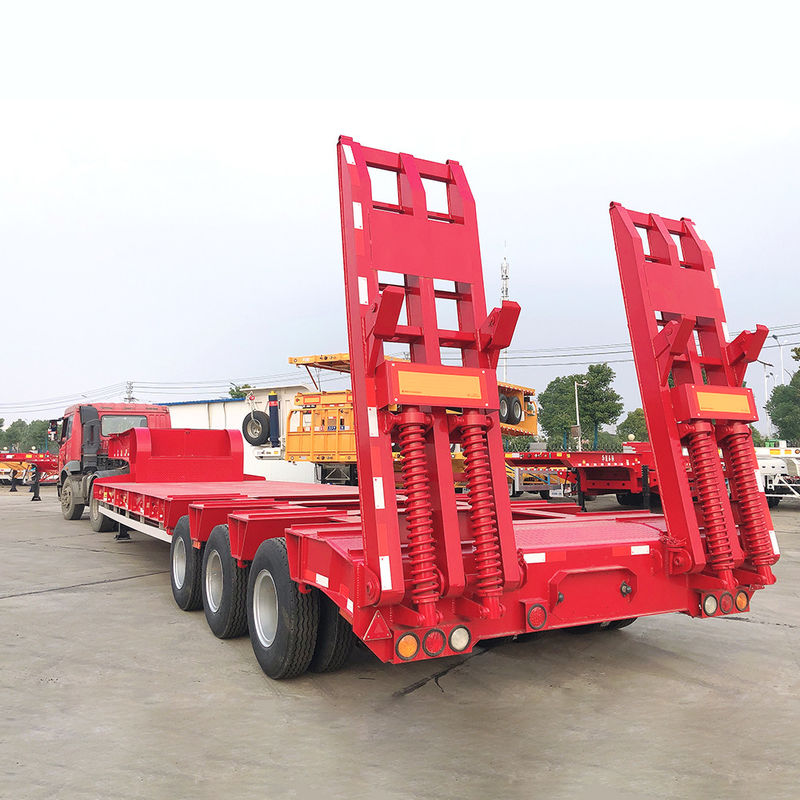

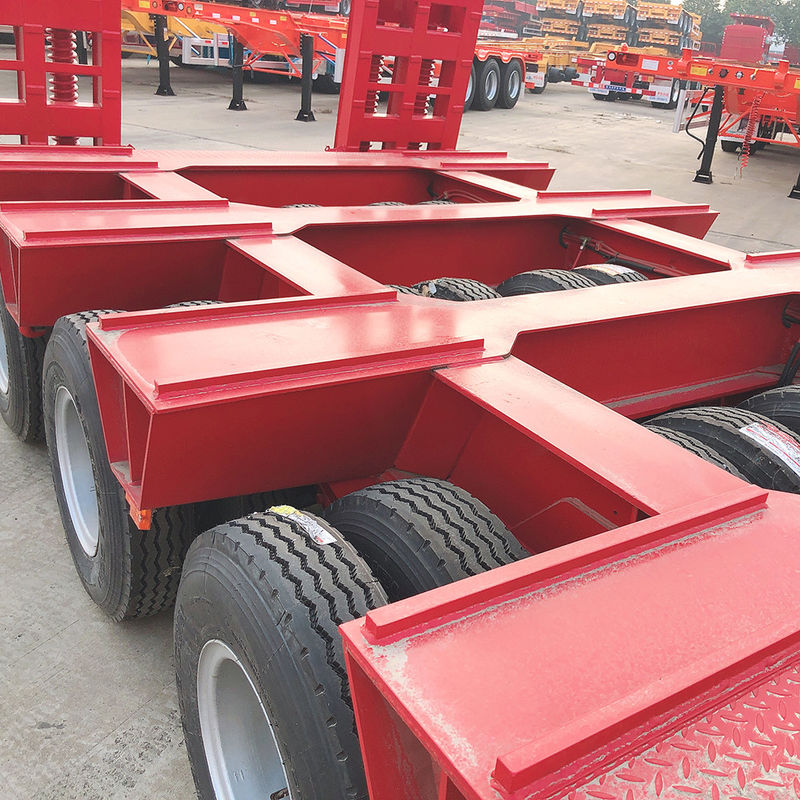

CIMC FUWA 3-Axle lowbed semi trailer truck heavy duty truck
Product Description
| Item |
Specification |
| Use |
Truck Trailer |
| Product name |
3 4 axles low bed boy deck flatbed container gooseneck |
| Function |
Transport heavy equipment |
| Size |
17500*3000*1250mm |
| Axle |
16 Ton, FUWA brand |
| Rim |
9.0-22.5 |
| Suspension |
Mechanical Suspension |
| Tire |
315/80R22.5 |
| Max Payload |
60 Ton |
| Main Beam |
T700/Q345 Steel |
| Chamber |
Double type |
| Material |
Steel |
| Landing gear |
28T, two side operation |
| King pin |
(2') 50# or (3.5') 90# |
| Shot blasting |
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed. |
| Electrical system |
24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors. |
| Lead spring |
CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness. |
| Braking system |
2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
| Color |
According to customers' requirements and RAL color code. |
| Why Choose Us? |
| Profession |
More than 60 years experience in vehicle manufacture, consistent pursuit of quality, bring us famous brand in Chinese vehicle undustry. |
| Actual strength |
More than 60 years experience in vehicle manufacture, consistent pursuit of quality, bring us famous brand in Chinese vehicle undustry. |
| R & D |
Set up a post-doctoral research station, take part in drawing up national and industrial standards, leading in new trend of technical design, raw material utilization, and equipment & craft, developing on innovation, always been imitated, but never been exceeded. |
| Service |
Create CIMC HUAJUN unique heart-pleasing service, offer the trailored solution for the customer, and make sure the quality and create more value for customer. |
| Adaptability |
Always developed under the concept of safety, efficient, pro-environment, intelligent adaptability. etc. widely master kinds of road condition, kinds of loading resources, kinds of transport environment at home and abroad, reasonably optimize the structure, offer quality and tailored products for professional customers, really embody our high quality. |
Company Introduction
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, owns 22 production bases over the world, producing capacity for all kinds of special vehicles and trailers is more than 0.2 million, which comes to the world leadership position.
CIMC HUAJUN covers an area of 0.8 million square meters, total assets of RMB 1.6 million, and about 2000 employees. The main products are semi-trailers, dump trucks, tank trailers, box trailers, refrigerator trucks or trailers, special purpose vehicles, etc. annual production capacity of more than 50,000.00 units.
Pic
Packing&Shipping
3 4 axles low bed boy deck flatbed container gooseneck Excavator transport semi trailer trucks 100Ton lowbed truck trailer
Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
FAQ
Q1. What markets do your vehicle export to?
A: Europe, North & South America, South-East Asia, Africa, Oceania, Middle East countries etc.
Q2. What information should I let you know if I want to get a quotation?
A: Please let us know the your purpose, road condition, cargo type, tons of your cargo, dimensions of trailer, quantity etc. The more info you provide, the more accurate model and price you will get.
Q3. Is it available to print our own brand on the vehicle?
A: Totally acceptable as you wish.
