Place of Origin: | Shaanxi, Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | X3000 |
Minimum Order Quantity: | 1UNIT |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Axle Configuration: | 6x4 | Braking System: | Air/Hydraulic |
---|---|---|---|
Cab Type: | Day/Sleeper | Color: | White/Red/Blue/Black/Gold |
Engine Type: | Diesel | Fuel Capacity: | 300-600L |
Horsepower: | 400-600 | Load Capacity: | 25-60 Tons |
Steering System: | 850×300(8+5) | Suspension System: | Front And Rear Multi-leaf Springs |
Tire Size: | 11.00R20/12.00R20/12R22.5/315/80R22.5 | Transmission: | Manual/12JSD200T-B |
Wheelbase: | 3175+1400 | Air Inlet: | Ordinary Air Filter |
Highlight: | Air Braking 6x4 Tractor Truck,Hydraulic Diesel Engine Trailer Truck,430HP 6x4 Tractor Truck |
X3000 6*4 Tractor Truck 10 Wheel Diesel Engine 430HP
Detailed Product Description
Model: SX42555V324
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.430E201
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
Model | SX42555V324 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3175+1400 |
Performance | Maximum speed/(km/h) | 45~60/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.430E201 | |
Power/(kw/HP) | 316kw / 430Hp | |
Maximum torque / (N.M)/rpm | 2060 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 12JSD200T-B | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5) | |
Suspension | Front | multi-leaf springs+Two main plates + two riders |
Rear | multi-leaf springs+Two main plates + two riders | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266 | |
Tires | Type | 12.00R20 (10+1) |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 extended flat roof cab with A/C |
Equipment | Air Master Seat, 4-Point Air Suspension, Electric Window Roller, Electric Electrically Heated Mirrors, Electric Flip, Central Locking (Dual Remote), Multifunction Steering Wheel, Telescopic Axle Maneuvering, Ordinary 90 Saddle, Flatbed Mounting Plate, Metal Bumper, Hinged Boarding Steps, Daytime Running Lamps, Tank Protection Grille, Split Fenders, SHACMAN Logo, Full English Logo, Electrically Controlled Engine Models Reflecting Cruise Control |
Tractor Truck Advantages

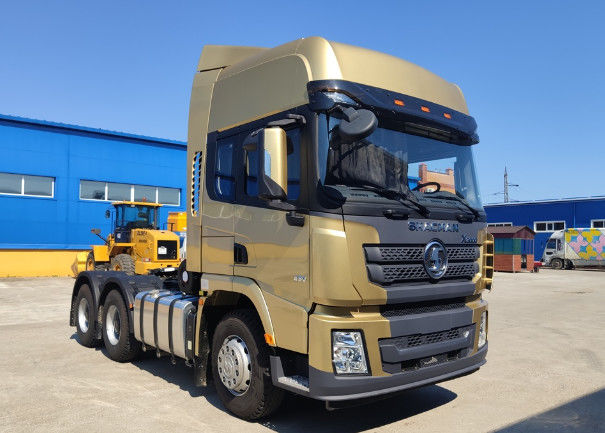

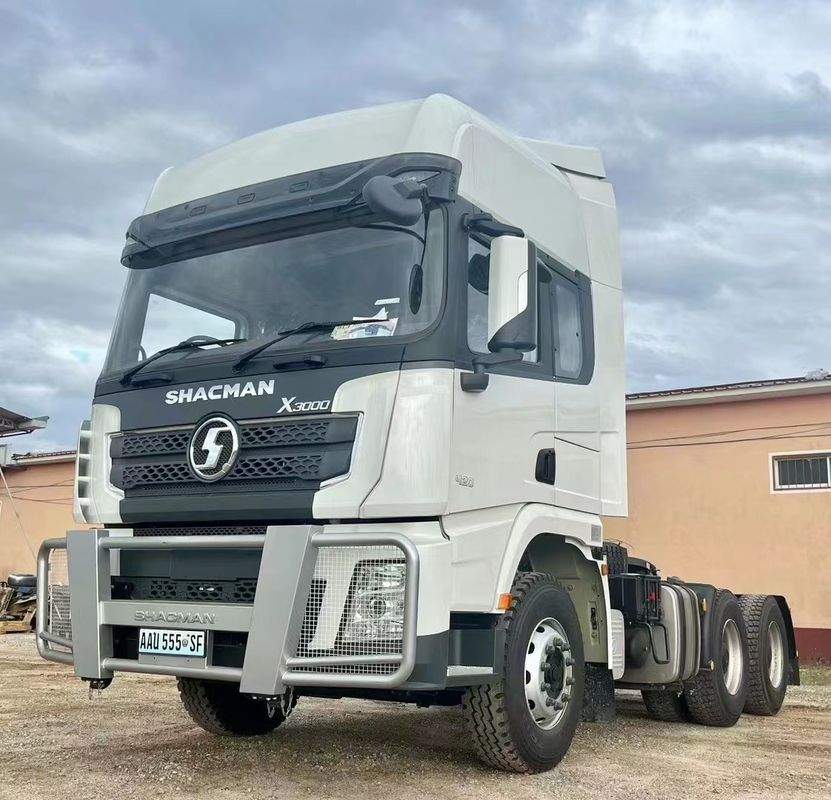

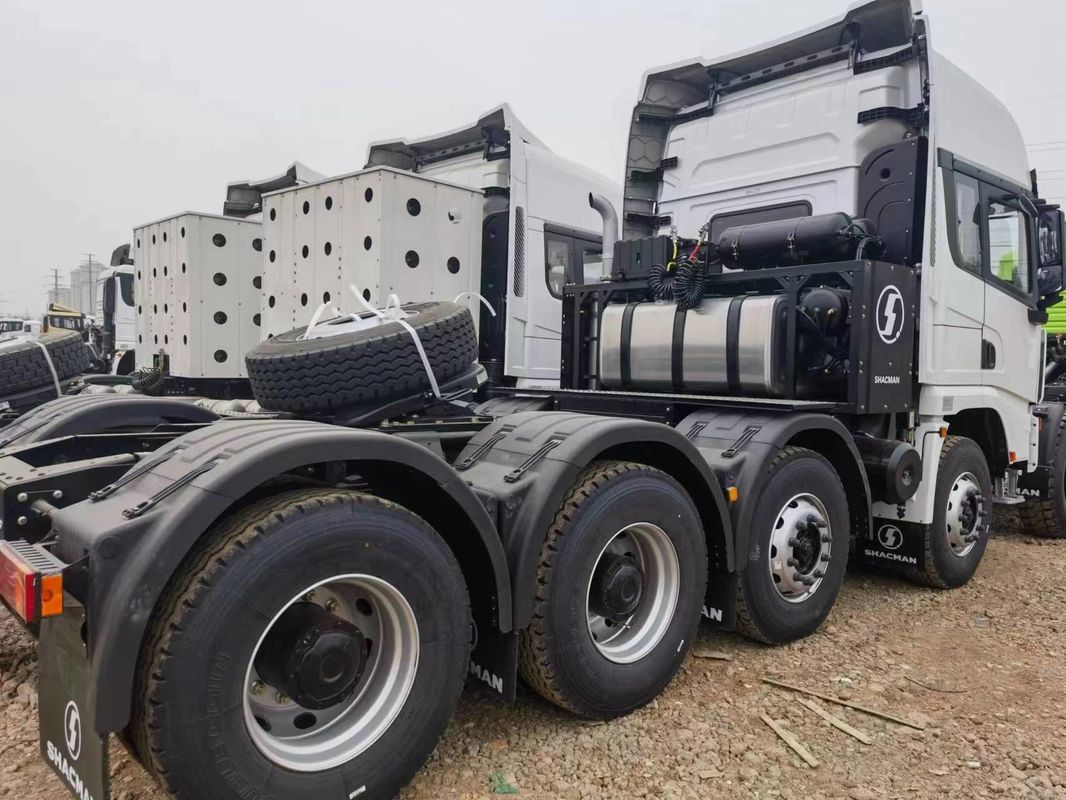

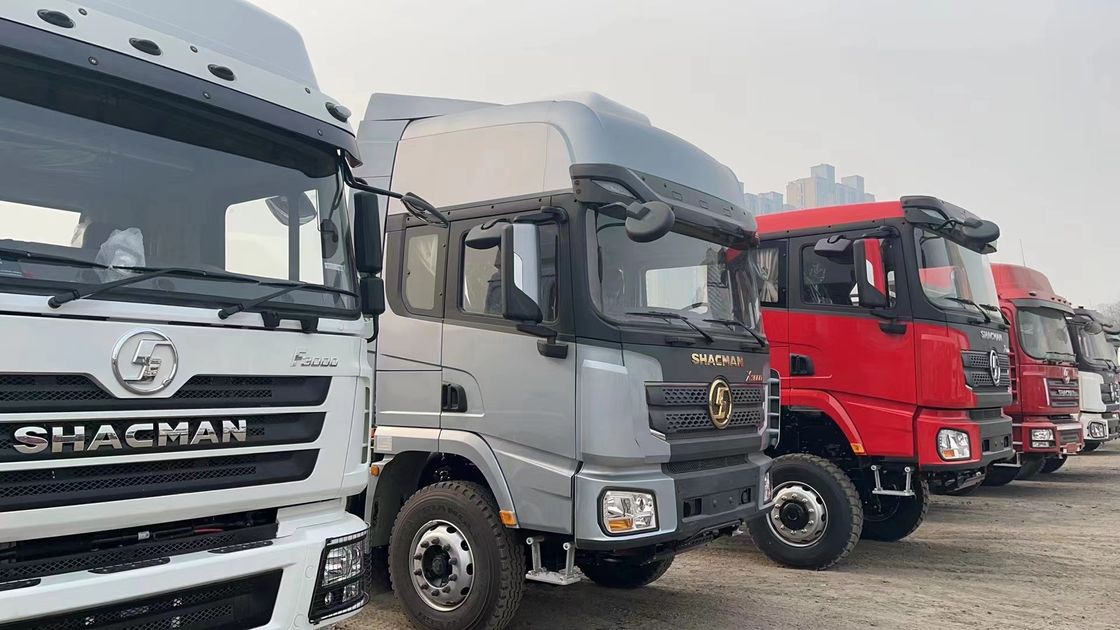

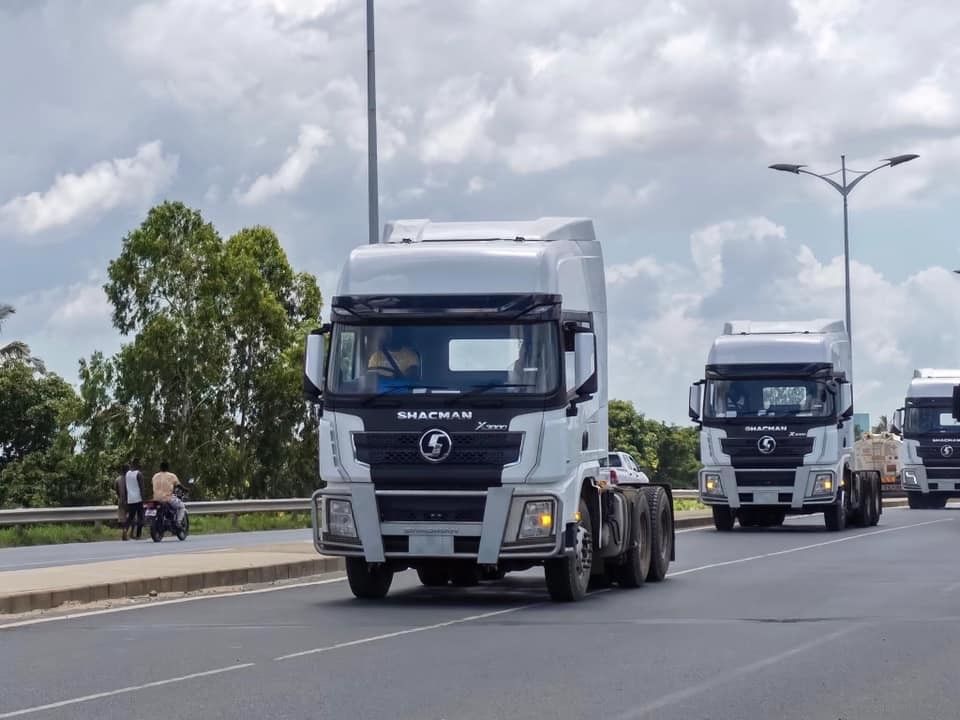

Truck Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
