8x4 Concrete Conveyor Truck SHACMAN H3000 Concrete Transit Mixer 375HP White

8x4 Concrete Conveyor Truck SHACMAN H3000 Concrete Transit Mixer 375HP White

Concrete Transit Mixer 375HP

8x4 Concrete Mixer Truck

Cement Conveyor Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

H3000

Contact Us
Request A Quote
Product Details
Modle:
SX5318GJBMT306
Engine:
WP12.375E53+PTO
Transmission:
10JSD180
Axle:
MAN 9.5T/2*16T MAN Dual Stage -5.262
Wheel Base:
1800+3575+1400
Tire:
12.00R20
Fuel Tank:
300L
Clutch:
φ430 Diaphragm Spring Clutch
Air Inlet:
Ordinary Air Filter
Chassis:
850×300(8+7)
Suspension:
Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts
Cabin:
H3000 Standard Cab
Color:
Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

Concrete Transit Mixer 375HP

,

8x4 Concrete Mixer Truck

,

Cement Conveyor Truck

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Nude pack, with wax before shipment.
Delivery Time
45 working days
Payment Terms
T/T, L/C
Supply Ability
1000 units/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

SHACMAN H3000 8x4 Mixer Truck 375HP



Detailed Product Description
Model: SX5318GJBMT306
Drive type: 8x4
Weight: Gross Vehicle Weight≤60
Engine Brand: WEICHAI
Engine Model:WP12.375E53+PTO
Engine Power/(kw/HP): 247kw / 375Hp
Gear box Brand: FAST
Gear box Model:10JSD180





Concrete Mixer Truck Parameters

Model SX5318GJBMT306
Drive type 8x4
Weight Gross Vehicle Weight ≤60
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 50~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E53+PTO
Power/(kw/HP) 247kw / 375Hp
Maximum torque / (N.M)/rpm 1550 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN dual stage: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, H3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Overview

  1. Engine: The truck is equipped with a powerful 375 horsepower (HP) engine that provides plenty of power and torque to carry heavy loads and operate concrete mixing equipment.
  2. Chassis: The truck has an 8x4 chassis configuration, indicating that it has eight wheels, four of which are driven. This configuration provides enhanced traction and load carrying capacity, making it suitable for the required tasks.
  3. Mixing drum: The mixing drum is a key component of the truck where raw materials such as cement, water and aggregate are mixed to create concrete. Rollers are usually constructed of durable materials to withstand the demands of concrete mixing.

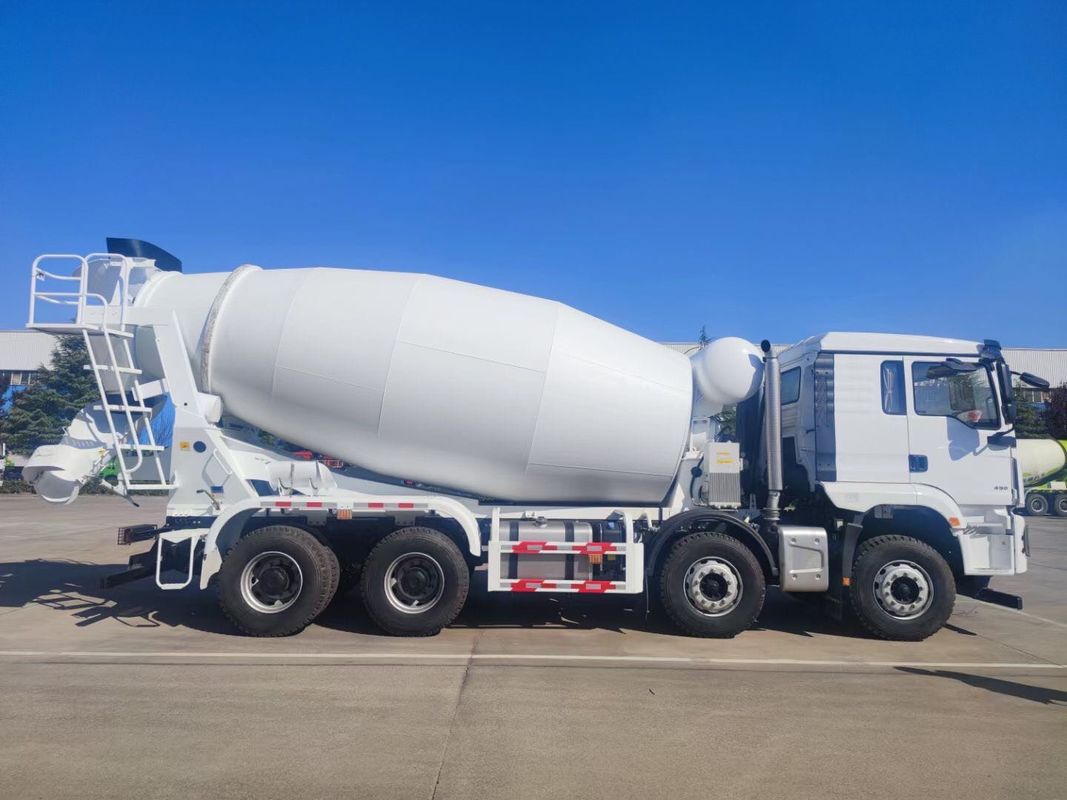

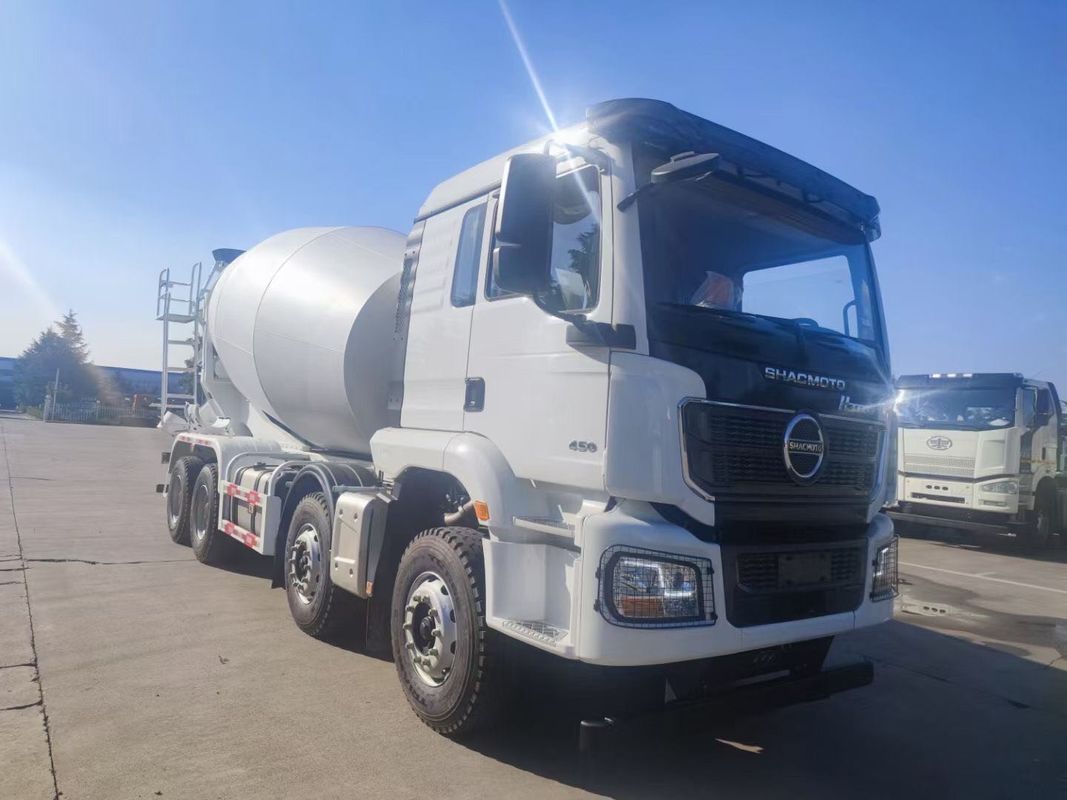

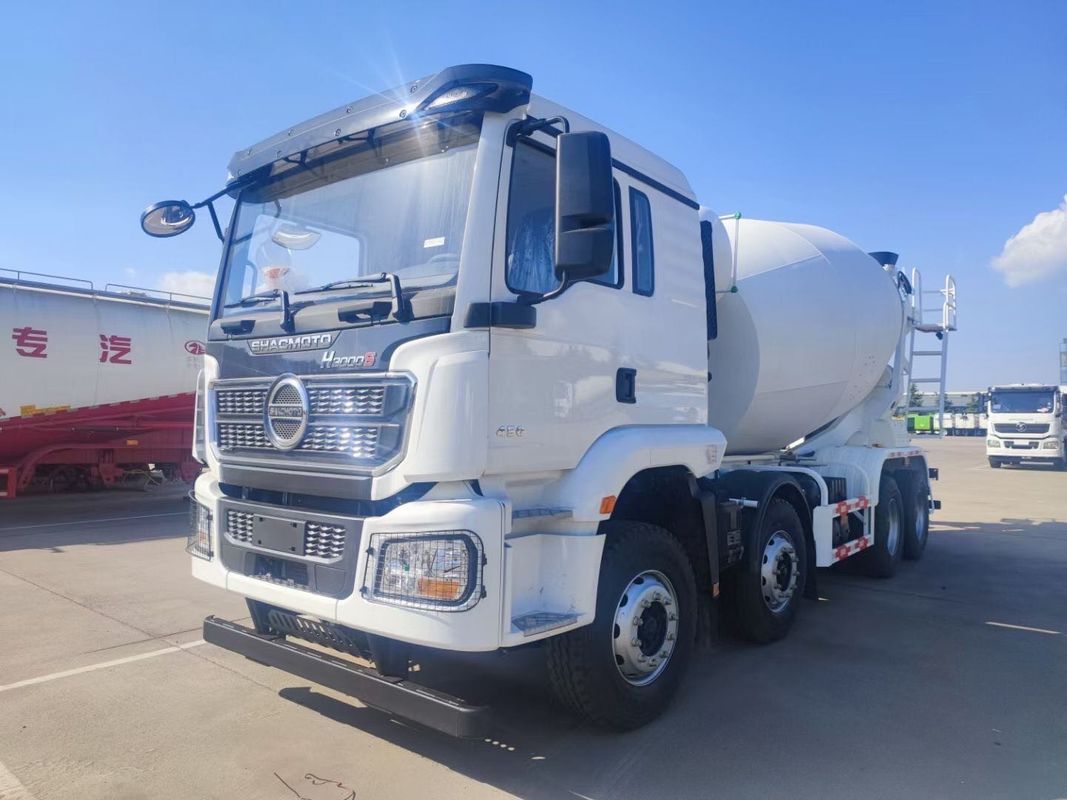

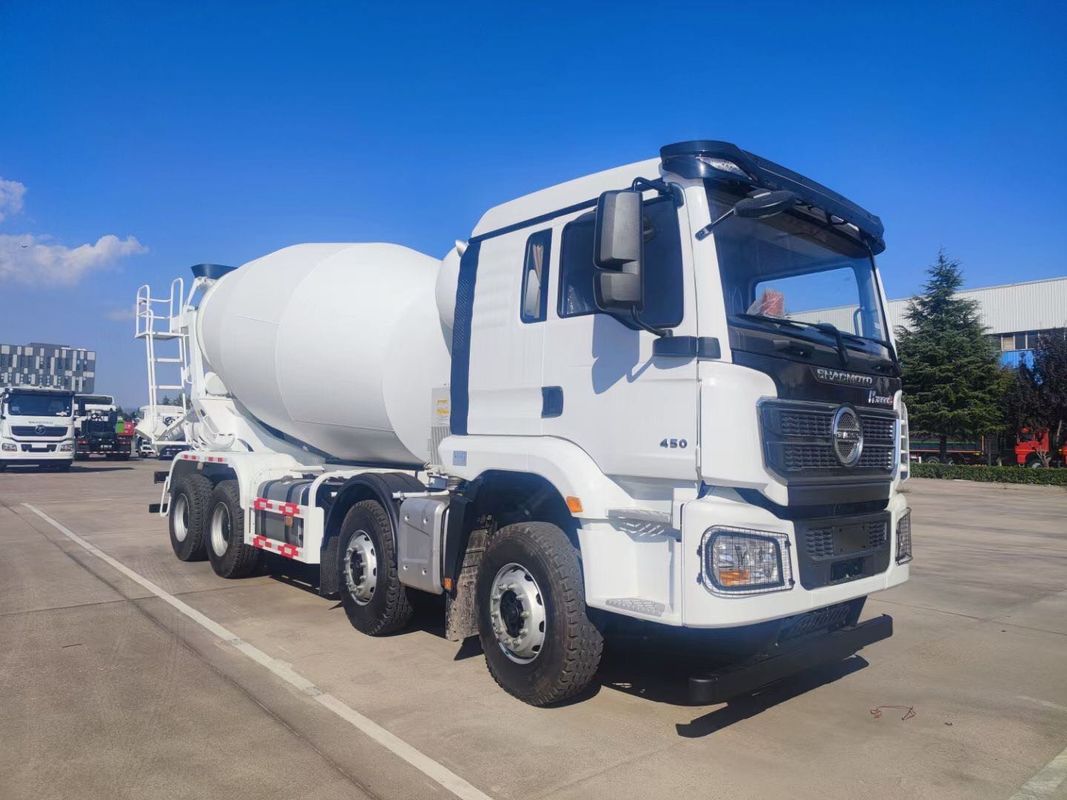

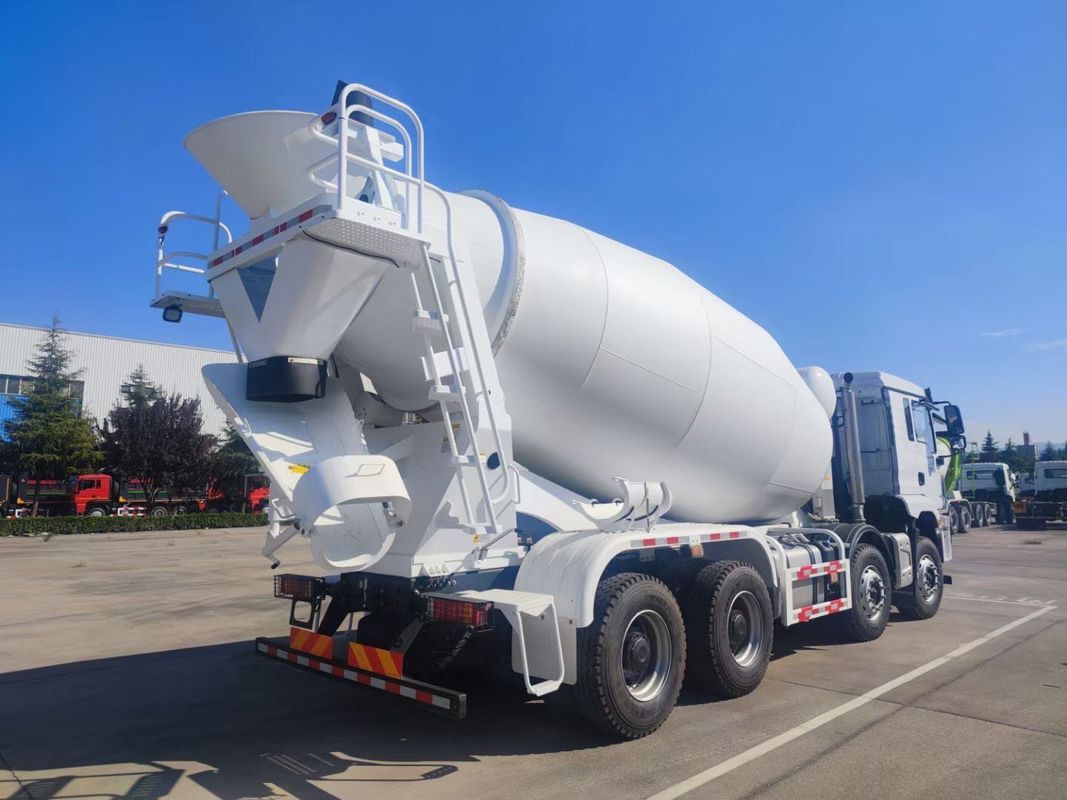

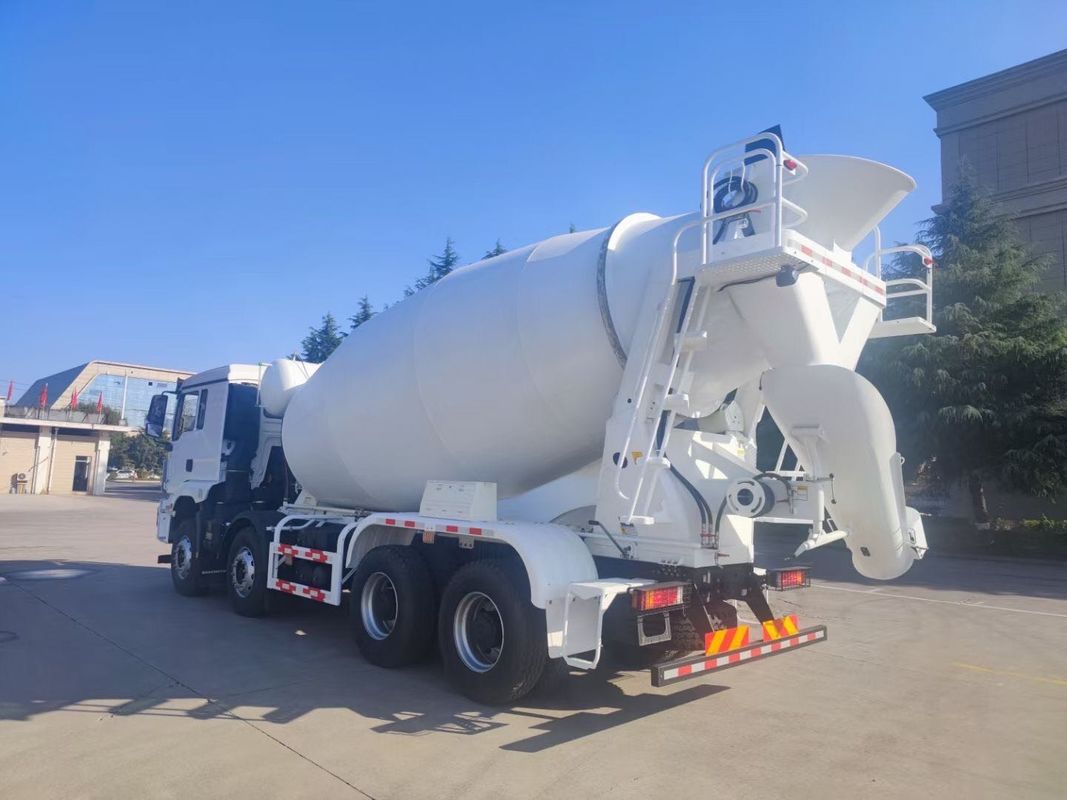

Detailed Image

8x4 Concrete Conveyor Truck SHACMAN H3000 Concrete Transit Mixer 375HP White 0
