SHACMAN H3000 Light Dump Truck 4X2 340hp Euroll Red Tipper Truck

Basic Information
Place of Origin: Shaanxi, Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1UNIT
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Model: SX3185MR381 Engine: WP10.340E22
Axle: 7.5T/2*13 Double Stage Axle, Axle Speed-5.92 Transmission: 10JSD180+QH50
Wheel Base: 3800mm Tire: 11.00R20
Fuel Tank: 300L Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring Cabin: Medium-length Flat Roof
Air Inlet: Ordinary Air Filter Color: Neon Red/Green Mountain/Aurora White
Highlight:

SHACMAN H3000 Light Dump Truck

,

Light Dump Truck 4X2

,

340hp Euroll Red Tipper Truck


Product Description

SHACMAN H3000 4X2 Light Dump Truck 340hp Euroll Red



Detailed Product Description

Model: SX3185MR381

Drive type: 4x2

Engine Brand: WEICHAI

Engine Model: WP10.340E22

Engine Power/(kw/HP): 250kw / 340Hp

Gear box Brand: FAST

Gear box Model: 10JSD180+QH50



Light Dump Truck Parameters

Model SX3185MR381
Drive type 4x2
Dimensions Wheelbase/(mm) 3800
Performance Maximum speed/(km/h) 45~60/75
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22
Power/(kw/HP) 250kw / 340Hp
Maximum torque / (N.M)/rpm 1450 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Front /rear Multi-layer plate spring
Rear Front /rear Multi-layer plate spring
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 11.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat roof
Equipment Hydraulic main seat, four-point hydraulic suspension cab, lever mirrors, electronically controlled automatic climate control, electric window crank, manual flip, telescopic axle manoeuvre, common air filter, tank protection grille, metal bumper, two-stage pedals, 165Ah maintenance-free battery, SHACMAN logo, full English logo



Advantages

  • The truck's cabin is designed to provide a comfortable working environment for the driver. It offers ergonomic seating, easy-to-use controls, and ample storage space. The cabin is also equipped with modern features to enhance driver convenience and safety.
  • The truck features a 4X2 configuration, which means power is transmitted to two of its wheels. This configuration strikes a balance between load-carrying capacity and maneuverability, making it suitable for various road conditions and construction sites.

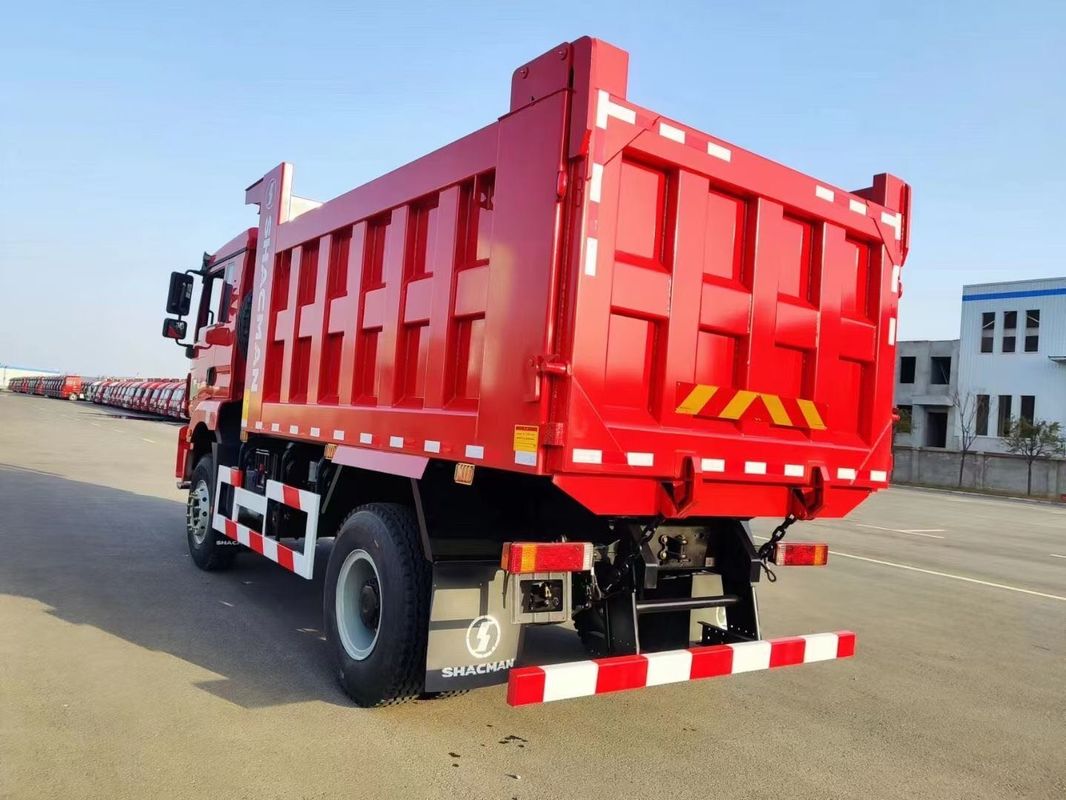

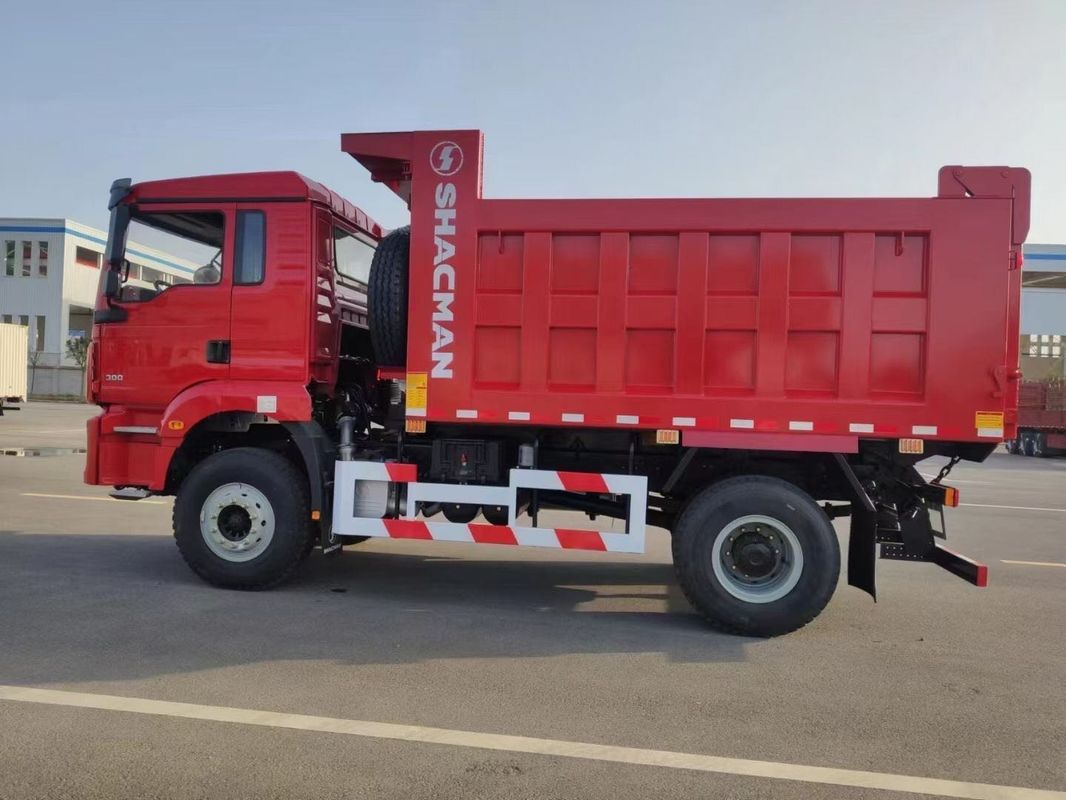

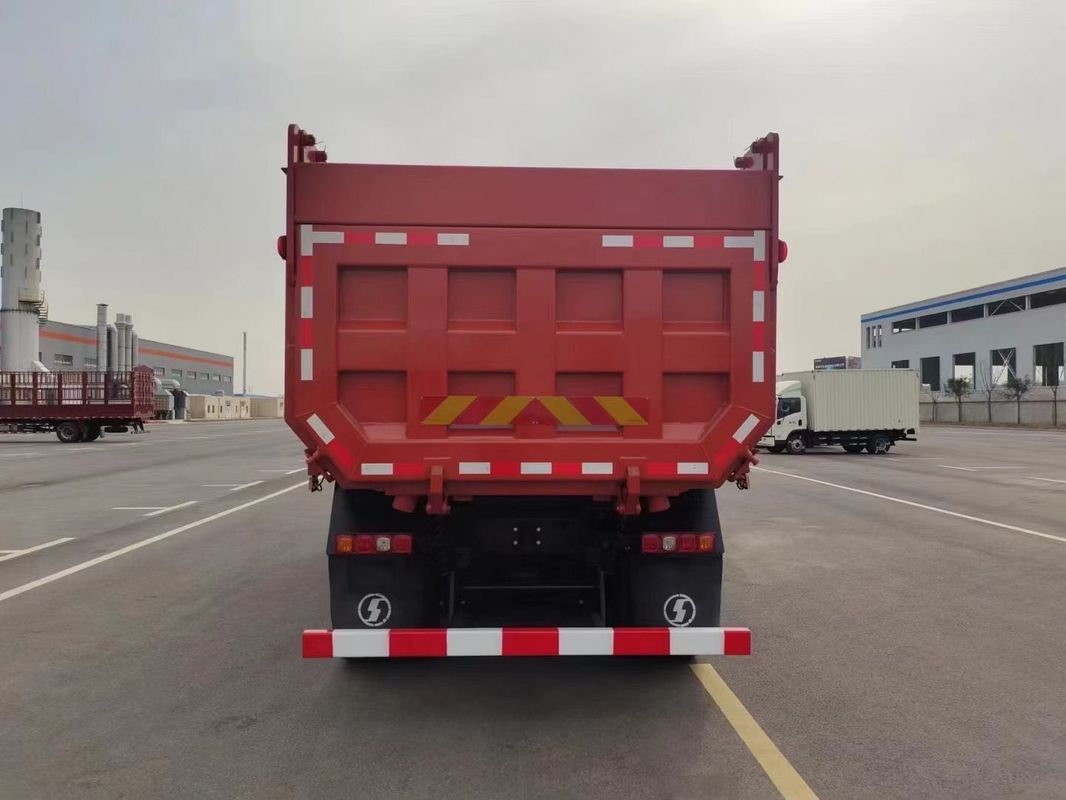

Detailed Image

SHACMAN H3000 Light Dump Truck 4X2 340hp Euroll Red Tipper Truck 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
