Euro II Crane Cargo Truck SHACMAN H3000 Construction Crane Truck 8x4 340hp

Basic Information
Place of Origin: Shaanxi, Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000
Detail Information
Modle: SX5255JSQMR585 Engine: WP10.340E22
Transmission: RTD-11509C+QH50 Axle: 27.5T /2*16 T Double-stage, Speed Ratio-4.769
Wheel Base: 1800+5775+1400 Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+5+8)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

Crane Cargo Truck EuroII

,

Crane Cargo Truck SHACMAN euroii

,

H3000 Construction Crane Truck EuroII


Product Description

SHACMAN H3000 Construction Crane Truck 6x4 340hp Euro II Cargo Crane Truck



Detailed Product Description
Model: SX5255JSQMR586
Drive Type: 6x4
Weight: Gross Vehicle Weight≤35
Engine Brand: WEICHAI
Engine Model: WP10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gearbox Brand: FAST
Gearbox Model: RTD-11509C+QH50



Cargo Crane Truck Parameters

Model SX5255JSQMR586
Drive Type 6x4
Weight Gross Vehicle Weight ≤35
Dimensions Wheelbase/(mm) 1800+5775+1400
Performance Maximum speed/(km/h) 60~75/115
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22
Power/(kw/HP) 250w / 340Hp
Maximum torque / (N.M)/rpm 1400 N·M
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gearbox Brand FAST
Model RTD-11509C+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5+8
Suspension Front Front /rear multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Front /rear multi-layer plate spring 4 main plates + 4 U-shaped bolts
Axles Brand HANDE
Front axle MAN 2*7.5T
Rear axle 2*16 T Double-stage, speed ratio-4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 medium-length flat roof
Equipment Hydraulic main seat, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo.




Features

  • Using the classic boom telescopic technology, the operation is safer and more reliable. Carefully designed the industry's complete safety device system to ensure that lifting operations are safer and more reliable. Fully upgraded braking system, using double circuit air pressure design, multi-system to ensure the braking safety in the process of vehicle operation.
  • Adoption of electromechanical liquid dual-use system, more environmentally friendly, more economical, more energy-saving.



Detailed Image

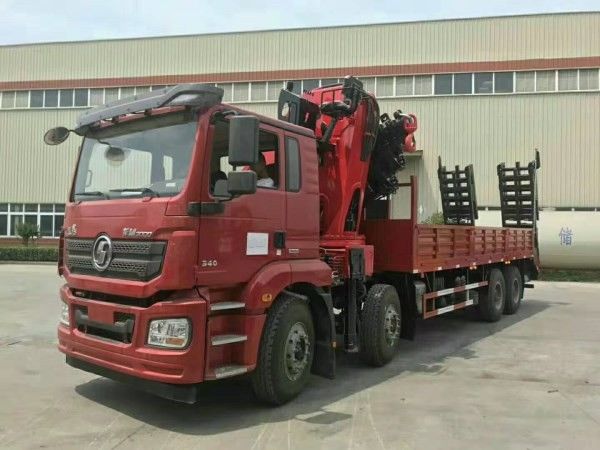

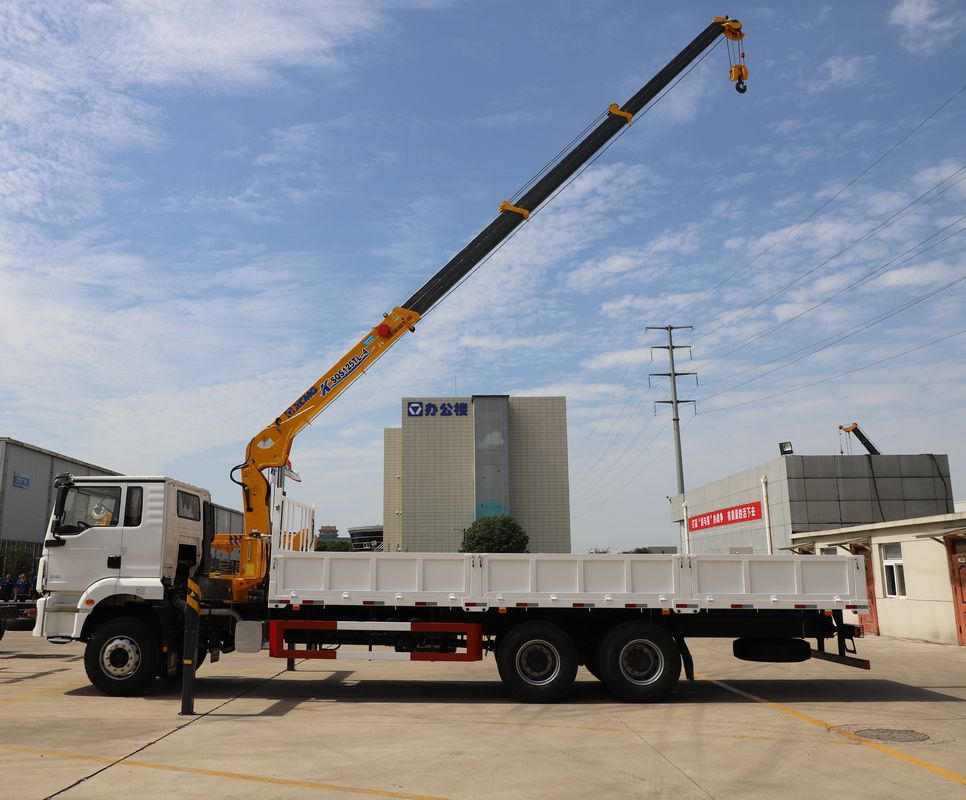

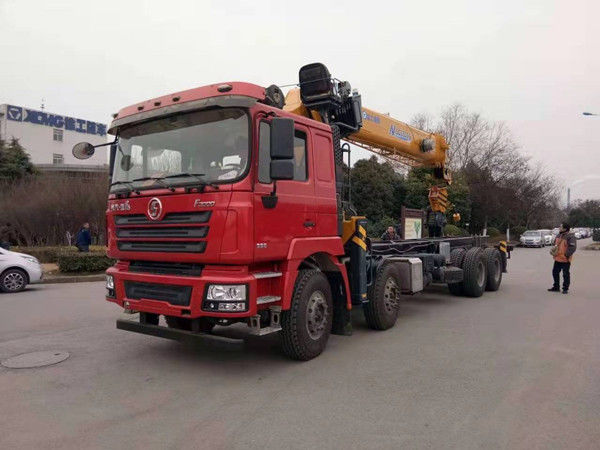

Euro II Crane Cargo Truck SHACMAN H3000 Construction Crane Truck 8x4 340hp 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.

2. How can we guarantee quality?
Pre-production samples are always available before mass production.

Always make a final inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
