SHACMAN 3 Axle Dump Truck H3000 6x4 400HP EuroII 50Ton Three Axle Dump Truck

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SHACMAN SX3255MT384 Engine: WP12.400E201
Transmission: FSAT 10JSD180+QH50 Axle: MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 3775+1400mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

SHACMAN 3 Axle Dump Truck

,

3 Axle Dump Truck H3000

,

50Ton Three Axle Dump Truck


Product Description

SHACMAN 3Axles Dump Truck H3000 6x4 400 EuroII Cutting-edge technology and features



Detailed Product Description
Model:SX3255MU384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP12.400E201
Engine Power/(kw/HP): 294kW /400Hp
Gear box Brand: FAST
Gear box Model:10JSD180+QH50



Tipper Dump Truck parameters

Nodel SX3255MU384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model WP12.400E201
Power/(kw/HP) 294kw / 400Hp
Maximum torque / (N.M)/rpm 1780N.m
Displacement/(L) 11.596L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Standard cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.


Overview

The SHACMAN 3Axles Dump Truck H3000 6x4 400 EuroII is a technologically advanced and powerful heavy duty truck designed for efficient transport and dumping operations. Its Euro II-compliant engine meets stringent emission standards while delivering robust performance. Trucks bring cutting-edge technology and features such as intelligent control systems, advanced safety features, and connectivity options to improve driver comfort, safety, and operational efficiency. Whether in construction, mining or infrastructure development, the SHACMAN H3000 6x4 dump truck offers reliability, durability and the ability to handle heavy loads with ease.

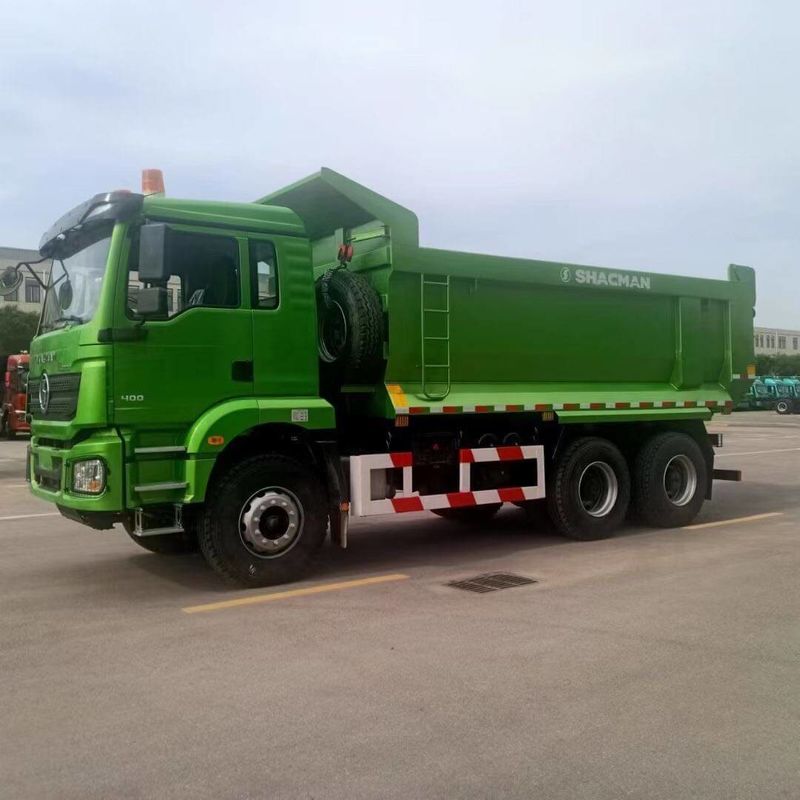

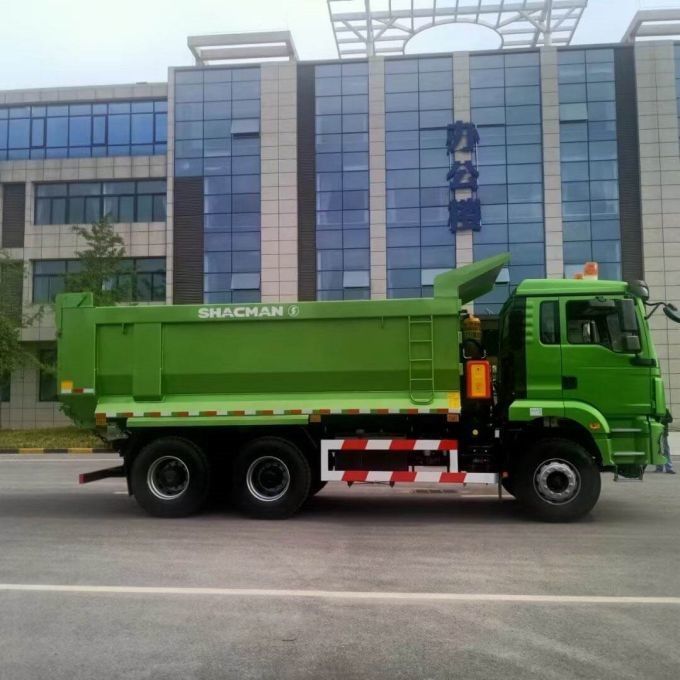

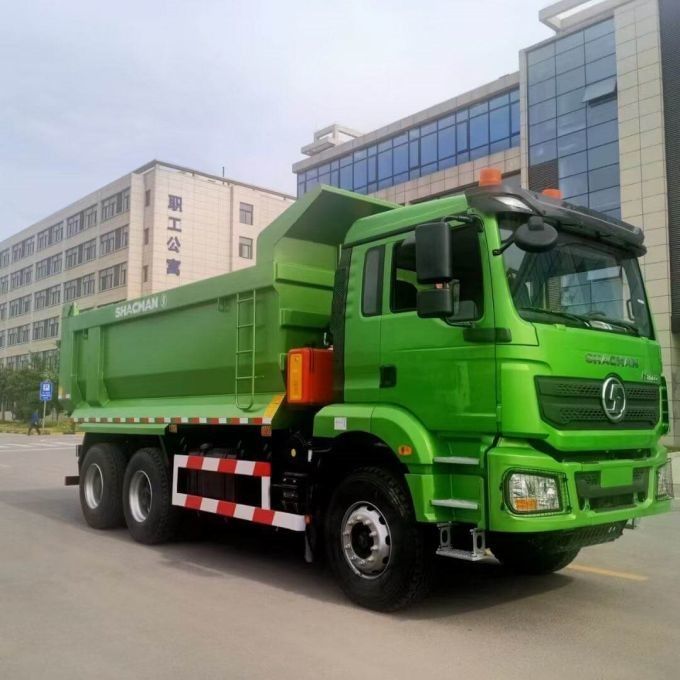

Detailed Image
SHACMAN 3 Axle Dump Truck H3000 6x4 400HP EuroII 50Ton Three Axle Dump Truck 0
