Name: SHACMAN Single Sleeper Dump Truck F3000 6x4 400Hp EuroII Powerful performance and payload capacity
Brand: SHACMAN
SKU: F3000
Rating: 4.7 (152 reviews)

Home > products > Heavy Dump Truck >

SHACMAN Single Sleeper Dump Truck F3000 6x4 400Hp EuroII Powerful performance and payload capacity

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SX3255DT384

Engine:

WP12.400E201

Transmission:

FSAT 10JSD180+QH50

Axle:

9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3975+1400mm

Tire:

12.00R20 (12+1)

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN Single Sleeper Dump Truck F3000 6x4 400Hp EuroII Powerful performance and payload capacity

Detailed Product Description

Model:SX3255DT384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP12.400E201
Engine Power/(kw/HP): 294kW /400 Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50

Tipper Dump Truck Parameters

Model	SX3255DT384
Drive	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3975+1400mm
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP12.400E201
	Power/(kw/HP)	294kW /400 Hp
	Maximum torque / (N.M)/rpm	1780N.m
	Displacement/(L)	11.596L
	Emission standard	Euro II
Gearbox	Brand	FAST
Gearbox	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20 (12+1)
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rear-view mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Overview

Powerful Performance: With a 380 horsepower Euro II compliant engine, the SHACMAN F3000 6x4 Dump Truck offers excellent power and performance. The combination of high horsepower and torque allows the truck to handle tough terrains and carry heavy loads efficiently.
Payload Capacity: While the specific payload capacity may vary depending on factors such as body configuration and local regulations, the F3000 series is known for its impressive payload capacity. Typically, these dump trucks can handle large volumes of material, making them suitable for construction, mining, and other heavy-duty applications.

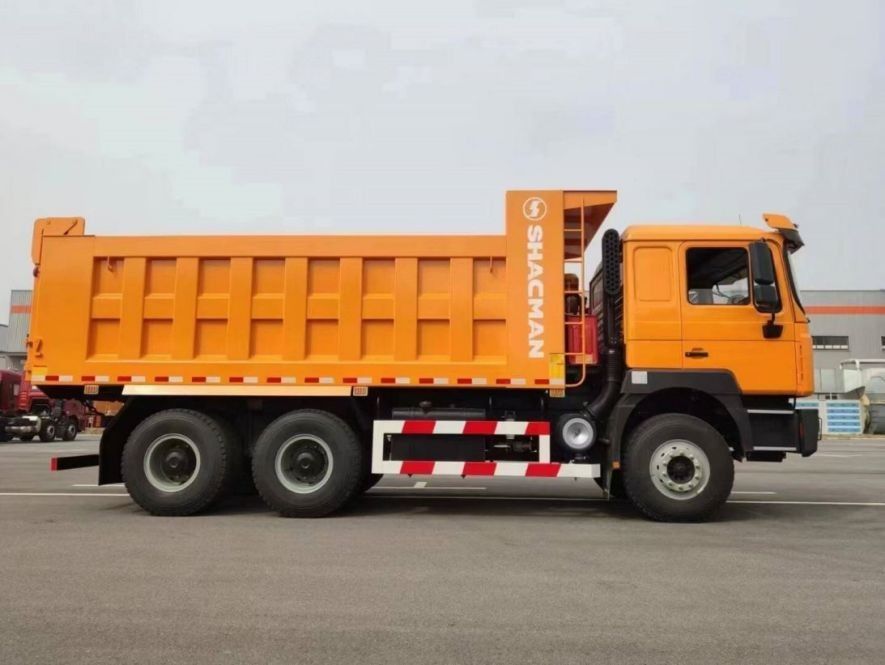

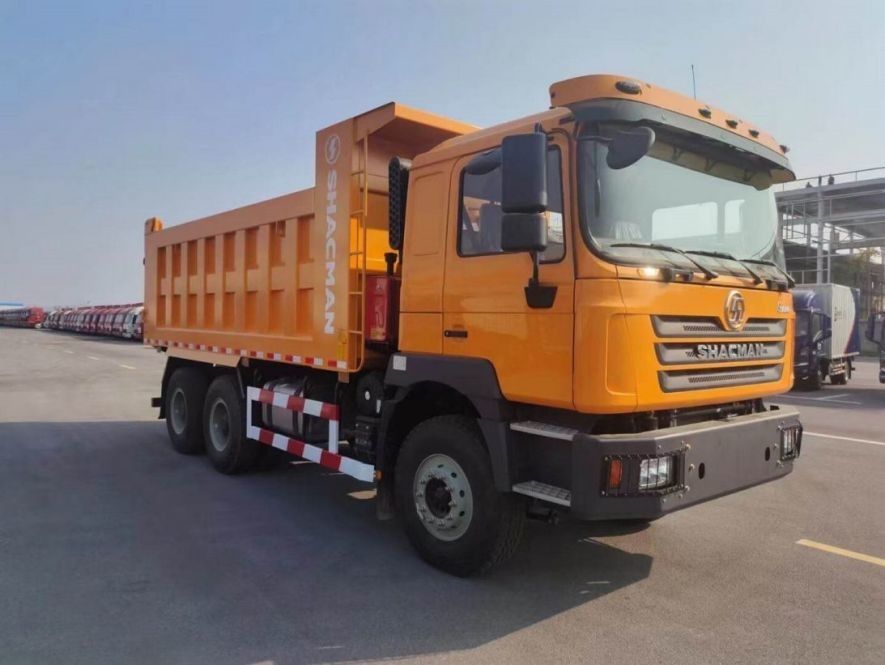

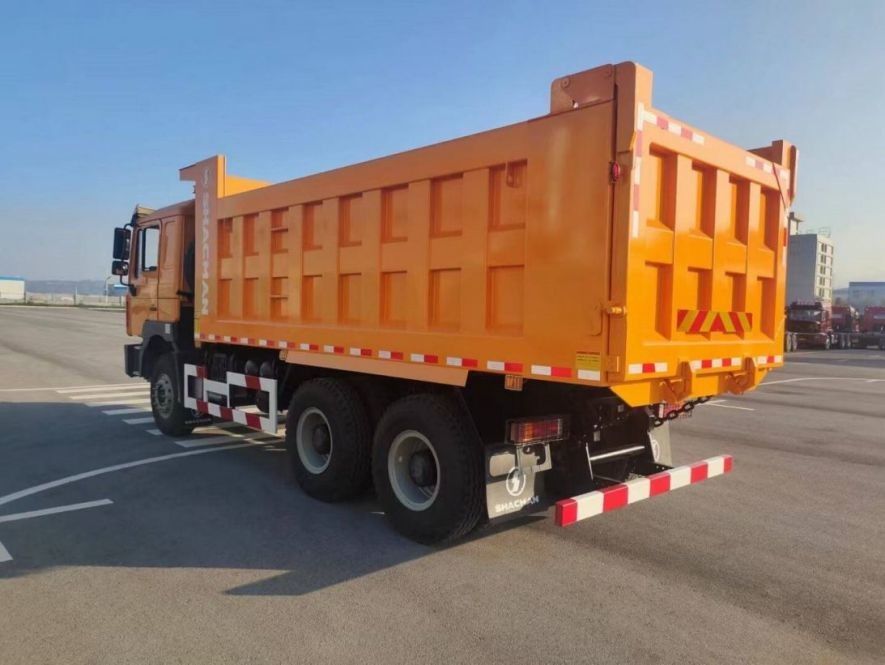

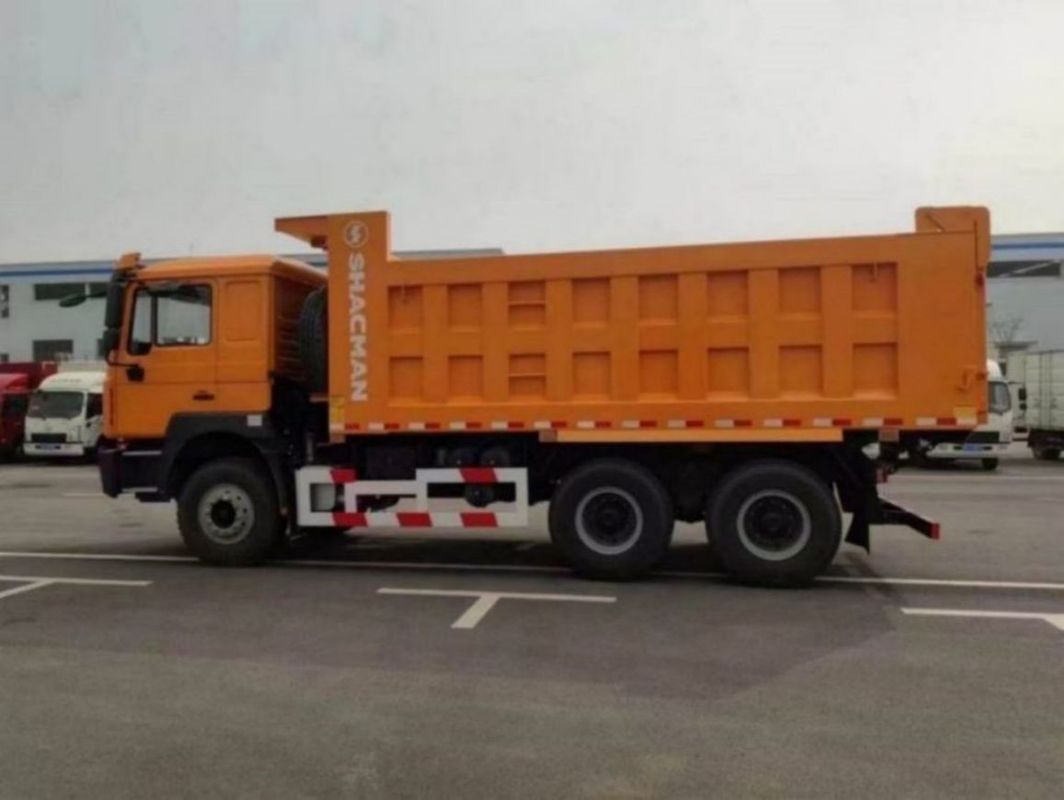

Detailed Image

SHACMAN Single Sleeper Dump Truck F3000 6x4 400Hp EuroII Powerful performance and payload capacity 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
