SHACMAN X3000 Dump Truck 8x4 12 tries 380Hp Euro II super
Detailed Product Description
Model: SX33156T366
Drive type:8x4
Weight: Gross Vehicle Weight≤90
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50
Tipper Dump truck Parameters
| Model |
SX33156T366 |
| Drive type |
8x4 |
| Weight |
Gross Vehicle Weight |
≤90 |
| Dimensions |
Wheelbase/(mm) |
1800+3575+1400 |
| Performance |
Maximum speed/(km/h) |
45～60/80 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP10.380E22 |
| Power/(kw/HP) |
279kw / 380Hp |
| Maximum torque / (N.M)/rpm |
1600 N·M |
| Displacement/(L) |
9.726 L |
| Emission standard |
Euro II |
| Gear box |
Brand |
FAST |
| Model |
12JSD200T-B+QH50 |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×320(8+7+8) |
| Suspension |
Front |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
9.5T front axle MAN technology |
| Rear axle |
16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
300L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN X3000 Medium-length flat cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window shaker, ordinary rearview mirror, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
Overview
Configuration: The SHACMAN X3000 Dump Truck has an 8x4 configuration, meaning it has eight wheels with four of them powered. This configuration provides excellent traction and load-carrying capacity, making it suitable for challenging terrains and heavy loads.
Engine: The truck is equipped with a powerful 380 horsepower engine. This engine provides ample power for hauling heavy loads and ensures good acceleration and overall performance.
Dumping Capacity: The truck has a large hauling capacity, allowing it to carry significant amounts of material. With its 12 tires, it can handle substantial loads and is well-suited for construction and mining applications.

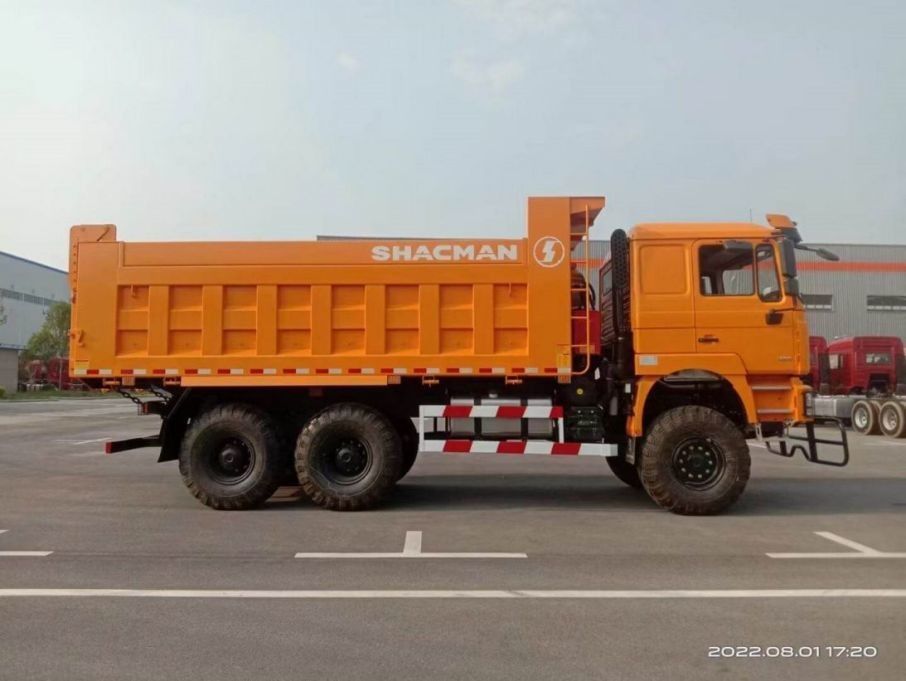

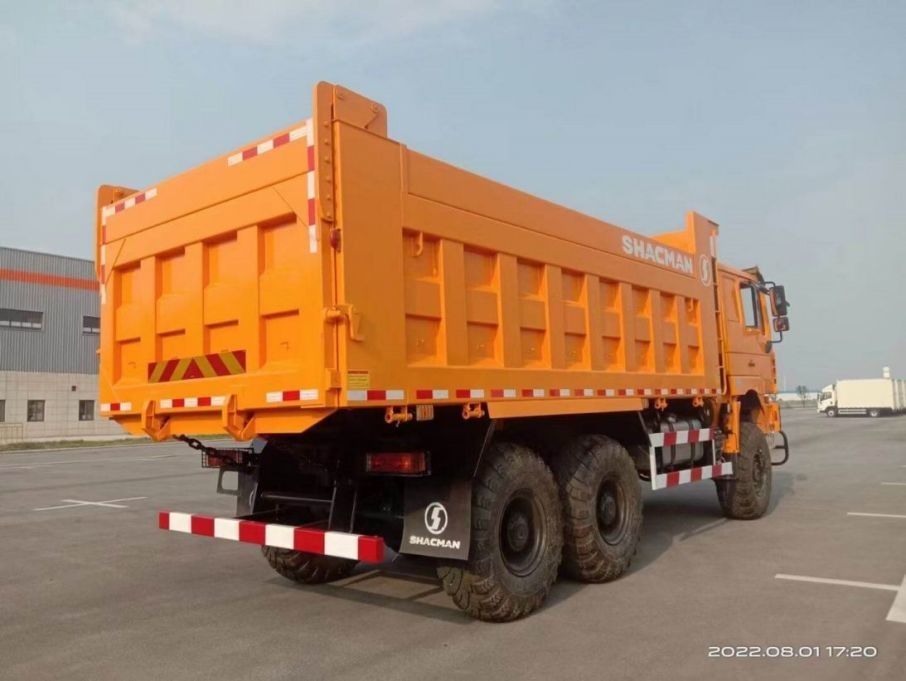

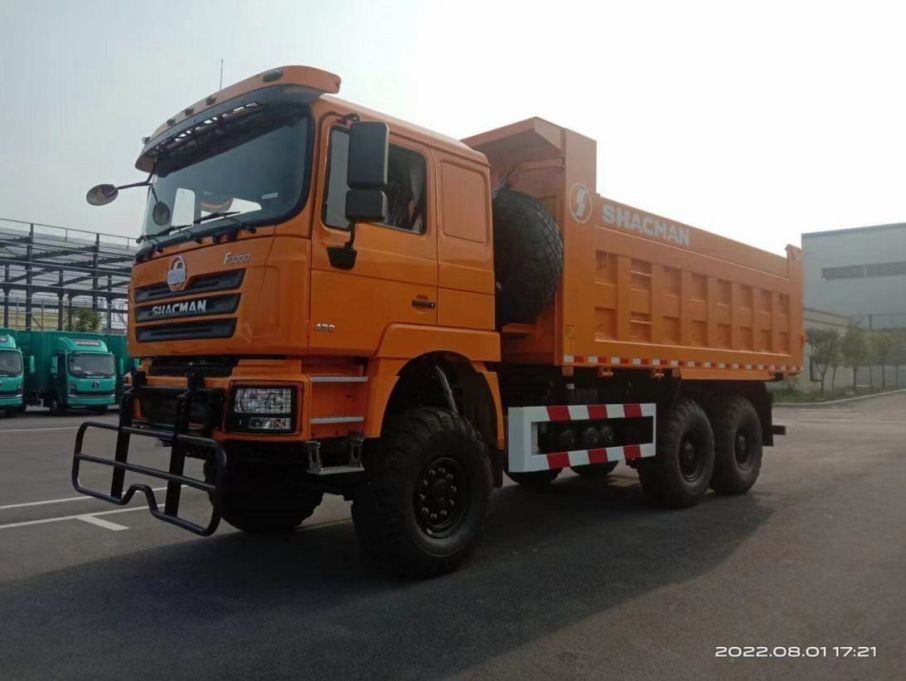

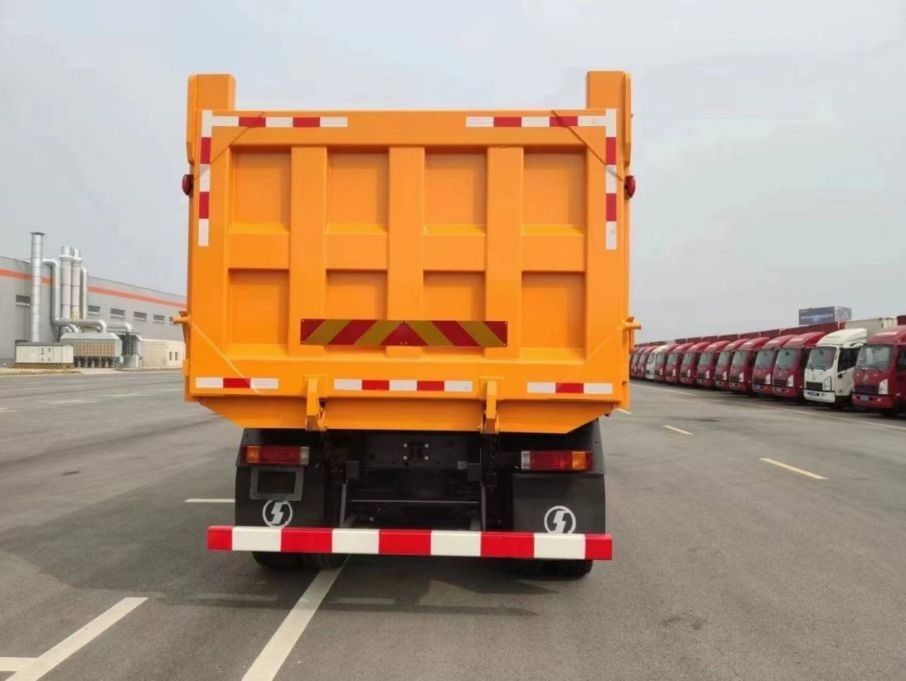

Detailed Image
