SHACMAN X3000 Tipper Dump truck 6x4 380Hp EuroII Green

Basic Information
Place of Origin: Shaanxi,China
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: X3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX32556T384 Engine: W10.380E22
Axle: FAST 7.5T/2*13 Single Stage Axle, Axle Speed-4.266 Wheel Base: 3575+1400 Mm
Tire: 12.00R20 (10+1) Fuel Tank: 300 L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Chassis: 850×300(8+5) Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts
Cabin: Extended Flat Roof Color: Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Product Description

SHACMAN X3000 Tipper Dump truck 6x4 380Hp EuroII Green



Detailed Product Description

Model:SX32556T384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Tipper Dump truck Parameters

Model SX32556T384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model WP10.380E22
Power/(kw/HP) 279kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 3575+1400 mm
Suspension Front Multi-layered leaf springs with 2 Main springs+2 U Bolts
Rear Multi-layered leaf springs with 2 Main springs+2 U Bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN X3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window shaker, ordinary rearview mirror, 165Ah maintenance-free battery, SHACMAN logo, full English logo.


Overview

A Truck You Can Depend On

With a proven design, Shacman H3000 series is one of the most balanced product. Lightweight, efficient and innovative, the X3000 bring about a new standard in truck quality.



1. Lightweight European design, precision power matching
2. Optimized intake module decreasing intake resistance by 6%
3. Efficient real axles that increase transmission efficiency by 13%
4. Intercooler resistance reduced by 29%
5. Engine power loss reduced by 8%
6. Efficient tires which reduces rolling resistance by 10%
7. Cooling module developed from adopting German Behr BISS simulation software increasing cooling capacity by 10%





Detailed Image

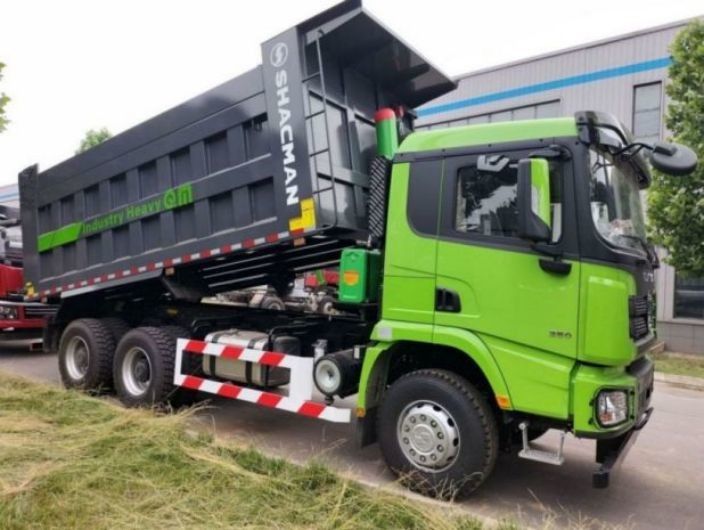

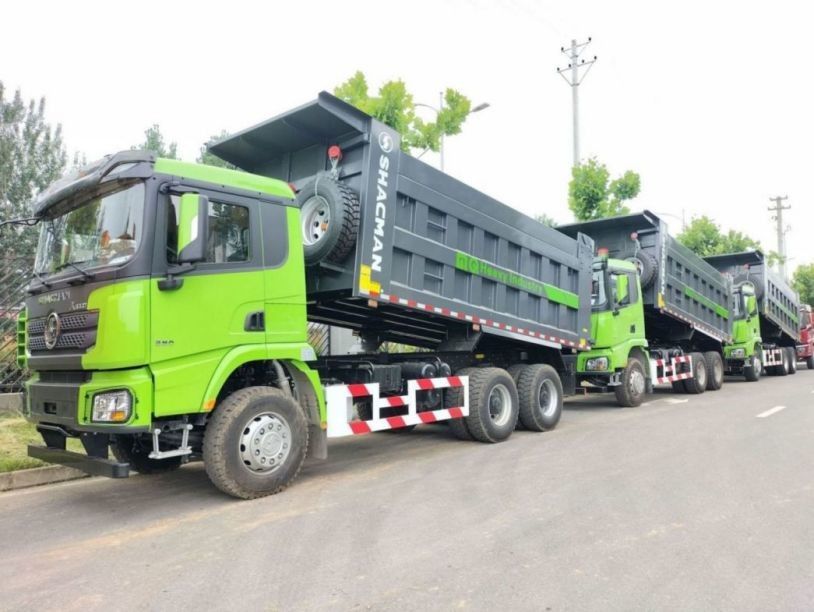

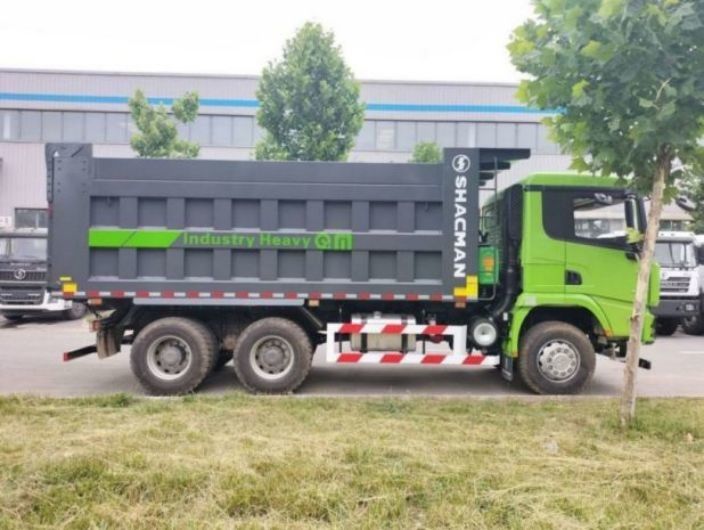

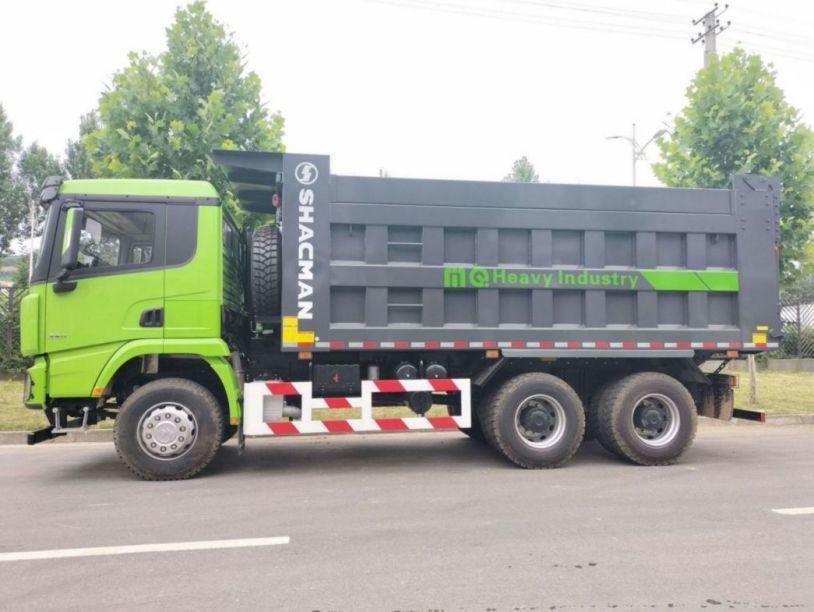

SHACMAN X3000 Tipper Dump truck 6x4 380Hp EuroII Green 0




FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
