Place of Origin: | Shaanxi,China |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO9001/CCC |
Model Number: | H3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX3255MT384 | Engine: | WP10.380E22 |
---|---|---|---|
Axle: | FAST 9.5T/2*16 Double Reduction Drive Axle With Inter Helix Differential And Differential Lock, Bridge Speed Ratio: 5.92 | Wheel Base: | 3775+1400 |
Tire: | 12.00R20 | Fuel Tank: | 300L Aluminum Tank |
Clutch: | φ430 Diaphragm Spring Clutch | Air Inlet: | Ordinary Air Filter |
Chassis: | 850×300(8+7) | Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts |
Cabin: | H3000 Standard Cab | Color: | Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy |

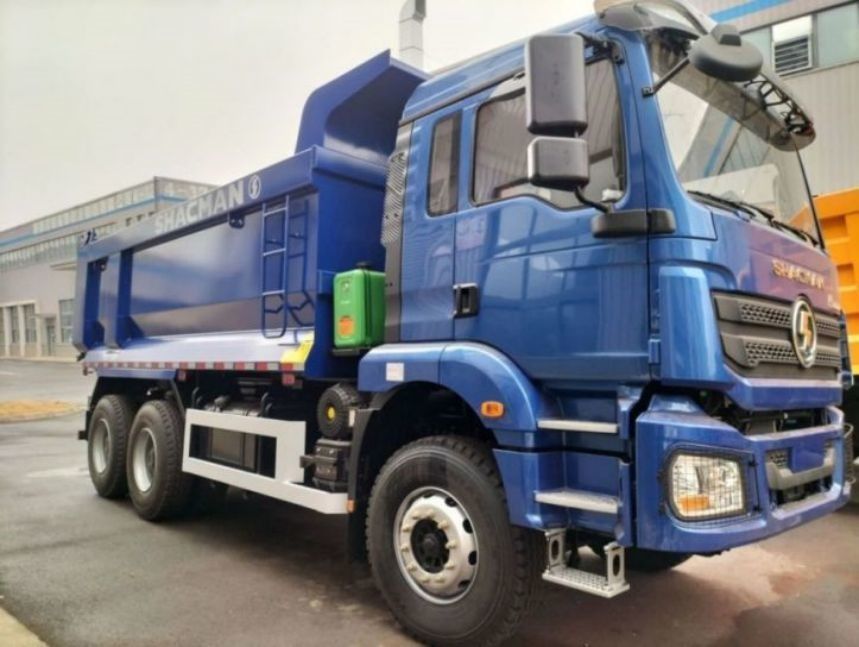

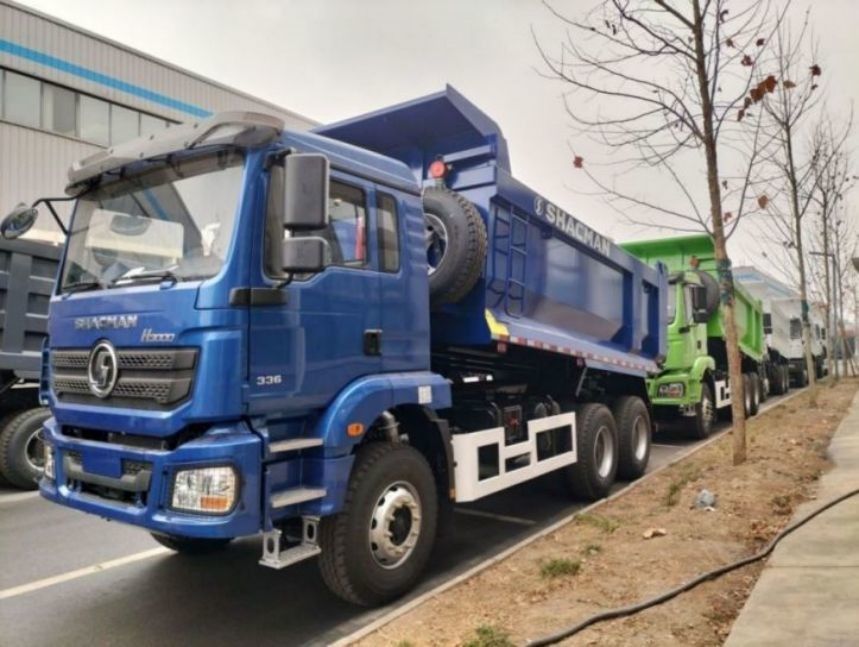

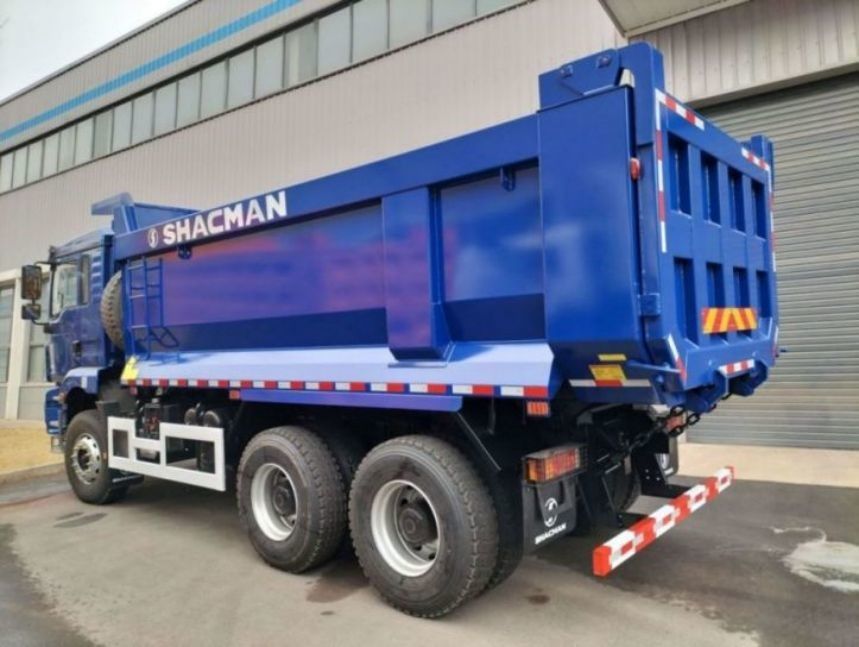

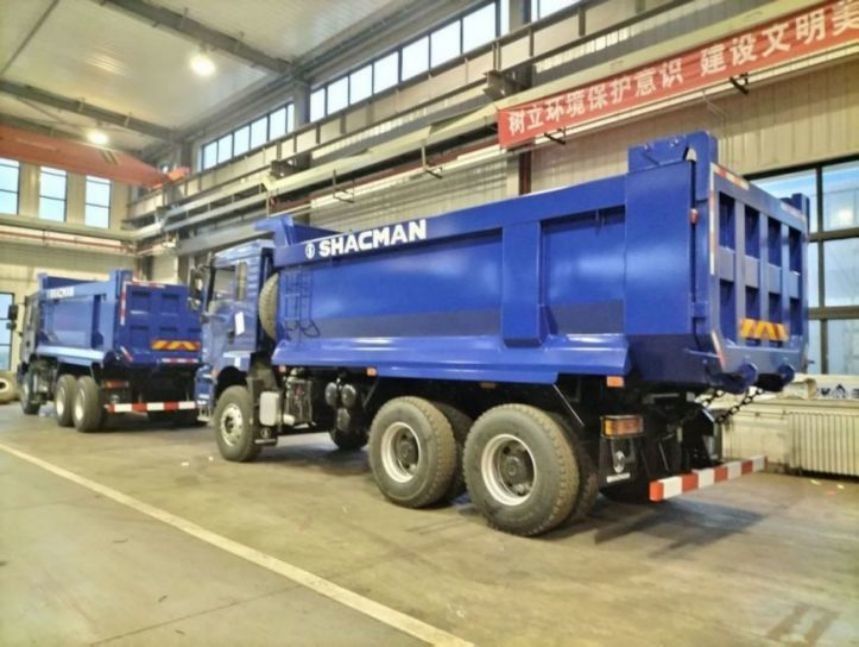

SHACMAN U-Cargo box Dump Truck 6x4 H3000 380 EuroII
Detailed Product Description
Model:SX3255MT384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Dump Truck Parameters
Model | SX3255MT384 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3775+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 279kw / 380Hp | |
Maximum torque / (N.M)/rpm | 1600 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 10JSD180+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN H3000 Standard cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
