SHACMAN Dump Truck 6x4 H3000 340 EuroII Blue Cargo box for u-type tipper

Basic Information
Place of Origin: Shaanxi,China
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX3255MR384 Engine: W10.340E22
Axle: FAST 9.5T/2*16MAN Double Reduction Drive Axle With Inter Helix Differential And Differential Lock, Bridge Speed Ratio: 5.92 Wheel Base: 3775+1400 Mm
Tire: 12.00R20 (10+1) Fuel Tank: 300 L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Chassis: 850×300(8+7) Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts
Cabin: H3000 Standard Cab Color: Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Product Description

SHACMAN Dump Truck 6x4 H3000 340 EuroII



Detailed Product Description

Model:SX3255MR384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:W10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3255MR384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model W10.340E22
Power/(kw/HP) 250kw / 340Hp
Maximum torque / (N.M)/rpm 1250N.m
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Standard cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.

Overview
  1. Dumping Capability: It is equipped with a hydraulically operated dump body, allowing the cargo bed to be raised and tipped to unload materials at the desired location.
  2. Tri-Axle Configuration: The truck has three axles, providing increased load-carrying capacity and stability.
  3. Payload Capacity: The specific payload capacity would depend on the truck's configuration and design, but dump trucks are typically designed to carry significant loads.
  4. Cabin: The truck may have a comfortable and spacious cabin with features like air conditioning, power steering, and other amenities for the driver's comfort.



Detailed Image

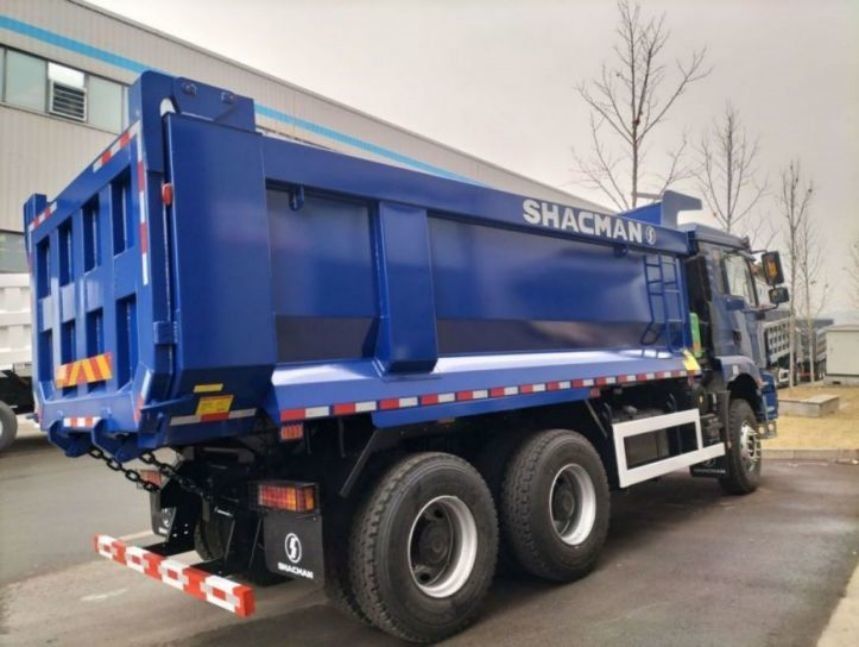

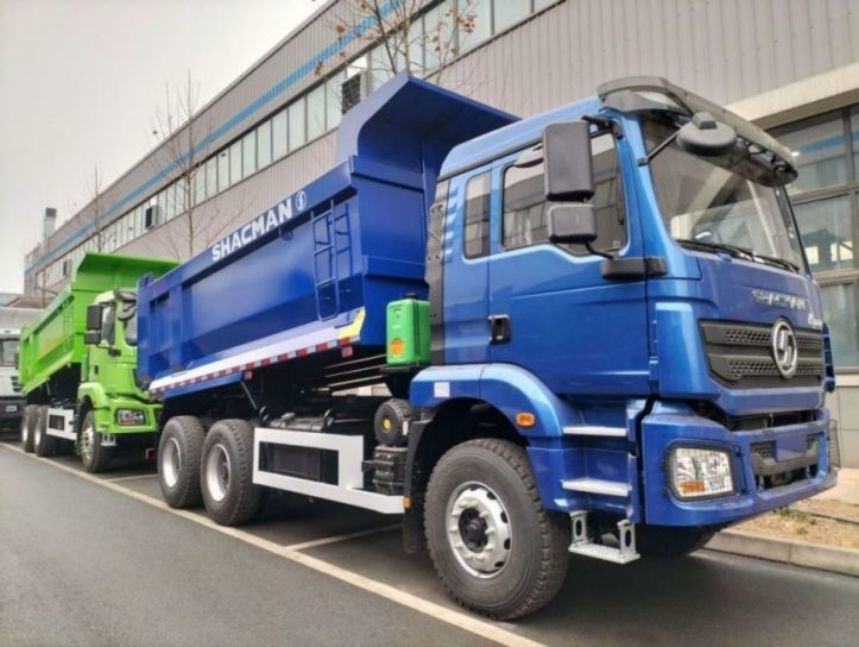

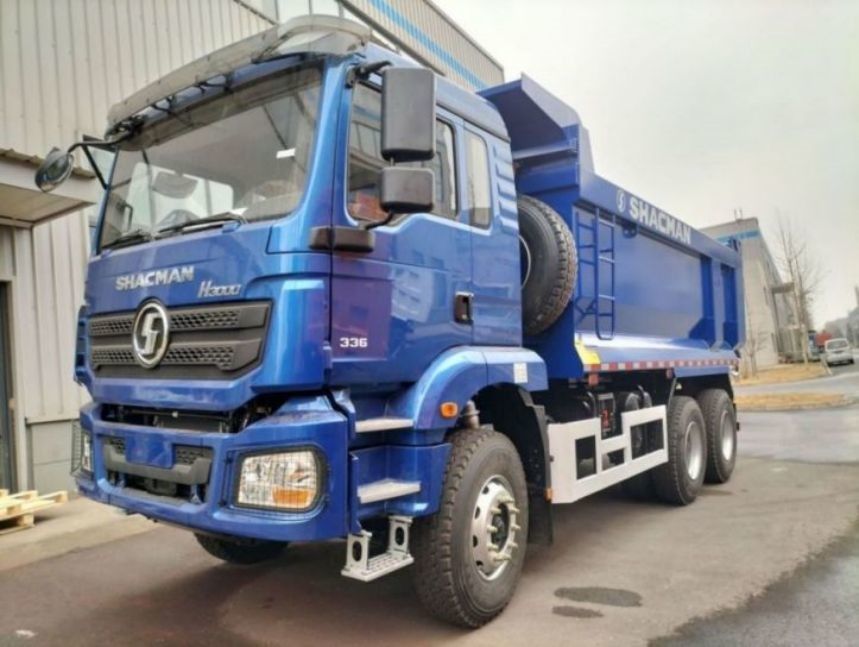

SHACMAN Dump Truck 6x4 H3000 340 EuroII Blue Cargo box for u-type tipper 0





FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
