Name: SHACMAN White Dump Truck 6x4 H3000 400 EuroII 10 Tyres WEICHAI Diesel Engine
Brand: SHACMAN
SKU: H3000
Rating: 4.8 (172 reviews)

Home > products > Heavy Dump Truck >

SHACMAN White Dump Truck 6x4 H3000 400 EuroII 10 Tyres WEICHAI Diesel Engine

Place of Origin:

Shaanxi,China

Brand Name:

SHACMAN

Certification:

ISO9001/CCC

Model Number:

H3000

Request A Quote

Product Details

Modle:

SHACMAN SX3255MU384

Engine:

WP12.400E201

Axle:

FAST 9.5T/2*16T MAN Double Reduction Drive Axle With Inter Helix Differential And Differential Lock, Bridge Speed Ratio: 5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20

Fuel Tank:

300 L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

H3000 Standard Cab

Color:

Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN White Dump Truck 6x4 H3000 400 EuroII

Detailed Product Description

Model:SX3255MU384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:WP12.400E201
Engine Power/(kw/HP): 294kw /400 Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50

Dump Truck Parameters

Model	SX3255MU384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP12.400E201
	Power/(kw/HP)	294kw /400 Hp
	Maximum torque / (N.M)/rpm	1780N.m
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN H3000 Standard cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.

Overview

Payload Capacity: The specific payload capacity would depend on the truck's configuration and design, but dump trucks are typically designed to carry significant loads.
Cabin: The truck may have a comfortable and spacious cabin with features like air conditioning, power steering, and other amenities for the driver's comfort.
Safety Features: SHACMAN trucks often come with safety features such as ABS (Anti-lock Braking System), airbags, and other systems to ensure safe operation.

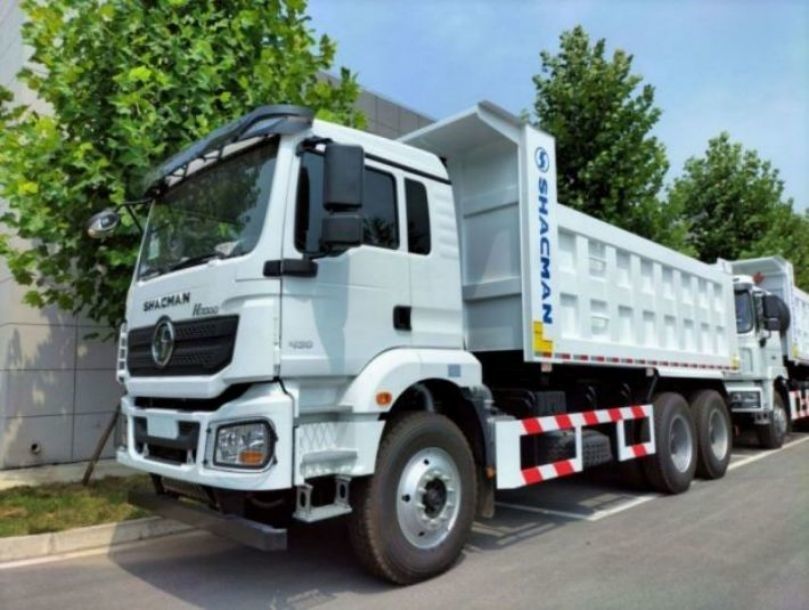

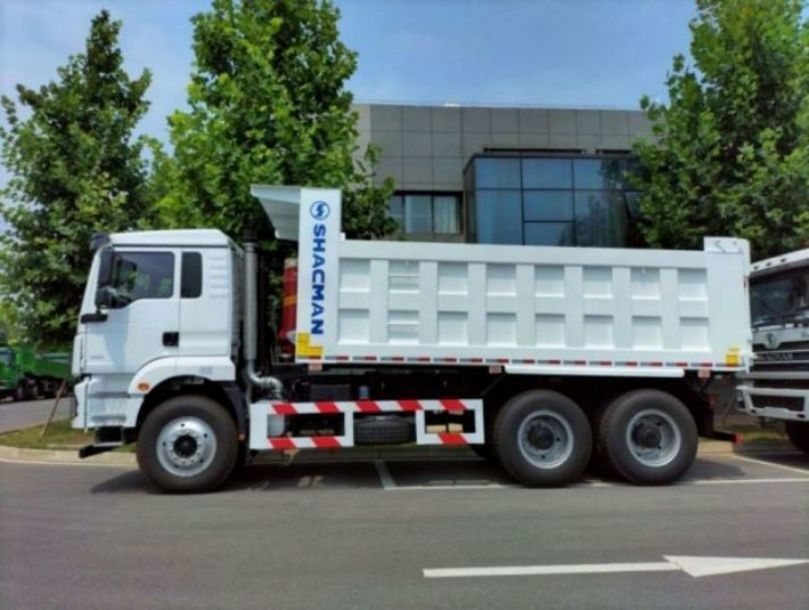

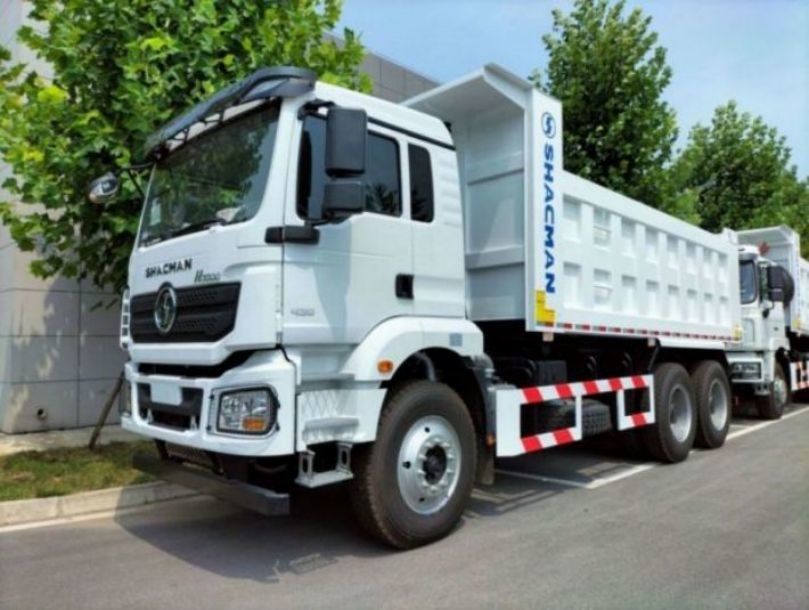

Detailed Image

FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
