SHACMAN F3000 Dump Truck 8x4 380Hp EuroII
Detailed Product Description
Model:SX3318DT366
Drive type: 8x4
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 316kw /380 Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump Truck Parameters
| Model |
SX3318DT366 |
| Drive type |
8x4 |
| Weight |
Gross Vehicle Weight |
≤90 |
| Dimensions |
Wheelbase/(mm) |
1800+3575+1400 |
| Performance |
Maximum speed/(km/h) |
45～60/80 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP10.380E22 |
| Power/(kw/HP) |
279kw / 380Hp |
| Maximum torque / (N.M)/rpm |
1600 N·M |
| Displacement/(L) |
9.726 L |
| Emission standard |
Euro II |
| Gear box |
Brand |
FAST |
| Model |
10JSD180+QH50 |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×320 (8+7+8) |
| Suspension |
Front |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
9.5T front axle MAN technology |
| Rear axle |
16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
300L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN F3000 Medium-length flat cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Overview
1. Perfect truck lathe
One of the most distinctive features of dump trucks is their extensive dump bed. Perfect for building debris or other loose objects, this bed allows drivers to safely transport all types of materials. You don't need to worry about your load spreading into the laneway, and the hydraulic lift mechanism on the bed makes it easy to dump materials where they need to go.
2. Design options
Dump trucks Dump trucks are available in a variety of design options to better suit the needs of different projects. For example, while many small dump trucks are relatively similar to flatbed trucks, large dump trucks are typically equipped with more axles, a wider range of dumping options, and added joints to provide better control and greater range of movement. No matter how big a car you need, there is an option that can meet your specific project needs.

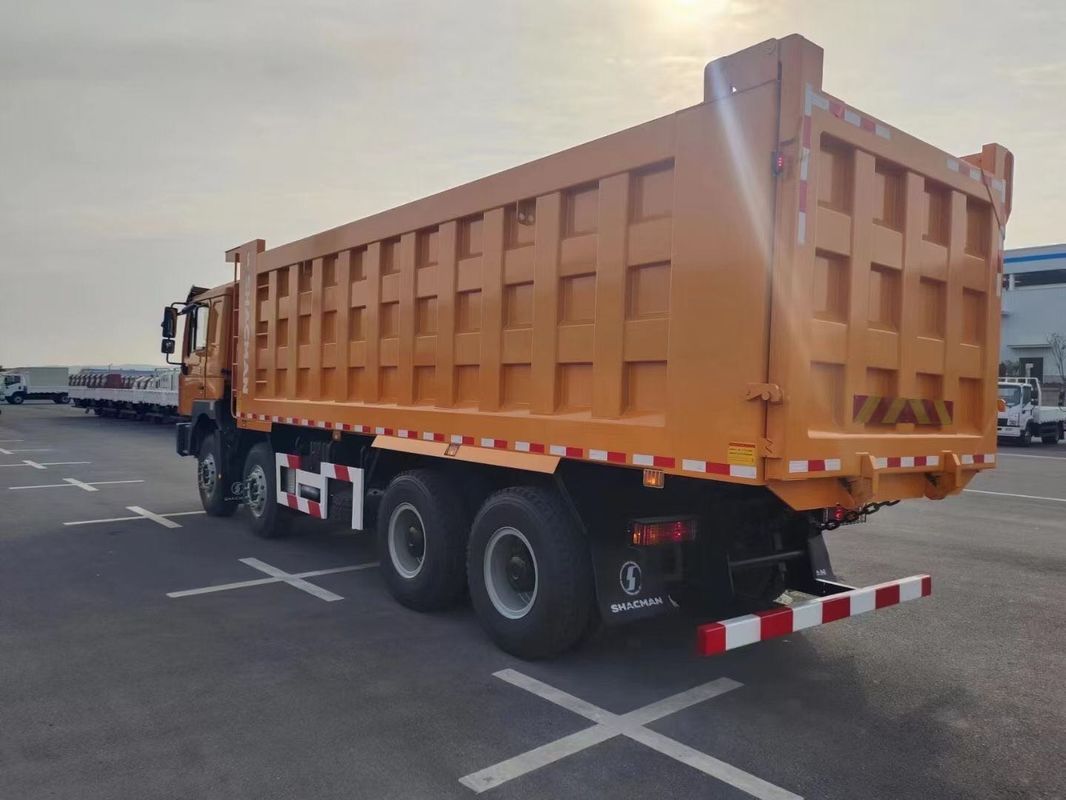

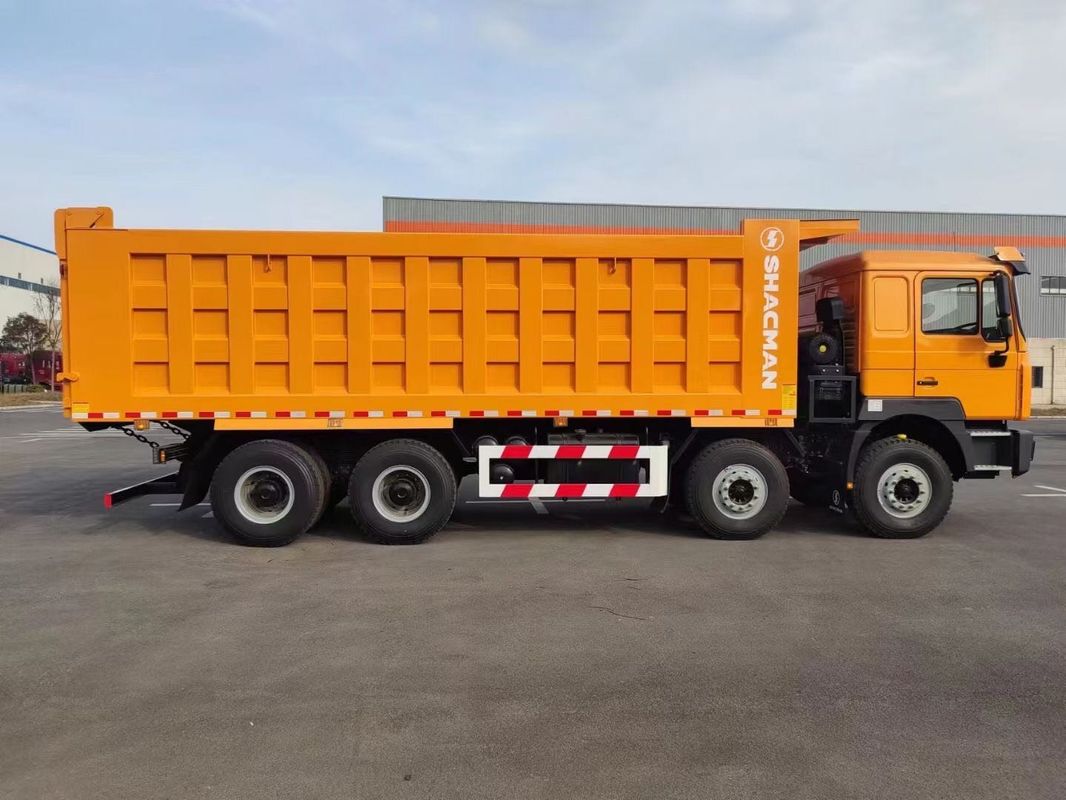

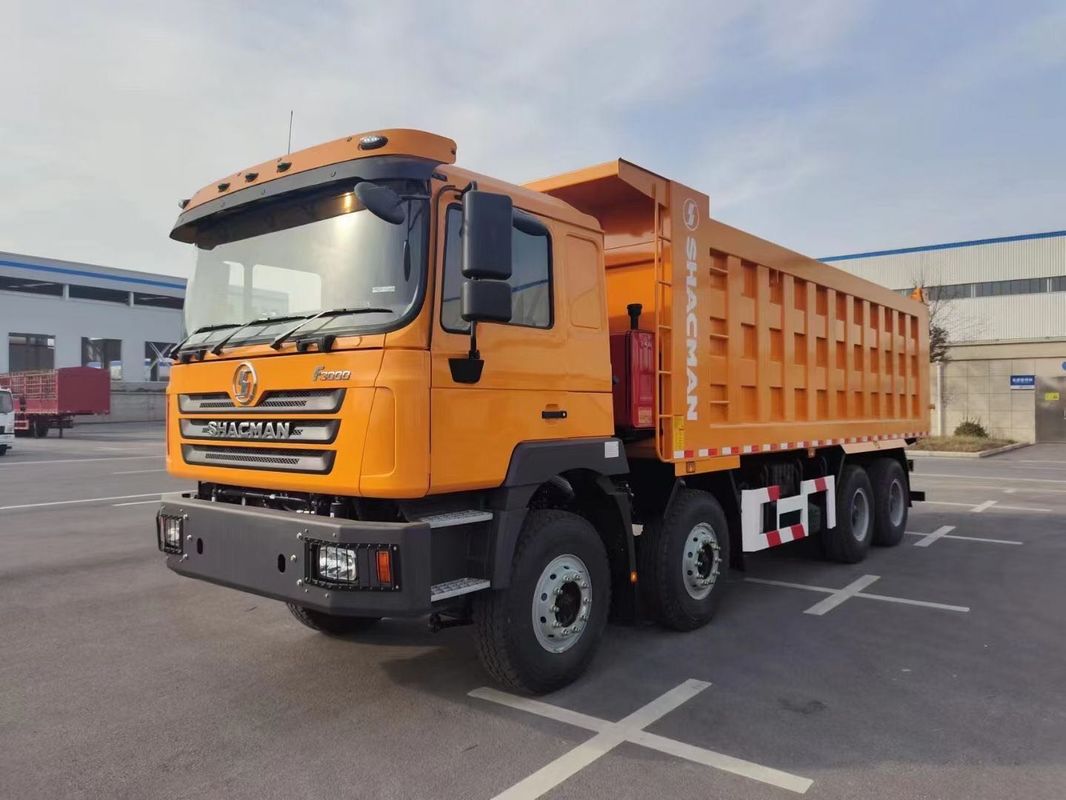

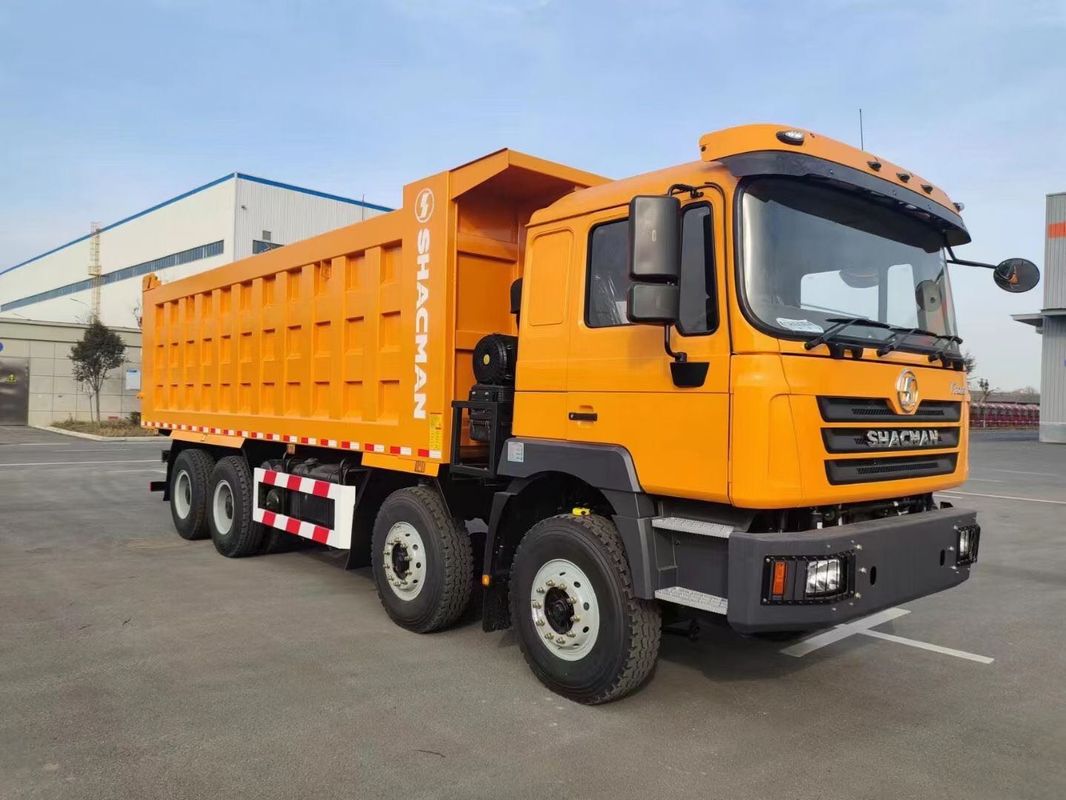

SHACMAN Dump Truck Pictures
