Name: SHACMAN 10 Wheels Heavy Duty Dump Truck F3000 6x4 375Hp EuroV Orange Tipper
Brand: SHACMAN
SKU: F3000
Rating: 4.5 (141 reviews)

Home > products > Heavy Dump Truck >

SHACMAN 10 Wheels Heavy Duty Dump Truck F3000 6x4 375Hp EuroV Orange Tipper

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SHACMAN SX3258DT384

Engine:

WEICHAI WP12.375E50

Transmission:

FAST 10JSD180+QH50

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN Dump Truck F3000 6x4 375Hp EuroV

Detailed Product Description

Model:SX3258DT384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:WP12.375E50
Engine Power/(kw/HP): 280kw / 375Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50

Dump Truck Parameters

Model	SX3258DT384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400 mm
Performance	Maximum speed/(km/h)	45～60/80
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP12.375E50
	Power/(kw/HP)	316kw / 375Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro V
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat top
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

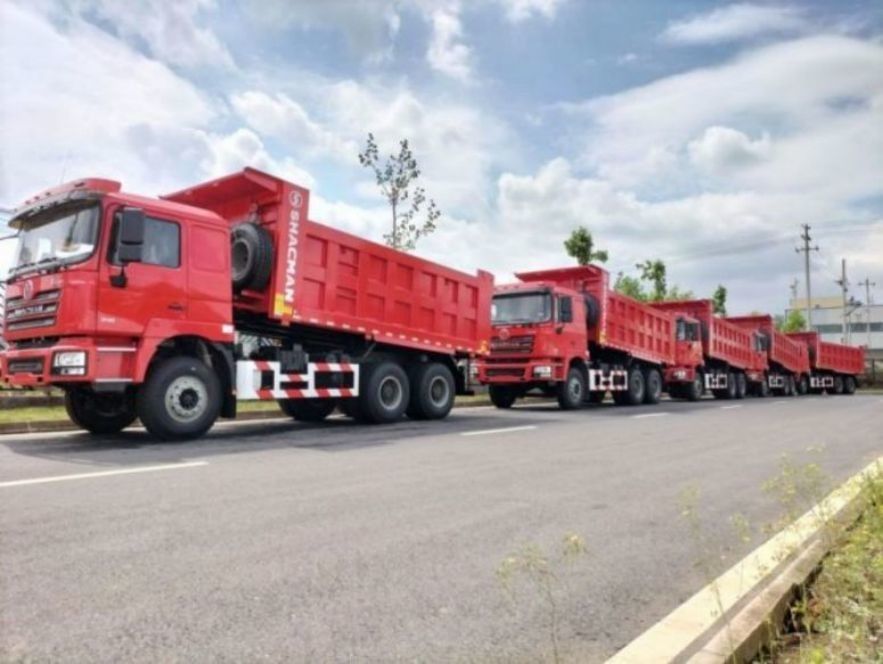

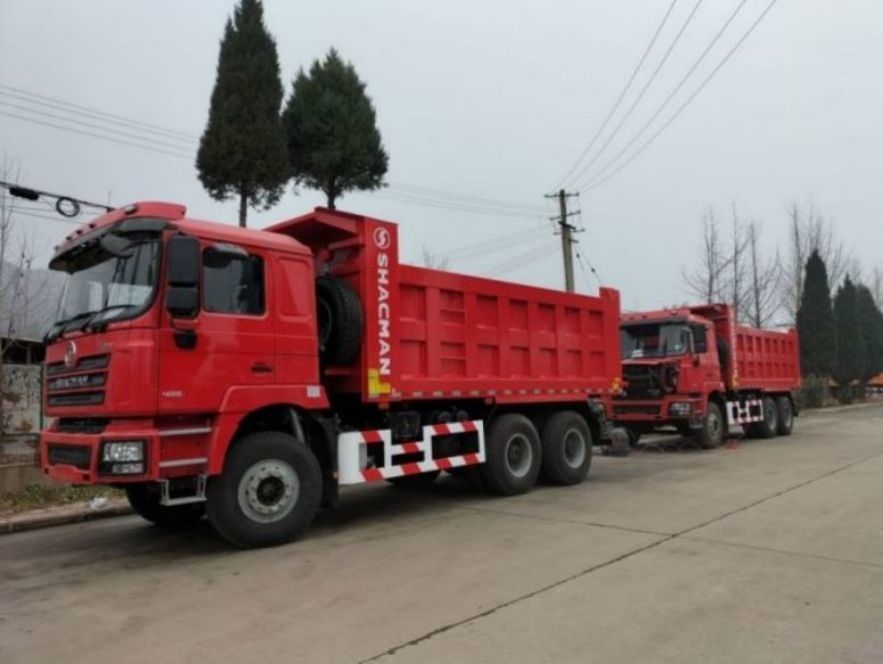

SHACMAN Dump Truck Pictures

SHACMAN 10 Wheels Heavy Duty Dump Truck F3000 6x4 375Hp EuroV Orange Tipper 0

About SHACMAN Trucks

One of the most distinctive features of dump trucks is their extensive dump bed. Perfect for building debris or other loose objects, this bed allows drivers to safely transport all types of materials. You don't need to worry about your load spreading into the laneway, and the hydraulic lift mechanism on the bed makes it easy to dump materials where they need to go.
Dump trucks Dump trucks are available in a variety of design options to better suit the needs of different projects. For example, while many small dump trucks are relatively similar to flatbed trucks, large dump trucks are typically equipped with more axles, a wider range of dumping options, and added joints to provide better control and greater range of movement. No matter how big a car you need, there is an option that can meet your specific project needs.
