SHACMAN F3000 Dump Truck 6x4 380Hp EuroII Red tipper truck model SSX3255DT384

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SHACMAN SX3255DT384 Engine: WEICHAI WP10.380E22
Transmission: FAST 10JSD180+QH50 Axle: MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 3775+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Product Description

SHACMAN F3000 Dump Truck 6x4 380Hp EuroII



Detailed Product Description

Model:SX3255DT384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3255DT384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400 mm
Performance Maximum speed/(km/h) 45~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP10.380E22
Power/(kw/HP) 280kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

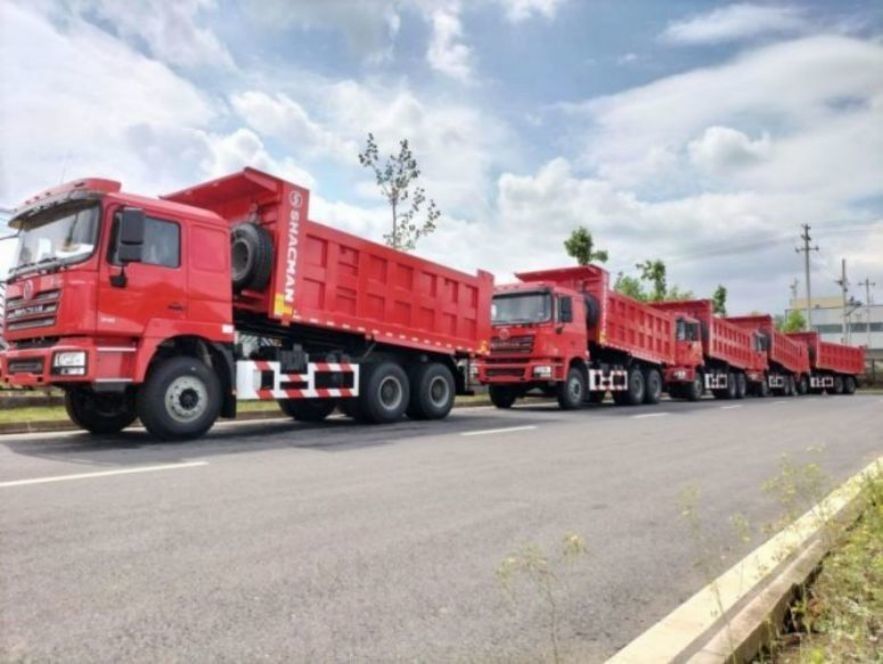

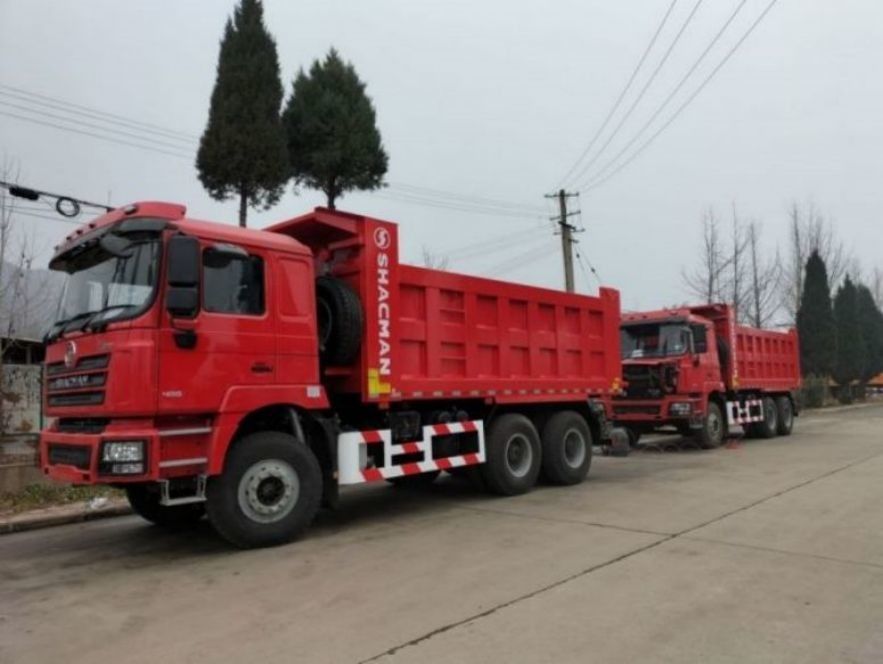

Detailed Image

SHACMAN F3000 Dump Truck 6x4 380Hp EuroII Red tipper truck model SSX3255DT384 0


































Advantages

  • Designed for mining applications, the dump truck boasts a robust build and reinforced chassis, ensuring resilience and longevity even in the harshest mining environments.
  • Equipped with a 380HP Euro II-compliant diesel engine, the truck delivers powerful performance, enabling it to tackle steep inclines and rough terrains with ease.
  • The hydraulic tipping mechanism enables efficient and controlled unloading of materials, reducing downtime and enhancing overall operational efficiency.
