Name: SHACMAN 12 Wheels Tipper Truck F3000 6x4 375Hp EuroV White
Brand: SHACMAN
SKU: F3000
Rating: 4.7 (104 reviews)

Home > products > Heavy Dump Truck >

SHACMAN 12 Wheels Tipper Truck F3000 6x4 375Hp EuroV White

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SHACMAN SX3258DT384

Engine:

WEICHAI WP12.375E50

Transmission:

FAST 10JSD180+QH50

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20 (10+1)

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN 12 Wheels Tipper Truck F3000 6x4 375Hp EuroV White

Detailed Product Description
Model: SX3258DT384

Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50

Dump Truck parameters

Model	SX3258DT384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP12.375E50
	Power/(kw/HP)	276kw / 375Hp
	Maximum torque / (N.M)/rpm	1650 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro V
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Truck Advantages

SHACMAN is known for manufacturing robust and durable trucks, and the F3000 Tipper Truck is no exception. It is built with high-quality materials and components, ensuring its longevity and ability to withstand harsh operating conditions.
No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.

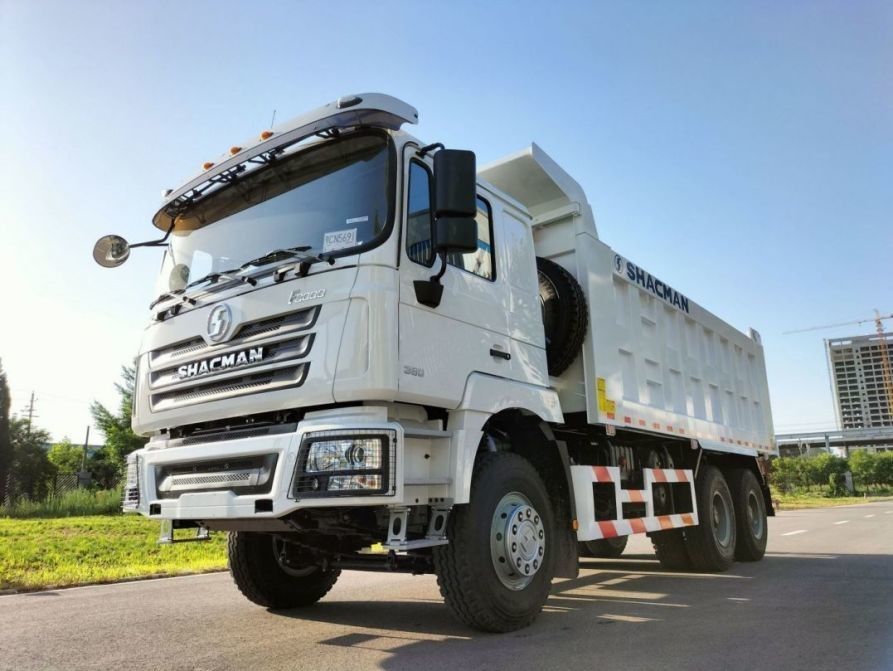

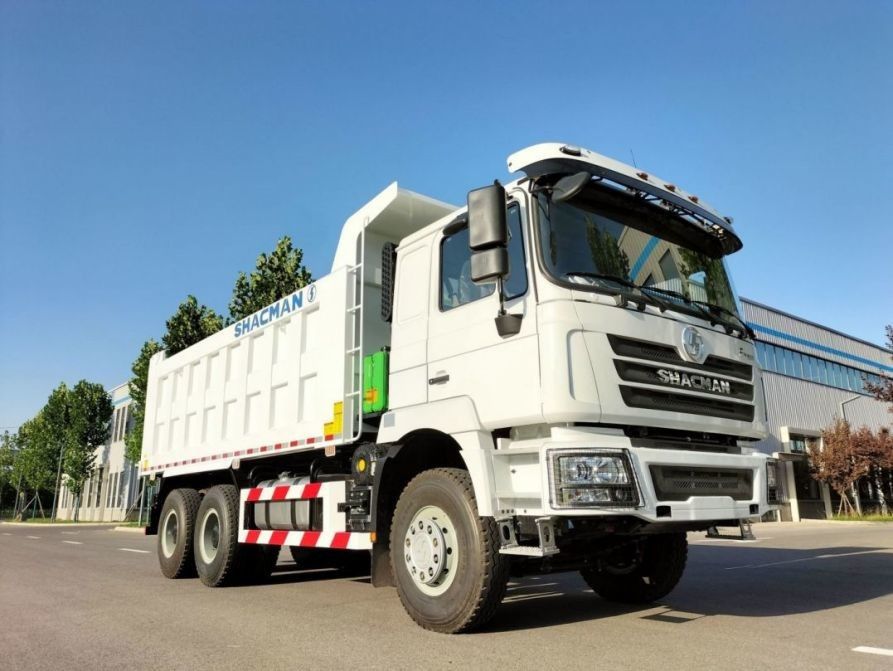

Detailed Image

SHACMAN 12 Wheels Tipper Truck F3000 6x4 375Hp EuroV White 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
