Name: SHACMAN F3000 Heavy Dump Truck with 3775+1400 mm Wheelbase 300L Fuel Tank and φ430 Diaphragm Spring Clutch
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

Home > Products > Heavy Dump Truck >

SHACMAN F3000 Heavy Dump Truck with 3775+1400 mm Wheelbase 300L Fuel Tank and φ430 Diaphragm Spring Clutch

EuroII Yellow Tipper Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SHACMAN SX3255DT384

Engine:

WEICHAI WP10.380E22

Transmission:

FAST 10JSD180+QH50

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20 (10+1)

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Highlight:

EuroII Yellow Tipper Truck

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN F3000 Tipper Truck 6x4 380Hp EuroII Yellow

Detailed Product Description

Model: SX3255DT384

Drive type: 6x4

Weight: Gross Vehicle Weight ≤50

Engine Brand: WEICHAI

Engine Model: W10.380E22

Engine Power: 280kw / 380Hp

Gear box Brand: FAST

Gear box Model: 10JSD180+QH50

Tipper Dump Truck Parameters

Model	SX3255DT384
Drive type	6x4
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase/(mm) 3775+1400 mm
Performance	Maximum speed/(km/h) 45～60/80 Ground clearance >314
Engine	Brand: WEICHAI Model: W10.380E22 Power/(kw/HP): 280kw / 380Hp Maximum torque / (N.M)/rpm: 1630 N*M Displacement/(L): 9.726 L Emission standard: Euro II
Gear box	Brand: FAST Model: 10JSD180+QH50
Clutch	Type: φ430 Diaphragm spring clutch
Cooling	Type: Domestic heat sink
Air inlet	Type: Ordinary air filter
Brakes	Type: Drum brake Service brake: Double circuit air brake Park brake: Rear wheel spring brake Auxiliary brake: WEVB engine exhaust brake
Steering	Type: ZF8098 technology, circulating ball steering machine
Chassis	Type: Parallel trapezoidal frame with variable section Dimensions/(mm): 850×300(8+7)
Suspension	Front: Multi-layered leaf springs with 4 Main springs+4 U Bolts Rear: Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand: HANDE Front axle: 9.5T front axle MAN technology Rear axle: 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type: 12.00R20
Fuel tank	Tank capacity/(L): 300L Aluminum tank
Electrics	Type: 24V Battery: 165Ah Maintenance-free battery
Cab	Type: SHACMAN F3000 Medium-length flat cab Equipment: Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Truck Advantages

The truck is equipped with a 380 horsepower engine, providing ample power for heavy-duty applications. This allows it to handle demanding tasks and carry heavy loads efficiently.
Military grade chassis, reinforced driver cab, upgraded air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off-road racing quality cab damping spring.

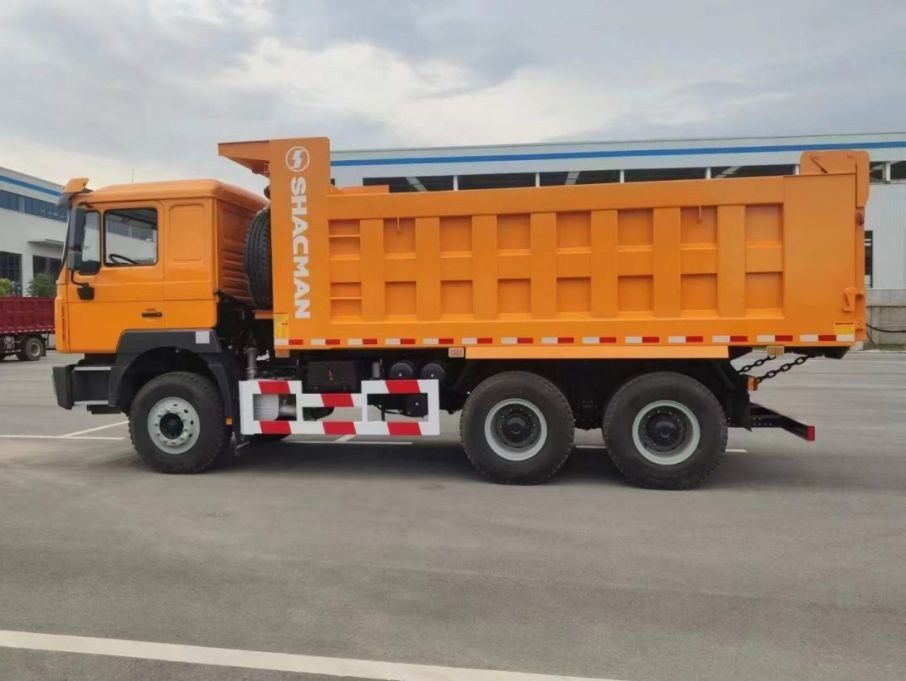

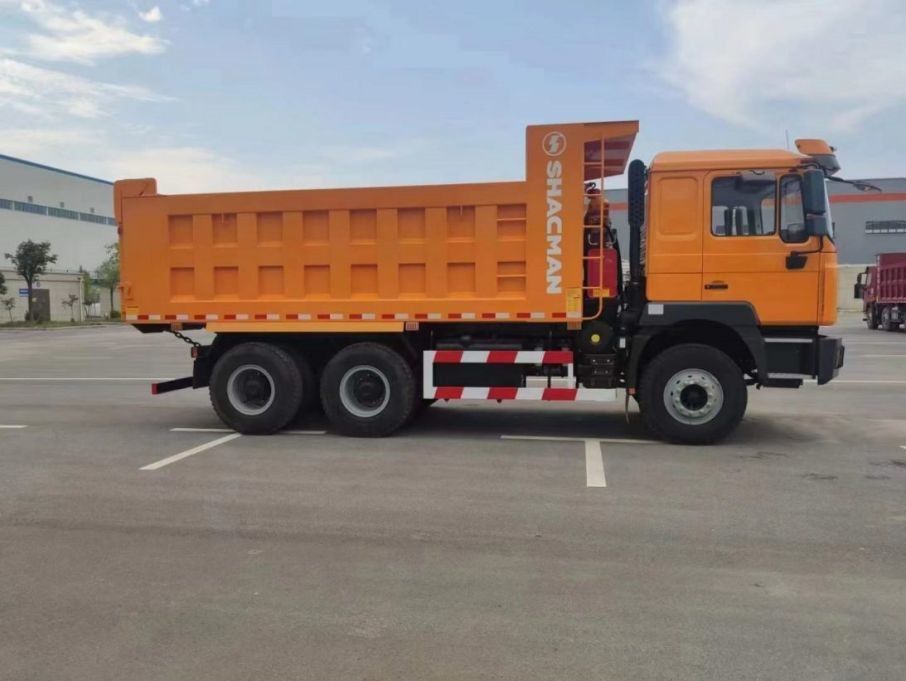

Detailed Image

FAQ

1. Who are we?

We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.

2. How can we guarantee quality?

There are always pre-production samples before mass production and final inspection before shipment.

3. What can you buy from us?

Dump truck, track truck, lorry truck, Van truck, Mixer truck

4. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
