Name: SHACMAN 12 Wheels Heavy Dump Truck with WEICHAI WP12.375E50 Engine and FAST 10JSD180+QH50 Transmission
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

Home > Products > Heavy Dump Truck >

SHACMAN 12 Wheels Heavy Dump Truck with WEICHAI WP12.375E50 Engine and FAST 10JSD180+QH50 Transmission

EuroV 12Wheels Tipper Truck

SHACMAN 12Wheels Tipper Truck

Yellow 12Wheels Tipper Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SHACMAN SX3258DT384

Engine:

WEICHAI WP12.375E50

Transmission:

FAST 10JSD180+QH50

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20 (10+1)

Fuel Tank:

300L Aluminium Alloy

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Highlight:

EuroV 12Wheels Tipper Truck

SHACMAN 12Wheels Tipper Truck

Yellow 12Wheels Tipper Truck

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN 12Wheels Tipper Truck F3000 6x4 375Hp EuroV Yellow

Detailed Product Description

Model: SX3258DT384

Drive type: 6x4

Weight: Gross Vehicle Weight≤50

Engine Brand: WEICHAI

Engine Model: WP12.375E50

Engine Power: 276kw / 375Hp

Gear box Brand: FAST

Gear box Model: 10JSD180+QH50

Dump Truck Parameters

Model	SX3258DT384
Drive type	6x4
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase/(mm) 3775+1400
Performance	Maximum speed/(km/h) 40～55/75
Ground clearance	>314
Engine Brand	WEICHAI
Engine Model	WP12.375E50
Power	276kw / 375Hp
Maximum torque	1650 N*M
Displacement	9.726 L
Emission standard	Euro V
Gear box Brand	FAST
Gear box Model	10JSD180+QH50

Additional Specifications

Clutch: φ430 Diaphragm spring clutch
Cooling: Domestic heat sink
Air inlet: Ordinary air filter
Brakes: Drum brake
Service brake: Double circuit air brake
Park brake: Rear wheel spring brake
Auxiliary brake: WEVB engine exhaust brake
Steering: ZF8098 technology, circulating ball steering machine
Chassis: Parallel trapezoidal frame with variable section
Chassis Dimensions: 850×300(8+7)
Suspension Front: Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension Rear: Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand: HANDE
Front axle: 9.5T front axle MAN technology
Rear axle: 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires: 12.00R20
Fuel tank: 300L Aluminum tank
Electrics: 24V
Battery: 165Ah Maintenance-free battery
Cab: SHACMAN F3000 Medium-length flat cab

Cab Equipment

Hydraulic main seat
Four-point hydraulic suspension cab
Ordinary rearview mirror
Electronically controlled automatic constant temperature air conditioner
Electric window shaker
165Ah maintenance-free Battery
SHACMAN logo
Full English logo

Safety Advantages

The F3000 tipper prioritizes safety with advanced features including:

ABS (Anti-lock braking system)
EBS (Electronic Brake Force Distribution System)
ESC (Electronic stability control system)

These systems enhance braking efficiency, prevent wheel lock, improve stability, and reduce accident risks.

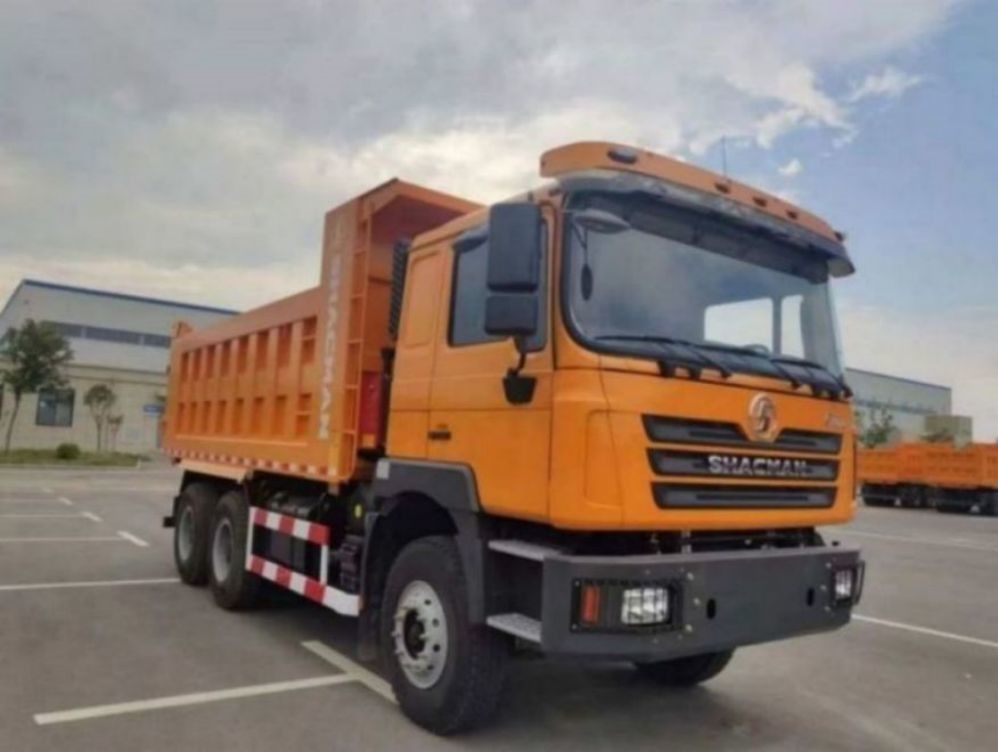

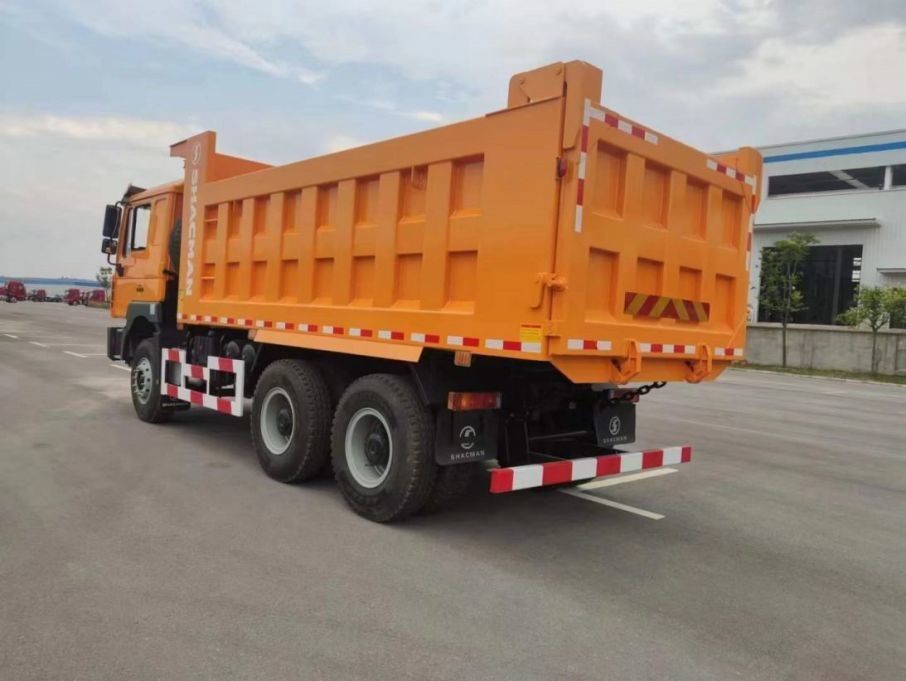

Product Image

Frequently Asked Questions

Who are we?

We are based in Shaanxi, China, established in 2015. Our primary markets include Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). Our team consists of 11-50 professionals.

How can we guarantee quality?

Pre-production samples before mass production
Comprehensive final inspection prior to shipping

What can you buy from us?

Dump truck, track truck, lorry truck, Van truck, Mixer truck.

What services can we provide?

Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU

Payment Currency: USD, EUR, CNY

Payment Type: T/T, L/C, D/P D/A

Languages Spoken: English, French
