Name: SHACMAN Heavy Dump Truck with WEICHAI WP12.400E201 Engine FAST 10JSD180+QH50 Transmission and MAN 9.5T /2*16 T Axle
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

Home > Products > Heavy Dump Truck >

SHACMAN Heavy Dump Truck with WEICHAI WP12.400E201 Engine FAST 10JSD180+QH50 Transmission and MAN 9.5T /2*16 T Axle

Red 12Wheels Tipper Truck

Euro II 12Wheels Tipper Truck

6x4 12Wheels Tipper Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SHACMAN SX3255DU384

Engine:

WEICHAI WP12.400E201

Transmission:

FAST 10JSD180+QH50

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Highlight:

Red 12Wheels Tipper Truck

Euro II 12Wheels Tipper Truck

6x4 12Wheels Tipper Truck

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN 12Wheels Tipper Truck F3000 6x4 400Hp Euro II Red

Detailed Product Description

Model: SX3255DU384

Drive type: 6x4

Weight: Gross Vehicle Weight ≤50

Engine Brand: WEICHAI

Engine Model: WP12.400E201

Engine Power: 294kw / 400Hp

Gear box Brand: FAST

Gear box Model: 10JSD180+QH50

Tipper Dump Truck Parameters

Parameter	Specification
Model	SX3255DU384
Drive type	6x4
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase: 3775+1400 mm
Performance	Maximum speed: 45～60/80 km/h
Ground clearance	>314
Engine Brand	WEICHAI
Engine Model	WP12.400E201
Engine Power	294kw / 400Hp
Maximum torque	1800 N*M
Displacement	11.596 L
Emission standard	Euro II
Gear box Brand	FAST
Gear box Model	10JSD180+QH50
Clutch Type	φ430 Diaphragm spring clutch
Cooling Type	Domestic heat sink
Air inlet Type	Ordinary air filter
Brakes Type	Drum brake
Service brake	Double circuit air brake
Park brake	Rear wheel spring brake
Auxiliary brake	WEVB engine exhaust brake
Steering Type	ZF8098 technology, circulating ball steering machine
Chassis Type	Parallel trapezoidal frame with variable section
Chassis Dimensions	850×300(8+7) mm
Suspension Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand	HANDE
Front axle	9.5T front axle MAN technology
Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type	12.00R20
Fuel tank capacity	300L Aluminum tank
Electrics Type	24V
Battery	165Ah Maintenance-free battery
Cab Type	SHACMAN F3000 Medium-length flat cab
Cab Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Truck Advantages

The F3000 dump truck is equipped with an intelligent control system that monitors and optimizes various parameters, such as engine performance, fuel consumption, and safety features. This system enhances operational efficiency, performance, and safety while providing real-time data for diagnostics and maintenance.

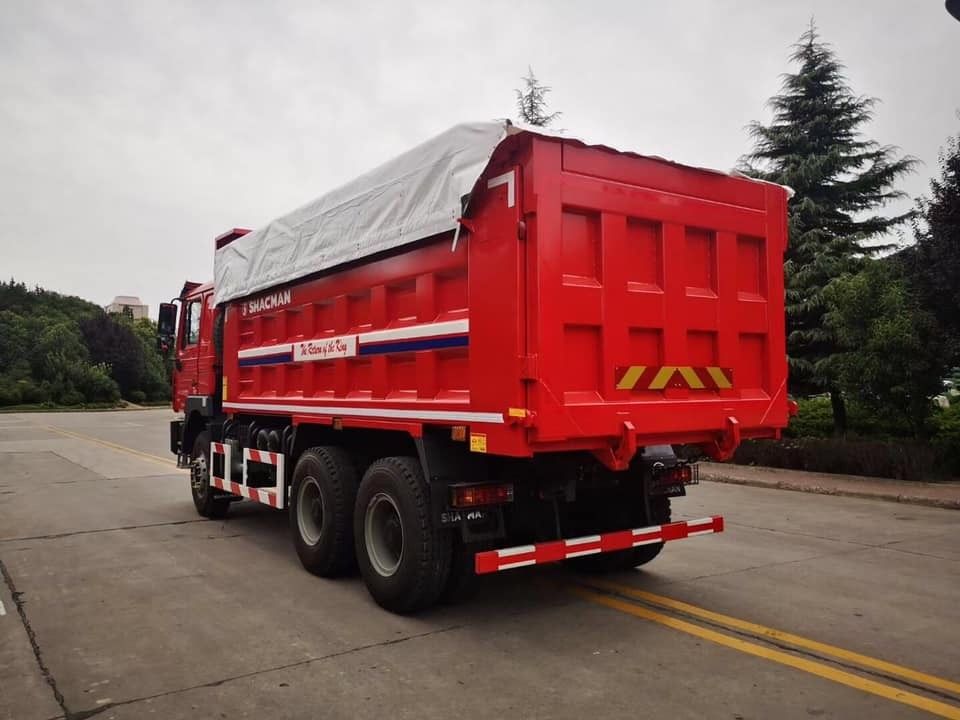

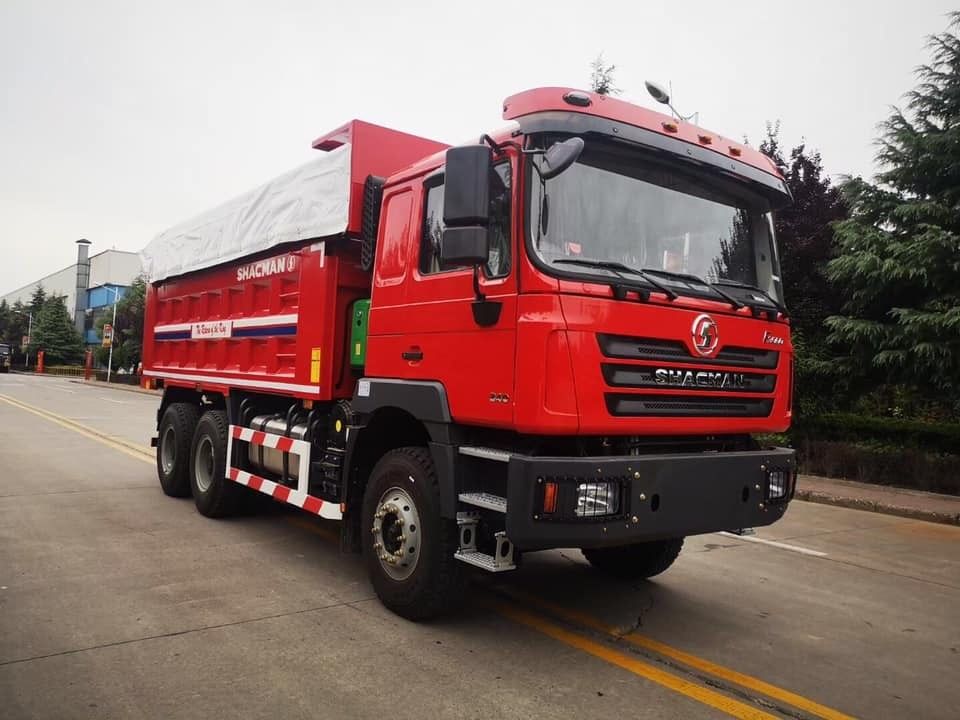

Product Image

Frequently Asked Questions

Who are we?

We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.

How can we guarantee quality?

During the final inspection, trained inspectors thoroughly examine the products for any defects, damages, or deviations from the desired specifications. This inspection may include visual checks, functional tests, measurements, and other quality control procedures.

What can you buy from us?

Dump truck, track truck, lorry truck, Van truck, Mixer truck.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
