SHACMAN F3000 Lorry Truck 8x4 430Hp Red Van Truck For Composite Transport

SHACMAN F3000 Lorry Truck 8x4 430Hp Red Van Truck For Composite Transport

SHACMAN F3000 Lorry Truck

Lorry Truck 8x4

430Hp Van Truck For Composite Transport

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Contact Us
Request A Quote
Product Details
Modle:
SX1318JV456
Engine:
WP12.430E50
Transmission:
12JSD200T-B
Axle:
7.5T /2*16 T Double-stage, Speed Ratio-4.266
Wheel Base:
1800+4575+1400mm
Tire:
12.00R20
Fuel Tank:
400L
Clutch:
φ430 Diaphragm Spring Clutch
Air Inlet:
Ordinary Air Filter
Chassis:
850×300(8+7)
Suspension:
Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts
Cabin:
Extended Flat Roof
Color:
Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy
Highlight:

SHACMAN F3000 Lorry Truck

,

Lorry Truck 8x4

,

430Hp Van Truck For Composite Transport

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Nude pack, with wax before shipment.
Delivery Time
45 working days
Payment Terms
T/T, L/C
Supply Ability
1000 units/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

SHACMAN F3000 8x4 430Hp EuroV Red Lorry Truck Van Truck For Composite Transport



Detailed Product Description

Model:SX1318JV456

Drive type:8x4

Weight: Gross Vehicle Weight≤50

Engine Brand: WEICHAI

Engine Model:WP12.430E50

Engine Power/(kw/HP): 316kw / 430 Hp

Gear box Brand: FAST

Gear box Model: 12JSD200T-B



Lorry Truck Prameters

Model SX1318JV456
Drive type 8x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 1800+4575+1400
Performance Maximum speed/(km/h) 45~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.430E50
Power/(kw/HP) 316kw / 430Hp
Maximum torque / (N.M)/rpm 2060 N·M
Displacement/(L) 11.596 L
Emission standard Euro V
Gear box Brand FAST
Model 12JSD200T-B
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Extended flat roof cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, common rear view mirror, electric automatic thermostatic air conditioner, electric window crank, 165Ah maintenance-free battery, spare tire carrier, SHACMAN logo, full English logo.


Overview

  • The F3000 series adopts MAN technology in front and rear axle, suspension, chassis cooling system, intake and exhaust system, chassis structure layout and so on.Powerful, safe, reliable and comfortable, it is a refined product line positioned at the high-end market of truck manufacturing industry. The F3000 series has many optional devices to customize;It is a new generation of products that meet the most demanding requirements and requirements for all purposes, in any working conditions.
  • The F3000 series is SHACMAN's latest success.Introduced in 2009, it soon became one of our best selling product. The cab of the F3000 uses advanced technology from German truck giant MAN.F3000 series power come from weichai three, four or cummins's three, four, five electronic-controlled engine

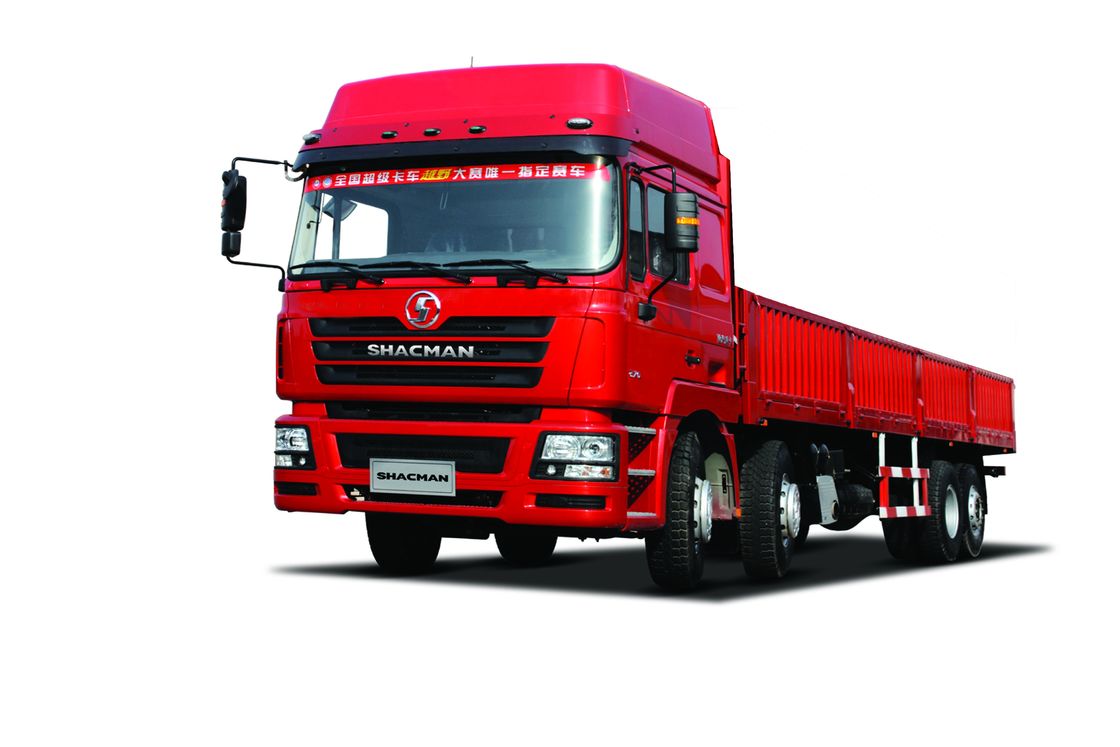

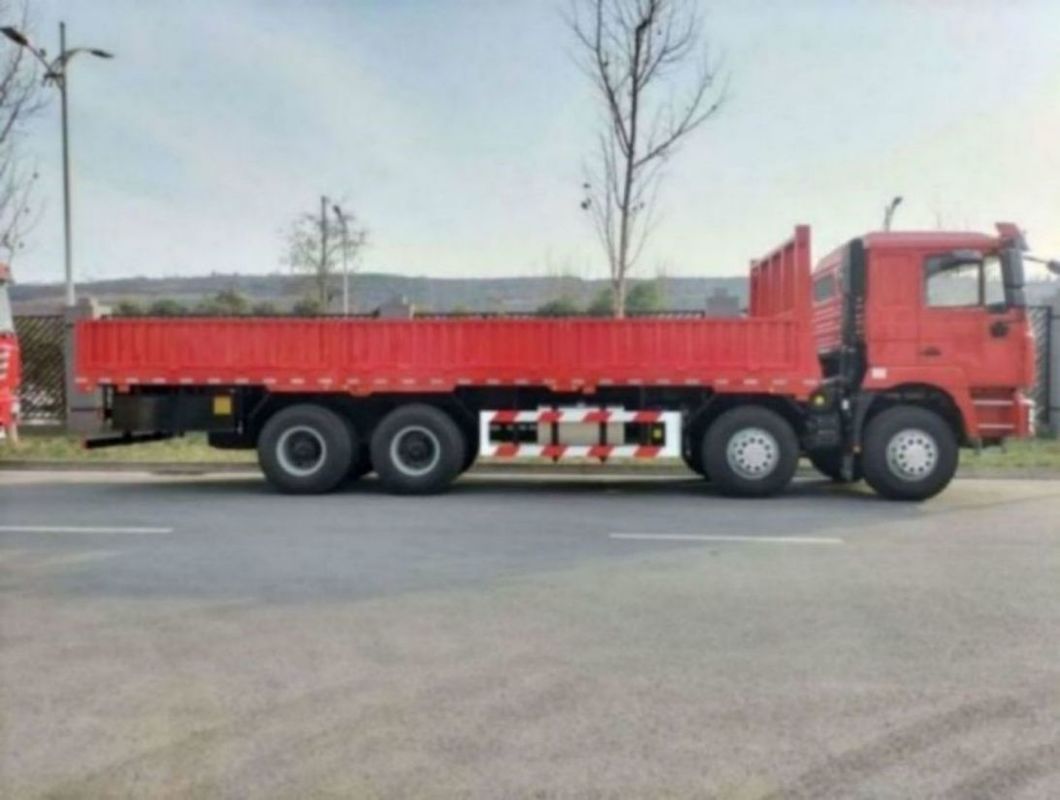

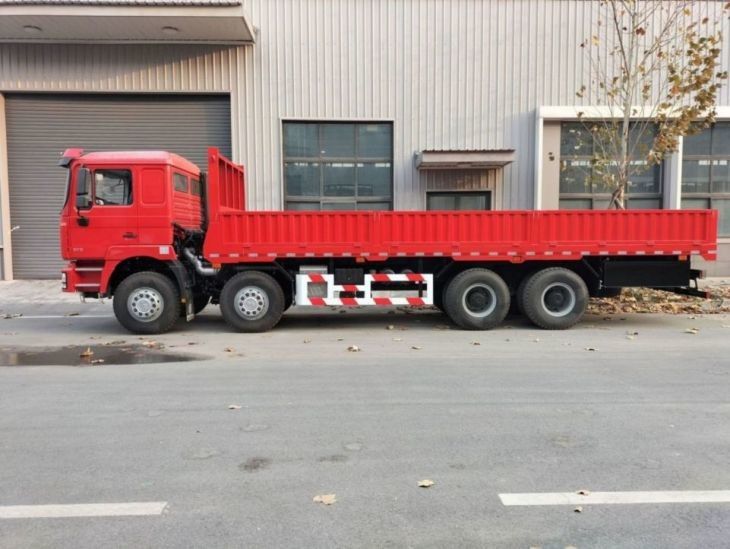

Detailed Image

SHACMAN F3000 Lorry Truck 8x4 430Hp Red Van Truck For Composite Transport 0
