Name: H3000 Heavy Duty Dump Truck for Mining 6x4 380Hp EuroII SHACMAN Tipper
Brand: SHACMAN
SKU: H3000
Rating: 4.5 (110 reviews)

Home > products > Heavy Dump Truck >

H3000 Heavy Duty Dump Truck for Mining 6x4 380Hp EuroII SHACMAN Tipper

H3000 Heavy Duty Dump Truck

Heavy Duty Dump Truck Mining 6x4

EuroII SHACMAN Dump Truck

Place of Origin:

Xi'an Shaanxi

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

H3000

Request A Quote

Product Details

Modle:

SX3255MT384

Engine:

WP10.380E22

Transmission:

10JSD180+QH50

Axle:

9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400 Mm

Tire:

12.00R20

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Yellow; Red; Green

Highlight:

H3000 Heavy Duty Dump Truck

Heavy Duty Dump Truck Mining 6x4

EuroII SHACMAN Dump Truck

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN H3000 Dump Truck 6x4 380Hp

Detailed Product Description

Model: SX3255MT384

Drive type: 6x4

Weight: Gross Vehicle Weight≤50

Engine Brand: WEICHAI

Engine Model: WP10.380E22

Engine Power/(kw/HP): 279kw / 380Hp

Gear box Brand : FAST

Dump Truck Parameters

Model	SX3255MT384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Power/(kw/HP)	279kw / 380Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN H3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window shaker, ordinary rearview mirror, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Dump Truck Features

Mining-Specific Design: The truck's chassis and body are specially engineered to handle the rigors of mining operations, providing enhanced durability and load-carrying capacity.
WEICHAI core power upgrade, double cylinder load dump air compressor, throttle off technology, optimized fan control logic.
Intelligent electrical network architecture: Volvo electric design system.
Engine inlet and cooling module, large air inlet cross section, higher air intake, patented cooling system, low air inlet resistance.
MAN new single layer lightweight structure frame, formed from 6000T high strength hydraulic press.

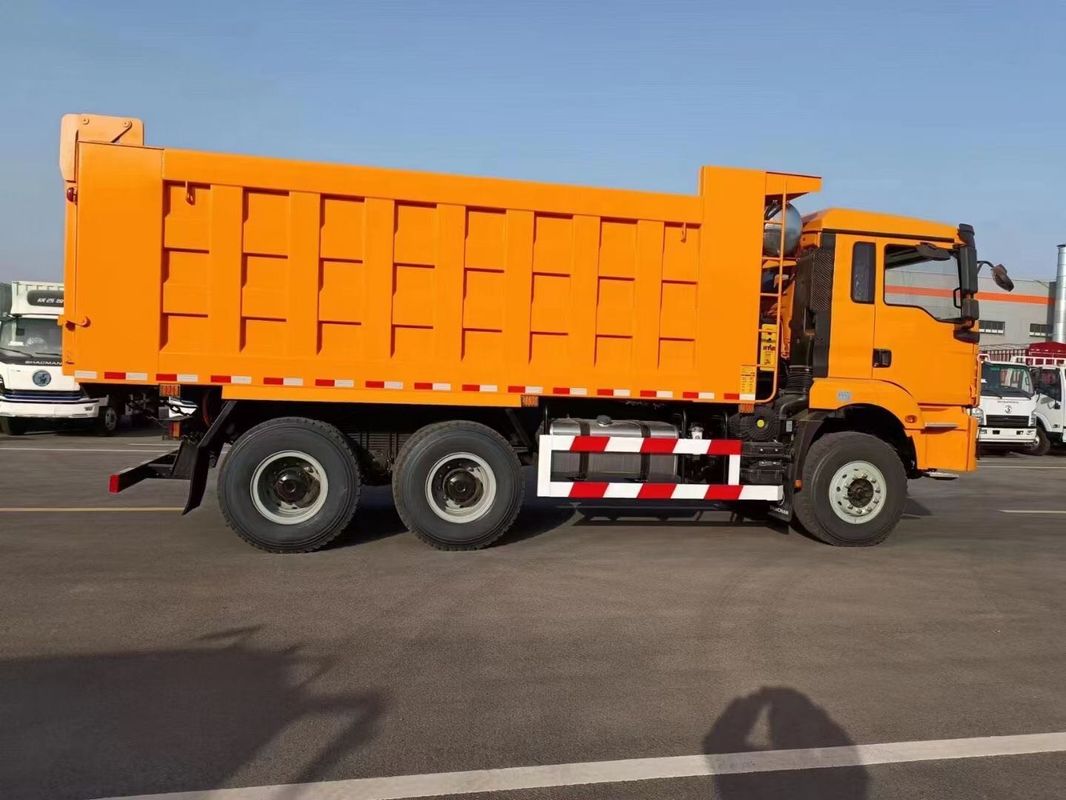

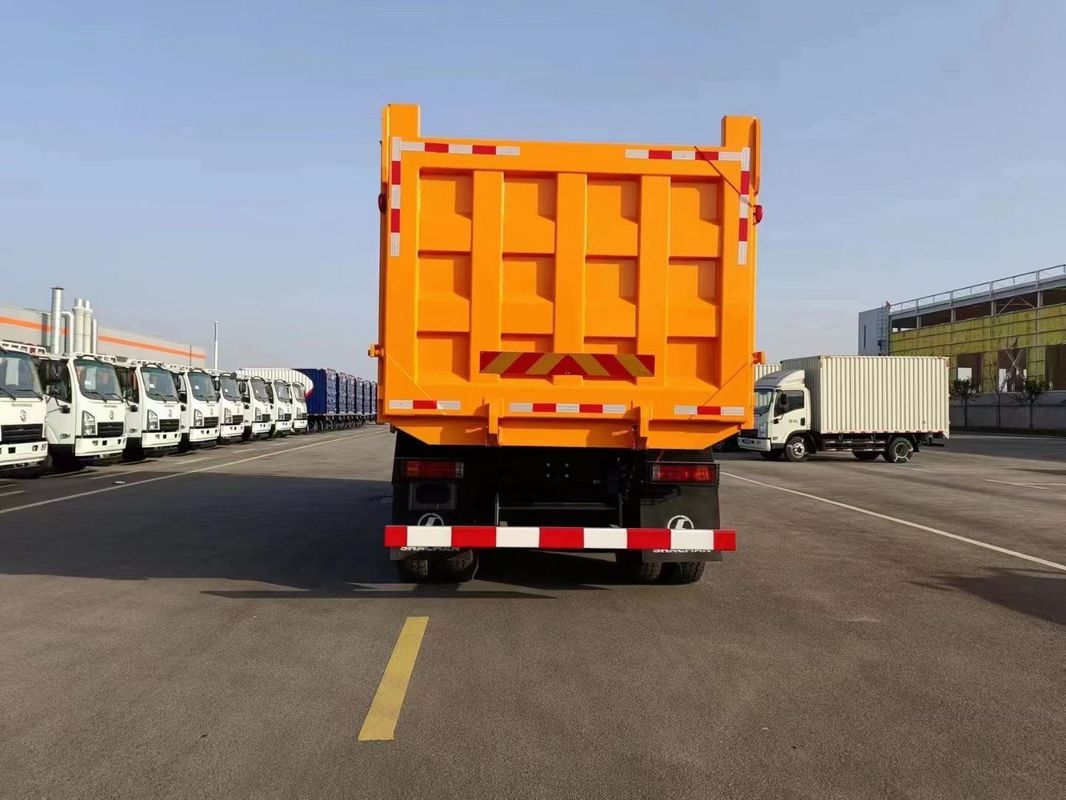

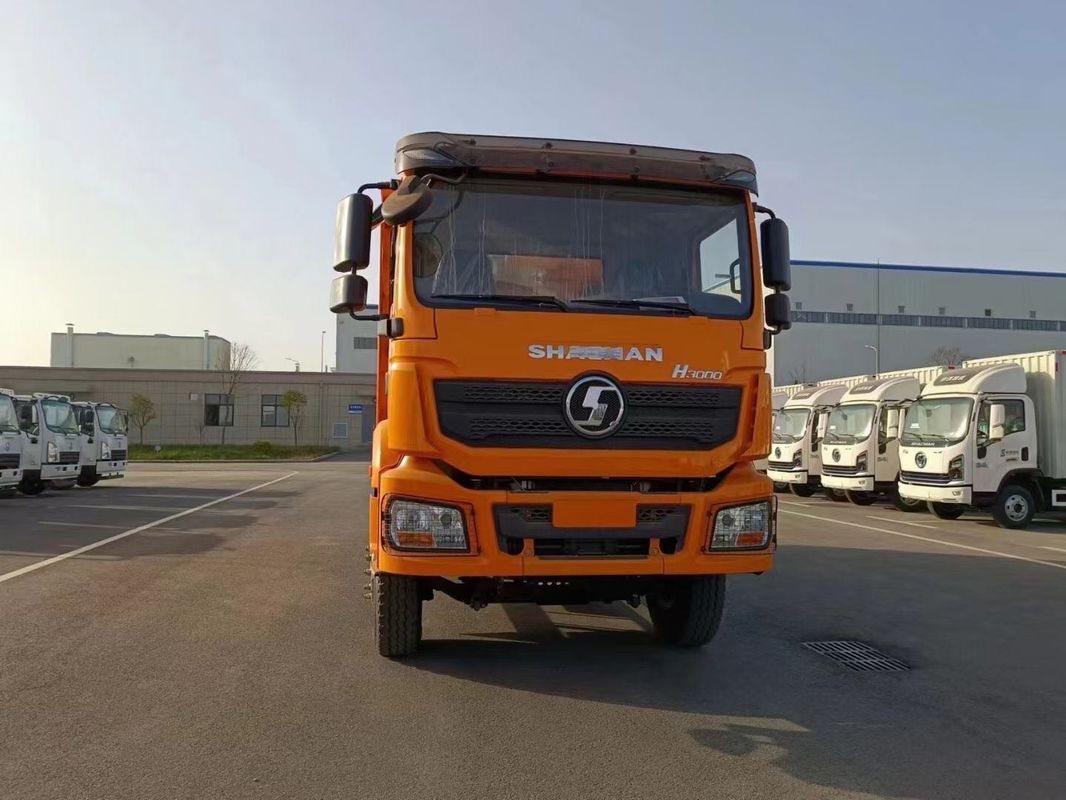

Product Pic

H3000 Heavy Duty Dump Truck for Mining 6x4 380Hp EuroII SHACMAN Tipper 0
