Euro V Heavy Dump Truck SHACMAN H3000 Diesel Tipper Truck 6x4 375HP Yellow

Basic Information
Place of Origin: Xi'an, Shaanxi
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX3258MT384 Engine: WP12.375E50
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.262
Wheel Base: 3775+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Yellow; Red; Green
Highlight:

Euro V Heavy Dump Truck SHACMAN

,

Heavy Dump Truck SHACMAN H3000

,

Diesel Tipper Truck 6x4 375HP


Product Description

Euro V Heavy Dump Truck SHACMAN H3000 Diesel Tipper Truck 6x4 375HP Yellow



Detailed Product Description

Model:SX3258MT384

Drive type:6x4

Weight:Gross Vehicle Weight≤50

Engine Brand:WEICHAI

Engine Model:WP12.375E50

Engine Power/(kw/HP):279kw / 375Hp

Gear box Brand:FAST

Gear box Model:10JSD180+QH50



Dump Truck Parameters

Model SX3258MT384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50
Power/(kw/HP) 279kw / 375Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro V
Gear box Brand

FAST

Model

10JSD180+QH50

Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.






Advantages

  • The SHACMAN H3000 6x4 375HP Dump Truck is a versatile heavy-duty vehicle designed for various applications, particularly in industries that require the transportation of large quantities of materials over challenging terrains. Some of the primary applications of this dump truck include:
  • The H3000 dump truck is widely used in the construction sector for transporting construction materials such as sand, gravel, crushed stone, and other aggregates to construction sites.



Detailed Image

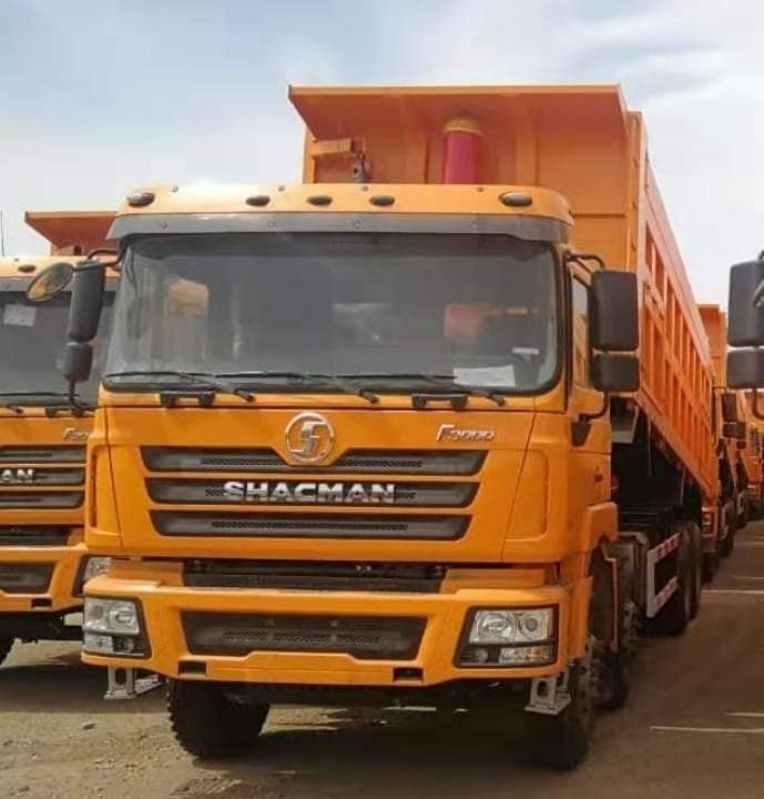

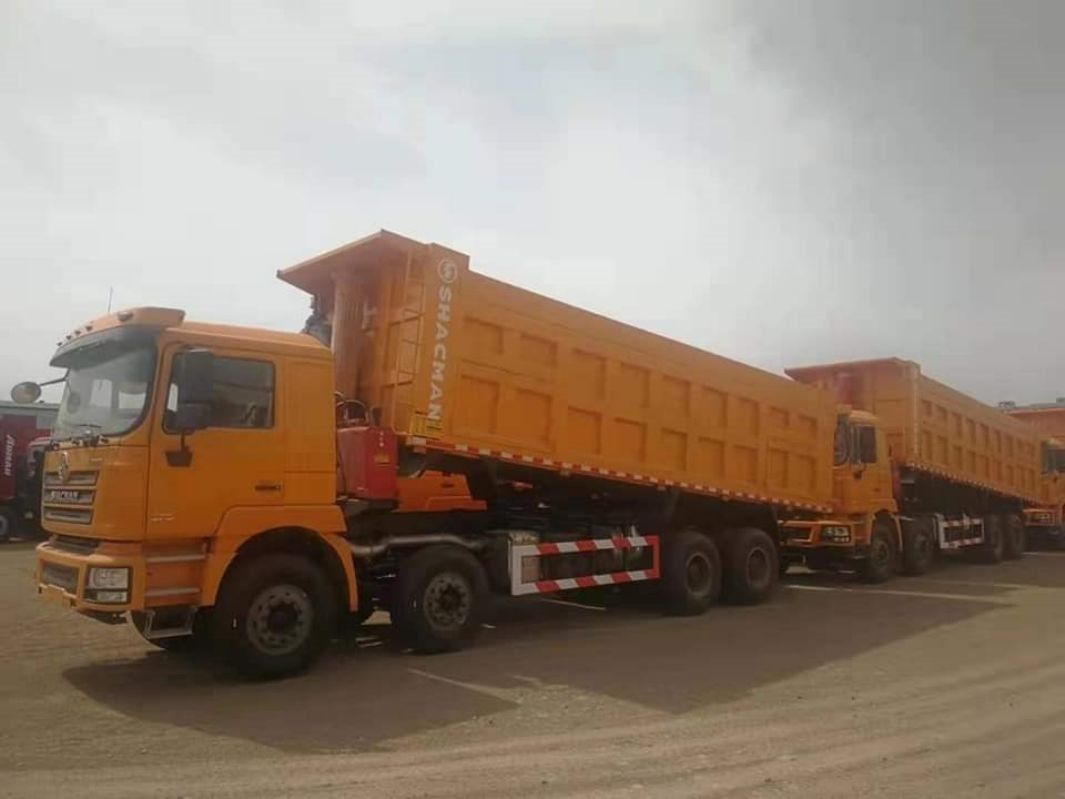

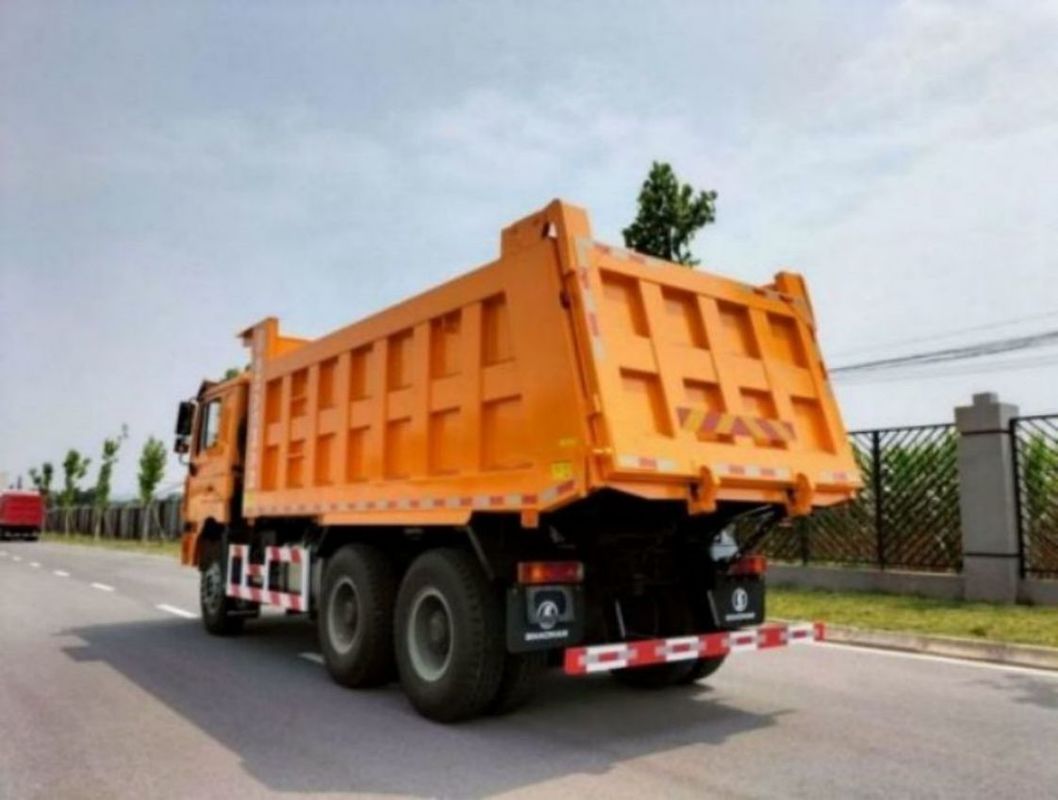

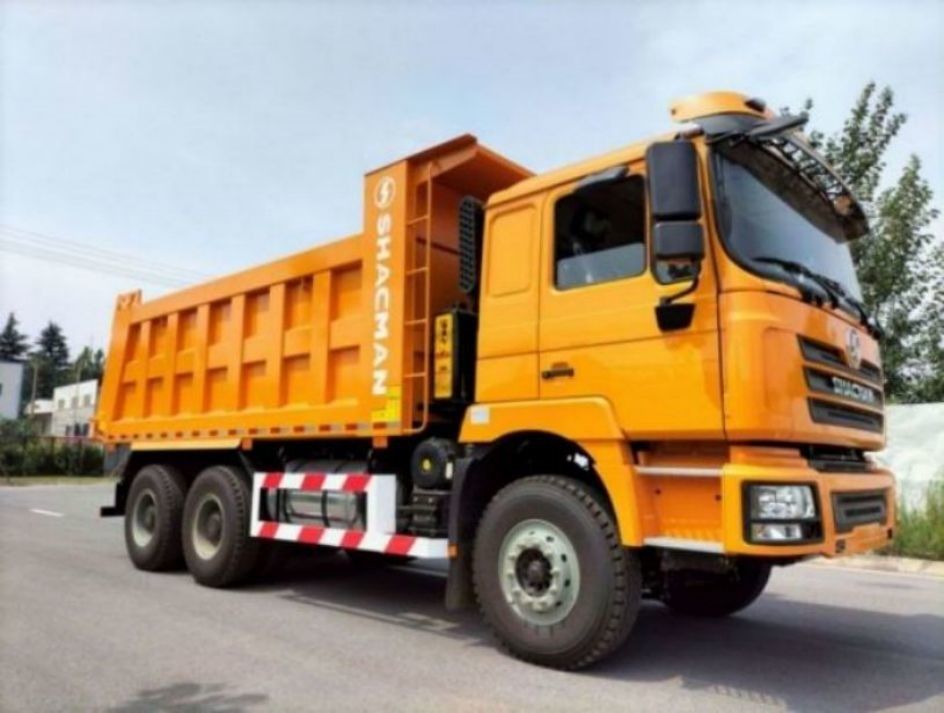

Euro V Heavy Dump Truck SHACMAN H3000 Diesel Tipper Truck 6x4 375HP Yellow 0
