Red SHACMAN Heavy Dump Truck 6-Wheeler Dump Truck H3000 4x2 300Hp Euro II 3800mm

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: As your requirements
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX3185MN381 Engine: WP10.300E22
Transmission: 10JSD180+QH50 Axle: 7.5T / 13 T Double-stage,speed Ratio-5.92
Wheel Base: 3800mm Tire: 11.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Yellow; Red
Highlight:

Yellow Heavy Dump Truck H3000

,

6 Wheeler Dump Truck 300Hp

,

Euro II 6 Wheeler Dump Truck 3800Mm


Product Description

SHACMAN DUMP TRUCK H3000 4X2 300HP 6-Wheeler



Detailed Product Description

Model:SX3185MN381

Drive type: 4x2

Engine Brand: WEICHAI

Engine Power/(kw/HP) : 247kw / 300Hp

Engine Model: WP10.300E22

Gear box Brand : FAST

Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3185MN381
Drive type 4x2
Weight Gross Vehicle Weight ≤25
Dimensions Wheelbase/(mm) 3800
Performance Maximum speed/(km/h) 45~60/75
Ground clearance >314
Engine Brand WEICHAI
Model WP10.300E22
Power/(kw/HP) 279kw / 300Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs
Rear Multi-layered leaf springs
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 11.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.



Features

  • Since its introduction in 2009, the SHACMAN H3000 series has stood as a shining example and an iconic representation of SHACMAN's commitment to excellence. With cutting-edge technology derived from MAN, the H3000 series seamlessly combines unparalleled comfort with exceptional power, creating a league of its own in the heavy-duty truck industry.
  • One of the defining characteristics of the H3000 series is its focus on operator comfort. The cabins are meticulously designed to offer a spacious, ergonomic, and driver-centric environment. Long-haul journeys become less arduous, as the cabin amenities cater to the well-being and reduced fatigue of the drivers.

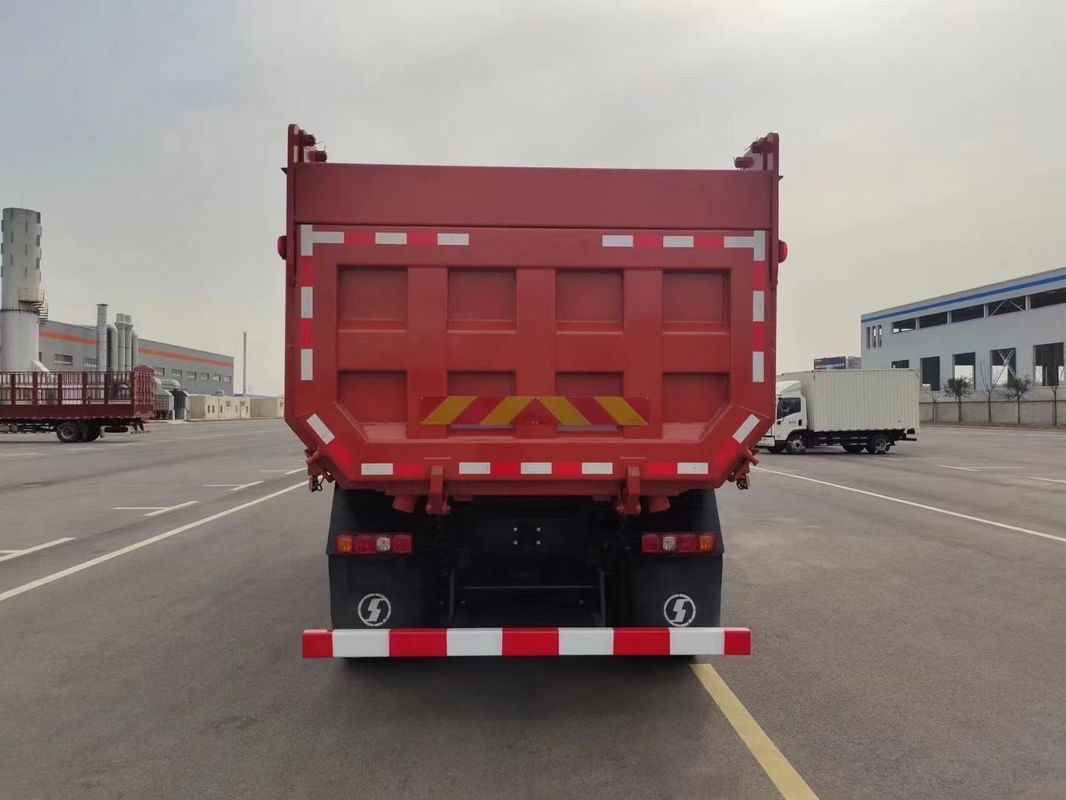

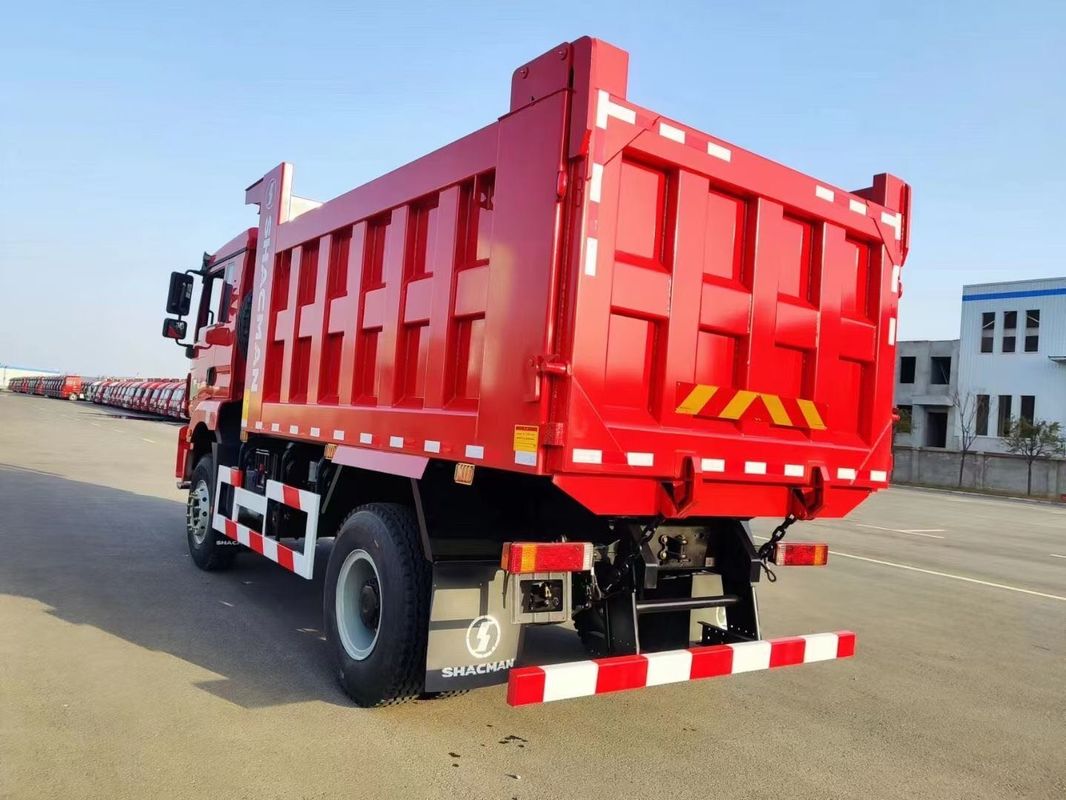

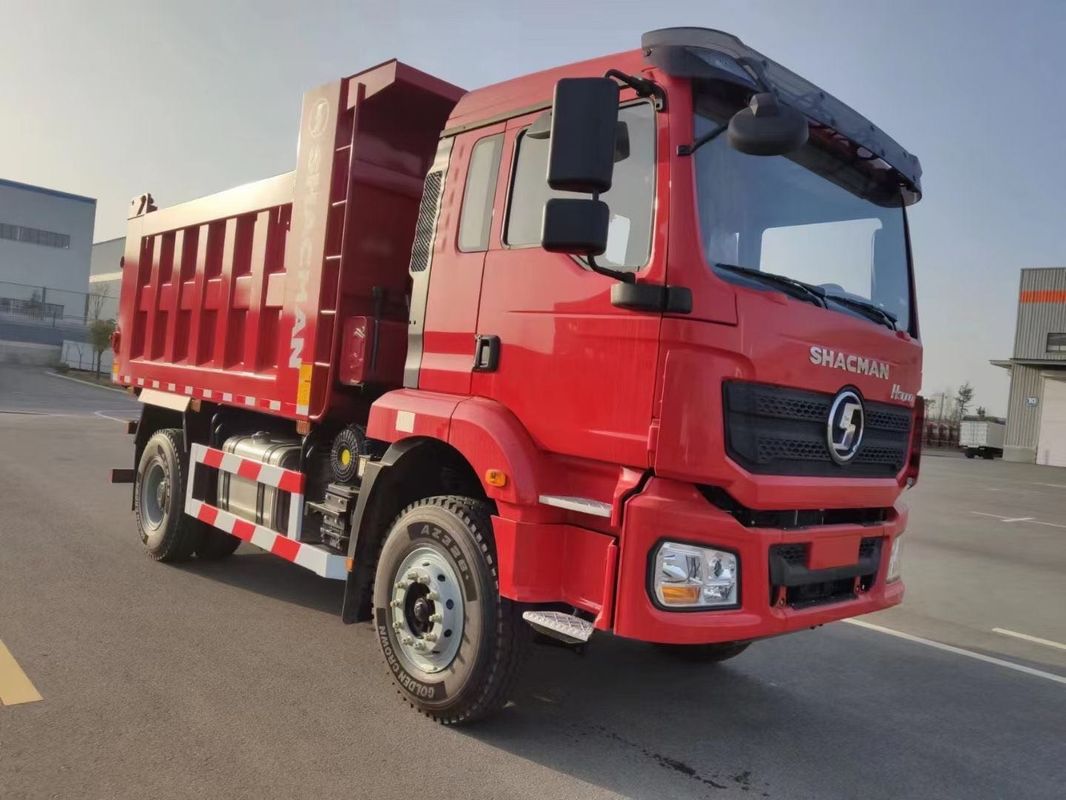

Detailed Image

Red SHACMAN Heavy Dump Truck 6-Wheeler Dump Truck H3000 4x2 300Hp Euro II 3800mm 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
