SHACMAN X3000 Tipper Truck 8x4 375Hp EuroV, High Quality

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: X3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX32586T384 Engine: WP12.375E50
Transmission: 10JSD180+QH50 Axle: 2*9.5/2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 1800+3575+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Product Description

SHACMAN X3000 Tipper Truck 8x4 375Hp EuroV, High Quality



Detailed Product Description

Model: SX33186T366

Drive type: 8x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model: WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Tipper Dump Truck parameters

Model SX33186T366
Drive type 8x4
Weight Gross Vehicle Weight ≤70
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50
Power/(kw/HP) 276kw / 375Hp
Maximum torque / (N.M)/rpm 1650 N·M
Displacement/(L) 9.726 L
Emission standard Euro V
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN X3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.


Advantages

  • The X3000 series is the continuation of 46 years of technological innovation. It is a brand-new product for logistical transportation. With outstanding power and fuel economy, a spacious and comfortable interior, and excellent safety, the X3000 series is the new standard.
  • MAN new single-layer lightweight structure frame, formed from 6000T high-strength hydraulic press

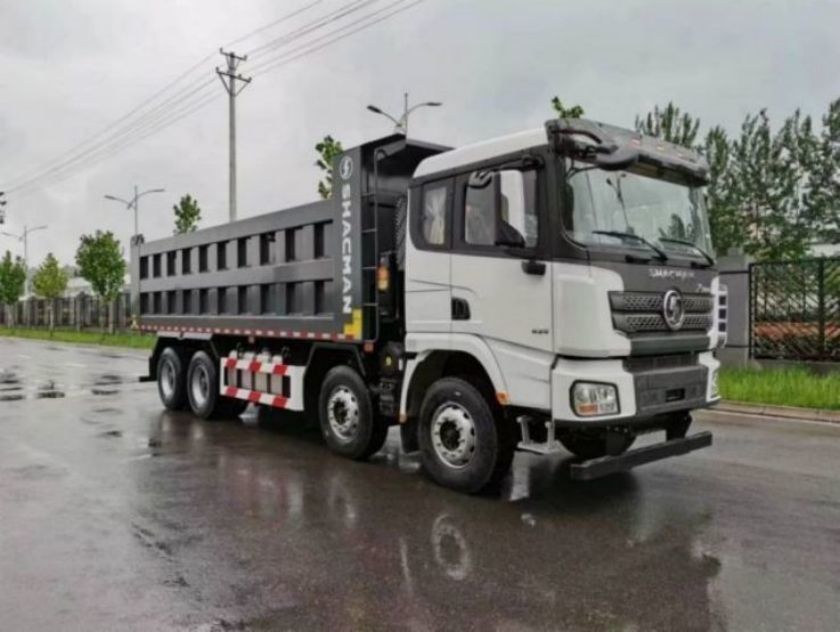

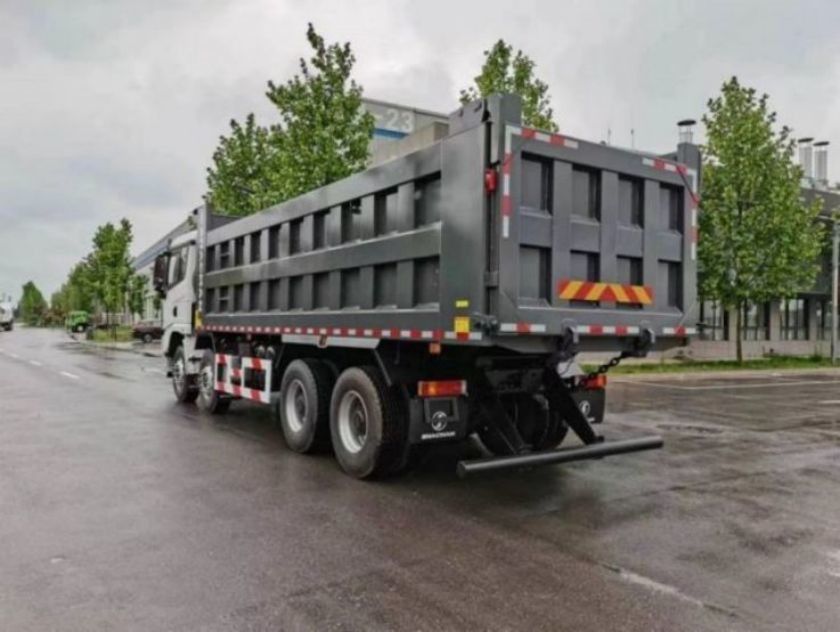

Detailed Image

SHACMAN X3000 Tipper Truck 8x4 375Hp EuroV, High Quality 0





FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Final inspections help ensure that only products of acceptable quality are being distributed, thereby minimizing the chances of customers receiving faulty or non-conforming products.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
