Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | X3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 units/month |
Modle: | SX33186T366 | Engine: | WP10.380E53 |
---|---|---|---|
Transmission: | 10JSD180+QH50 | Axle: | 9.5T /2*16 T Double-stage, Speed Ratio-4.769 |
Wheel Base: | 1800+3575+1400 Mm | Tire: | 12.00R20 |
Fuel Tank: | 300L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+7) |
Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy |

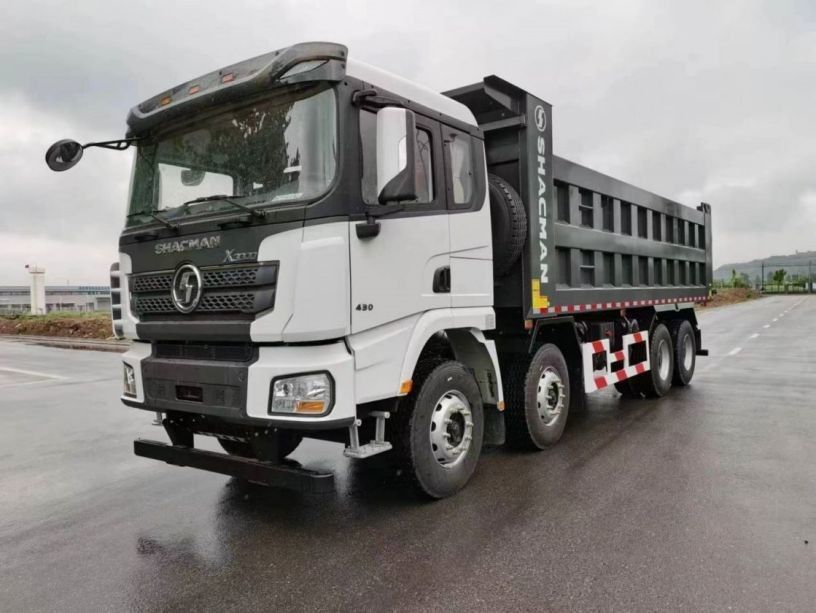

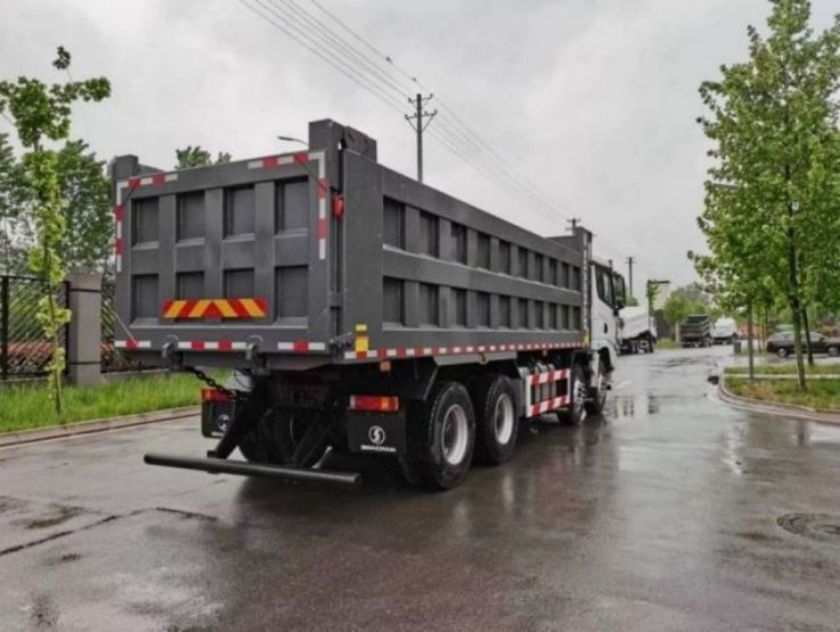

SHACMAN X3000 Tipper Truck 8x4 380Hp EuroV
Detailed Product Description
Model: SX33186T366
Drive type: 8x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model: WP10.380E53
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump Truck Parameters
Model | SX33186T366 | |
Drive type | 8x4 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E53 | |
Power/(kw/HP) | 280kw / 380Hp | |
Maximum torque / (N.M)/rpm | 1630 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro V | |
Gear box | Brand | FAST |
Model | 10JSD180+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN X3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Advantages
The X3000 dump trucks use Euro V Weichai engines. Compared with older generation engines, Euro V compliant engines usually have higher fuel efficiency. Optimization of the combustion process and advances in engine technology help to minimize fuel consumption and thus reduce operating costs for vehicle owners.
Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Final inspections help ensure that only products of acceptable quality are being distributed, thereby minimizing the chances of customers receiving faulty or non-conforming products.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
