70T SHACMAN H3000 Heavy Dump Truck 375Hp Tipper Truck 8x4 EuroV White

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX3318MT364 Engine: WP12.375E50
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 1800+3575+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

EuroV SHACMAN H3000 Heavy Dump Truck

,

EuroV Heavy Dump Truck 375Hp

,

EuroV Tipper Truck 8x4


Product Description

SHACMAN H3000 Tipper Truck 8x4 375Hp EuroV White



Detailed Product Description
Model: SX3318MT364

Drive type: 8x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model: WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Tipper Dump Truck parameters

Model SX3318MT364
Drive type 8x4
Weight Gross Vehicle Weight ≤70
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50
Power/(kw/HP) 276kw / 375Hp
Maximum torque / (N.M)/rpm 1650 N·M
Displacement/(L) 9.726 L
Emission standard Euro V
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.


Advantages

  • The SHACMAN H3000 Tipper Truck 8x4 is a heavy-duty commercial vehicle designed for transporting and unloading bulk materials such as sand, gravel, and construction debris. It is manufactured by SHACMAN, a Chinese truck manufacturer known for producing rugged and reliable trucks.
  • The truck is equipped with a 375 horsepower Euro V-compliant engine. Euro V is an emission standard that sets limits on the amount of pollutants a vehicle can emit.

Detailed Image

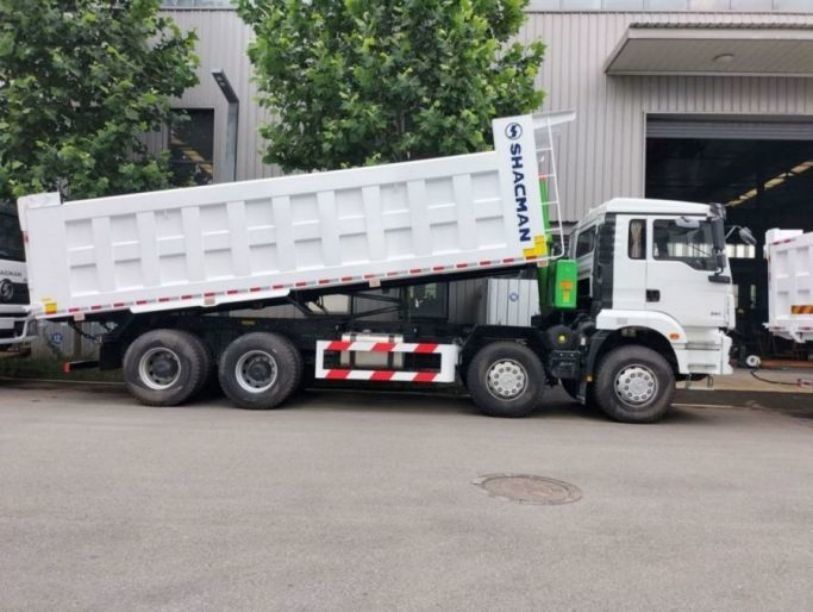

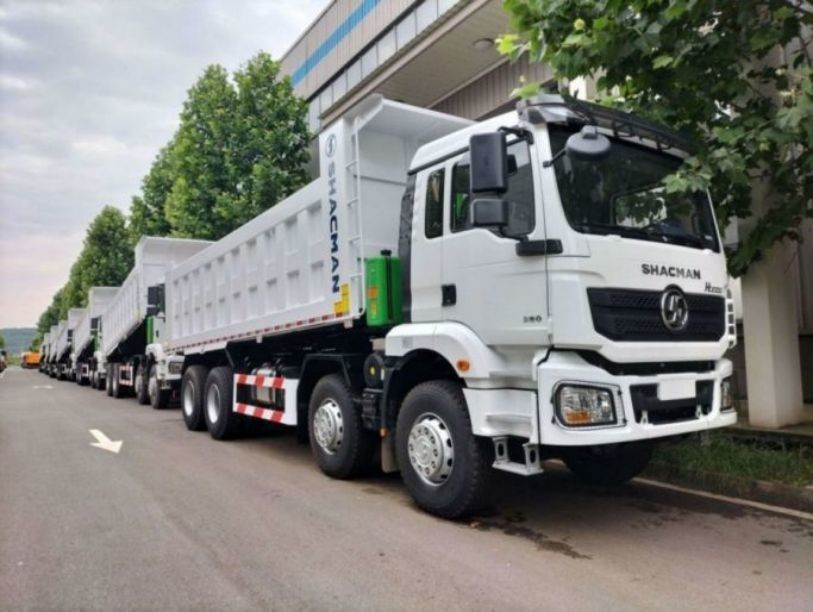

70T SHACMAN H3000 Heavy Dump Truck 375Hp Tipper Truck 8x4  EuroV White 0
