10 Tyres SHACMAN H3000 Dump Truck 6x4 380Hp EuroII Blue U-type tipper

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX3255MT384 Engine: WP10.380E22-WEICHAI
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 3775+1400mm Tire: 12.00R20 (10+1)
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Common Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Product Description

SHACMAN H3000 Dump Truck 6x4 380Hp EuroII Blue



Detailed Product Description
Model: SX3255MT384

Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: W10.380E22
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3255MT384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model W10.380E22
Power/(kw/HP) 280kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.


Advantages

  • H3000 6X4 dump truck is equipped with an intelligent control system that monitors and optimizes various parameters, such as engine performance, fuel consumption, and safety features. This system enhances operational efficiency, performance, and safety while providing real-time data for diagnostics and maintenance.
  • The H3000 dump truck prioritizes safety with features such as ABS (Anti-lock Braking System), EBS (Electronic Brakeforce Distribution), and ESC (Electronic Stability Control). These systems help to improve braking efficiency, prevent wheel lock-up, and enhance stability, contributing to safer operation and reduced accident risks.

Detailed Image

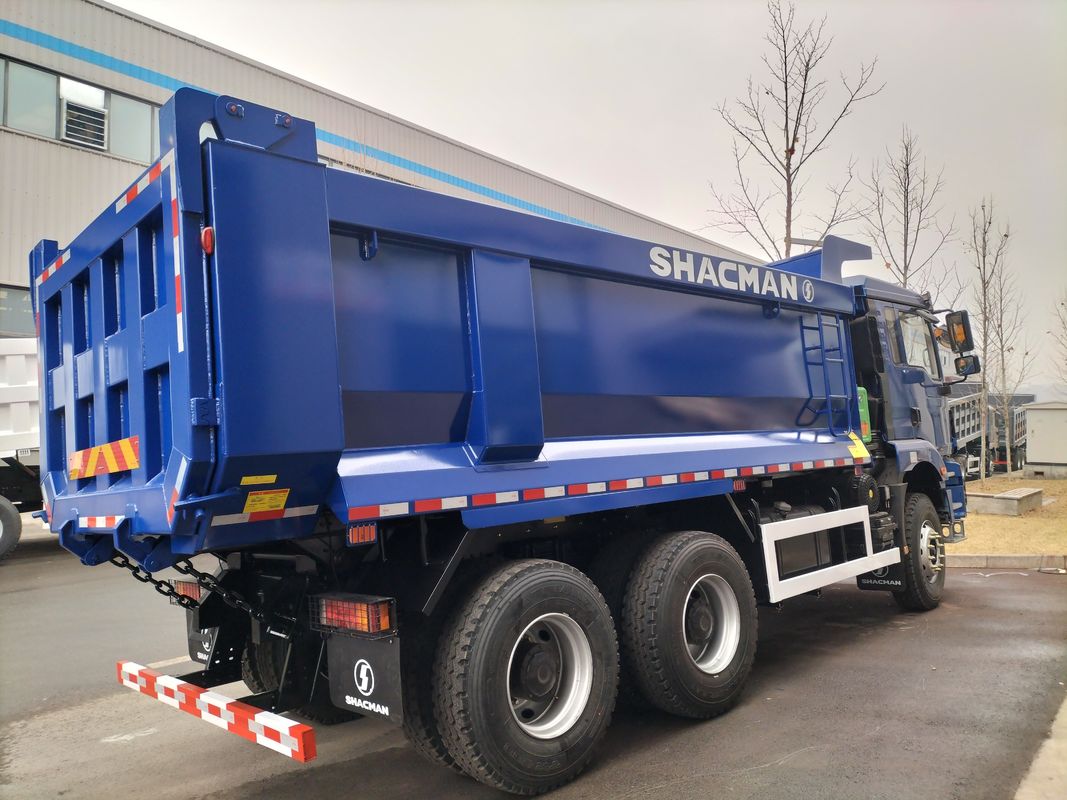

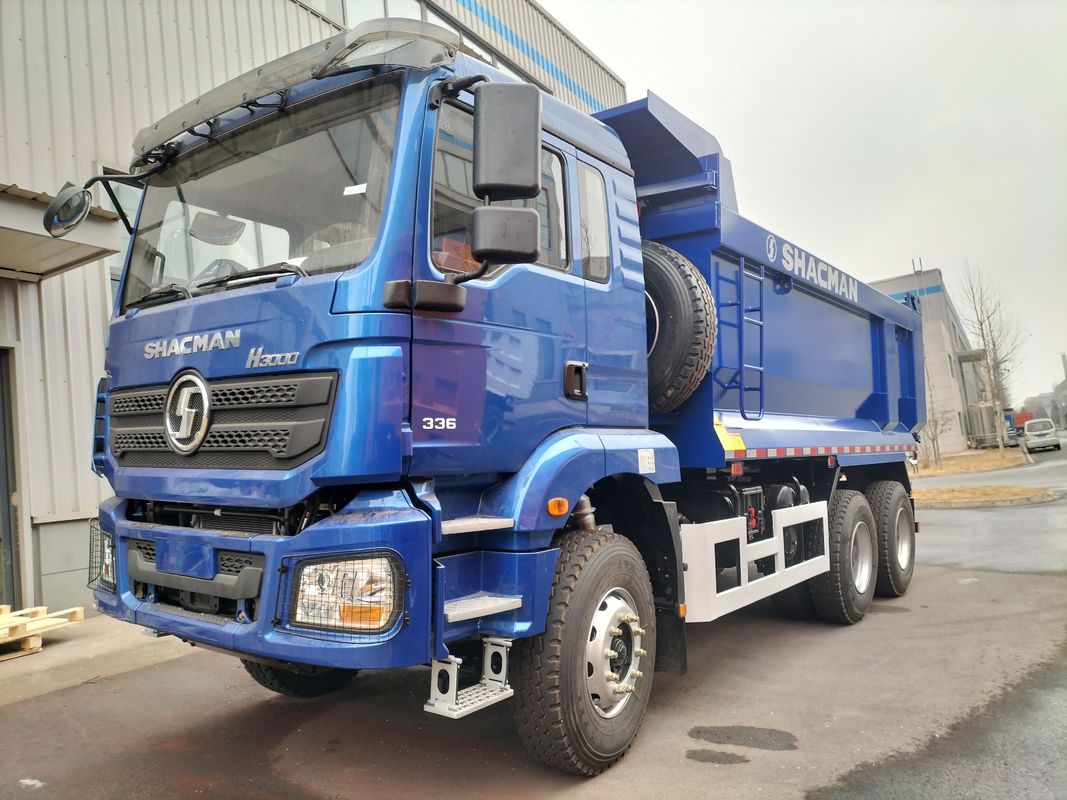

10 Tyres SHACMAN H3000 Dump Truck 6x4 380Hp EuroII Blue U-type tipper 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
The final inspection helps to ensure that only products of acceptable quality are released for distribution, minimizing the chances of customers receiving faulty or substandard items. It is an essential step to maintain customer satisfaction, uphold brand reputation, and comply with quality standards and regulations.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French

Contact Details
MinBo

Phone Number : +8618691850398
