Name: SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper
Brand: SHACMAN
SKU: F3000
Rating: 4.9 (103 reviews)

Home > products > Heavy Dump Truck >

SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SX3318DV366

Engine:

WP12.430E50-WEICHAI

Transmission:

12JSD200T-B+QH50-FAST

Axle:

9.5T /2*16 T Double-stage, Speed Ratio-4.769

Wheel Base:

1800+3575+1400 Mm

Tire:

12.00R20 (10+1)

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN F3000 Dump Truck 8x4 430Hp EuroV

Detailed Product Description
Model: SX3318DV366

Drive type: 8x4
Engine Brand: WEICHAI
Engine Model: WP12.430E50
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50

Dump Truck Oarameters

Model	SX3318DV366
Drive type	8x4
Weight	Gross Vehicle Weight	≤70
Dimensions	Wheelbase/(mm)	1800+3575+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP12.430E50
	Power/(kw/HP)	316kw / 430Hp
	Maximum torque / (N.M)/rpm	2050 N·M
	Displacement/(L)	11.596 L
	Emission standard	Euro V
Gear box	Brand	FAST
Gear box	Model	12JSD200T-B+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Advantages

The F3000 dump truck is built on a robust chassis and equipped with a reliable suspension system. This provides excellent load-bearing capacity and stability, ensuring safe and secure transportation of heavy materials even on uneven or rough terrains.
The truck meets Euro V emission standards, which set strict limits on exhaust emissions, including nitrogen oxides (NOx), particulate matter (PM) and other pollutants.

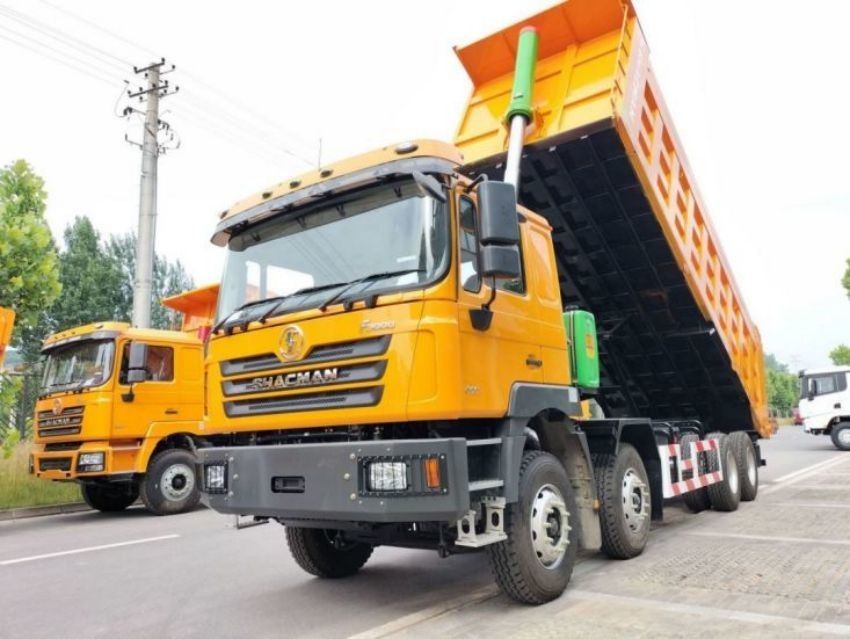

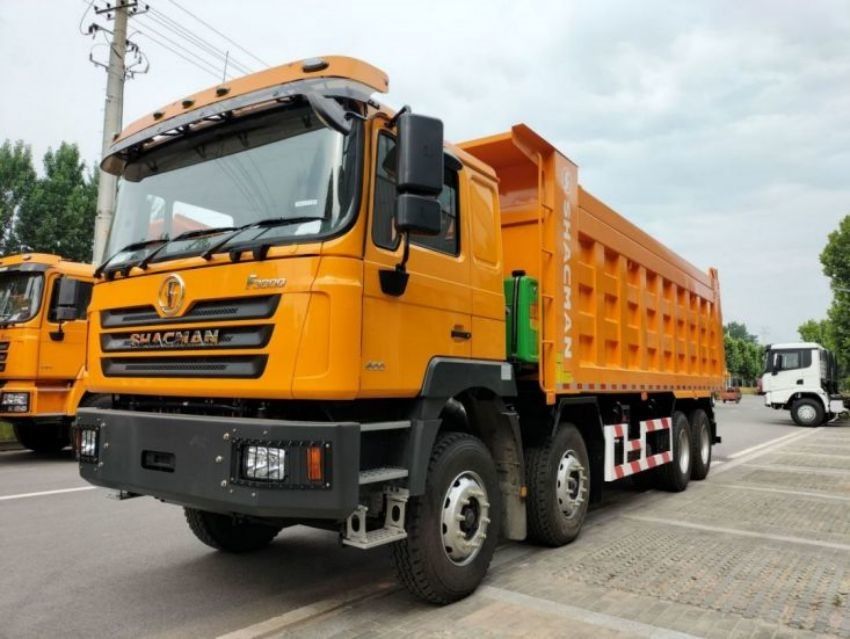

Detailed Image

SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Before starting mass production, manufacturers often create a pre-production sample. This sample serves as a prototype or a representative model of the final product. It allows the manufacturer to evaluate and validate the design, quality, functionality, and other important aspects of the product before investing in large-scale production.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
