Name: SHACMAN H3000 Tipper Truck 8x4 380 EuroII Green
Brand: SHACMAN
SKU: H3000
Rating: 4.7 (182 reviews)

Home > products > Heavy Dump Truck >

SHACMAN H3000 Tipper Truck 8x4 380 EuroII Green

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

H3000

Request A Quote

Product Details

Modle:

SX3315DT366

Engine:

WP10.380E22

Transmission:

10JSD180+QH50

Axle:

9.5T /2*16 T Double-stage, Speed Ratio-5.262

Wheel Base:

1800+3575+1400 Mm

Tire:

12.00R20

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

H3000 Standard Cabin

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN H3000 Tipper Truck 8x4 380 EuroII blue

Detailed Product Description
Model: SX3318DT366
Drive type: 8x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50

Dump Truck Parameters

Model	SX3315MT366
Drive type	8x4
Weight	Gross Vehicle Weight	≤70
Dimensions	Wheelbase/(mm)	1800+3575+1400
Performance	Maximum speed/(km/h)	45～60/85
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Power/(kw/HP)	279kw / 380Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN H3000 Standard cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.

Advantages

Shacman Dump Truck Shacman Tipper Dump Truck Shacman H3000 Dump Truck 8x4 Tipper Truck Export LHD RHD Tipper WEICHAI Engine.
The SHACMAN h3000 series is dedicated to building a logistics leader. It has outstanding performance in fuel economy, reliability, intelligence, safety and comfort. It fully meets the requirements of modern high-speed and high-horsepower logistics transportation, and users say that its comfort and oil saving are comparable to European and American trucks.

Detailed Image

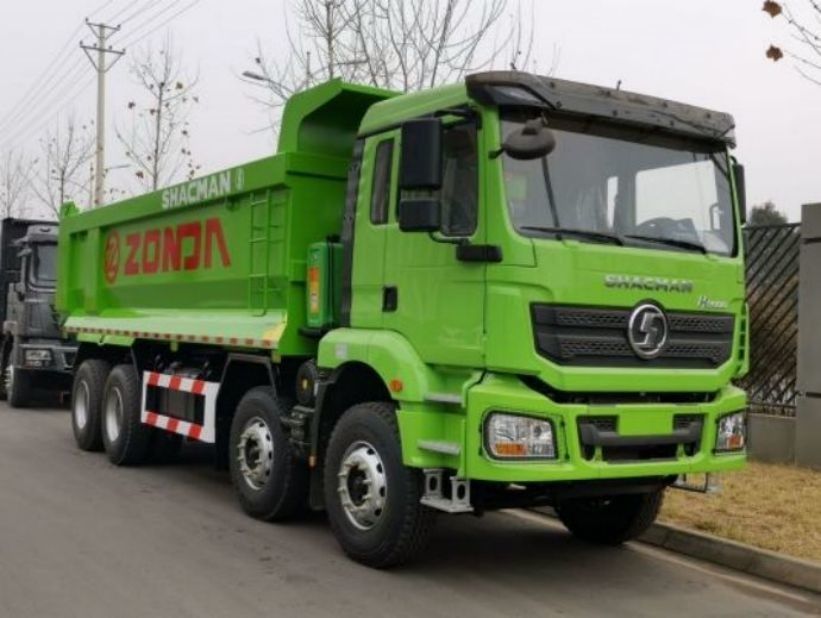

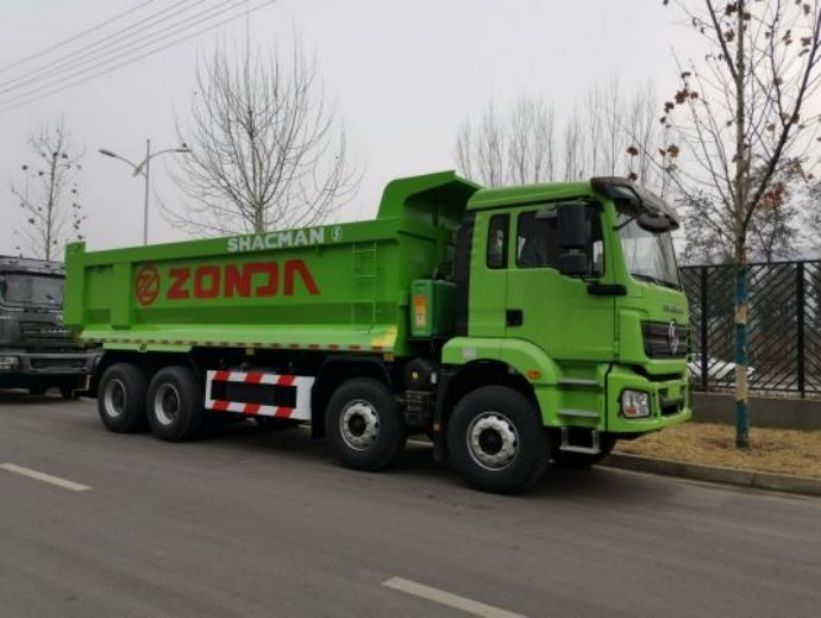

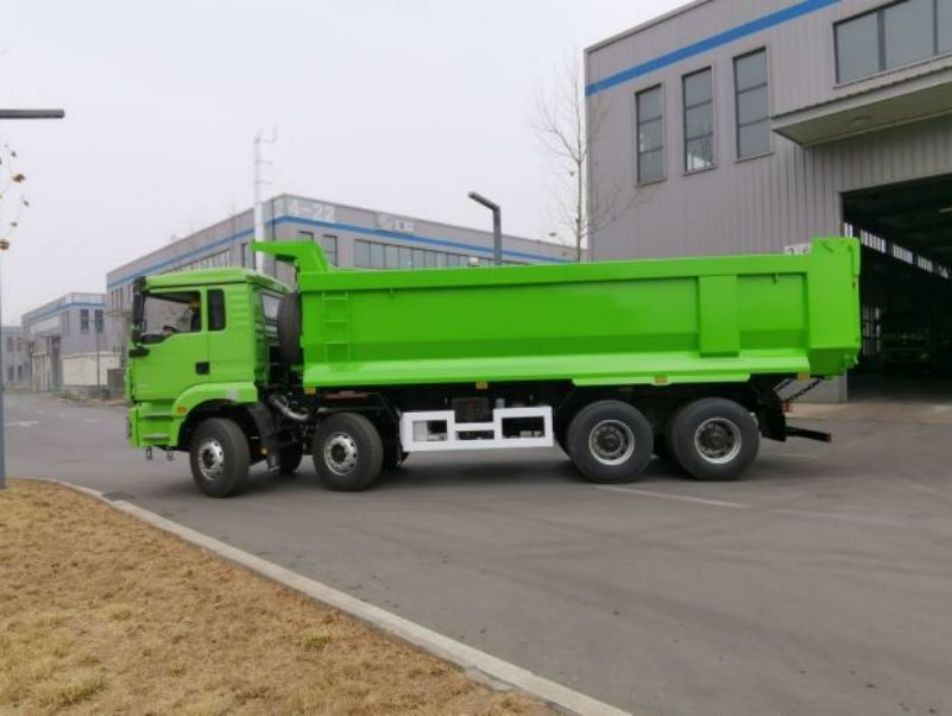

SHACMAN H3000 Tipper Truck 8x4 380 EuroII Green 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
