X5000 Tractor Head Truck 6x4 430HP EuroV Red SHACMAN Tractor

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: X5000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX42584V324 Engine: WP12.430E50
Product Name: Tractor Truck Head Transmission: 12JSD200T-B
Axle: 7.5T/2*13 Double Stage Axle, Axle Speed-4.769 Wheel Base: 3175+1400mm
Tire: 12.00R20 (10+1) Fuel Tank: 400L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Chassis: 850×300(8+5) Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts
Cabin: Extended High Roof Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

X5000 Tractor Head Truck

,

Tractor Head Truck 6x4 430HP

,

Red SHACMAN Tractor


Product Description

SHACMAN X5000 Tractor Truck 6x4 430HP EuroV Red



Detailed Product Description
Model: SX42584V324

Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.430E50
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B



Tractor Truck Parameters

Model SX42584V324
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3175+1400
Performance Maximum speed/(km/h) 45~60/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.430E50
Power/(kw/HP) 316kw / 430Hp
Maximum torque / (N.M)/rpm 2060 N·M
Displacement/(L) 11.596 L
Emission standard Euro V
Gear box Brand FAST
Model 12JSD200T-B
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Multi-layered leaf springs with 2 Main springs+2 U Bolts
Rear Multi-layered leaf springs with 2 Main springs+2 U Bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN X5000 Extended High Roof cab
Equipment Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo.


Tractor Truck Advantages

  • 6x4 X5000 tractor trucks versatility makes it can be used in various industries, including logistics, construction, mining and agriculture.Its powerful engine, towing capacity and durability make it suitable for a wide range of applications, to meet the needs of different transport.
  •

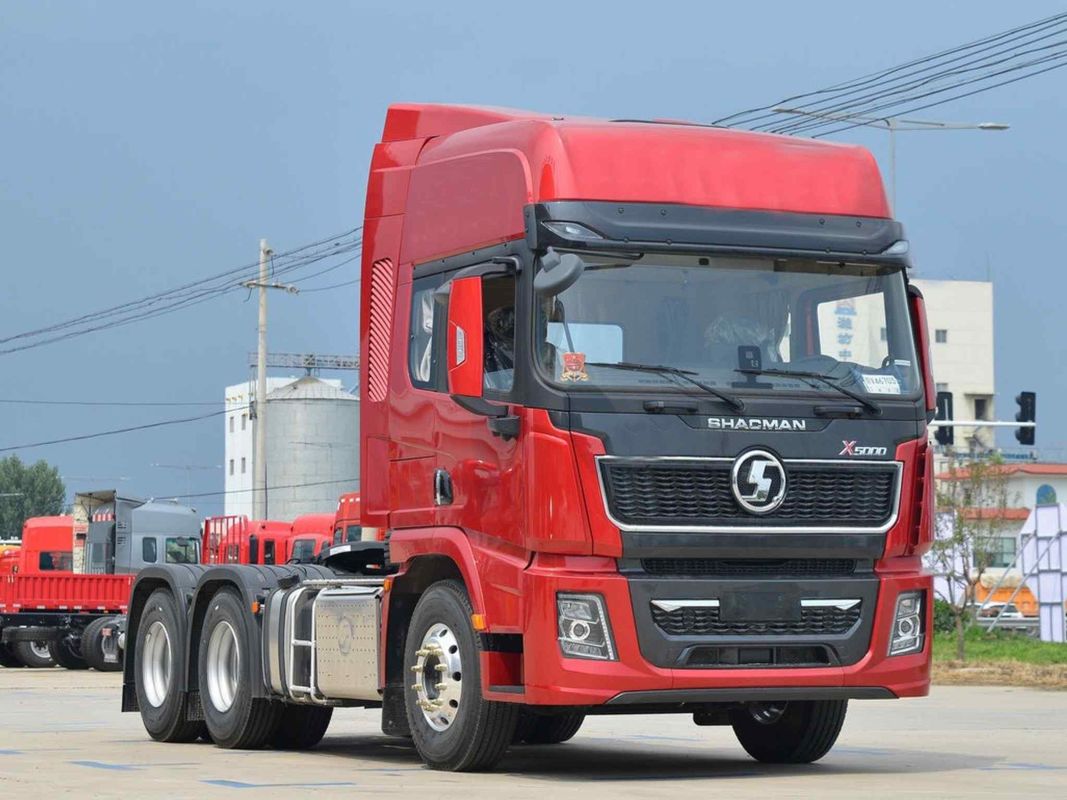

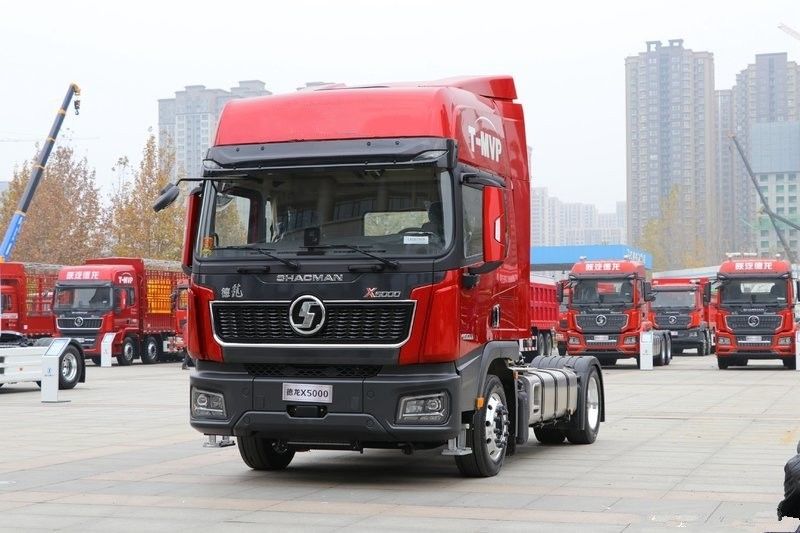

Truck Detailed Image

SHACMAN X5000 Tractor Truck 6x4 480HP EuroV Red 0
