Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO9001/CCC |
Model Number: | X3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Product Name: | X3000 6x4 Tractor Truck | Modle: | SX42584Y324 |
---|---|---|---|
Engine: | WP12.480E50 | Transmission: | 12JSD200T-B |
Axle: | 7.5T/2*13 Double Stage Axle, Axle Speed-4.769 | Wheel Base: | 3175+1400mm |
Tire: | 12.00R20 (10+1) | Fuel Tank: | 400L |
Clutch: | φ430 Diaphragm Spring Clutch | Air Inlet: | Ordinary Air Filter |
Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Extended High Roof |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
Highlight: | SHACMAN X3000 6x4 Tractor Truck,480HP 6x4 Tractor Truck EuroV,White Truck Tractor Head EuroV |
SHACMAN X3000 6x4 Tractor Truck 480HP EuroV White
Detailed Product Description
Model: SX42584Y324
Drive type: 6x4
Engine Brand: WEICHAI
Engine Model: WP13.480E501
Engine Power/(kw/HP): 316kw / 480Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
Model | SX42584Y324 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3175+1400 |
Performance | Maximum speed/(km/h) | 45~60/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP13.480E501 | |
Power/(kw/HP) | 316kw / 480Hp | |
Maximum torque / (N.M)/rpm | 2010 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro V | |
Gear box | Brand | FAST |
Model | 12JSD200T-B | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN X3000 Extended High Roof Cab |
Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
Tractor Truck Advantages

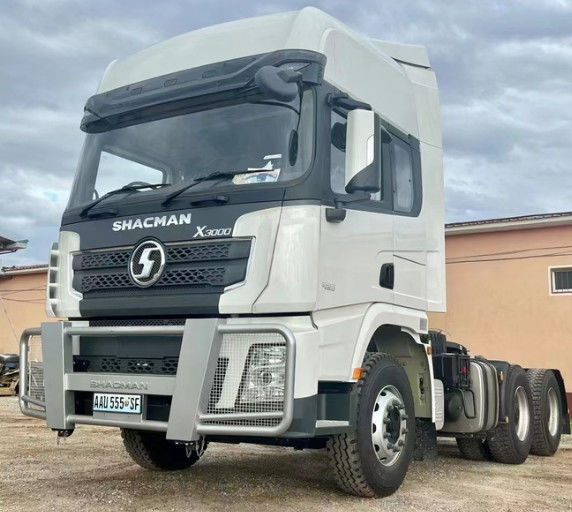

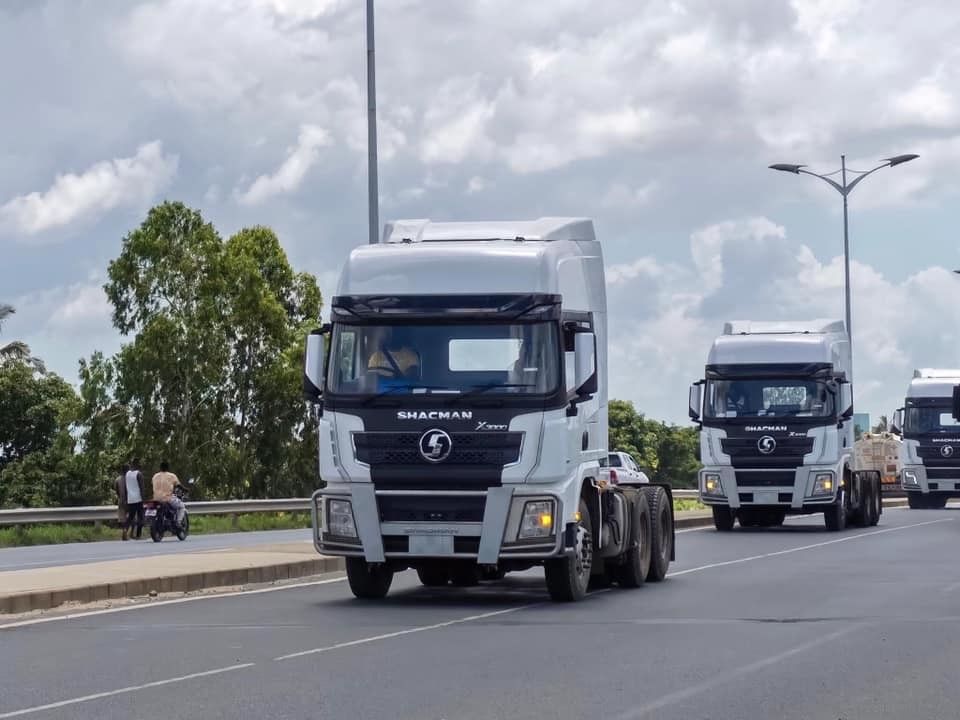

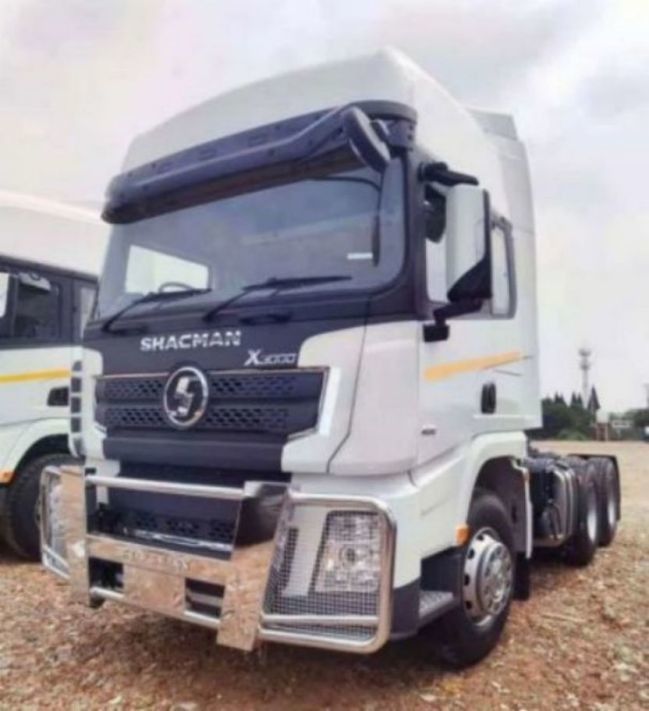

Truck Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
