400L SHACMAN X3000 Truck Tractor Head 430HP EuroII White 6x4 Tractor Head

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: X3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Product Name: Tractor Truck Head Modle: SX42555V324
Engine: WP12.430E201 Transmission: 12JSD200T-B
Axle: 7.5T/2*13 Double Stage Axle, Axle Speed-4.769 Wheel Base: 3175+1400mm
Tire: 12.00R20 Fuel Tank: 400L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts Cabin: Extended Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

SHACMAN X3000 Truck Tractor Head

,

Truck Tractor Head 430HP

,

EuroII White 6x4 Tractor Head


Product Description

SHACMAN X3000 6x4 Tractor Truck 430HP EuroII White



Detailed Product Description
Model: SX42555V324

Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.430E201
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B



Tractor Truck Parameters

Model SX42555V324
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3175+1400
Performance Maximum speed/(km/h) 45~60/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.430E201
Power/(kw/HP) 316kw / 430Hp
Maximum torque / (N.M)/rpm 2000 N·M
Displacement/(L) 11.596 L
Emission standard Euro II
Gear box Brand FAST
Model 12JSD200T-B
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Multi-layered leaf springs with 2 Main springs+2 U Bolts
Rear Multi-layered leaf springs with 2 Main springs+2 U Bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN X3000 extended flat roof cab
Equipment Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo.


Tractor Truck Advantages

  • The Euro II emission standard indicates compliance with the European emission regulations. While Euro II emission standards are not as stringent as later versions, the engine is designed to meet the applicable emission limits for nitrogen oxides (NOx), particulate matter (PM), and other pollutants.
  •

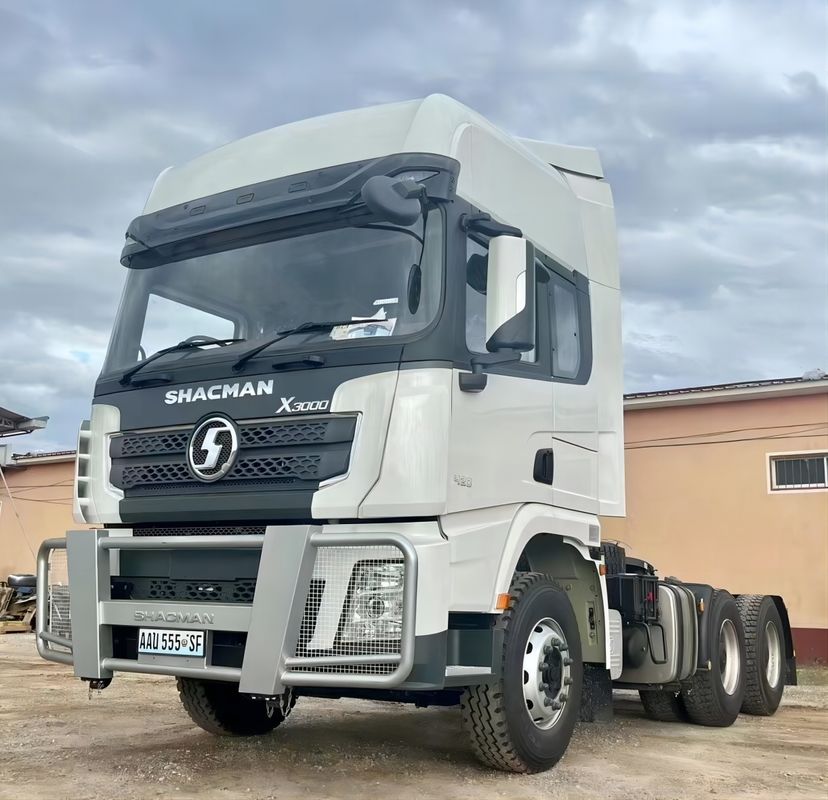

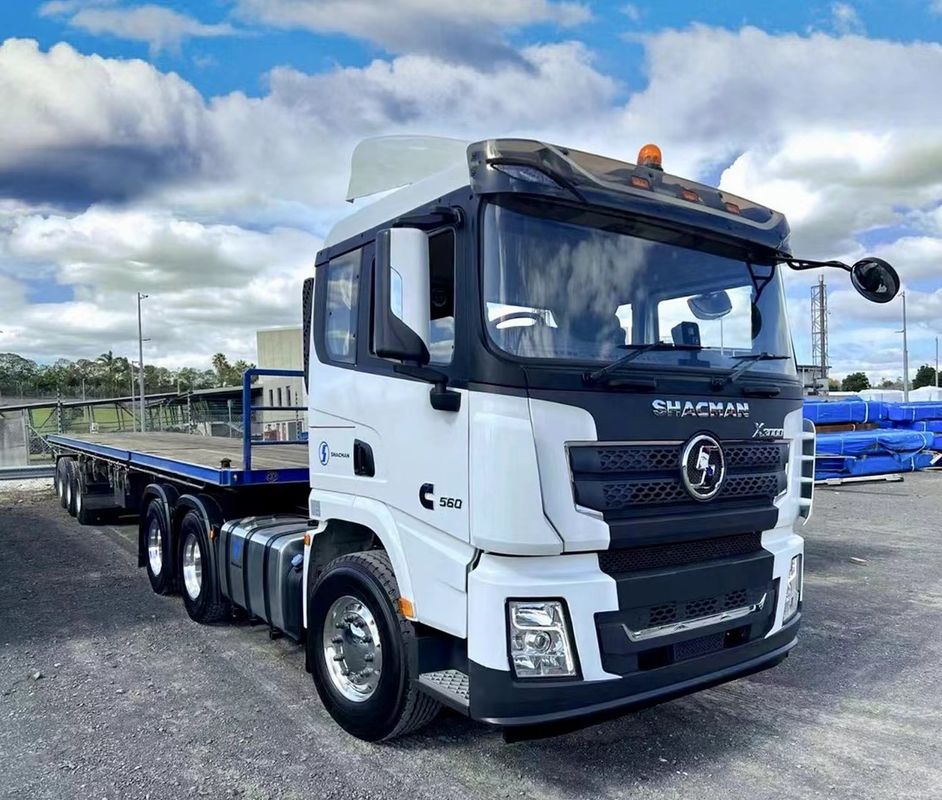

Truck Detailed Image

400L SHACMAN X3000 Truck Tractor Head 430HP EuroII White 6x4 Tractor Head 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
