| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO9001/CCC |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/month |
| Modle: | SX4258DX324 | Engine: | WP12.460E50 |
|---|---|---|---|
| Transmission: | 12JSD200T-B | Axle: | 7.5T/2*13 Double Stage Axle， Axle Speed-4.769 |
| Wheel Base: | 3175+1400 Mm | Tire: | 12.00R20 (10+1) |
| Fuel Tank: | 400L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 850×300（8+5） |
| Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts | Cabin: | Extended High Top |
| Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
| Highlight: | Red SHACMAN F3000 Tractor Head,3000 Tractor Head 6x4,EuroV Shacman Tractor Head |
||

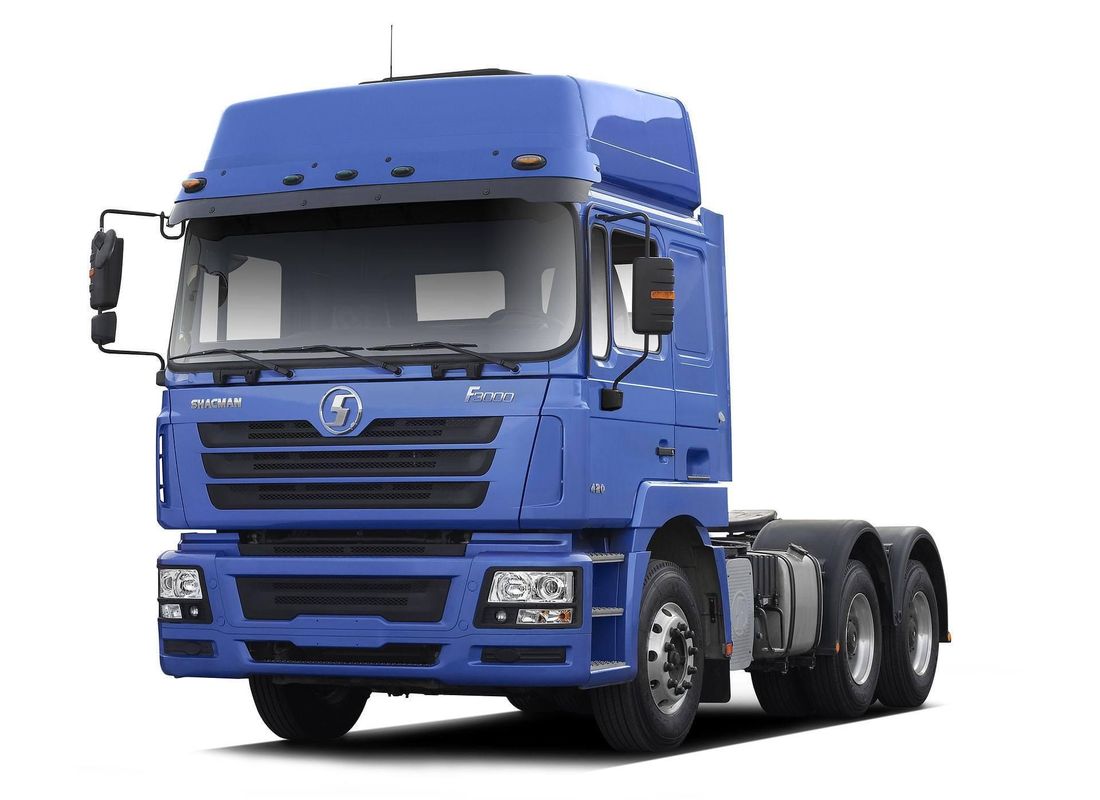

SHACMAN F3000 Tractor Truck 6x4 460 HP EuroV Blue
Detailed Product Description
Model: SX4258DX324
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.460E50
Engine Power/(kw/HP): 338kw / 460Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
| Model | SX4258DX324 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3175+1400 |
| Performance | Maximum speed/(km/h) | 45～60/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.460E50 | |
| Power/(kw/HP) | 338kw / 460Hp | |
| Maximum torque / (N.M)/rpm | 2110 N·M | |
| Displacement/(L) | 12.596 L | |
| Emission standard | Euro V | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
| Rear | Multi-layer plate spring 2 main plates + 2 U-shaped bolts | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 (10+1) |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Extended high top cab |
| Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
Tractor Truck Advantages
Truck Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
