| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO9001/CCC |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 units/month |
| Modle: | SX4258DX324 | Engine: | WP12.460E50 |
|---|---|---|---|
| Transmission: | 12JSD200T-B | Axle: | 7.5T/2*13 Double Stage Axle， Axle Speed-4.769 |
| Wheel Base: | 3175+1400 Mm | Tire: | 12.00R20 (10+1) |
| Fuel Tank: | 400L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 850×300（8+5） |
| Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts | Cabin: | Extended Flat Roof |
| Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
| Highlight: | ISO SHACMAN F3000 Tractor Truck EuroV,Tractor Truck 6x4 460HP EuroV,460HP EuroV Truck Head Tractor |
||
SHACMAN F3000 Tractor Truck 6x4 460 HP EuroV
Detailed Product Description
Model: SX4258DX324
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.460E50
Engine Power/(kw/HP): 338kw / 460Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
| Model | SX4258DX324 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3175+1400 |
| Performance | Maximum speed/(km/h) | 45～60/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.460E50 | |
| Power/(kw/HP) | 338kw / 460Hp | |
| Maximum torque / (N.M)/rpm | 2110 N·M | |
| Displacement/(L) | 12.596 L | |
| Emission standard | Euro V | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layered leaf springs |
| Rear | Multi-layered leaf springs | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 (10+1) |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Extended flat roof cab |
| Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
Tractor Truck Advantages

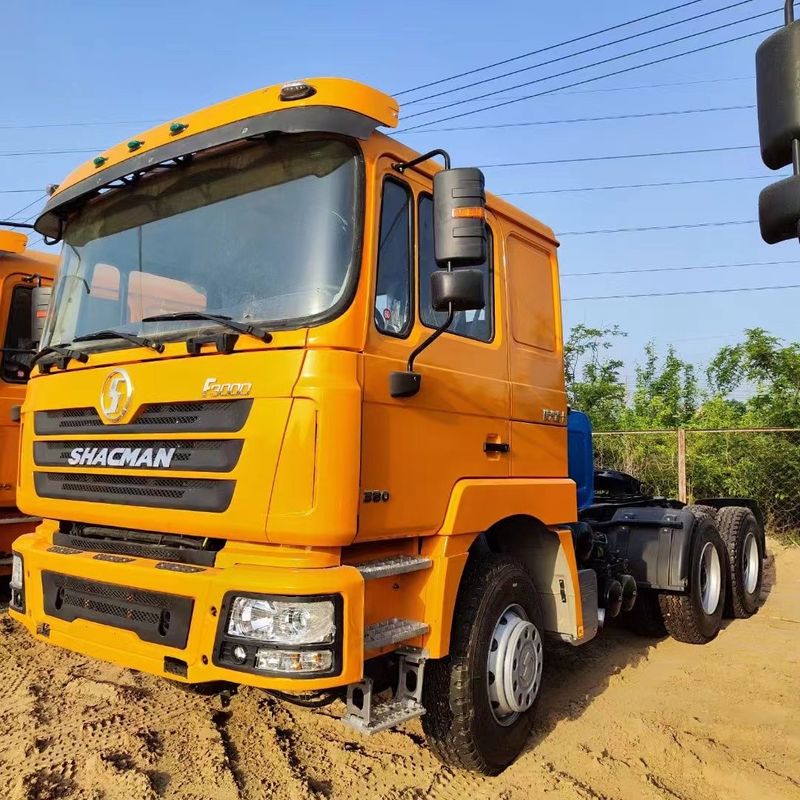

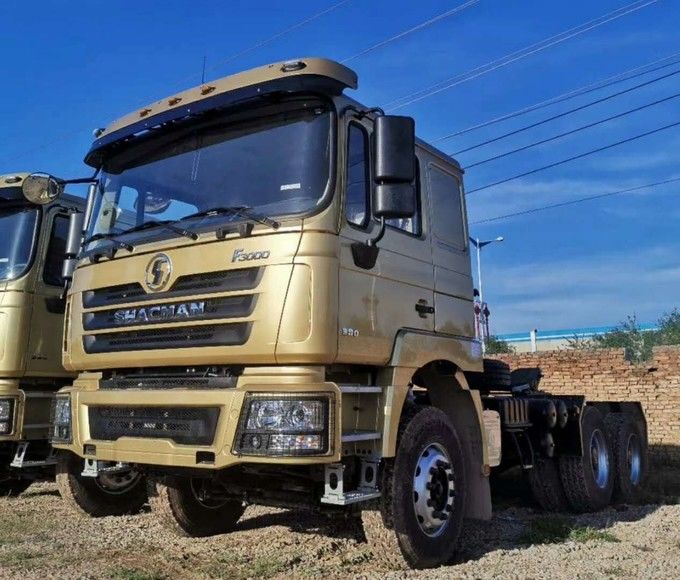

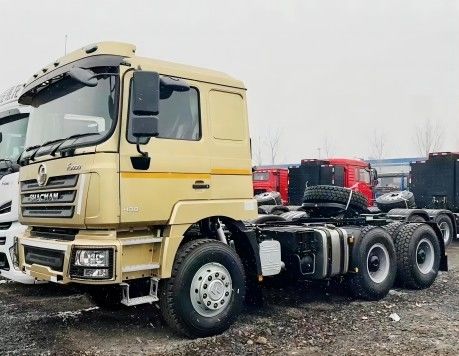

Truck Detailed Image
